Fast automated adjoints for spectral PDE solvers

Calum S. Skene , Keaton J. Burns This is my paper

Pith reviewed 2026-05-19 13:25 UTC · model grok-4.3

classification 🧮 math.NA astro-ph.SRcs.NAphysics.ao-phphysics.flu-dyn
keywords automatic differentiationadjoint methodsspectral methodspartial differential equationsnumerical optimizationinverse problemsgradient computation
0
0 comments X

The pith

Reverse-mode automatic differentiation on symbolic PDE graphs produces efficient adjoint solvers for spectral methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an automated technique that applies reverse-mode automatic differentiation directly to the symbolic graph representation of partial differential equations inside a spectral solver. This constructs adjoint solvers that preserve the speed and memory efficiency of sparse spectral methods for time-dependent and nonlinear systems. A sympathetic reader would care because it removes the need to derive or code adjoints by hand, making gradient-based optimization and sensitivity analysis practical across many equations, geometries, and boundary conditions.

Core claim

Representing the PDE symbolically allows reverse-mode differentiation to build the corresponding adjoint solver automatically, yielding correct gradients for arbitrary user-specified equations and nonlinearities while retaining the performance of spectral discretizations.

What carries the argument

Symbolic graph representation of the PDE, on which reverse-mode differentiation is applied to generate the adjoint solver.

If this is right

  • Gradient computation becomes available for optimization in a wide range of time-dependent nonlinear systems.
  • Users can perform inverse problems and sensitivity analyses without writing additional code for adjoints.
  • The approach extends to many different equations, geometries, and boundary conditions.
  • Parallel execution with MPI remains efficient for large simulations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar symbolic-graph techniques could reduce manual work in other high-level PDE modeling environments.
  • Easier access to gradients might speed up data assimilation and parameter tuning in applied physics models.
  • The method could be tested on problems with moving boundaries or coupled multiphysics systems to check generality.

Load-bearing premise

The symbolic graph must fully and accurately capture every detail of the PDE including nonlinear terms and boundary conditions.

What would settle it

A finite-difference approximation of the gradient for a known nonlinear PDE that disagrees with the gradient produced by the automated adjoint.

Figures

Figures reproduced from arXiv: 2506.14792 by Calum S. Skene, Keaton J. Burns.

Figure 1
Figure 1. Figure 1: Depiction of the adjoint-looping process to perform efficient PDE-based optimization using automatic discrete [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Neutral stability curve for plane Poiseuille flow [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

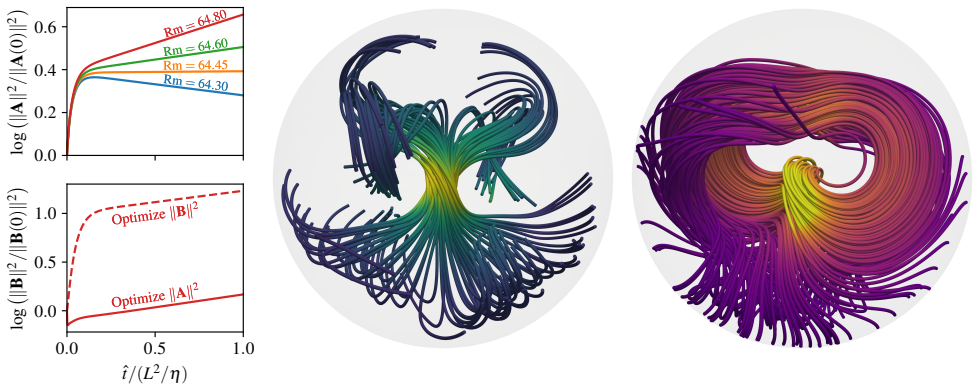

Figure 3. Figure 3: From the time series, we see that for all mag [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 3

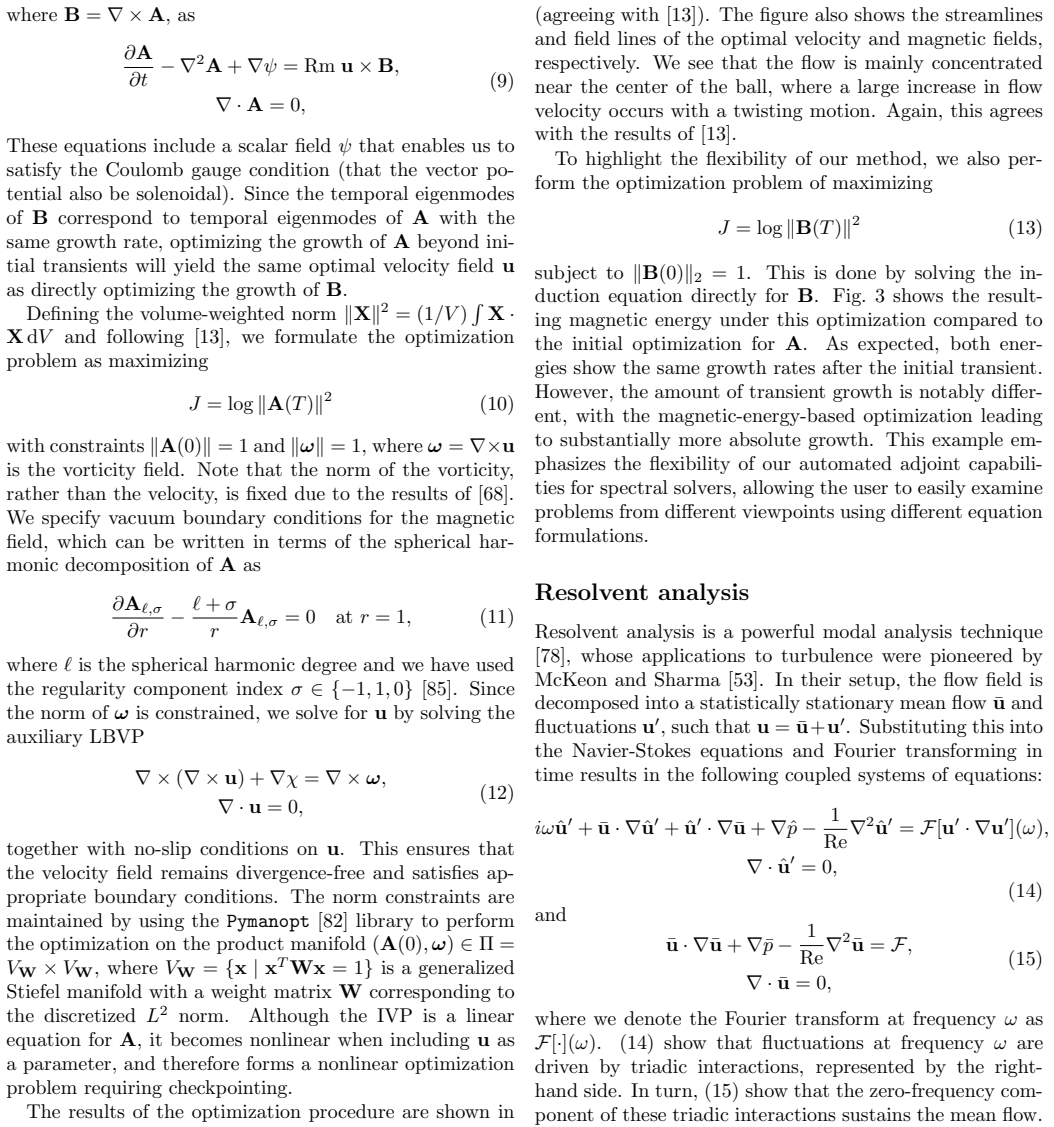

Figure 3. Figure 3: Optimal kinematic dynamo solutions in the ball using nonlinear optimization via adjoint looping. Top [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Resolvent analysis for turbulent pipe flow at Re = [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

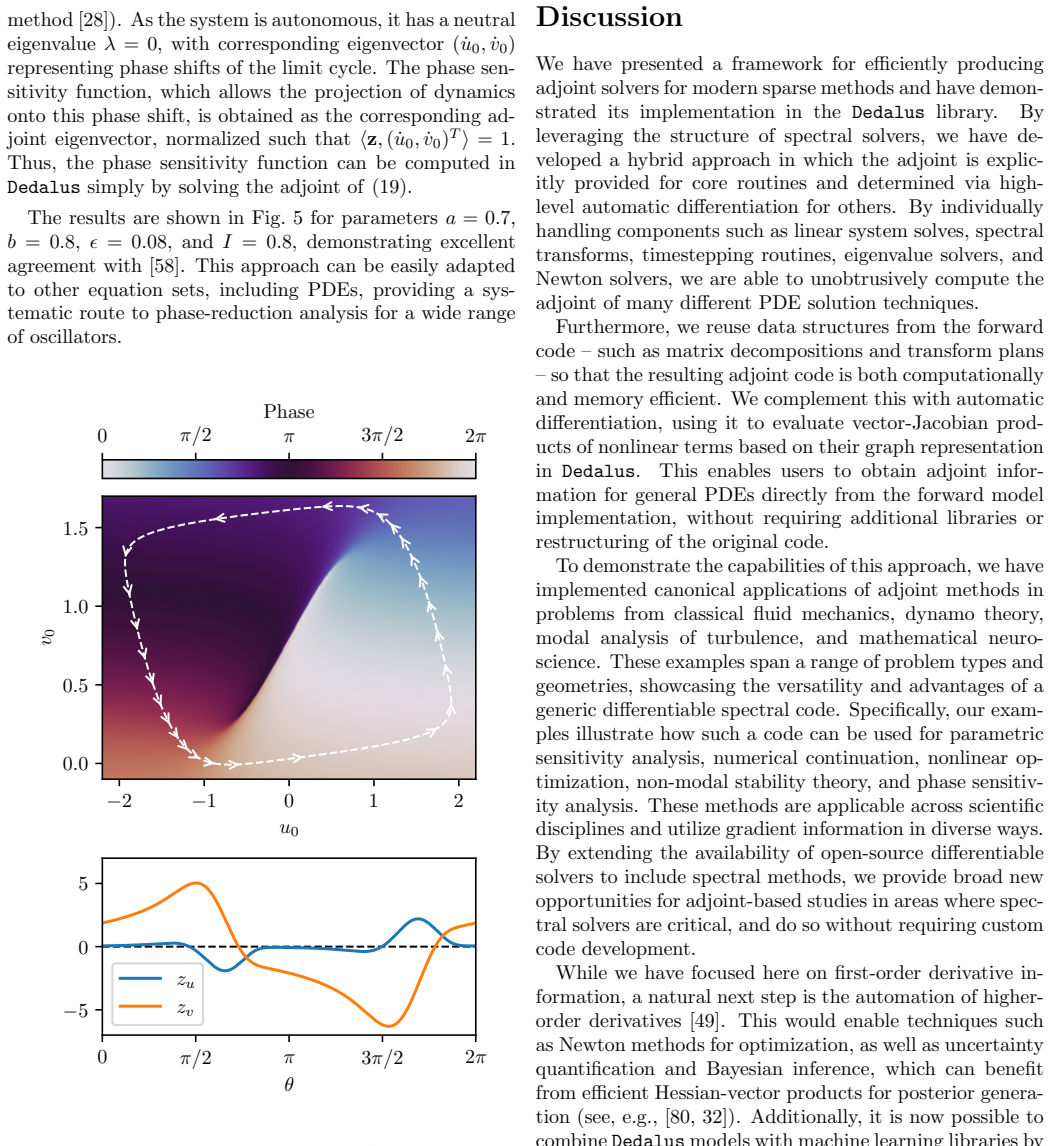

Figure 5. Figure 5: Phase sensitivity analysis of the FitzHugh [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

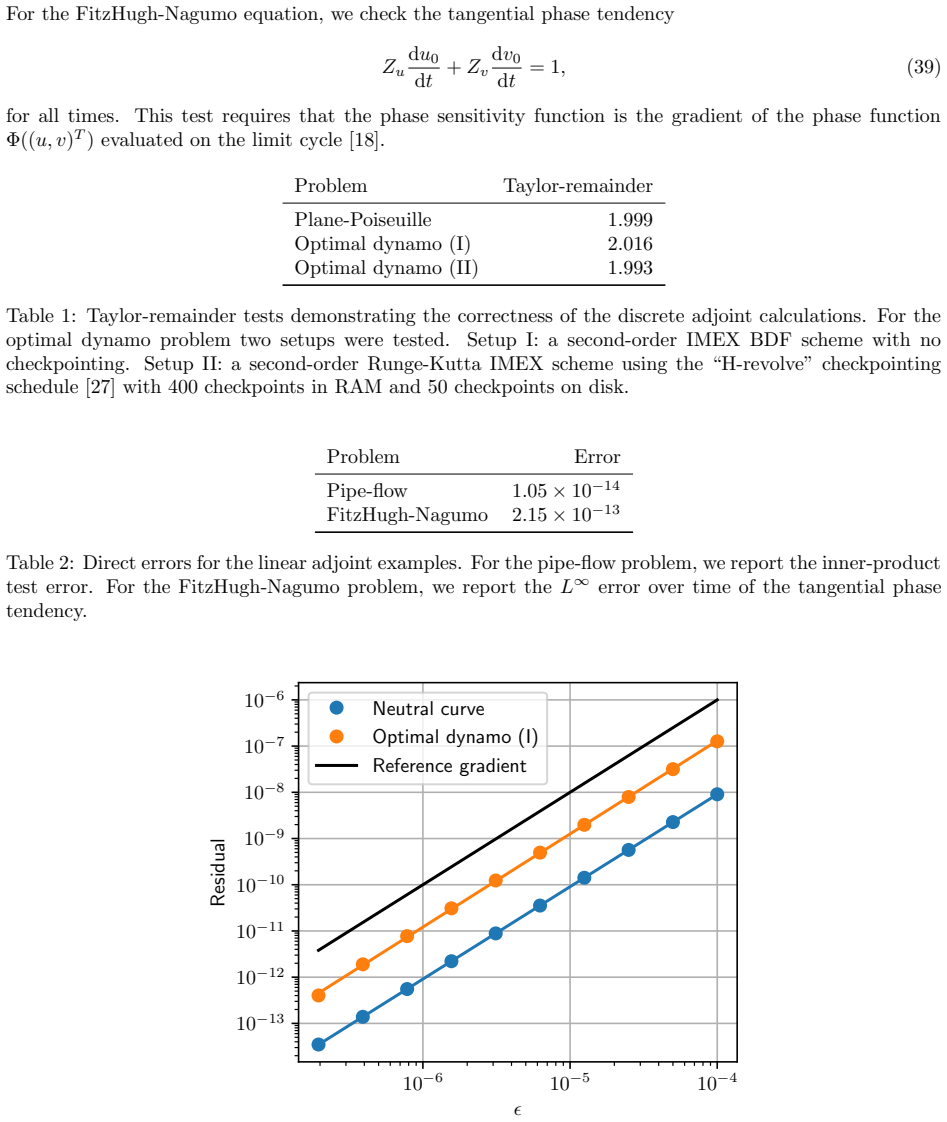

Figure 6. Figure 6: Taylor remainders demonstrating the convergence of finite difference estimates of the adjoint to [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
read the original abstract

We present a general and automated approach for computing model gradients for PDE solvers built on sparse spectral methods, and implement this capability in the widely used open-source Dedalus framework. We apply reverse-mode automatic differentiation to symbolic graph representations of PDEs, efficiently constructing adjoint solvers that retain the speed and memory efficiency of this important class of modern numerical methods. This approach enables users to compute gradients and perform optimization for a wide range of time-dependent and nonlinear systems without writing additional code. The framework supports a broad class of equations, geometries, and boundary conditions, and runs efficiently in parallel using MPI. We demonstrate the flexibility and capabilities of this system using canonical problems from the literature, showing both strong performance and practical utility for a wide variety of inverse problems. By integrating automatic adjoints into a flexible high-level solver, our approach enables researchers to perform gradient-based optimization and sensitivity analyses in spectral simulations with ease and efficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a general automated approach for computing adjoints of PDEs discretized with sparse spectral methods. It applies reverse-mode automatic differentiation directly to the symbolic graph representation of the PDE inside the Dedalus framework, thereby generating adjoint solvers that the authors claim retain the original speed and memory characteristics. The work asserts that this enables gradient-based optimization and sensitivity analysis for arbitrary time-dependent nonlinear systems, geometries, and boundary conditions without users writing additional code, and demonstrates the capability on several canonical problems from the literature while running in parallel via MPI.

Significance. If the central claim is correct, the contribution is significant: it lowers the barrier to inverse problems and optimization in a class of high-performance spectral solvers that are already widely used in fluid dynamics, astrophysics, and related fields. Integration into an established open-source package with existing parallel infrastructure is a practical strength. The emphasis on retaining the efficiency of the underlying sparse spectral discretization distinguishes the work from generic AD wrappers that often incur substantial overhead.

major comments (2)
  1. [§3.2] §3.2 (Symbolic representation of the discrete system): The correctness of the generated adjoints for general boundary conditions and time-dependent problems rests on the assumption that every operation—including BC enforcement, spectral transforms, and time-stepping—is fully encoded inside the differentiable symbolic graph. The manuscript provides no explicit verification, pseudocode, or counter-example test showing that operations occurring outside the graph (e.g., in low-level Cython or MPI layers) are either absent or correctly differentiated. This is load-bearing for the claim that the method works for “arbitrary” BCs and time-dependent systems rather than only the demonstrated canonical cases.
  2. [§5.3] §5.3 (Performance and memory results): The reported wall-clock and memory figures are compared only against forward-mode AD and finite differences. No direct comparison is given to hand-derived adjoints for the same discretizations, which is the relevant baseline for assessing whether the automated approach truly “retains” the efficiency of the original sparse spectral solver. Without this comparison, the efficiency claim cannot be evaluated quantitatively.
minor comments (2)
  1. [Figure 4] Figure 4 caption: the legend labels “forward” and “adjoint” but does not specify whether these timings include the cost of building the symbolic graph or only the subsequent solve; this should be clarified.
  2. [Abstract] The abstract states that the method “runs efficiently in parallel using MPI,” yet no scaling plot or strong-scaling table is referenced in the abstract or introduction; adding a brief pointer would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful review and constructive comments on the manuscript. We address each major comment point by point below, indicating where we agree and what revisions will be incorporated.

read point-by-point responses

  1. Referee: [§3.2] §3.2 (Symbolic representation of the discrete system): The correctness of the generated adjoints for general boundary conditions and time-dependent problems rests on the assumption that every operation—including BC enforcement, spectral transforms, and time-stepping—is fully encoded inside the differentiable symbolic graph. The manuscript provides no explicit verification, pseudocode, or counter-example test showing that operations occurring outside the graph (e.g., in low-level Cython or MPI layers) are either absent or correctly differentiated. This is load-bearing for the claim that the method works for “arbitrary” BCs and time-dependent systems rather than only the demonstrated canonical cases.

    Authors: We agree that explicit documentation of the graph scope would strengthen the presentation. In Dedalus the symbolic graph constructed by the Problem class encodes the full discrete residual, with boundary conditions incorporated through the tau method or lifting within the basis objects, spectral transforms applied as part of operator evaluation, and time-stepping driven by repeated residual evaluations. Low-level Cython kernels realize these symbolic operators directly and introduce no external operations that escape the graph; MPI parallelism acts only on the distributed array layout and does not modify the differentiation path. We will revise §3.2 to include pseudocode of graph construction and differentiation together with a verification test for a time-dependent problem using mixed boundary conditions. revision: yes

  2. Referee: [§5.3] §5.3 (Performance and memory results): The reported wall-clock and memory figures are compared only against forward-mode AD and finite differences. No direct comparison is given to hand-derived adjoints for the same discretizations, which is the relevant baseline for assessing whether the automated approach truly “retains” the efficiency of the original sparse spectral solver. Without this comparison, the efficiency claim cannot be evaluated quantitatively.

    Authors: The referee is correct that hand-derived adjoints constitute the most direct efficiency benchmark. For the broad class of arbitrary nonlinear time-dependent systems supported by the framework, however, constructing and maintaining hand-coded adjoints is impractical, which motivates the automated approach. Our results demonstrate that the generated adjoints exhibit the theoretically predicted scaling of reverse-mode differentiation on the same sparse graph: memory usage independent of the number of time steps (under standard checkpointing) and wall-clock cost comparable to a single forward solve. We will expand §5.3 with a discussion of the prohibitive cost of manual adjoint derivation for general problems and reference prior literature on adjoint overhead in spectral methods. revision: partial

Circularity Check

0 steps flagged

No circularity: standard reverse-mode AD applied to pre-existing Dedalus symbolic graph

full rationale

The paper's central contribution is the engineering implementation of reverse-mode automatic differentiation on the symbolic PDE graph already maintained inside Dedalus. This directly yields adjoint solvers by the standard properties of AD; no new mathematical derivation, fitted parameter, or uniqueness theorem is invoked that reduces to the inputs by construction. The approach is self-contained as a software extension of an existing symbolic representation, with no load-bearing self-citations or ansatzes required for the claim that gradients can be obtained without extra user code for supported systems.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The method rests on the assumption that Dedalus's existing symbolic representation of PDE operators is sufficiently complete and differentiable for arbitrary user equations; no new free parameters or invented physical entities are introduced.

axioms (2)
  • domain assumption Reverse-mode automatic differentiation applied to the symbolic graph of a PDE operator produces a correct and efficient adjoint solver.
    This is the central premise that allows the automation claim; it is invoked throughout the description of the approach.
  • domain assumption The sparse spectral discretization and time-stepping in Dedalus can be represented exactly enough in the symbolic graph for differentiation to be valid.
    Required for the method to apply to the full range of supported equations and boundary conditions.
