Design of a Fast Reactive Tuner for 1.3 GHz TESLA cavities at MESA

T0 review · 1 major / 0 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A simulated ferroelectric fast reactive tuner cancels microphonic detuning in a 1.3 GHz TESLA cavity and cuts the required forward RF power from 3150 W to 267 W.

desk verdict Useful simulation-based design for an FE-FRT on a 1.3 GHz TESLA cavity; the power-reduction factor holds only if the vendor ferroelectric loss data hold, and the text has a kW/W typo. read the letter →

arxiv 2506.20840 v1 pith:HWRP4S6C submitted 2025-06-25 physics.acc-ph

Ricardo Monroy-Villa , Ilan Ben-Zvi , Florian Hug , Timo Stengler This is my paper · ORCID
classification physics.acc-ph
keywords ferroelectricfastreactivetunermicrophonicssuperconductingRFcavitiesTESLAcavityMESApowerpermittivitytuning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to show that a tuner built around a voltage-controlled ferroelectric capacitor can cancel the microphonic frequency wobble that forces high amplifier power in superconducting cavities. For the 1.3 GHz TESLA-type cavities planned for MESA, the design achieves a simulated tuning range of 50 Hz with tuner quality factors near $10^8$, at a response speed far beyond piezoelectric tuners. With the tuner in place, the forward RF power needed to hold the cavity voltage drops from 3150 W to 267 W, a factor of about 12. The value of the claim, if it holds, is that microphonics no longer have to be fought with brute-force coupling and oversized RF amplifiers.

What carries the argument

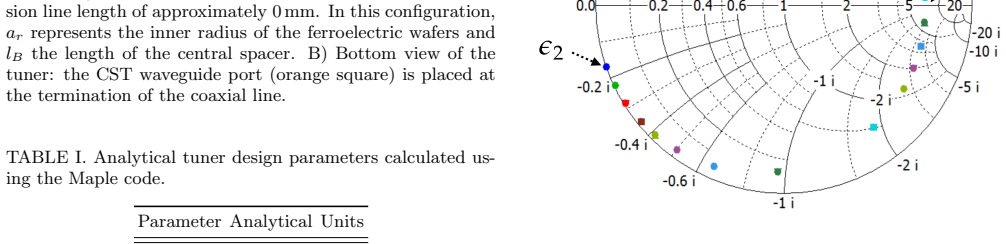

The mechanism is the ferroelectric capacitor's voltage-dependent permittivity: applying up to 8 MV/m across a BaTiO$_3$/SrTiO$_3$-Mg ceramic changes its relative permittivity from about 129.6 to 96.4, which changes the reactance of a quarter-wave resonator that the tuner presents to the cavity. Two conditions carry the design: the resonator's inner conductor length is adjusted so that the imaginary parts of the port impedance at the two permittivity states satisfy $X_1=-X_2$, making the tuning range symmetric around the cavity's resonant frequency, and the figure of merit $\mathrm{FoM}=(\Delta f/f_0)\,\overline{Q_{\mathrm{FRT}}}$ is used to choose the wafer geometry. The material's intrinsic figure of merit, $\mathrm{FoM}_{\mathrm{FE}}=(\epsilon_2-\epsilon_1)/(2\delta\epsilon_c)$ with $\epsilon_c\approx\sqrt{\epsilon_1\epsilon_2}$, sets the ceiling on the tuner's performance. The same circuit also carries a series coupling capacitor formed by a sapphire vacuum window, and the tuner's external coupling is set by the depth of the inner-conductor tip into the cavity port.

What would settle it

Measure the assembled tuner's scattering parameters on a 1.3 GHz cavity while stepping the ferroelectric bias from 0 to 8 MV/m at the operating temperature: the resonance should move by about 50 Hz and the loaded quality factor at the biased state should correspond to $Q_{\mathrm{FRT},1}\approx2.7\times10^8$. If the frequency shift is less than 50 Hz or the loaded $Q$ is significantly lower, the 267 W forward-power claim does not hold.

Watch

Extended reading notes

Core claim

The central claim is that a Ferroelectric Fast Reactive Tuner (FE-FRT), built as a two-wafer annulus-shaped ferroelectric capacitor in a quarter-wave resonator coupled to the cavity, provides enough reactive detuning to compensate the measured $\pm 25$ Hz microphonics. In finite-element simulations of a 1.3 GHz nine-cell TESLA cavity, the tuner shifts the cavity frequency by 50.02 Hz (104.01 Hz in the conservative design), with tuner quality factors $Q_{\mathrm{FRT},1}=2.67\times 10^8$ and $Q_{\mathrm{FRT},2}=1.17\times 10^9$ at the two bias states and a figure of merit $\mathrm{FoM}\approx44$. The analytic lumped-element model and the simulations agree on the capacitance values, resonance frequency, and tuning range. Because the power amplifier must be sized to the lowest tuner quality factor, the forward RF power required with the tuner is 267 W rather than 3150 W without it, for a stored energy of 15.3 J and a cavity voltage of 12.97 MV.

Load-bearing premise

The central assumption is that the ferroelectric ceramic's microwave loss tangent stays at $2.39\times10^{-3}$, its permittivity swing stays in the 129.6-to-96.4 range up to 8 MV/m, and its breakdown stays at 20 MV/m at 1.3 GHz and around 50 °C in the assembled tuner, and that these values are not degraded by assembly, radiation, or repeated bias cycling; if the real loss tangent is larger, the tuner's quality factor drops and the 267 W power estimate rises.

Editorial extensions

If this is right

  • If the simulated performance is realized, MESA can operate its 1.3 GHz cavities with a forward RF power of about 267 W instead of 3150 W, reducing the RF amplifier size and wall-plug consumption.
  • The sub-microsecond response of the ferroelectric covers the spectral range of microphonics, where mechanical piezoelectric tuners are too slow, so the cavity voltage can be held at all detuning values rather than only correcting slow drifts.
  • The same design procedure, with the inner-conductor length and $Q_e$ adjusted, gives tuning ranges from 10 Hz to 100 Hz, so the approach transfers to other 1.3 GHz nine-cell cavities with different microphonics budgets.
  • Because the amplifier must be sized to the lowest $Q_{\mathrm{FRT}}$, the biased state (state 1) sets the power ceiling; the paper computes this explicitly and the design maintains the cavity voltage across the whole detuning range.
  • The close agreement between the analytic lumped-element model and the finite-element simulation supports scaling the design to other frequencies and cavity stored energies with the same optimization procedure.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The assumed loss tangent of $2.39\times10^{-3}$ at 1.3 GHz and around 50 °C is the quiet linchpin: if the installed ferroelectric wafers lose more heat than modeled, the tuner quality factors fall and the 267 W number moves upward before any mechanical failure is reached.
  • A direct experimental check would be to bench-test the assembled tuner on a 1.3 GHz cavity and measure the resonance shift between 0 and 8 MV/m bias; the paper's $X_1=-X_2$ symmetry condition predicts the shift is centered on $f_0$, so an asymmetric shift would indicate the real permittivity-versus-field curve differs from the assumed endpoints.
  • The design study treats beam loading as negligible; extending the same reactive-tuner concept to high-current energy-recovery operation would require adding beam-induced detuning and the amplifier's response to the optimization, where the $\pm 25$ Hz microphonics budget may not dominate.
