Resilience Through Escalation: A Graph-Based PACE Architecture for Satellite Threat Response

Anouar Boumeftah , Sarah McKenzie-Picot , Peter Klimas , Gunes Karabulut Kurt This is my paper

Pith reviewed 2026-05-19 07:12 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords satellite resiliencePACE methodologythreat responsestate transitionresilience indexfallback mechanismsspace system securityadaptive architecture
0
0 comments X

The pith

Adapting PACE escalation to satellites creates adaptive fallbacks that improve survival against jamming and cyberattacks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that a resilience framework based on PACE states can be applied to satellite systems to handle dynamic threats more effectively than traditional redundancy. It does this by creating a layered model for transitioning between operational modes according to threat levels and by evaluating different implementation variants using a resilience index. If the results hold, satellite operations could continue with minimal interruption during attacks or disruptions. This matters because space systems provide critical services that benefit from sustained availability in challenging conditions.

Core claim

The central claim is that implementing a PACE-based architecture with variants including static, adaptive, and epsilon-greedy optimized modes, supported by a dynamic resilience index, demonstrates that lightweight decision-aware fallback mechanisms substantially improve survivability and operational continuity for satellite systems in contested environments.

What carries the argument

The layered state-transition model that manages escalation through primary, alternate, contingency, and emergency modes guided by threat assessments.

If this is right

  • Decision-aware mechanisms enable satellites to switch modes dynamically and sustain key functions longer than with fixed redundancy.
  • The resilience index offers a metric to assess and compare the effectiveness of various threat response strategies.
  • Variants like adaptive and optimized PACE can be tuned for different threat scenarios to maximize continuity.
  • Next-generation space assets gain operational robustness without requiring heavy additional resources.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar escalation structures could be explored for other complex systems that require rapid adaptation to threats, such as autonomous vehicle networks.
  • Further development might involve integrating real-time data feeds to refine the state transitions beyond the current model.
  • Testing the architecture in high-fidelity orbital simulations would provide additional validation of the survivability gains.

Load-bearing premise

The PACE methodology from tactical communications can be effectively transferred to satellite systems using a state-transition model informed by threat evaluation techniques.

What would settle it

Running simulations of the PACE variants against standard redundancy under identical disruption scenarios and finding no significant difference in the measured resilience index or operational uptime would falsify the main result.

Figures

Figures reproduced from arXiv: 2506.20882 by Anouar Boumeftah, Gunes Karabulut Kurt, Peter Klimas, Sarah McKenzie-Picot.

Figure 1
Figure 1. Figure 1: System-level block diagram of a representative satellite architecture. Each large block denotes a major subsystem. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

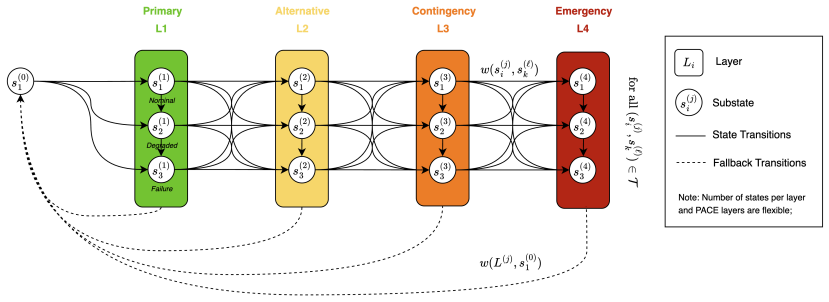

Figure 2. Figure 2: PACE Graph-Based Representation Diagram 1) State Definition and Layering: Each layer Li con￾tains a fixed number of states s (j) i , representing degrees of operational viability. Transitions may occur within a layer (horizontal transitions) or across layers (vertical transitions). The following rules apply: horizontal transitions handle degra￾dation or recovery within the same layer; vertical transitions … view at source ↗
Figure 3

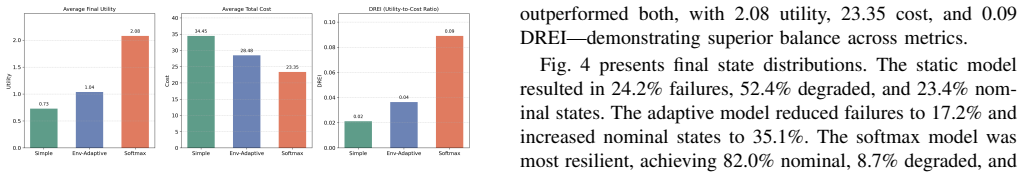

Figure 3. Figure 3: Average final utility (left), total cumulative cost [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

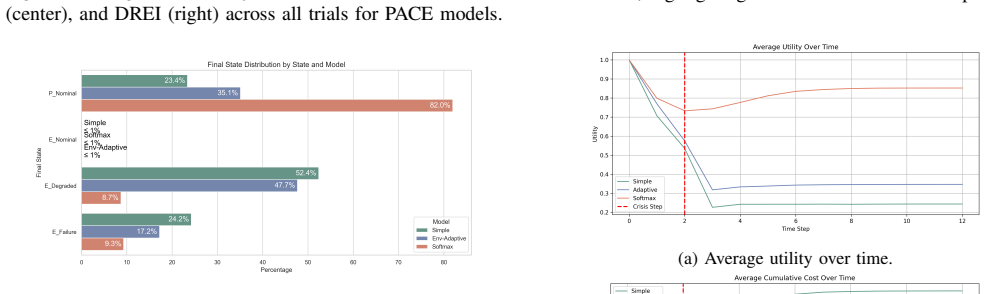

Figure 4. Figure 4: Final state distributions showing the proportion of runs [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

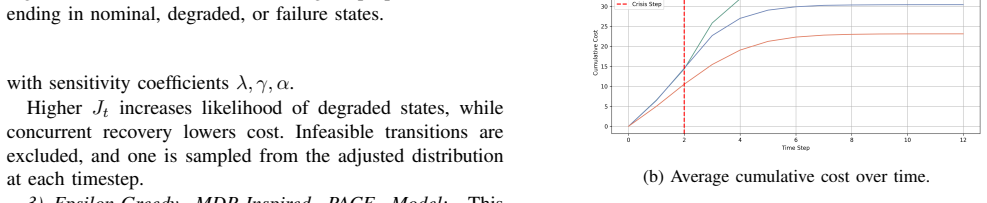

Figure 5. Figure 5: Temporal evolution of utility and cost. The red dashed [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Total cost distribution (left) and cumulative distribution [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
read the original abstract

Modern satellite systems face increasing operational risks from jamming, cyberattacks, and electromagnetic disruptions in contested space environments. Traditional redundancy strategies often fall short against such dynamic and multi-vector threats. This paper introduces a resilience-by-design framework grounded in the PACE methodology, which stands for Primary, Alternate, Contingency, and Emergency, originally developed for tactical communications in military operations. It adapts this framework to satellite systems through a layered state-transition model informed by threat scoring frameworks such as CVSS, DREAD, and NASA's risk matrix. We define a dynamic resilience index to quantify system adaptability and implement three PACE variants including static, adaptive, and epsilon-greedy reward-optimized to evaluate resilience under diverse disruption scenarios. Results show that lightweight, decision-aware fallback mechanisms can substantially improve survivability and operational continuity for next-generation space assets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper introduces a resilience-by-design framework for satellite systems using the PACE methodology adapted from military tactical communications. It employs a layered state-transition model informed by threat scoring frameworks such as CVSS, DREAD, and NASA's risk matrix. A dynamic resilience index is defined to quantify adaptability, and three PACE variants (static, adaptive, and epsilon-greedy reward-optimized) are evaluated under disruption scenarios, claiming substantial improvements in survivability and operational continuity.

Significance. If the results hold, the framework could provide a structured, lightweight approach to handling dynamic multi-vector threats in space systems, potentially improving survivability for next-generation satellites. The adaptation of an established military methodology offers a practical angle, but without any quantitative validation or implementation details the significance cannot be confirmed.

major comments (3)
  1. Abstract: the claim that the three PACE variants 'substantially improve survivability and operational continuity' is presented without any equations, simulation parameters, data, error bars, or validation details, so the central empirical result cannot be checked.
  2. Abstract: the dynamic resilience index is introduced to quantify adaptability but is never defined or derived; it is therefore impossible to determine whether performance differences among the static, adaptive, and epsilon-greedy variants are genuine or artifacts of the index construction.
  3. Abstract: the layered state-transition model and its integration with CVSS/DREAD/NASA risk matrices are described only at the conceptual level; no transition rules, threat-scoring mapping, or graph structure (mentioned in the title) are supplied, leaving the adaptation of PACE to satellites unverifiable.
minor comments (1)
  1. The title refers to a 'Graph-Based PACE Architecture' but the abstract contains no mention of graph elements, nodes, edges, or any graph-theoretic analysis.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments correctly identify that the abstract summarizes contributions at a high level, which can make key technical elements and empirical claims difficult to verify without consulting the full text. We address each major comment below and indicate where revisions will strengthen the presentation.

read point-by-point responses

  1. Referee: Abstract: the claim that the three PACE variants 'substantially improve survivability and operational continuity' is presented without any equations, simulation parameters, data, error bars, or validation details, so the central empirical result cannot be checked.

    Authors: We agree that the abstract states the outcome at a summary level without quantitative specifics. The manuscript contains the underlying simulation parameters, graph construction, and comparative results across disruption scenarios. In revision we will augment the abstract with a concise statement of the key performance differentials and validation approach so the central claim can be assessed directly from the abstract. revision: yes

  2. Referee: Abstract: the dynamic resilience index is introduced to quantify adaptability but is never defined or derived; it is therefore impossible to determine whether performance differences among the static, adaptive, and epsilon-greedy variants are genuine or artifacts of the index construction.

    Authors: The index is derived in the manuscript from the state-transition probabilities and threat-weighted impacts within the PACE layers. We acknowledge that the abstract does not supply the definition or derivation. We will add a brief, self-contained description of the index and its construction to the revised abstract, allowing readers to see why the adaptive and epsilon-greedy variants produce measurable differences. revision: yes

  3. Referee: Abstract: the layered state-transition model and its integration with CVSS/DREAD/NASA risk matrices are described only at the conceptual level; no transition rules, threat-scoring mapping, or graph structure (mentioned in the title) are supplied, leaving the adaptation of PACE to satellites unverifiable.

    Authors: The manuscript presents the model as a directed graph whose nodes are operational states and whose transitions are governed by threat scores obtained by mapping CVSS, DREAD, and NASA matrix values onto escalation thresholds. We accept that the abstract remains at the conceptual level and does not include the explicit mapping or transition rules. In the revision we will insert a short description of the graph structure and the threat-to-transition mapping so the satellite-specific adaptation is verifiable from the abstract alone. revision: yes

Circularity Check

0 steps flagged

No circularity identified; abstract-only text provides no derivation chain or equations to inspect

full rationale

The available document consists exclusively of the abstract, which outlines the PACE adaptation, defines a dynamic resilience index at a conceptual level, and reports results from three variants without any equations, state-transition models, fitting procedures, or self-citations. No load-bearing steps can be quoted or shown to reduce to inputs by construction, self-definition, or fitted parameters renamed as predictions. Per the guidelines, honest non-findings are required when no specific reduction is exhibitable; the derivation chain is therefore not inspectable and scores 0 with empty steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the unverified transferability of PACE to space systems and the utility of standard threat scoring tools in this context; no free parameters or invented entities are explicitly quantified in the abstract.

axioms (1)
  • domain assumption PACE methodology can be adapted to satellite threat response via layered state transitions
    Stated in the abstract as the grounding for the framework without further justification.
invented entities (1)
  • dynamic resilience index no independent evidence
    purpose: Quantify system adaptability under disruptions
    Introduced as a new metric but no independent evidence or derivation provided in abstract.
