arxiv: 2507.01751 · v1 · submitted 2025-07-02 · ⚛️ physics.optics

Black hole optical analogue: photon sphere microlasers

Pith reviewed 2026-05-19 06:42 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords black hole analoguephoton spherequasinormal modesoptical microlasersnon-Euclidean microcavities3D printinglight geodesics
0
0 comments X

The pith

3D-printed non-Euclidean microcavities lase at the black hole photon sphere with matching mode profiles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that four-dimensional black hole metrics can be emulated in the laboratory using two-dimensional optical surfaces shaped to preserve lightlike geodesics. It analytically derives optical quasinormal modes that concentrate around the photon sphere, the region of unstable circular light orbits. The central experiment uses 3D printing to create dye-doped microcavities whose lasing modes reproduce the predicted spatial profile. A sympathetic reader cares because this provides a direct tabletop route to phenomena otherwise accessible only through gravitational-wave observations of merging black holes.

Core claim

Genuine four-dimension black hole metrics are emulated by two-dimensional optical curved surfaces that preserve the features of lightlike geodesics. Optical quasinormal modes are computed and shown to be confined around the photon sphere. By 3D-printing non-Euclidean dye-doped microcavities, lasing at the photon sphere is demonstrated with a mode profile that closely matches the analytical prediction.

What carries the argument

Non-Euclidean dye-doped microcavities fabricated by 3D printing, which confine lasing light to orbits analogous to the photon sphere of a black hole.

If this is right

  • Quasinormal-mode ringdown signals can be reproduced and studied in controlled optical experiments.
  • Tabletop optical systems become viable platforms for exploring light propagation in curved spacetime.
  • Photonics device design gains new geometries inspired by black-hole metrics for improved mode confinement.
  • The analogy supports laboratory investigation of phenomena tied to gravitational-wave ringdowns.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar printed structures could be adapted to emulate other black-hole features such as horizons or ergospheres.
  • The approach may connect to existing analogue-gravity platforms in fluids or Bose-Einstein condensates through shared geodesic concepts.
  • Practical photonic sensors or resonators might exploit the same curvature-induced trapping for enhanced light-matter interaction.

Load-bearing premise

Two-dimensional optical curved surfaces preserve the essential features of lightlike geodesics from four-dimensional black hole metrics.

What would settle it

If the measured intensity profile of the lasing mode in the printed cavity does not match the analytically calculated confinement at the photon-sphere radius, the emulation claim would fail.

Figures

Figures reproduced from arXiv: 2507.01751 by Aswathy Sundaresan, Chenni Xu, Clement Lafargue, Dominique Decanini, Li-Gang Wang, Lior Zarfaty, Melanie Lebental, Nazire-Beg\"um Kazkal, Ofek Birnholtz, Patrick Sebbah.

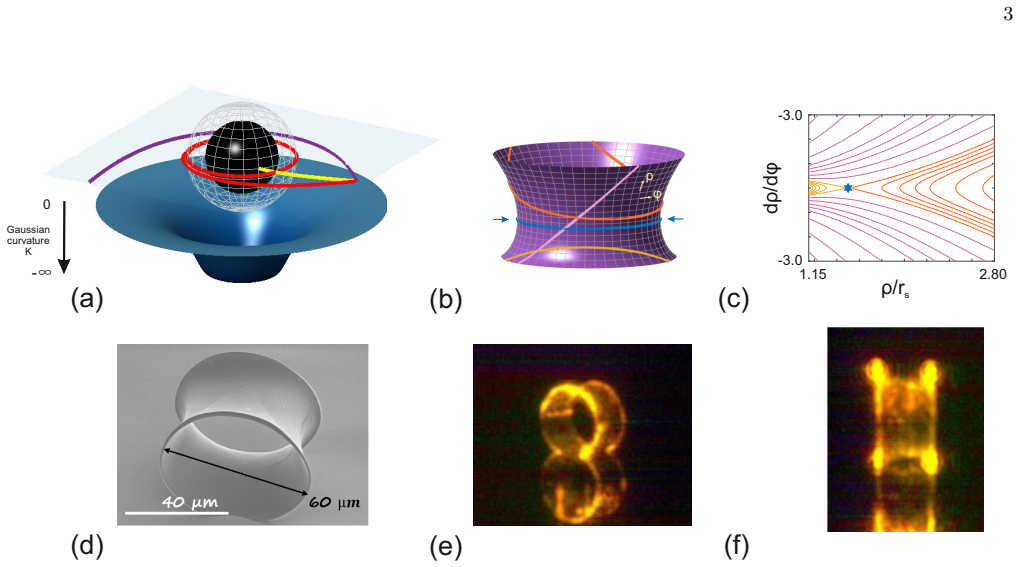

Figure 1
Figure 1. Figure 1: FIG. 1: (a) Artist view of a black hole (black sphere) and its Gaussian curvature [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

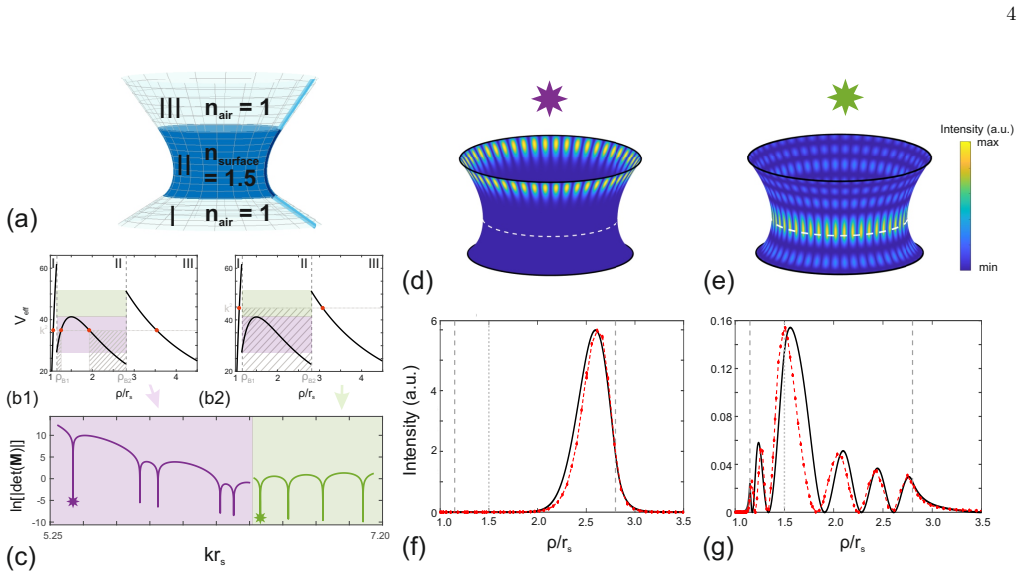

Figure 2
Figure 2. Figure 2: FIG. 2: (a) Sketch of the truncated Schwarzschild surface (region II, dark blue) and its tangent truncated cones (regions I and [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

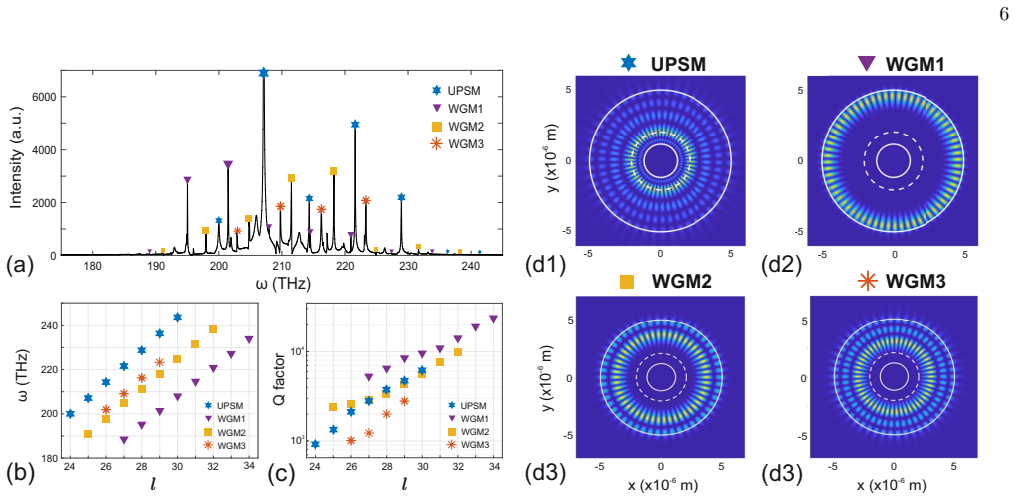

Figure 3. Figure 3: FIG. 3: (a) Numerical spectrum. Four families of quasinormal modes, including the fundamental unstable photon sphere mode [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

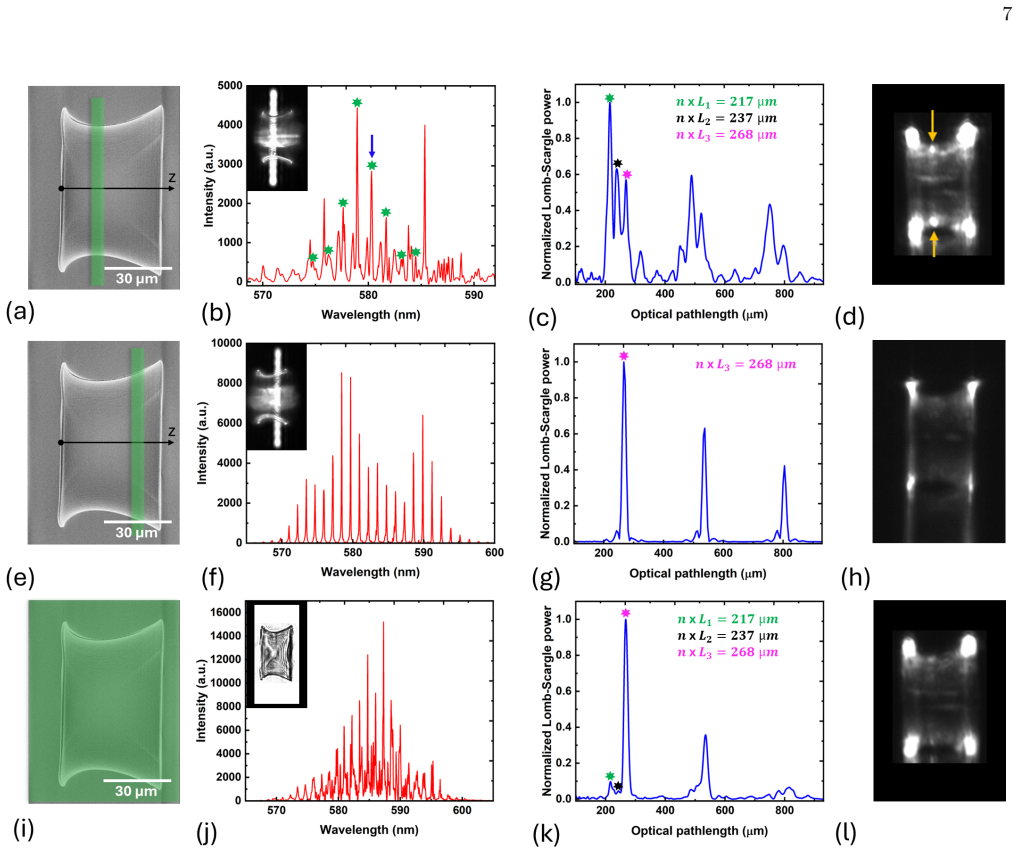

Figure 4
Figure 4. Figure 4: FIG. 4: (a) SEM images of the 3D Schwarzschild black hole microcavity laser resting on a glass plate. The z-axis represents [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

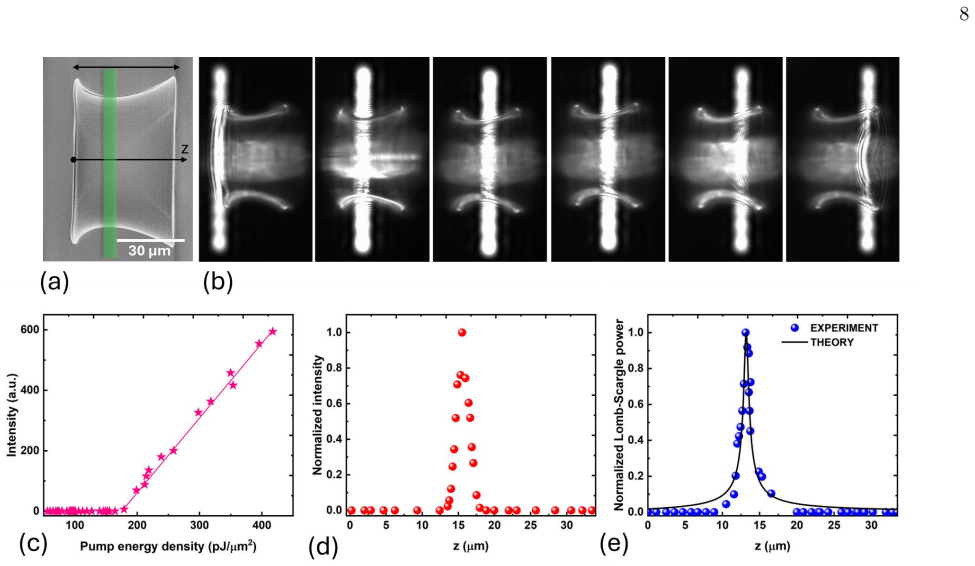

Figure 5
Figure 5. Figure 5: FIG. 5: (a) SEM image of a Schwarzschild microlaser. The rectangular pump stripe is illustrated with the green rectangle. (b) [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

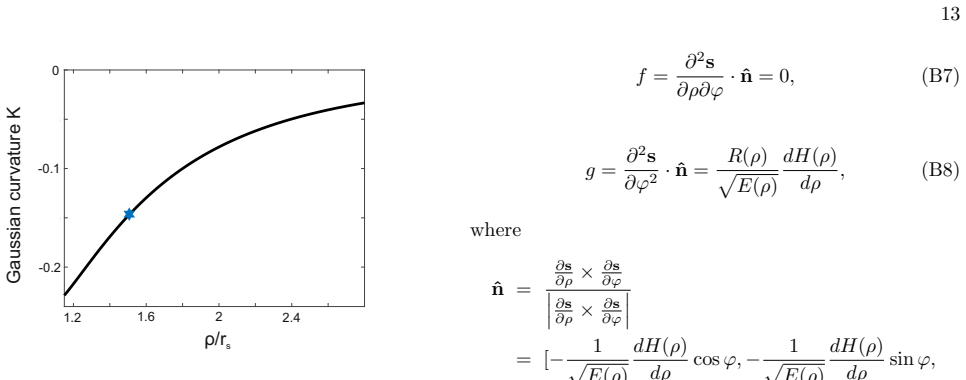

Figure 6
Figure 6. Figure 6: FIG. 6: Gaussian curvature [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗

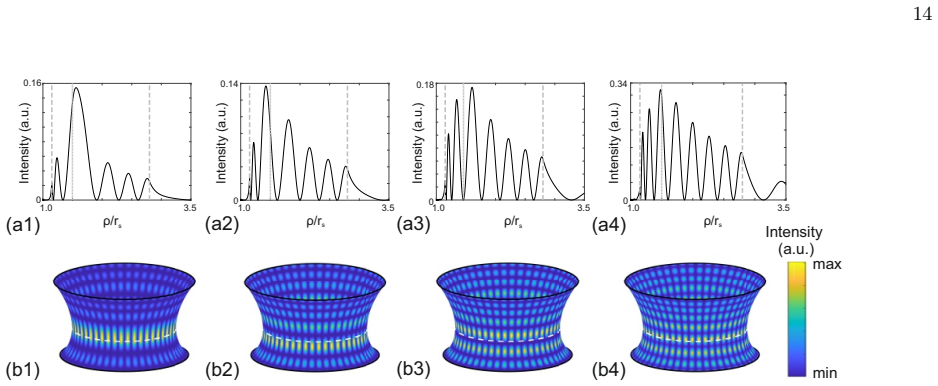

Figure 7
Figure 7. Figure 7: FIG. 7: Different orders of photon sphere modes. (a) Effective potential Schwarzschild surface as shown in the main text, whose [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗

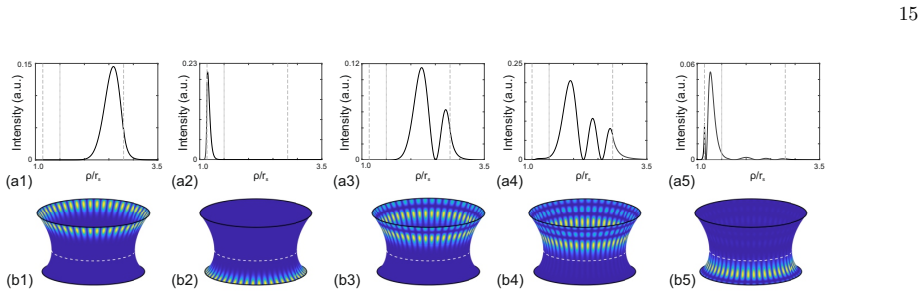

Figure 8
Figure 8. Figure 8: FIG. 8: Five whispering gallery modes of a Schwarzschild cavity. The eigenfrequency spectrum of whispering gallery modes is [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗

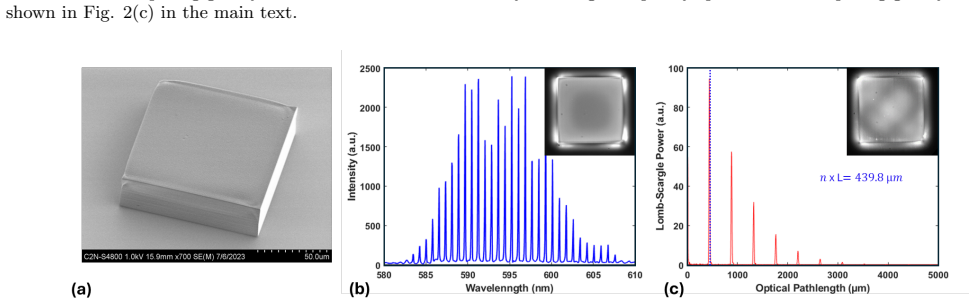

Figure 9
Figure 9. Figure 9: FIG. 9: (a) SEM image of a cuboid microlaser. (b) Emission spectrum of a cuboid microlaser when pumped with a square [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
read the original abstract

The bell-like ringdown of the gravitational field in the last stage of the merging of massive black holes is now routinely detected on earth by the last generation of gravitational wave detectors. Its spectrum is interpreted as a sum of damped sinusoidal vibrations of the spacetime in the vicinity of the black hole. These so-called quasinormal modes are currently the subject of extensive studies, yet, their true nature remains elusive. Here, we emulate, in the laboratory, genuine four-dimension black hole metrics by two-dimensional optical curved surfaces that preserve the features of lightlike geodesics. %We establish the analogy with gravitational waves radiated by relaxing black holes, and We analytically compute the optical quasinormal modes and show that they are confined around the photon sphere, the unstable region around a black hole where spacetime curvature traps light in circular orbits. By 3D-printing non-Euclidean dye-doped microcavities, we demonstrate lasing at the photon sphere with a mode profile that closely matches the analytical prediction. These results paves the way for observing astrophysical phenomena in tabletop setups and is likely to inspire innovative designs in photonics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper claims to emulate four-dimensional black hole metrics using two-dimensional optical curved surfaces that preserve lightlike geodesic features. It analytically computes optical quasinormal modes confined around the photon sphere and experimentally demonstrates lasing in 3D-printed non-Euclidean dye-doped microcavities, with observed mode profiles closely matching the analytical predictions.

Significance. If the central analogy holds, this provides a tabletop platform for studying black hole quasinormal modes and photon-sphere dynamics, bridging general relativity and optics. The combination of analytical mode computation with experimental lasing realization could inspire new photonic designs and enable laboratory tests of astrophysical phenomena.

major comments (1)
  1. [Abstract] Abstract and theoretical section: The load-bearing claim that 'two-dimensional optical curved surfaces that preserve the features of lightlike geodesics' from 4D black hole metrics is asserted without an explicit derivation of the coordinate embedding, refractive-index profile, or ray-tracing validation that maps the 2D effective geometry onto the null geodesic equation and unstable circular orbit condition (e.g., effective potential minimum at r=3M in Schwarzschild). This risks conventional cavity resonances being misidentified as the analogue mode, undermining both the analytical QNM computation and the experimental profile match.
minor comments (2)
  1. [Abstract] Abstract: Typo in 'These results paves the way' should read 'pave'.
  2. [Experimental results] The manuscript would benefit from inclusion of raw experimental data, error bars on mode profiles, and a quantitative comparison metric (e.g., overlap integral) between analytical and measured lasing profiles to strengthen the match claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The major comment raises an important point about the explicit mapping between the 4D black-hole geometry and the 2D optical analogue. We address this below and will strengthen the presentation in the revised version.

read point-by-point responses
  1. Referee: [Abstract] Abstract and theoretical section: The load-bearing claim that 'two-dimensional optical curved surfaces that preserve the features of lightlike geodesics' from 4D black hole metrics is asserted without an explicit derivation of the coordinate embedding, refractive-index profile, or ray-tracing validation that maps the 2D effective geometry onto the null geodesic equation and unstable circular orbit condition (e.g., effective potential minimum at r=3M in Schwarzschild). This risks conventional cavity resonances being misidentified as the analogue mode, undermining both the analytical QNM computation and the experimental profile match.

    Authors: We agree that an explicit derivation of the embedding strengthens the central claim. The 2D optical surface is constructed so that its geodesic equation for light rays reproduces the effective potential governing equatorial null geodesics in Schwarzschild spacetime, with the photon sphere appearing as the unstable circular orbit at r = 3M. Section II of the manuscript derives the optical metric from the curved-surface geometry and computes the quasinormal modes on this effective metric; the observed lasing profiles are shown to match the analytically predicted radial and angular structure of these modes rather than conventional cavity resonances. To address the referee’s concern directly, the revised manuscript will include a new subsection that (i) gives the coordinate embedding of the 2D surface of revolution, (ii) specifies the corresponding refractive-index profile, and (iii) presents ray-tracing results confirming that the effective potential extremum occurs at the expected location and that the computed modes are confined to the photon-sphere region. These additions will make the distinction from ordinary cavity modes unambiguous. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper states an explicit assumption that 2D optical curved surfaces preserve lightlike geodesic features of 4D black hole metrics, then analytically computes quasinormal modes confined to the photon sphere from that geometry and demonstrates experimental lasing with matching mode profiles in 3D-printed cavities. No quoted equations or steps reduce a prediction to a fitted input by construction, invoke self-citations as load-bearing uniqueness theorems, or smuggle ansatzes via prior work. The analytical computation and external experimental match supply independent content against the stated assumption, making the chain non-circular per the enumerated patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the chosen 2D optical geometry faithfully reproduces null geodesic behavior of 4D black hole metrics; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Two-dimensional optical curved surfaces preserve the features of lightlike geodesics in four-dimensional black hole metrics
    This premise is invoked to justify both the analytical computation of quasinormal modes and the experimental emulation.
