The pith

Boozer coordinates yield exact expressions for Faraday's law and related quantities that constrain magnetic field evolution in tokamak power plants.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives simple but exact expressions for Faraday's law, the safety factor, and the internal inductance in Boozer coordinates for tokamak plasmas. These expressions create strict constraints on how the magnetic field must evolve while preserving equilibrium. A sympathetic reader would care because the constraints directly account for frequent disruptions, the need for current-profile control especially at shutdown, and the apparent requirement for pulsed rather than steady operation in power plants.

Core claim

Expressions for Faraday's Law, the safety factor, and the internal inductance derived in Boozer coordinates provide constraints useful in the design of tokamak power plants and explain why disruptions are common, why current-profile control may be required especially during shutdowns, and why only pulsed tokamaks seem possible.

What carries the argument

Boozer coordinates, a toroidal coordinate system that simplifies equilibria satisfying grad p equals j cross B into straight-line representations and yields exact expressions for Faraday's law and related quantities.

If this is right

  • Disruptions become common when small deviations in current or field evolution violate the exact Faraday-law constraints derived in these coordinates.
  • Current-profile control is required to keep the plasma consistent with the safety-factor and inductance expressions, particularly during shutdown phases.
  • Steady-state tokamak operation faces fundamental obstacles because the derived constraints cannot be satisfied indefinitely without external adjustments that conflict with equilibrium.
  • Design efforts for power plants should allocate resources to pulsed concepts that respect the magnetic evolution limits to minimize development time and cost.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same coordinate approach could be tested on stellarator data to see whether analogous constraints appear during transient phases.
  • If the constraints hold, early power-plant roadmaps might shift priority toward pulsed designs rather than continuous ones.
  • Neighboring problems such as modeling of runaway electrons or vertical stability could incorporate these exact expressions as additional checks.

Load-bearing premise

The Boozer coordinate system established for stellarator equilibria directly yields simple exact expressions for Faraday's law and related quantities in tokamak power-plant-relevant conditions without additional modeling assumptions that break under realistic plasma evolution.

What would settle it

A tokamak experiment measuring the time evolution of internal inductance or safety factor during a controlled shutdown that deviates from the exact relations predicted by the Boozer-coordinate form of Faraday's law.

Figures

Figures reproduced from arXiv: 2507.05456 by Allen H Boozer.

Figure 1

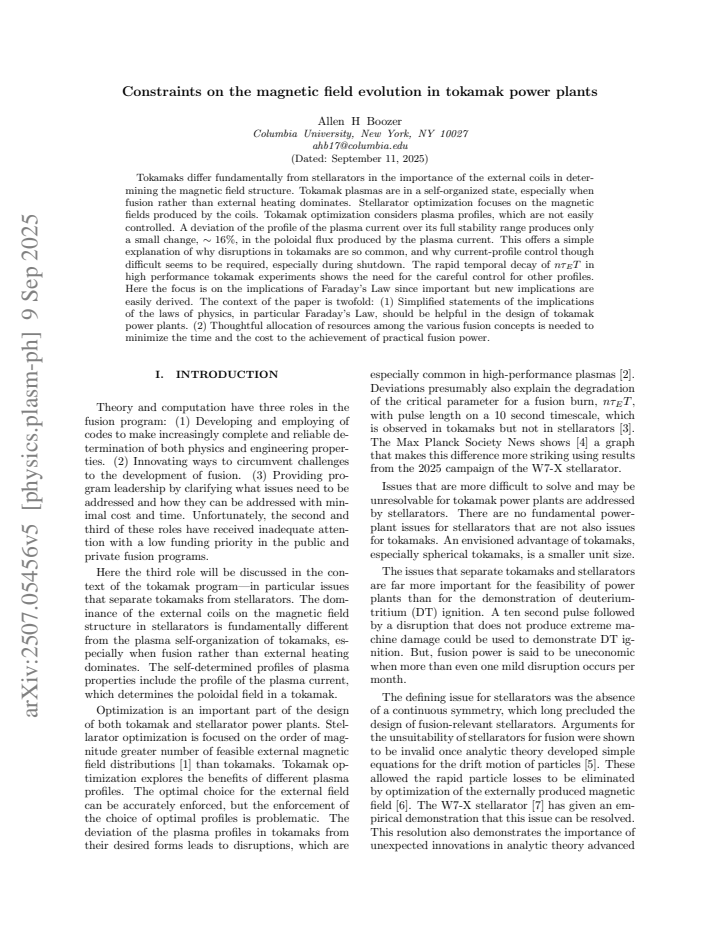

Figure 1. Figure 1: III. LOOP VOLTAGE EXPRESSION AND PLASMA MAINTENANCE An Ohms-Law type expression for the loop voltage on the axis in terms of the current density j ax || along the axis, V ax ℓ (t) = 2πRaxηax j ax || − j ax cd − j ax bs  , (2) does not have the complete generality of Equation (1), but is useful for understanding. The externally driven current density at the axis, j ax cd , and the boot￾strap current at th… view at source ↗
Figure 2

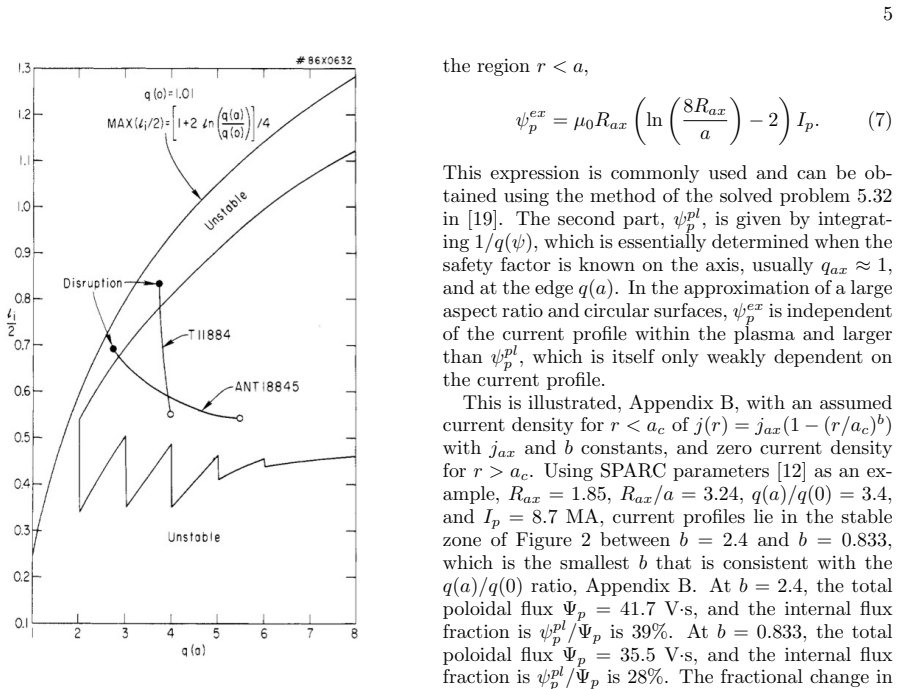

Figure 2. Figure 2: FIG. 2: C.Z. Cheng et al, Plasma Phys. Control. Fu [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
