Optimizing Superconducting Nb Film Cavities by Mitigating Medium-Field Q-Slope Through Annealing

T0 review · 3 major / 6 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Annealing niobium film cavities at 600–800 °C lifts their quench field from 10.0 to 17.5 MV/m.

desk verdict Solid Nb-on-Nb annealing study with a real empirical result, but the Nb/Cu relevance is asserted, not shown; still deserves peer review. read the letter →

arxiv 2507.08638 v1 pith:WBW7XTMN submitted 2025-07-11 physics.acc-ph

B. Abdisatarov (1) , (2) , G. Eremeev (2) , H. E. Elsayed-Ali (1) , D. Bafia (2) , A. Murthy (2) , Z. Sung (2) , A. Netepenko (2)
show 9 more authors
A. Romanenko (2) C. P. A. Carlos (3) G. J. Rosaz (3) S. Leith (4) A. Grassellino (2) ((1) Old Dominion University Norfolk (2) Fermi National Accelerator Laboratory (3) CERN (4) IMS Nanofabrication GmbH)
This is my paper · ORCID
classification physics.acc-ph
keywords superconductingradiofrequencycavitiesniobiumthinfilmsmedium-fieldQ-slopeHiPIMSdepositionvacuumannealinghydridessurfaceresistancequenchfield
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper sets out to show that the medium-field Q-slope that has long limited niobium-film superconducting cavities is not an intrinsic property of the film and can be substantially removed by post-deposition annealing. Using a 6.5 µm HiPIMS-deposited niobium film on a 1.3 GHz bulk-niobium cavity, the authors report that vacuum furnace annealing at 600 °C and 800 °C raises the quench field from 10.0 MV/m to 13.5, 15.3, and finally 17.5 MV/m, while strongly reducing the field dependence of the surface resistance. The improvement tracks a roughly tenfold drop in hydrogen concentration, a shift of local misorientation angles to lower values, and a reduction in structural defects, leading the paper to attribute the slope to hydrides, high local misorientation, and lattice/surface defects rather than to the film's short mean free path or granularity. This would matter for practical Nb-on-Cu accelerator cavities, because it suggests the Q-slope can be engineered away if the annealing benefit can be transferred to a copper substrate.

What carries the argument

The load-bearing object is the fitted coefficient $\alpha$ in the quadratic residual-resistance relation $R_{\mathrm{res}}(E_{\mathrm{acc}})=R_m+\alpha E_{\mathrm{acc}}^2$, which compresses the medium-field Q-slope into one number that drops monotonically with each annealing step. The argument is carried by the annealing ladder itself: 340 °C in-situ removes the surface oxide, 600–800 °C furnace anneals degas hydrogen and relax microstrain, and 900 °C over-anneals into Q-switch territory. SIMS hydrogen depth profiling, EBSD local-misorientation maps, and temperature-mapping hot-spot identification connect each material change to a specific loss channel, which is how the paper distinguishes hydride, misorientation, and defect contributions from the intrinsic film properties.

What would settle it

Coat a 1.3 GHz copper cavity with the same DC-biased HiPIMS film and repeat the 600–800 °C vacuum anneals; if its quench field does not rise toward 17.5 MV/m or SIMS shows hydrogen remains high because the copper substrate acts as a reservoir, the surrogate-based transfer claim fails.

Watch

Extended reading notes

Core claim

On its own terms, the paper reports a controlled annealing ladder on a single Nb-film cavity. The as-deposited film quenches at 10.0 MV/m with a strong field-dependent residual resistance; in-situ annealing at 340 °C, which dissolves the surface oxide, improves quench only to 12.5 MV/m, showing the native oxide is not the main culprit. Vacuum furnace annealing at 600 °C for 3 h, 800 °C for 3 h, and 800 °C for 6 h raises quench to 13.5, 15.3, and 17.5 MV/m respectively, and the quadratic coefficient $\alpha$ in $R_{\mathrm{res}}(E_{\mathrm{acc}})=R_m+\alpha E_{\mathrm{acc}}^2$ falls from $250.1\times10^{-3}$ to $41.7\times10^{-3}$ n$\Omega$/(MV/m)$^2$. A 900 °C anneal produces no further slope improvement and induces a Q-switch. Material measurements on witness samples show hydrogen falls by a factor of ten, local misorientation peaks shift to lower angles, and grain growth occurs after the high-temperature steps; the paper concludes that hydrides, high local misorientation, and structural defects are the key contributors to field-dependent losses in Nb film cavities.

Load-bearing premise

The load-bearing premise is that a niobium film deposited on bulk niobium behaves like one deposited on copper, so the annealing benefits measured on this Nb-on-Nb surrogate will transfer to real Nb/Cu cavities.

Editorial extensions

If this is right

  • If the annealing result transfers, post-deposition vacuum heat treatment becomes a practical knob for Nb film cavities, and the medium-field Q-slope should no longer be treated as an unavoidable film limitation.
  • The 17.5 MV/m quench field and the strong drop in $\alpha$ imply HiPIMS films can be pushed much closer to bulk-Nb performance than earlier Nb/Cu cavities.
  • Hydrogen concentration and local misorientation can serve as pre-RF screening metrics: films with high hydride content or broad misorientation would be flagged for annealing before cryogenic testing.
  • Because 900 °C introduces a Q-switch, the improvement saturates and then reverses; the optimal annealing window near 800 °C matters more than 'hotter is better'.
  • For Nb/Cu cavities, the practical consequence is the need for an equivalent hydrogen-removal and strain-relaxation step at a temperature copper can survive, possibly via gettering or alternative heat treatments.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper's surrogate geometry (film on bulk Nb) means the 17.5 MV/m number should not be read as a Nb/Cu result; a direct transfer depends on whether copper's interface and impurity reservoir behave like niobium's.
  • The temperature-map analysis shows a few localized regions dominate the integral Q0; if that is general, defect-localized repair or selective resputtering could capture much of the benefit without a full high-temperature anneal.
  • A natural next test would be a lower-temperature anneal (300–500 °C) of Nb/Cu in a hydrogen-gettering environment: it would separate hydrogen removal from strain relaxation and show which mechanism carries the quench-field gain at copper-compatible temperatures.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper reports a single-cavity annealing study of a 6-µm HiPIMS Nb film deposited on a 1.3 GHz bulk Nb cavity. Sequential anneals at 340°C, 600°C, 800°C (3 h and 6 h), and 900°C were performed, and the cavity was RF-tested after each step. The authors observe that higher-temperature vacuum furnace annealing reduces the field-dependent component of the residual surface resistance and raises the quench field from 10.0 to 17.5 MV/m, while 900°C annealing produces a Q-switch. Using fits of R_res(E) = R_m + α E², SIMS/EBSD data from a companion study, and local temperature mapping, they attribute the medium-field Q-slope to hydrides, high local misorientation, and structural defects, and propose annealing-based mitigation for Nb/Cu SRF cavities.

Significance. If the results hold, the paper provides a useful demonstration that the medium-field Q-slope of HiPIMS Nb films is not intrinsic and can be reduced by post-deposition vacuum annealing, with the strongest effects at 600–800°C. The experiment is carefully executed with a single cavity and consistent TMAP diagnostics; the central observation—monotonic reduction in field-dependent R_res with annealing temperature up to 800°C—is supported by the Q0 curves and the R_res decomposition. The paper is honest that Eq. (1)'s α and R_m are fit parameters, not predictions, and it makes no circularity error. Its principal weakness is that all RF and microstructure evidence is obtained on a Nb-on-Nb surrogate, so the stated practical pathway for Nb/Cu cavities rests on an unverified similarity assumption.

major comments (3)
  1. [Secs. I and V] The central practical conclusion—that annealing can mitigate the medium-field Q-slope in Nb/Cu SRF cavities—rests on the assertion in Sec. I that Nb films on Nb and Cu substrates exhibit very similar characteristics. This assertion is not demonstrated by the present data: the cavity is bulk Nb, the witness coupons are Nb, and no annealed Nb/Cu sample or cavity is measured. The thermal budget argument in Sec. I itself concedes that 600–800°C treatments are not directly applicable to Cu cavities. The conclusions in Sec. V should be restricted to Nb-on-Nb, or supplemented with a head-to-head Nb/Cu comparison (e.g., annealed co-deposited coupons with SIMS and RF or surface-impedance measurements) to support the transfer.
  2. [Sec. III.B and Table 1] Quantitative claims about quench-field improvement and about the differences between annealing conditions are made without uncertainty estimates. The paper reports quench fields of 10.0, 12.5, 13.5, 15.3, and 17.5 MV/m and states that the 13.5 MV/m value is 'within the error margin' of 12.5 MV/m, yet no error bars are defined for E_acc or for R_m and α in Table 1. Because all data come from one cavity sequentially annealed, the absence of uncertainty quantification is particularly consequential. The authors should propagate the measurement uncertainty from the VCTF methodology (Ref. [34]) and report fit parameter uncertainties so that the reader can judge which steps yield significant changes.
  3. [Sec. IV, Eqs. (2)-(3)] The local Q0 calculation from temperature maps uses an effective coefficient k and per-sensor efficiencies c_i, but no values, calibration procedure, or uncertainty are reported. Since the claim that 'the anomalous field-dependent surface resistance is determined by a few surface regions' (Sec. IV) rests on this analysis, the authors should either provide the calibration constants and estimated uncertainties or present the local temperature rises only as relative indicators.
minor comments (6)
  1. [Sec. III.B] The word 'chnage' in the paragraph on the 900°C anneal should be corrected to 'change.'
  2. [Sec. IV] The typos 'filed' and 'concertration' should be corrected to 'field' and 'concentration.'
  3. [Fig. 2 caption] The phrase 'critical quench field' is redundant; 'quench field' would be clearer.
  4. [Sec. IV, Eq. (1)] The text should state explicitly that Eq. (1) is fitted only for E_acc > 4 MV/m in the main text, not only in the preceding discussion paragraph.
  5. [Fig. 8] The claim that the full width at half maximum of the misorientation distribution becomes narrower is not quantified; either add FWHM values or soften the statement.
  6. [Abstract] The phrase 'record high E_acc ≈ 17.5 MV/m for Nb film cavities' should be supported by a citation or a literature comparison, since no such comparison is given in the text.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: RF results are direct measurements; Eq. (1) is an explicitly labeled fit, and material mechanisms are supported by correlational evidence rather than derived from the conclusion.

full rationale

The paper's central claims rest on direct RF measurements (Q0 versus Eacc) of a single cavity before and after annealing; these are external measurements against an absolute performance scale, not outputs of a model. The only quantitative model is Eq. (1), a quadratic fit R_res(E) = R_m + alpha * E^2. The paper explicitly identifies alpha as a 'free parameter' and R_m as the residual resistance at 4 MV/m, and Table 1 reports the fit coefficients with R^2 values. No prediction is generated from this fit, so there is no fitted-input-called-prediction circularity. The material-level explanations (hydrides, local misorientation, defects) are supported by SIMS/EBSD/XRD data, partly from the authors' prior publication [35]; that citation is to a published, externally checkable study and is used as correlational evidence, not as an unverified premise that itself assumes the present conclusion. The introduction's Nb-on-Nb versus Nb-on-Cu similarity premise is load-bearing for practical transfer, but it is an empirical assumption rather than a definitional equivalence, and the paper does not derive the RF result from it. No step in the paper reduces to its own input by construction. The scope and transfer concern is a correctness risk, not circularity. Score 0.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central experimental result does not rest on a heavy parameter count. The main fitted quantities are the descriptive Rres(E) coefficients alpha and Rm. The load-bearing assumptions are measurement conventions for extracting residual resistance and the transferability premise that Nb-on-Nb films represent Nb-on-Cu films.

free parameters (3)
  • alpha (medium-field Q-slope coefficient) = 250.1 down to 41.7 x 10^-3 nΩ/(MV/m)^2 across conditions
    Fitted free parameter in Rres(E) = Rm + alpha E^2, Table 1. Used to quantify the reduction of field-dependent residual resistance after annealing.
  • Rm (residual resistance intercept) = 3.4 to 21.1 nΩ across conditions
    Fitted intercept in Eq. 1 at Eacc near 4 MV/m. It is a data-derived parameter, not independently predicted.
  • k (effective coefficient in TMAP power relation) = not reported
    Eq. 2 defines total dissipated power as k times average temperature rise. The value of k is not given, but it affects the local Q0 estimates in Figures 9 and 10.
assumptions (5)
  • standard math Surface resistance relates to quality factor through Rs = G/Q0 with G = 270 for this TESLA 1.3 GHz cavity.
    Used throughout Section III.B to convert measured Q0 to Rs. The G value is stated and is standard for the cavity shape.
  • domain assumption At 1.5 K, RBCS is negligible, so Rs is approximately Rres.
    Section III.B uses the 1.5 K measurement as a proxy for residual resistance, taking the BCS contribution at 1.5 K as negligible.
  • domain assumption Rres is temperature-independent, so RBCS at 2.0 K can be extracted as Rs(2.0 K) minus Rs(1.5 K).
    Section III.B invokes this decomposition to separate residual and BCS resistance. This is standard SRF practice but remains an assumption about the residual term.
  • domain assumption Nb films deposited on Nb and Cu substrates have very similar growth, roughness, grain size, impurity levels, RRR, and microstructure.
    The Introduction states this to justify substituting a bulk Nb cavity for the practical Nb/Cu system. No comparative dataset is given in this paper.
  • domain assumption Witness samples coated alongside the cavity represent the cavity film for SIMS, EBSD, XRD, and TEM characterization.
    Material correlations in Section IV are drawn from 10 x 10 x 3 mm samples exposed to the same deposition and anneal conditions, not from the cavity itself.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Optimizing Superconducting Nb Film Cavities by Mitigating Medium-Field Q-Slope Through Annealing." pith.science (2026). https://pith.science/paper/WBW7XTMN

@misc{pith2026250708638,
  author       = {Pith},
  title        = {Pith review of: Optimizing Superconducting Nb Film Cavities by Mitigating Medium-Field Q-Slope Through Annealing},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WBW7XTMN}},
  note         = {Machine review of arXiv:2507.08638}
}
read the original abstract

Niobium films are of interest in applications in various superconducting devices, such as superconducting radiofrequency cavities for particle accelerators and superconducting qubits for quantum computing. In this study, we addressed the persistent medium-field Q-slope issue in Nb film cavities, which, despite their high-quality factor at low RF fields, exhibit a significant Q-slope at medium RF fields compared to bulk Nb cavities. Traditional heat treatments, effective in reducing surface resistance and mitigating the Q-slope in bulk Nb cavities, are challenging for niobium-coated copper cavities. To overcome this challenge, we employed DC biased high-power impulse magnetron sputtering to deposit niobium film onto a 1.3 GHz single-cell elliptical bulk niobium cavity, followed by annealing treatments aimed at modifying the properties of the niobium film. In-situ annealing at 340 {\deg}C increased the quench field from 10.0 to 12.5 MV/m. Vacuum furnace annealing at 600 {\deg}C and 800 {\deg}C for 3 hours resulted in a quench field increase of 13.5 and 15.3 MV/m, respectively. Further annealing at 800 {\deg}C for 6 hours boosted the quench field to 17.5 MV/m. Additionally, the annealing treatments significantly reduced the field dependence of the surface resistance. However, increasing the annealing temperature to 900 {\deg}C induced a Q-switch phenomenon in the cavity. The analysis of RF performance and material characterization before and after annealing has provided critical insights into how the microstructure and impurity levels in Nb films influence the evolution of the Q-slope in Nb film cavities. Our findings highlight the significant roles of hydrides, high local misorientation, and lattice and surface defects in driving field-dependent losses.

Figures

Figures reproduced from arXiv: 2507.08638 by the authors.

Figure 1

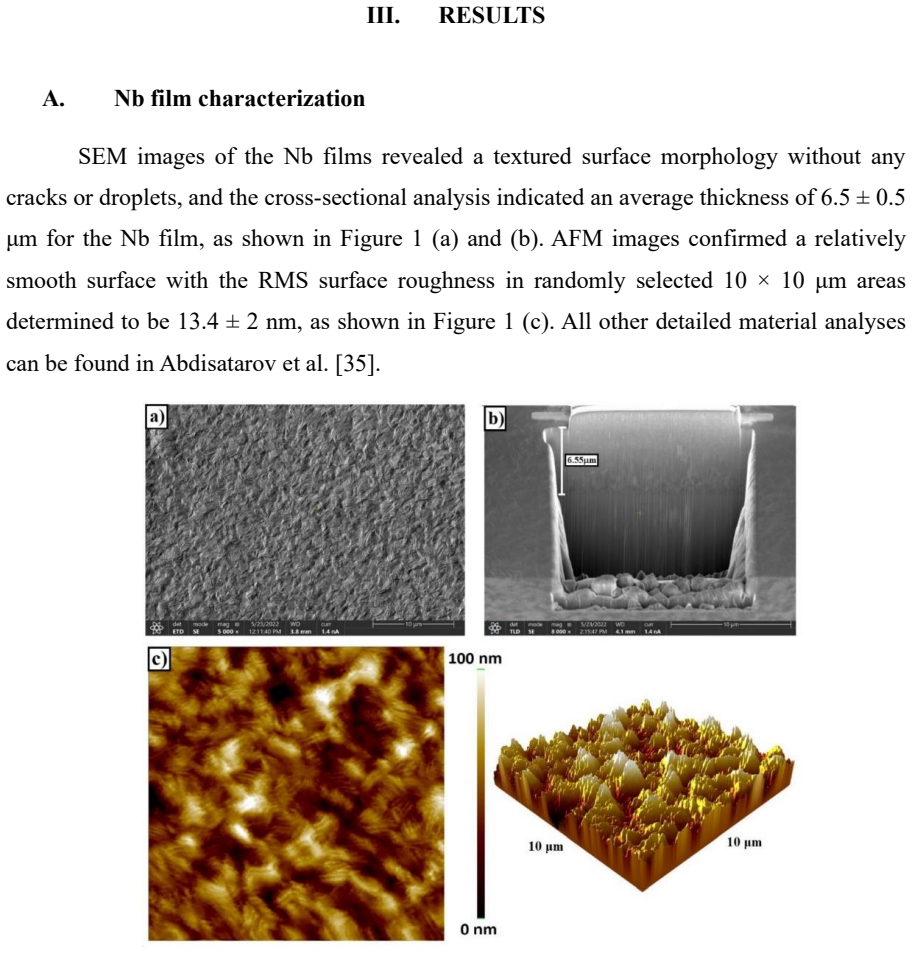

Figure 1. SEM and AFM images of Nb film on Nb substrate (a) surface morphology, (b) cross sectional SEM image of Nb film, (c) 2D and 3D AFM images of 10 × 10 μm surface area. The RMS surface roughness in the AFM-imaged area is 13.4 ± 2 nm. B. RF results The baseline testing of the bulk Nb cavity prior to film deposition demonstrated the expected field dependence typical of an electropolished cavity [2]. The cavity was limited… view at source ↗

Figure 2
Figure 2. Q0 versus Eacc at T = 2.0 K (a) and 1.5 K (b) for the bulk Nb cavity and Nb film cavity before and after annealing at different temperatures and durations. The Nb film cavity demonstrated a field-dependent Q0, while the heat treatments effectively reduced this field dependence and enhanced the critical quench field [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. The decomposition analysis of the Rs into the Rres (a) and RBCS (b) for bulk Nb and Nb film cavity before and after each annealing. The Rres exhibited a significant field dependency, while the RBCS resistance showed minimal field dependence [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Temperature map of the Nb film cavity at E [PITH_FULL_IMAGE:figures/full_fig_p010_4.png]
Figure 5
Figure 5. Figure 5: Residual resistance of bulk Nb and Nb film cavity before and after annealing treatments [PITH_FULL_IMAGE:figures/full_fig_p013_5.png]
Figure 6
Figure 6. Figure 6: Relative concentration of hydrogen as a function of depth before and after the annealing [PITH_FULL_IMAGE:figures/full_fig_p015_6.png]
Figure 7
Figure 7. Figure 7: EBSD map of the Nb film before and after heat treatments (a) as [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]
Figure 8
Figure 8. Figure 8: Local misorientation angle distribution of the 15 [PITH_FULL_IMAGE:figures/full_fig_p017_8.png]
Figure 9
Figure 9. Figure 9: Average temperatures of the areas selected in Figure 4. The average temperature of the [PITH_FULL_IMAGE:figures/full_fig_p018_9.png]
Figure 10
Figure 10. Figure 10: Q0 as a function of field calculated from the average temperatures of temperature sensors selected from characteristic areas on the cavity surface. The Q₀ values for the LHC1 and UHC1 regions exhibited a strong dependence on the applied field, whereas other regions de…
