Exploring Jet Structure and Dynamics in Short Gamma Ray Bursts: A Case Study on GRB 090510

Joseph Saji , Maria Giovanna Dainotti , Shubham Bhardwaj , Agnieszka Janiuk This is my paper

Pith reviewed 2026-05-19 04:18 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords short gamma-ray burstsGRB 090510GRMHD simulationsjet opening anglejet energeticsredshift evolutiondynamical ejecta
0
0 comments X

The pith

GRMHD simulations of GRB 090510 reconcile its jet energetics and opening angle with observations at 1 sigma when jet angles evolve with redshift.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper runs general relativistic magnetohydrodynamic simulations of the short gamma-ray burst GRB 090510 to model its jet energetics, structure, variability timescale, and opening angle. The central result is that the simulated energetics and opening angle fall within one standard deviation of the measured values once the model allows jet opening angles to change with redshift. The work also tests how dynamical ejecta influences jet collimation at smaller scales and explores a wider set of models that cover a range of observable GRB properties.

Core claim

The predicted energetics and the jet opening angle reconcile with the observed ones with 1σ when considering that the jet opening angles also evolve with redshift.

What carries the argument

General relativistic magnetohydrodynamic (GRMHD) simulations of jet structure, energetics, and variability in a short gamma-ray burst.

If this is right

  • The variability timescale estimated from the 2D and 3D models provides a testable link to observed light-curve features.
  • Adding dynamical ejecta demonstrates how it alters jet collimation at small distances from the central engine.
  • The suite of models with varied GRB properties shows how the same simulation framework can describe events beyond this single burst.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending the same GRMHD setup to other short GRBs with known redshifts would test whether the redshift evolution of opening angles holds more generally.
  • If opening angles change systematically with redshift, this would revise estimates of the true energy budget and beaming corrections used in population studies of short GRBs.
  • High-resolution afterglow observations that independently constrain opening angles at different distances could provide a direct check on the evolution assumption.

Load-bearing premise

The assumption that jet opening angles evolve with redshift is required to achieve the reported 1 sigma reconciliation between simulated predictions and observations.

What would settle it

Direct measurements of jet opening angles across a range of redshifts that show no evolution, or new energetics data for GRB 090510 that fall outside 1 sigma of the simulated values even with the evolution assumption.

Figures

Figures reproduced from arXiv: 2507.14938 by Agnieszka Janiuk, Joseph Saji, Maria Giovanna Dainotti, Shubham Bhardwaj.

Figure 1
Figure 1. Figure 1: Time evolution of mass accretion rate (M˙ ) in the upper panel and luminosity (LBZ, lower panel) for the best models. at three distinct times (0 s, 0.25 s, and 0.60 s) for this model is depicted through streamline plots in [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

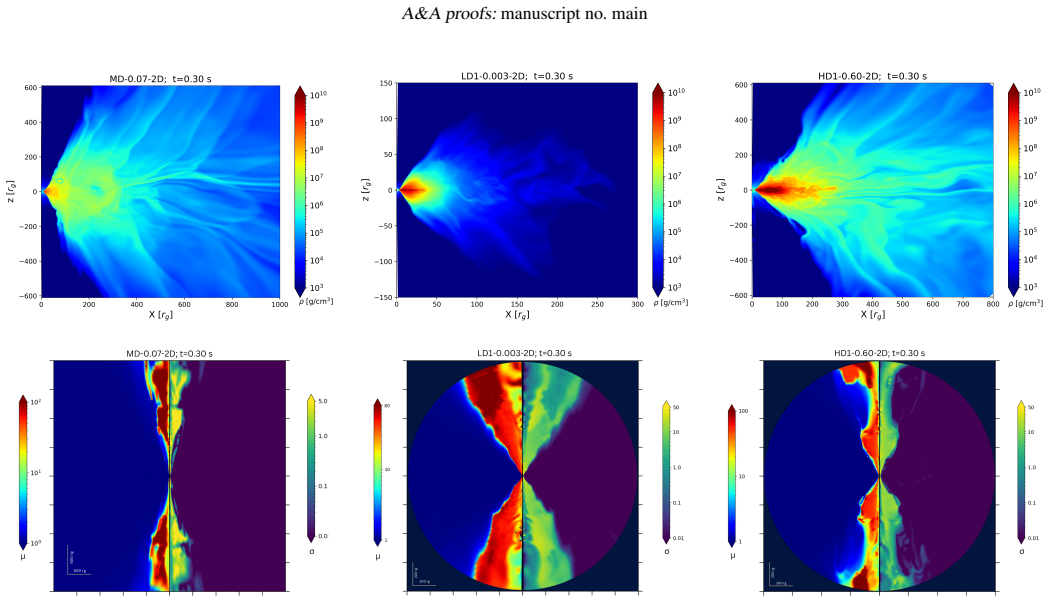

Figure 2. Figure 2: Density distribution and jet structure at [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Snapshots of disk density profile with magnetic field streamlines of model [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 6

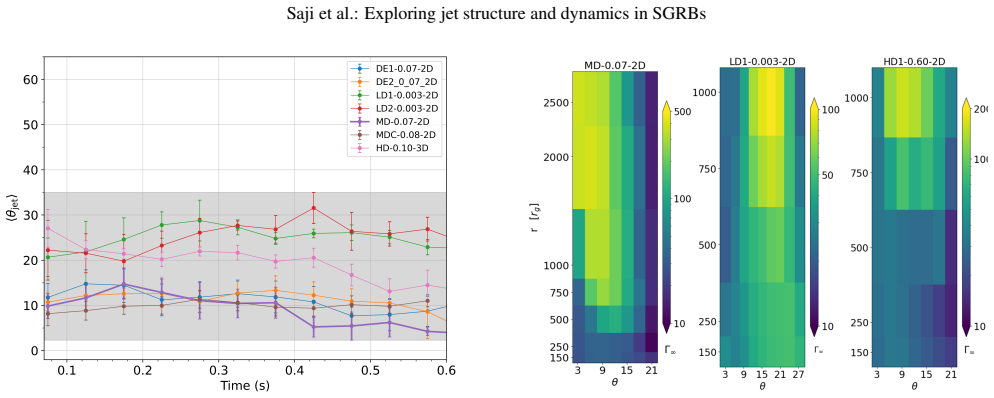

Figure 6. Figure 6: Visualization of the [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Variation of Lorentz factor (Γ∞) as a function of polar angle θ for best-fit models, measured at a radius of 3000 Rg ment (within 10%), in both energetics and opening angle. The collimation-corrected energies for these GRBs are also consis￾tent with our models, based on Eq. 18 and when adopting the radiation efficiency in the range of 1–15%. To further explore the consistency of our models with jet paramet… view at source ↗
Figure 8
Figure 8. Figure 8: Time evolution of the jet energetic parameter [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
read the original abstract

Gamma-ray bursts observed in high-energies allow the investigation of the emission processes of these still puzzling events. In this study, we perform general relativistic magnetohydrodynamic (GRMHD) simulations to investigate GRB 090510, a peculiar short GRB detected by Fermi-LAT. Our primary goal is to model the energetics, jet structure, variability, and opening angle of the burst to understand its underlying physical conditions. We tested the 2D and 3D models and estimated the time scale of variability. The predicted energetics and the jet opening angle reconcile with the observed ones with 1$\sigma$ when considering that the jet opening angles also evolve with redshift. Furthermore, we extend our analysis by incorporating dynamical ejecta into selected models to study its impact on jet collimation at smaller distances. In addition, we investigated a suite of models exhibiting a broad range of observable GRB properties, thereby extending our understanding beyond this specific event.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. This paper uses 2D and 3D GRMHD simulations to study the jet structure, energetics, variability, and opening angle of the short GRB 090510. The authors test models with and without dynamical ejecta to assess impacts on jet collimation and analyze a suite of models covering a range of GRB properties. They conclude that the simulated energetics and jet opening angle are consistent with observations at the 1σ level when the redshift evolution of jet opening angles is taken into account.

Significance. Should the reported reconciliation be robustly demonstrated without undue reliance on external assumptions, the work would provide valuable numerical constraints on the physical conditions in short GRB jets. The incorporation of dynamical ejecta and the broad exploration of models represent positive steps toward generalizing findings beyond this single burst. The use of GRMHD for a specific observed event is a strength.

major comments (1)
  1. [Abstract] The central claim that the predicted energetics and the jet opening angle reconcile with the observed ones with 1σ 'when considering that the jet opening angles also evolve with redshift' depends on an assumption not produced by the simulations themselves. The GRMHD runs are at fixed redshift for GRB 090510, and no derivation or reference is given for the redshift scaling of the opening angle. This makes the agreement conditional on an unverified external premise, which is load-bearing for the main result and requires clarification or removal.
minor comments (1)
  1. The abstract lacks details on simulation resolution, specific parameter choices, error analysis methods, and the precise metrics used for comparing predictions to observations; these should be elaborated in the main text.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review. We address the single major comment below and have revised the manuscript to improve clarity on this point.

read point-by-point responses

  1. Referee: [Abstract] The central claim that the predicted energetics and the jet opening angle reconcile with the observed ones with 1σ 'when considering that the jet opening angles also evolve with redshift' depends on an assumption not produced by the simulations themselves. The GRMHD runs are at fixed redshift for GRB 090510, and no derivation or reference is given for the redshift scaling of the opening angle. This makes the agreement conditional on an unverified external premise, which is load-bearing for the main result and requires clarification or removal.

    Authors: We agree that the GRMHD simulations are performed at the fixed redshift of GRB 090510 (z = 0.903) and that the redshift evolution of jet opening angles is an external assumption drawn from the observational literature rather than derived within our runs. In the revised manuscript we will (i) add an explicit reference to existing studies on the redshift dependence of GRB jet opening angles and (ii) rephrase the abstract and relevant discussion paragraphs to state clearly that the 1σ agreement is conditional on this external trend. These changes make the conditional nature of the comparison transparent while leaving the simulation results and primary conclusions unchanged. revision: yes

Circularity Check

0 steps flagged

No significant circularity; simulations provide independent numerical predictions

full rationale

The paper conducts GRMHD simulations to compute energetics, jet structure, variability timescales, and opening angles for GRB 090510 in both 2D and 3D setups, with additional models including dynamical ejecta. These outputs are generated by solving the governing equations numerically rather than being defined in terms of observational matches. The statement that predictions reconcile with observations at 1σ when jet opening angles are allowed to evolve with redshift represents a conditional comparison that incorporates an external astrophysical consideration; it does not reduce the simulation results to the data by construction or via self-referential fitting. No load-bearing self-citations, ansatzes smuggled through prior work, or uniqueness theorems from the same authors are invoked to force the central claims. The derivation chain is self-contained as a first-principles numerical investigation whose results can be tested against independent observations.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Abstract provides insufficient detail to enumerate specific free parameters or invented entities; relies on standard domain assumptions of GRMHD applicability to GRB jets and post-hoc inclusion of redshift evolution to match data.

free parameters (1)
  • redshift evolution of jet opening angle
    Invoked to achieve 1 sigma agreement between simulated and observed values; appears chosen to reconcile model output with data.
axioms (1)
  • domain assumption GRMHD equations and 2D/3D numerical setups accurately capture the jet physics and variability in short GRBs
    Core assumption underlying all simulation results and comparisons to observations.
