On the stability of the low-rank projector-splitting integrators for hyperbolic and parabolic equations

Jingwei Hu; Shiheng Zhang

arxiv: 2507.15192 · v2 · submitted 2025-07-21 · 🧮 math.NA · cs.NA

On the stability of the low-rank projector-splitting integrators for hyperbolic and parabolic equations

Shiheng Zhang , Jingwei Hu This is my paper

Pith reviewed 2026-05-19 04:39 UTC · model grok-4.3

classification 🧮 math.NA cs.NA

keywords projector-splitting integratorlow-rank methodsstability analysishyperbolic equationsparabolic equationsLie-Trotter splittingStrang splittingvon Neumann analysis

0 comments

The pith

For hyperbolic equations, stability conditions for DtP and PtD match under Lie-Trotter splitting while Strang splitting enlarges the region; parabolic equations achieve unconditional stability with Crank-Nicolson or hybrid Euler schemes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper studies the stability of projector-splitting integrators applied to linear hyperbolic and parabolic equations. It performs a von Neumann-type analysis on the low-rank time integrator paired with standard finite-difference spatial schemes under two formulations: discretize-then-project and project-then-discretize. A sympathetic reader would care because these integrators reduce computational cost for high-dimensional problems, and reliable stability conditions determine whether the methods can be used safely in practice. If the results hold, the same time-step restrictions apply to both formulations for hyperbolic problems, larger steps become possible with Strang splitting, and parabolic problems remain stable for arbitrary steps with suitable time schemes.

Core claim

Using von Neumann analysis on simplified linear constant-coefficient model problems, the authors show that the stability conditions for the discretize-then-project and project-then-discretize formulations are identical under Lie-Trotter splitting for hyperbolic equations, and that Strang splitting significantly enlarges the stability region. For parabolic equations, unconditional stability is obtained by employing Crank-Nicolson or a hybrid forward-backward Euler scheme in the time stepping, even though the splitting includes a negative S-step.

What carries the argument

The projector-splitting integrator, which decomposes the low-rank evolution into separate K-step, S-step, and L-step updates, whose stability is examined through von Neumann analysis on finite-difference discretizations.

If this is right

For hyperbolic equations the same CFL-type restriction governs both discretize-then-project and project-then-discretize under Lie-Trotter splitting.
Strang splitting permits substantially larger time steps for hyperbolic problems while preserving stability.
Parabolic equations remain stable for any time-step size when Crank-Nicolson or hybrid forward-backward Euler schemes are used.
The stability conclusions supply guidance for applying the integrator to more complex systems such as those appearing in kinetic theory.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The linear analysis may indicate which splitting choices remain viable when the underlying equations are made mildly nonlinear.
Analogous von Neumann calculations could be carried out for spectral or finite-element spatial discretizations.
Adopting the stable configurations could allow larger steps and lower cost in high-dimensional transport or diffusion simulations.

Load-bearing premise

The analysis is performed on linear model problems with constant coefficients and standard finite-difference spatial discretizations.

What would settle it

A numerical test of the integrator on the model hyperbolic equation that produces growing solutions for a time-step size inside the claimed stable region would falsify the stability result.

Figures

Figures reproduced from arXiv: 2507.15192 by Jingwei Hu, Shiheng Zhang.

**Figure 1.** Figure 1: Contour plot of |GDtP(m, k)| 2 = h(Ym, µ). The shaded region corresponds to where h(Ym, µ) ≤ 1. Therefore, µ ≤ 1/3 is a sufficient condition to guarantee stability. Using the definition of P1(m, k) in (3.11), we obtain |P¯ 1(m, k; ∆t)| 2 = 1 4 [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗

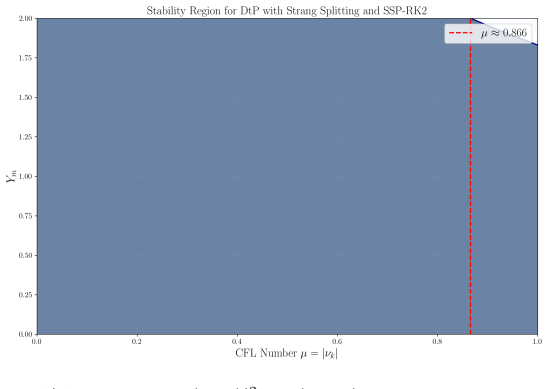

**Figure 2.** Figure 2: Contour plot of |GDtP-Strang-RK2(m, k)| 2 = h(Ym, µ). The shaded region corresponds to where h(Ym, µ) ≤ 1. Therefore, µ ≤ 0.866 is a sufficient condition to guarantee stability. and to consider the low-rank approximation: u T (t, x) = x T (t, x)S(t)V (t) T , x ∈ R r , S ∈ R r×r , V ∈ R Nv×r . Here, r is the rank, ⟨xxT ⟩x = Ir, where ⟨·⟩x denotes the integral over the domain of x, and V T V = Ir. The projec… view at source ↗

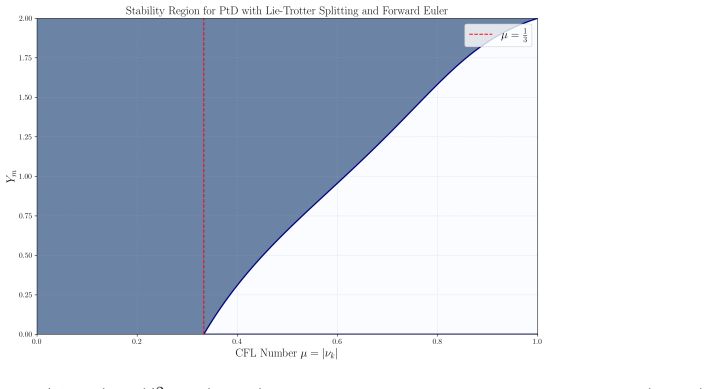

**Figure 3.** Figure 3: Contour plot of |GPtD(m, k)| 2 = h(Ym, µ); The shaded region corresponds to where h(Ym, µ) ≤ 1. Therefore, µ ≤ 1/3 is a sufficient condition to guarantee stability. Remark 3.2. We note that the amplification factors in the DtP and PtD approaches are different. This is because the upwind scheme is used throughout in the DtP approach, whereas in the PtD approach, upwind is only used in the K-step, and the ce… view at source ↗

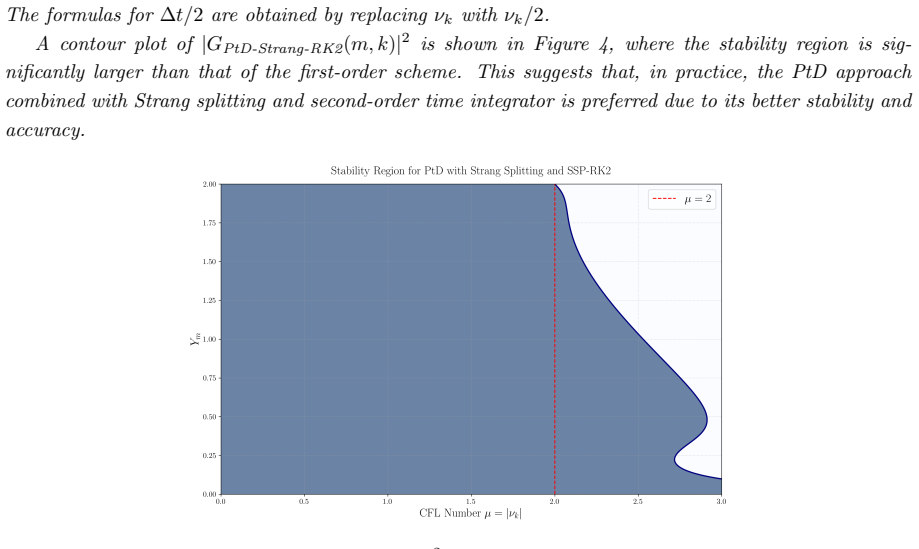

**Figure 4.** Figure 4: Contour plot of |GPtD-Strang-RK2(m, k)| 2 = h(Ym, µ). The shaded region corresponds to where h(Ym, µ) ≤ 1. Therefore, µ ≤ 2 is a sufficient condition to guarantee stability. 4 Parabolic equation For the parabolic system (2.5), we proceed as before to analyze both the DtP and PtD approaches. 4.1 DtP approach In the DtP approach, we first discretize (2.5) in x using the standard second-order central differen… view at source ↗

read the original abstract

We study the stability of a class of dynamical low-rank methods--the projector-splitting integrator (PSI)--applied to linear hyperbolic and parabolic equations. Using a von Neumann-type analysis, we investigate the stability of such low-rank time integrator coupled with standard spatial discretizations, including upwind and central finite difference schemes, under two commonly used formulations: discretize-then-project (DtP) and project-then-discretize (PtD). For hyperbolic equations, we show that the stability conditions for DtP and PtD are the same under Lie-Trotter splitting, and that the stability region can be significantly enlarged by using Strang splitting. For parabolic equations, despite the presence of a negative S-step, unconditional stability can still be achieved by employing Crank-Nicolson or a hybrid forward-backward Euler scheme in time stepping. While our analysis focuses on simplified model problems, it offers insight into the stability behavior of PSI for more complex systems, such as those arising in kinetic theory.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper derives concrete stability regions for projector-splitting integrators on linear constant-coefficient hyperbolic and parabolic PDEs, with clear comparisons of DtP/PtD and Lie-Trotter/Strang, but the extension beyond model problems stays unproven.

read the letter

The main thing to know is that this paper works out explicit stability conditions for projector-splitting integrators on linear hyperbolic and parabolic equations using von Neumann analysis. For hyperbolic cases, DtP and PtD end up with the same stability restrictions under Lie-Trotter splitting, but Strang splitting widens the allowable time steps. For parabolic, they recover unconditional stability by pairing the negative S-step with Crank-Nicolson or a hybrid Euler scheme. What stands out is the direct comparison between the two formulations and the two splitting orders. The analysis follows the amplification matrix from the combined spatial and temporal discretization, which is standard but applied here to highlight practical choices like which splitting to use for better stability. The work is solid on the model problems. The calculations appear consistent, and they cite the relevant prior work on low-rank methods without obvious gaps. The limitation is clear: all results are for constant-coefficient linear PDEs with basic finite differences. The abstract and stress-test note that the authors present these as offering insight for more general cases like kinetic equations, but there are no additional arguments or experiments showing robustness when coefficients vary in space or for nonlinear problems. That gap means the practical takeaway for real applications is suggestive rather than proven. Overall, this is useful for researchers who already use or are considering dynamical low-rank approaches in high-dimensional simulations. A reader looking for guidance on time-stepping stability in these methods will get concrete information from the stability regions and scheme recommendations. The paper shows clear engagement with the literature and honest scoping of its results. I think it merits a full referee process to check the details of the Fourier analysis and discuss the extension question. Recommendation: Yes, send it to peer review.

Referee Report

0 major / 3 minor

Summary. The paper performs a von Neumann stability analysis of the projector-splitting integrator (PSI) for dynamical low-rank approximations applied to linear hyperbolic and parabolic PDEs. Using standard finite difference spatial discretizations, it compares the discretize-then-project (DtP) and project-then-discretize (PtD) formulations under Lie-Trotter and Strang splittings. For hyperbolic equations, it finds that DtP and PtD have the same stability conditions under Lie-Trotter splitting and that Strang splitting enlarges the stability region. For parabolic equations, it shows that unconditional stability can be obtained using Crank-Nicolson or hybrid forward-backward Euler time stepping, despite a negative S-step.

Significance. If the results hold, this analysis provides useful stability criteria for low-rank integrators on model hyperbolic and parabolic problems, which can guide their use in more complex applications such as kinetic theory. The explicit comparison of splitting methods and the demonstration of unconditional stability for parabolic cases are notable contributions. The approach relies on standard von Neumann analysis of linear constant-coefficient problems with Fourier symbol calculations, which is a strength as it yields direct, reproducible stability conditions without fitted parameters.

minor comments (3)

[Abstract] The statement in the abstract that the analysis 'offers insight into the stability behavior of PSI for more complex systems' is qualitative; adding one sentence on expected limitations when coefficients vary spatially or when using more advanced spatial operators would clarify the scope.
[Hyperbolic equations analysis] In the hyperbolic analysis section, the stability conditions derived from the amplification matrix should be summarized in a table or explicit CFL bounds for both Lie-Trotter and Strang cases to make the enlargement of the stability region immediately comparable.
[Parabolic equations analysis] The hybrid forward-backward Euler scheme for the parabolic case is referenced but not described in detail; a brief equation or reference to its specific implementation would improve reproducibility.

Simulated Author's Rebuttal

4 responses · 0 unresolved

We thank the referee for their positive assessment of our work and for recommending minor revision. The referee's summary accurately reflects the contributions and methodology of the manuscript. We provide point-by-point responses to the key elements highlighted in the report below. All points raised can be addressed directly from the analysis presented in the paper.

read point-by-point responses

Referee: The paper performs a von Neumann stability analysis of the projector-splitting integrator (PSI) for dynamical low-rank approximations applied to linear hyperbolic and parabolic PDEs.

Authors: This accurately describes our approach. The von Neumann analysis is applied to derive explicit stability conditions for the PSI coupled with standard finite difference schemes on these linear model problems. revision: no
Referee: Using standard finite difference spatial discretizations, it compares the discretize-then-project (DtP) and project-then-discretize (PtD) formulations under Lie-Trotter and Strang splittings.

Authors: Correct. Sections 3 and 4 of the manuscript detail this comparison for both hyperbolic and parabolic cases, showing the equivalence under Lie-Trotter for hyperbolic problems. revision: no
Referee: For hyperbolic equations, it finds that DtP and PtD have the same stability conditions under Lie-Trotter splitting and that Strang splitting enlarges the stability region.

Authors: We confirm these results. The stability analysis yields identical CFL-type conditions for DtP and PtD with Lie-Trotter splitting, while Strang splitting significantly enlarges the allowable time-step range, as derived via Fourier symbol calculations. revision: no
Referee: For parabolic equations, it shows that unconditional stability can be obtained using Crank-Nicolson or hybrid forward-backward Euler time stepping, despite a negative S-step.

Authors: This matches our findings. Despite the negative S-step, the Crank-Nicolson and hybrid Euler schemes restore unconditional stability for the parabolic model, as shown through the von Neumann amplification factors in the relevant section. revision: no

Circularity Check

0 steps flagged

Stability conditions derived directly from amplification matrix eigenvalues on linear models

full rationale

The paper conducts a standard von Neumann analysis on the amplification matrix of the projector-splitting integrator combined with upwind/central finite-difference spatial discretizations for constant-coefficient linear hyperbolic and parabolic model problems. Stability conditions for Lie-Trotter and Strang splittings (DtP vs PtD) and for Crank-Nicolson/hybrid Euler time stepping are obtained by direct computation of the matrix eigenvalues and comparison against external CFL-type benchmarks. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the derivation chain. The analysis is self-contained for the stated simplified models and does not reduce any claimed result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The analysis rests on the standard assumptions of linear constant-coefficient PDEs, periodic or infinite domains for von Neumann analysis, and exact arithmetic in the Fourier symbols. No free parameters are fitted; the stability regions are derived quantities.

axioms (2)

domain assumption The spatial discretization (upwind or central FD) produces a circulant or Toeplitz symbol that commutes with the low-rank projector in Fourier space.
Invoked when the von Neumann analysis is applied to the combined DtP/PtD operator.
standard math The projector-splitting steps can be analyzed separately via their individual amplification factors.
Standard assumption for splitting-method stability analysis.
