GCC: A 3DGS Inference Architecture with Gaussian-Wise and Cross-Stage Conditional Processing

T0 review · 2 major / 8 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A 28nm 3D Gaussian Splatting accelerator called GCC reports a 5.24x area-normalized speedup and 3.35x energy-efficiency gain over GSCore by rendering Gaussian-wise and skipping unnecessary preprocessing.

desk verdict Genuinely new 3DGS dataflow with an honest GPU comparison, but the headline speedup rests on an unaudited GSCore baseline simulator. read the letter →

arxiv 2507.15300 v3 pith:WWYOMM35 submitted 2025-07-21 cs.AR

Minnan Pei , Gang Li , Junwen Si , Zeyu Zhu , Zitao Mo , Peisong Wang , Zhuoran Song , Xiaoyao Liang
show 1 more author
Jian Cheng
This is my paper · ORCID
classification cs.AR
keywords 3DGaussianSplattinginferenceacceleratorGaussian-wiserenderingcross-stageconditionalprocessingalpha-basedboundaryidentificationedgehardware28nmASICviewsynthesis
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

GCC is a specialized chip for running 3D Gaussian Splatting on resource-constrained devices such as AR headsets. The paper argues that the dataflow used by previous 3DGS accelerators, which preprocess all Gaussians first and then render image tile by tile, wastes roughly 60% of preprocessing on Gaussians that never contribute to the final image and loads the same Gaussian several times across tiles. GCC instead interleaves preprocessing with rendering, stops as soon as remaining Gaussians can no longer affect the image, and completes all rendering work for one Gaussian before loading the next. On six benchmark scenes, the 28nm design reports a geometric-mean 5.24x area-normalized throughput gain and a 3.35x area-normalized energy-efficiency gain over GSCore while keeping rendered image quality essentially unchanged. If these numbers hold, the paper shows that a Gaussian-centric dataflow, not just extra compute or memory bandwidth, is the main lever for efficient 3DGS inference on edge devices.

What carries the argument

The load-bearing machinery is the four-stage Gaussian-wise pipeline, whose scheduling unit is the depth group: Stage I bins Gaussians by view-space depth, Stage II projects the mean and reconstructs a 2D inverse covariance matrix, Stage III evaluates spherical-harmonic colors and sorts within each group, and Stage IV computes $\alpha$ and blends front-to-back. Two mechanisms carry the efficiency story. Cross-stage conditional processing interleaves these stages and, because blending tracks accumulated transmittance $T$, lets the controller skip every deeper group once $T$ passes the early-termination threshold, so preprocessing and rendering are never performed for Gaussians that cannot affect the image. Gaussian-wise rendering loads each Gaussian's 59 floating-point parameters exactly once per frame instead of once per overlapped tile. A third mechanism, the $\alpha$-based Gaussian boundary identifier, uses a breadth-first traversal from the projected center and exploits the convexity of the Gaussian's elliptical footprint to mark whole pixel blocks as pruned, giving a tighter per-Gaussian region than axis-aligned or oriented bounding boxes. The named identity is the $\omega$-$\sigma$ law, $r = \lceil \sqrt{2\ln(255\omega)\max(\lambda_1,\lambda_2)} \rceil$, which replaces the fixed $3\sigma$ envelope with an opacity-aware radius.

What would settle it

A decisive check is to re-run the six-scene benchmark with GCC's released RTL or cycle-accurate simulator and an independently built GSCore simulator using the same LPDDR4-3200 memory model: if GCC does not reach 667 FPS on Lego, or if the GSCore reproduction deviates more than 3% from the paper's reported cycles, the central speedup claim is falsified.

Watch

Extended reading notes

Core claim

The paper's central claim is that the standard decoupled preprocess-then-render, tile-by-tile dataflow is the root cause of wasted work in 3DGS accelerators, and that reordering work around individual Gaussians removes most of it. GCC computes each Gaussian's view-space depth, groups Gaussians into depth-ordered bins, and then, for each Gaussian in that order, performs projection, spherical-harmonic color evaluation, $\alpha$ computation, and blending before moving on; accumulated transmittance lets later groups be skipped entirely. To keep per-Gaussian work small, the $\alpha$-based boundary identifier visits only pixels where a Gaussian's $\alpha$ contribution exceeds the perceptual threshold $1/255$, starting from the projected center and pruning whole directions once the elliptical boundary fails. The authors report that across six indoor, outdoor, and synthetic scenes, this design reaches a geometric-mean 5.24x area-normalized speedup and a 3.35x area-normalized energy-efficiency improvement over GSCore, with peak throughput of 667 FPS on Lego, PSNR within 0.1 dB of the GPU reference, and a 2.71 mm$^2$, 790 mW implementation in 28nm.

Load-bearing premise

The claim rests on the assumption that the authors' simulator faithfully reproduces both their own chip design and the GSCore accelerator it is compared with, within the reported 3% deviation of the baseline; the 5.24x and 3.35x numbers are computed against that reproduction, and no code or raw measurements are released to check it independently.

Editorial extensions

If this is right

  • Across the six benchmark scenes, GCC reports a geometric-mean 5.24x area-normalized speedup and 3.35x area-normalized energy efficiency over GSCore, with per-scene speedups from 4.27x on Playroom to 6.22x on Lego.
  • DRAM traffic falls by more than 50%: Gaussian-wise loading eliminates repeated fetches and conditional processing stops useless Gaussians before they are read, and above about 220 GB/s of DRAM bandwidth GCC becomes compute-bound while GSCore stays memory-bound.
  • Rendering quality is preserved: PSNR stays within 0.1 dB of the GPU reference and LPIPS is identical to GSCore's, so the pruning decisions do not cost noticeable fidelity.
  • A 128x128 sub-view compatibility mode lets large scenes render with negligible redundant Gaussian processing, which is what allows the design to operate with 190 KB of on-chip SRAM on edge-class platforms.
  • Ablations attribute the gains to both mechanisms: Gaussian-wise rendering dominates on compact scenes like Palace, while cross-stage conditional processing contributes more on large, sparse scenes like Drjohnson.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • My inference: the 5.24x and 3.35x ratios measure GCC against a reproduced GSCore simulator, not against GSCore silicon; a third-party re-implementation of the baseline is the decisive external check, because a pessimistic baseline model would inflate the ratios.
  • My inference: the paper's own GPU experiments show the GCC dataflow slows down on GPUs because deterministic blending requires costly atomic updates; that makes the dataflow's benefit specific to architectures with small on-chip storage and ordered pipelines rather than a general-purpose algorithmic improvement.
  • My inference: the alpha-based boundary identifier and the opacity-aware radius are transferable ideas for any opacity-weighted splatting or particle renderer, though the gains will depend on how elliptical and how transparent the primitives are.
  • My inference: because GCC is already compute-bound past about 220 GB/s of DRAM bandwidth, pairing it with faster LPDDR5-class memory would buy little; further gains would have to come from cheaper spherical-harmonic evaluation or from compressing the 48 SH coefficients that dominate each Gaussian's footprint.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 8 minor

Summary. The paper proposes GCC, a 28nm 3D Gaussian Splatting inference accelerator built around two dataflow innovations: Gaussian-wise rendering, which processes each Gaussian completely before moving to the next, and cross-stage conditional processing, which interleaves preprocessing and rendering so that Gaussians that would be killed by alpha-blending early termination are never projected or color-evaluated. The authors additionally introduce an alpha-based boundary identification method that replaces static 3-sigma bounding boxes with opacity-aware elliptical footprints. The claims are supported by a SystemVerilog RTL implementation synthesized at 1GHz, a cycle-accurate Python simulator, and a re-implemented GSCore baseline simulator. The headline results are an average 5.24x area-normalized speedup and 3.35x area-normalized energy efficiency over GSCore across six scenes, with PSNR within 0.1 dB and identical LPIPS, plus a peak throughput of 667 FPS on the Lego scene.

Significance. If the results are reproducible, this is a significant architecture contribution. The Gaussian-wise dataflow is a principled departure from the tile-centric pipeline used by prior 3DGS accelerators, and the paper gives a detailed module-level design, area/power breakdown, ablation study, and a GPU implementation study showing why the dataflow does not translate to GPUs. The quality-preservation check (PSNR within 0.1 dB, identical LPIPS in Table 2) is appropriate and directly addresses the main accuracy risk. The paper also provides sensitivity analysis for image buffer size, PE array size, and DRAM bandwidth. The main weakness is verification: the comparative speedup and energy numbers rest on two simulators whose fidelity is asserted but not demonstrated in the paper, and no artifacts are released. The mathematical derivation for the opacity-aware footprint also contains an overclaim that should be corrected.

major comments (2)
  1. [§5.1, §5.2] The central performance claims (5.24x speedup and 3.35x energy efficiency in Figure 10) are computed against a GSCore simulator whose fidelity is justified only by the sentence 'we also develop a simulator for GSCore based on the architectural details provided in its paper with less than 3% performance deviation.' No per-scene comparison to GSCore's published cycles or energy, no DRAM/bank/burst modeling details, and no artifacts are provided. Since the two designs differ in dataflow, memory scheduling, and buffer arbitration, small modeling decisions can change a speedup ratio by a factor, not by a few percent. The same applies to the GCC simulator, whose 'validated with the HDL design at the cycle level' claim is not accompanied by any per-module validation table. Please provide a detailed validation appendix: per-module cycle-count comparisons against RTL, per-scene GSCore published-vs-reproduced cycle and energy numbers, and explicit DRAM and memory-system modeling assumptions; releasing the simulators or a reproducible artifact would resolve this concern most directly.
  2. [§3 Stage II, Eq. (8)] Equation (8) is not universally tighter than the 3-sigma envelope of Eq. (6). For omega = 1, the radius is sqrt(2 ln 255) * sqrt(lambda_max) ≈ 3.33 * sqrt(lambda_max), which is larger than 3 * sqrt(lambda_max). The opacity-aware radius is tighter only when 2 ln(255 omega) ≤ 9, i.e., omega ≤ e^{4.5}/255 ≈ 0.353. The text states without qualification that 'compared to the static 3σ rule, this opacity-aware culling removes more redundant Gaussians' and calls Eq. (8) a 'tighter radius estimate.' This overclaim affects the interpretation of the pixel-count reductions in Table 1. Please qualify the statement with the opacity regime, or report the opacity distribution and show that the average/rendered-pixel count decreases; otherwise the reduction cannot be attributed to Eq. (8) for all Gaussians.
minor comments (8)
  1. [§3 Stage IV] The text says 'once the transmittance surpasses a predefined threshold, subsequent Gaussians are skipped'; since transmittance decreases as Gaussians are composited, this should read 'falls below' the threshold.
  2. [Algorithm 1] The predicate E(p) used in Algorithm 1 is never defined; state explicitly that E(p) holds when the alpha value from Eq. (9) is at least 1/255.
  3. [§4.4] The claim that EXP inputs above 0 are saturated to alpha = 1 conflicts with the min(0.99, ...) cap in Eq. (9): for omega = 1 and d = 0 the exponent is exactly 0, and the correct alpha is 0.99, not 1. Clarify the LUT boundary behavior and quantify the resulting error.
  4. [Figure 13] The axis labels render as 'FPS/mm/uni00B2' and 'mJ/mm/uni00B2'; the superscripts need to be fixed.
  5. [§2.2, Challenge 1] The phrase '81.4% (48 out of 59) of the SH coefficients remain unused before alpha-blending begins' is confusing, since SH coefficients are used to compute RGB before blending; what is meant is that these 48 parameters are unnecessarily loaded and processed for Gaussians that are later discarded by early termination.
  6. [§4.6 and Abstract] The abstract states that Gaussian-wise rendering eliminates duplicated Gaussian loading, but in Compatibility Mode Gaussians overlapping sub-view boundaries are processed more than once; Section 4.6 acknowledges this, so the abstract/contribution wording should include the caveat.
  7. [Table 3 and §5.2] The throughput numbers, including the 667 FPS peak on Lego, should state the image resolution and camera configuration; otherwise the comparison with GSCore's Lego throughput is not reproducible.
  8. [§5.1] The phrase 'same configuration settings as reported' should enumerate the actual settings (DRAM frequency, tile size, data widths, clock, and buffer sizes) used for both simulators.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the performance and energy-efficiency claims are simulation outputs evaluated against an external baseline, not results assumed by the model; the omega-sigma law and alpha-boundary identification are algebraic and algorithmic consequences of the externally defined 3DGS alpha threshold.

full rationale

The paper's central claims are architectural and empirical rather than derived from a model that assumes its own conclusions. The 5.24x area-normalized speedup and 3.35x energy-efficiency figures come from a cycle-accurate Python simulator and synthesized RTL, compared against a re-implemented GSCore baseline; nothing in the paper fits a parameter to the reported speedup and then presents that same speedup as a prediction. The omega-sigma law (Equations 7 and 8) is a direct rearrangement of the externally defined alpha formula (Equation 3) together with the 1/255 alpha cutoff inherited from the original 3DGS algorithm, so it is an algebraic consequence rather than a self-referential definition. The alpha-based Gaussian Boundary Identification uses the same externally given threshold to define a Gaussian's effective pixel region; the Table 1 comparison to AABB and OBB regions is an empirical measurement of scene statistics, not a tautology. The paper includes a same-group citation (GSArch, reference [11]), but it appears only in related work and does not carry any load-bearing argument. The main weaknesses are reproducibility concerns: the assertions that the simulators were validated at the cycle level with the HDL design and that the GSCore reproduction has less than 3% performance deviation are not backed by released artifacts, and Section 6 concedes that a GPU implementation of the GCC dataflow reaches only 6-20 FPS on Jetson AGX Xavier. These are correctness and verifiability limitations, not circular reasoning. Because no derived quantity reduces by construction to an input or to a self-citation chain, the circularity score is minimal.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The architecture builds on the standard 3DGS algorithm and standard circuit design tooling. The central claim rests on two unverified inputs: the simulator's fidelity to the RTL, and the faithfulness of the GSCore baseline reproduction. The listed free parameters are hand-chosen hardware configurations that affect the reported speedup and energy efficiency.

free parameters (5)
  • Z-axis frustum pivot = 0.2
    Hand-chosen depth threshold in Stage I to cull Gaussians behind the camera; affects which Gaussians enter the pipeline.
  • Depth subgroup size N = 256
    Maximum Gaussians per depth bin after recursive subdivision; set by design, affects sorting and scheduling granularity.
  • Compatibility sub-view size = 128x128
    Image partition size in Compatibility Mode selected from the Figure 6 trade-off; affects redundant Gaussian processing at sub-view boundaries.
  • Alpha/blending PE array dimension n = 8
    8x8 processing array size selected via design-space exploration in Figure 13; affects throughput and pruning granularity.
  • EXP LUT segment count = 16
    Number of linear segments in the fixed-point EXP approximation; accuracy/area trade-off, claim of less than 1% error.
assumptions (4)
  • domain assumption 3D Gaussian Splatting rendering equations and their numerical thresholds (alpha cutoff 1/255, transmittance threshold 0.0001)
    The entire architecture is built on the 3DGS model from Kerbl et al. The alpha culling threshold is taken from the model's forward pass.
  • standard math Convexity of the alpha superlevel set for a single Gaussian
    The alpha-based boundary identification and directional pruning rely on the fact that the ellipse defined by a positive-definite quadratic form is convex.
  • ad hoc to paper The cycle-accurate simulator matches the RTL at cycle level for every module
    Stated in Section 5.1, but no artifacts or measurement data are provided to verify this equivalence.
  • ad hoc to paper The GSCore baseline simulator reproduces GSCore's reported performance within 3%
    Stated in Section 5.1; the 5.24x speedup claim depends on this reproduction being accurate.

how reviews work

0 comments
Cite this review

Pith. "Pith review of GCC: A 3DGS Inference Architecture with Gaussian-Wise and Cross-Stage Conditional Processing." pith.science (2026). https://pith.science/paper/WWYOMM35

@misc{pith2026250715300,
  author       = {Pith},
  title        = {Pith review of: GCC: A 3DGS Inference Architecture with Gaussian-Wise and Cross-Stage Conditional Processing},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WWYOMM35}},
  note         = {Machine review of arXiv:2507.15300}
}
read the original abstract

3D Gaussian Splatting (3DGS) has emerged as a leading neural rendering technique for high-fidelity view synthesis, prompting the development of dedicated 3DGS accelerators for resource-constrained platforms. The conventional decoupled preprocessing-rendering dataflow in existing accelerators has two major limitations: 1) a significant portion of preprocessed Gaussians are not used in rendering, and 2) the same Gaussian gets repeatedly loaded across different tile renderings, resulting in substantial computational and data movement overhead. To address these issues, we propose GCC, a novel accelerator designed for fast and energy-efficient 3DGS inference. GCC introduces a novel dataflow featuring: 1) \textit{cross-stage conditional processing}, which interleaves preprocessing and rendering to dynamically skip unnecessary Gaussian preprocessing; and 2) \textit{Gaussian-wise rendering}, ensuring that all rendering operations for a given Gaussian are completed before moving to the next, thereby eliminating duplicated Gaussian loading. We also propose an alpha-based boundary identification method to derive compact and accurate Gaussian regions, thereby reducing rendering costs. We implement our GCC accelerator in 28nm technology. Extensive experiments demonstrate that GCC significantly outperforms the state-of-the-art 3DGS inference accelerator, GSCore, in both performance and energy efficiency.

Figures

Figures reproduced from arXiv: 2507.15300 by the authors.

Figure 1
Figure 1. An illustration of the standard and our proposed dataflow for 3DGS inference. GCC exploits a cross-stage conditional [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

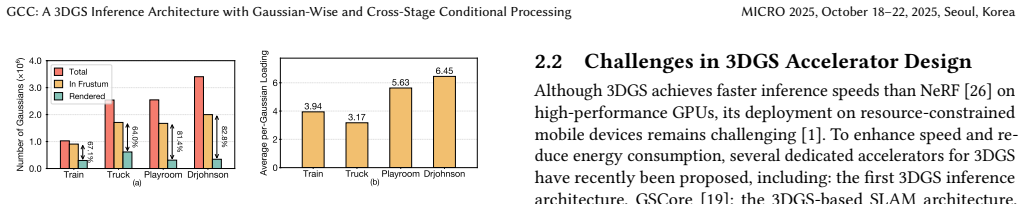

Figure 2. (a) The number of Gaussians in different processing [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Overview of GCC dataflow. on average during rendering in GSCore [19]. Therefore, although the number of Gaussians used in rendering is significantly lower than in preprocessing, tile-wise rendering still incurs substantial data transfer overhead from repeated Gaussian loading, leading to energy inefficiency. 2.3 Our Approach To address the above limitations of the standard dataflow and enable fast and energy-efficie… view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: Different Gaussian regions under AABB, OBB meth [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: GCC Architecture. operations to improve arithmetic efficiency. The on-chip mem￾ory consists of several dedicated buffers. The Shared Buffer and SH Buffer handle data transfers of Gaussian parameters between DRAM and the compute pipeline. The Image Buffer stores interme…
Figure 6
Figure 6. Figure 6: The overhead of Gaussian loading when partition [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 8
Figure 8. Figure 8: Key logic in Projection Unit. rotation 𝑞 to form a 3D covariance matrix and applies a perspective projection, resulting in a 2D inverse covariance matrix Σ ′ . Finally, the SCU estimates the elliptical coverage region of each Gaussian using Σ ′ and prunes those that fa…
Figure 9
Figure 9. Figure 9: Alpha Unit and alpha-based controller. Equation 4. The resulting blended outputs are written back to the Image Buffer for subsequent Gaussian compositions. Since 3DGS requires strict back-to-front blending, the pipeline enforces ordering at the block level. If a later …
Figure 10
Figure 10. Figure 10: The area-normalized performance and energy efficiency per frame of GCC and GSCore [19] on the six scenes. [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
Figure 11
Figure 11. Figure 11: Breakdown Analysis of performance and DRAM access for GCC. [PITH_FULL_IMAGE:figures/full_fig_p009_11.png]
Figure 12
Figure 12. Figure 12: Energy breakdown of GCC and GSCore [19]. [PITH_FULL_IMAGE:figures/full_fig_p011_12.png]
Figure 13
Figure 13. Figure 13: Design space exploration on performance-per-area [PITH_FULL_IMAGE:figures/full_fig_p011_13.png]
Figure 15
Figure 15. Figure 15: Breakdown analysis of per-frame execution time [PITH_FULL_IMAGE:figures/full_fig_p012_15.png]
