RailX: A Flexible, Scalable, and Low-Cost Network Architecture for Hyper-Scale LLM Training Systems

T0 review · 2 major / 4 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read RailX claims that separating node edges into Hamiltonian rail rings, interconnected by optical circuit switches and an on-package mesh, yields a flat network that scales beyond 100,000 chips and cuts per-bandwidth cost to under 10% of a…

desk verdict The architecture is genuinely interesting, but the headline cost claims don't survive a close look at the actual external port counts. read the letter →

arxiv 2507.18889 v1 pith:IUHQEA6C submitted 2025-07-25 cs.AR cs.DCcs.NI

Yinxiao Feng , Tiancheng Chen , Yuchen Wei , Siyuan Shen , Shiju Wang , Wei Li , Kaisheng Ma , Torsten Hoefler This is my paper · ORCID
classification cs.ARcs.DCcs.NI
keywords RailXLLMtrainingnetworkopticalcircuitswitchingHamiltoniandecompositionall-to-alltopologyAll-Reducefat-treecostdimensionsplitting
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

RailX argues that hyper-scale LLM training networks do not need expensive multi-tier fat-trees. The paper proposes a flat, reconfigurable network built from two inexpensive ingredients: a high-bandwidth 2D-mesh inside each multi-chip node, and optical circuit switches that wire node edges into separate rails. By configuring those rails as Hamiltonian rings with different node orderings, a small number of rings becomes an all-to-all mesh: any two nodes meet directly on two different rings. On that base, RailX claims to interconnect more than 100,000 chips with a single flat switching layer, diameter 2–4 inter-node hops, at under 10% of fat-tree cost per injection/All-Reduce bandwidth and under 50% of fat-tree cost per bisection/All-to-All bandwidth; the paper prices a 200K-chip system with 1.8TB/s per chip at about $1.3B. A reader should care because networking is a fast-growing share of LLM training cost, and the same fabric must serve both ring collectives and all-to-all traffic such as mixture-of-experts communication.

What carries the argument

The load-bearing machinery is the rail-ring-based all-to-all interconnection built on Hamiltonian decomposition, the partition of a complete graph's edges into Hamiltonian cycles that each visit every vertex once. It creates direct links between every node pair from what would otherwise be separate rings. Around it, RailX uses the intra-node 2D-mesh as a high-bandwidth virtual switch, so long-distance optical links appear only at node edges, and a 2D-organized array of optical circuit switches replaces the centralized switching layer that limits earlier OCS-based designs. The dynamic-configuration counterpart is Dimension Splitting, which regroups rails into logical dimensions of chosen scale and bandwidth, letting one physical fabric emulate torus, HyperX, Dragonfly, or five-dimensional heterogeneous topologies.

What would settle it

Build a small RailX testbed with intra-node bandwidth equal to inter-node bandwidth ($k=1$) and measure all-to-all throughput; the paper's simulation predicts a sharp collapse at that ratio, so sustained near-theoretical throughput would falsify the mesh-switch premise. A bottom-up price quote for the 200K-chip, 1.8TB/s configuration that exceeds the claimed $1.3B would test the cost claim.

Watch

Extended reading notes

Core claim

The central discovery is a topological construction. In a complete directed graph on $k$ vertices, Hamiltonian decomposition partitions the edges into $k-1$ directed Hamiltonian cycles; physically, a node with $k-1$ rails can be wired on each rail as a ring with a different vertex order, so every pair of nodes is directly connected on two different rings, with small exceptions at $k=4$ and $k=6$. RailX asserts that this arrangement turns separate rings into an all-to-all topology, giving a diameter of only 2–4 inter-node hops and bisection bandwidth sufficient for all-to-all traffic. The paper further claims that placing an $m \times m$ 2D-mesh inside each node, using that mesh as a virtual switch, and organizing optical circuit switches in a 2D row/column layout removes the centralized switching bottleneck: with switch radix $R=128$ and $m=5$, 102,400 chips fit under one flat switching layer, and a 200K-chip system with 1.8TB/s per chip can be built for about $1.3B. On this base, ring-based All-Reduce and all-to-all communication are simultaneously optimized, and dimension splitting maps high-dimensional parallelism flexibly.

Load-bearing premise

The construction requires the node's internal 2D-mesh to move data at least twice as fast as its external optical links; if that ratio is not met, the mesh becomes the bottleneck and the claimed all-to-all throughput collapses.

Editorial extensions

If this is right

  • A single flat tier of 128-port optical switches can interconnect 102,400 chips, and the 200,704-chip configuration needs no second switching tier.
  • RailX's ring-collective and all-to-all traffic coexist: the same rails that give near-theoretical all-to-all throughput also feed hierarchical All-Reduce algorithms that beat 2D-ring on torus and HammingMesh.
  • Cost per injection/All-Reduce bandwidth falls to under 10% of a non-blocking fat-tree, and cost per bisection/All-to-All bandwidth falls to under 50%, with the 200K-chip system priced near $1.3B.
  • Dimension Splitting maps TP/CP/EP/DP/PP onto distinct dimensions with adjustable per-dimension bandwidth, so heterogeneous parallelism no longer forces a fixed-shape torus.
  • Optical reconfiguration routes around failed rows and columns; at a 0.1% failure rate, single-job availability stays above 90%, and MLaaS-style multi-job allocation can use essentially all remaining nodes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper, the same ring-as-clique construction would work for any dense all-to-all workload, such as embedding lookups, recommender training, or scientific halo exchange, not just LLM training.
  • Beyond the paper, the 10% and 50% cost ratios rest on today's relative prices of OCS ports, passive copper, and active optical transceivers; a sensitivity analysis with future pricing could locate the crossover where fat-trees become cheaper.
  • Beyond the paper, because the paper's own figures show that $k=2$ internal bandwidth is nearly sufficient and $k=4$ adds little, the practical headroom is set by packaging and co-packaged-optics yields rather than by topology; a measured $k=2$ node demonstration would de-risk the claim.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. RailX is a proposed reconfigurable, flat optical-circuit-switched network for hyper-scale LLM training. Each node is an m×m 2D-mesh of chips with high-bandwidth on-package links; boundary ports are converted to optics and wired to a 2D-organized set of OCSs. Using Hamiltonian decomposition, the paper organizes rails into rings that give two direct links between every node pair, enabling Torus, HyperX, and Dragonfly configurations, plus a dimension-splitting mechanism for heterogeneous parallelism. The claimed results are scalability beyond 100K chips with a flat 128-port switching layer, diameter 2–4 inter-node hops, and network cost per injection/All-Reduce bandwidth below 10% of Fat-Tree, with a roughly $1.3B system for 200K chips. Evaluation combines an analytical model, a cycle-based simulator, and component-level cost tables.

Significance. If the cost and performance claims were correct, RailX would be an important architecture: it would combine flat OCS scalability, all-to-all connectivity, and low diameter at a small fraction of the cost of Fat-Tree-based fabrics. The Hamiltonian-ring construction and the 2D OCS organization are elegant, and the scaling formulas in Eqs. (1)–(4) are internally consistent. The paper also provides a transparent component-level cost model and a detailed simulation setup, which are strengths. However, the central cost-effectiveness claim is undermined by an external-port accounting inconsistency: the cost tables count only about 5 optical ports per chip for the flagship configuration while crediting 36 ports per chip in the cost-per-injection comparison. This is a load-bearing issue for the headline claims, not a presentation detail; the architecture remains interesting, but the quantitative contributions need substantial correction.

major comments (2)
  1. [§6.2, Table 6, Eq. (1)] The cost comparison is internally inconsistent. With R=128, m=7, n=9, Eq. (1) gives N_s = rR = 8064 OCSs, hence 8064×128 = 1,032,192 OCS (and AOT) ports. For N=200,704 chips this is 1,032,192/200,704 = 5.14 optical ports per chip, i.e., about 2.06 Tb/s at 400G, not the 36×400G = 14.4 Tb/s per chip assumed in §6.2 for a fair comparison. The AOT count in Table 6 (1032.2K) confirms this. Consequently the 'Cost/Inject' column, which sets 2-Tier FT to 1, credits RailX7Mesh with a per-chip injection bandwidth it does not have: using the actual 5.14 ports/chip, the corrected ratio is (1314.4/415.9)×(2048×36)/(200704×5.14) ≈ 0.226×, not the reported 0.03×. Against the 4-tier nonblocking Fat-Tree at the same scale (cost/Inject 2.10×), the ratio is ≈10.8%, so the abstract's '<10% of Fat-Tree' is not supported, and the claimed $1.3B system with 1.8TB/s per-chip bandwidth is not backed by the disclosed component counts. The same correction applies to RailX4Mesh (589,824 AOTs over 65,536 chips = 9 ports/chip). Because §6.2 states that cost per injection bandwidth approximates cost per All-Reduce bandwidth, the cost-per-All-Reduce claim inherits this error.
  2. [§3.2, §6.3, Fig. 14] The performance evaluation uses a different port-count convention than the physical architecture. The RailX-2D-HyperX simulation in Fig. 14 is stated as m=4, n=2, but the definitions in §3.2 and Eq. (1) imply only 4n/m = 2 optical ports per chip for that configuration; the simulator nevertheless gives every chip 8 flits/cycle/chip injection bandwidth ('each chip has 8 ports'). If Fig. 14 is an equal-port-count comparison, this needs to be stated explicitly, together with the implied n and OCS radix; if it is meant to model the physical RailX configuration, it overstates the per-chip external bandwidth by 4×. Either way, the simulation results cannot be directly combined with the cost tables to support the cost-per-bandwidth claims.
minor comments (4)
  1. [Abstract and §3.3] The abstract states that the diameter is only 2–4 inter-node hops, but the Torus configuration has diameter R (Table 2); the statement should be qualified to apply to the HyperX and Dragonfly configurations, not to RailX in general.
  2. [§3.2 and §6.2] The symbol n is used inconsistently: §3.2 defines n as the number of off-package ports per chip edge, while §6.2 says 'n=9 rails per chip.' These are different quantities, and the inconsistency is a direct source of the accounting confusion in Table 6.
  3. [Table 3] The column 'Glob. BW [% Inject]' mixes the two port-count conventions: for RailX7Mesh the 7.1% value is computed relative to a 36-port/chip injection bandwidth, whereas with the actual 5.14 ports/chip the same all-to-all throughput is 50% of the per-chip injection bandwidth. The column should be recomputed and explicitly defined.
  4. [Throughout] There are several typos and unclear statements that should be cleaned up, including 'Draonglfy' in the §3.3 heading, 'Tours' in §2.2.2, and the phrase 'default input buffer size ... 16 flits (i.e., maximum message size)' in §6.1.2, which conflicts with the stated packet length of 4 flits.

Circularity Check

0 steps flagged · score 2.0 of 10

No significant circularity; RailX's topology rests on an external Hamiltonian-decomposition theorem, and cost ratios follow a disclosed cost model, though the external-port accounting inconsistency is a correctness risk rather than a circular step.

full rationale

The central topological claim (Lemma 3.1) is grounded in Tillson's external Hamiltonian Decomposition theorem [110], with an explicit constructive sketch in Appendix A.1; it is not imported from the authors' own prior work. The cost comparison in Section 6.2 is built from disclosed component prices, switch radices, and Eq. (1), so the '<10% of Fat-Tree' cost-per-bandwidth figures follow arithmetically from the stated model rather than from a fitted parameter or a self-citation chain. The k>2 intra-node bandwidth condition in Eq. (5) is checked by the paper's own cycle-based simulations (Figure 14b), not by circular appeal to an author-derived theorem. The self-citations present (CNSim [37], Switch-Less Dragonfly [36], Interface Grouping [38]) are tooling or motivation references and do not uniquely force the headline result; the Hamiltonian-ring construction and the disclosed cost arithmetic are independent content. The external-port accounting issue raised by the skeptic (Table 6's 8064 OCSes x 128 ports gives about 5.14 optical ports per chip for RailX7Mesh, while the cost-per-injection metric credits each chip with 36x400G off-package bandwidth) is a real correctness and consistency concern, but it is not circularity: the cost model is explicit, and correcting the denominator would change the quantitative claim without collapsing the derivation into its inputs.

Assumptions & free parameters 3 free parameters · 6 assumptions · 0 invented entities

The central scaling and cost claims rest on a classical graph-decomposition theorem, on the availability of advanced packaging with k > 2 intra-node bandwidth, and on OCS pricing assumptions. The design introduces no new physical entities, but it does rely on several aggressive hardware-feasibility and cost assumptions that are not independently validated at the claimed scale.

free parameters (3)
  • intra-node to inter-node bandwidth multiplier k = k = 4 in simulations; k > 2 claimed sufficient
    The all-to-all and All-Reduce performance claims depend on the 2D-mesh having k times the inter-node bandwidth. The paper sweeps k = 1, 2, 4 and asserts k > 2 is needed (Eq. 5, Fig. 14b). This is a design parameter chosen by hand, not derived.
  • off-package rails per chip edge n = 9 in the cost model
    Section 6.2 sets n = 9 to match the 36x400G port assumption, but in the 7x7 node case this yields about 5.1 external optical ports per chip, not 36. The choice drives the cost-per-bandwidth ratios.
  • node mesh scale m = m = 7 for the cost case, m = 5 for the 100K-chip claim
    The node side length m determines how many chips share the node's external ports. Values are chosen to fit the OCS radix budget (r = m*n <= R/2) and to reach the claimed scales, rather than derived independently.
assumptions (6)
  • standard math A directed complete graph K_k* can be decomposed into k-1 directed Hamiltonian cycles for all k except 4 and 6 (Tillson's theorem).
    Used in Lemma 3.1 and Appendix A.1 to construct all-to-all interconnection from separate rail rings.
  • domain assumption Advanced packaging and co-packaged optics deliver intra-node bandwidth at least 2-4x the inter-node optical bandwidth per chip.
    Eq. (5) in Section 3.3.5 requires k > 2 for the 2D-mesh to serve as a non-blocking virtual switch. This is a physical feasibility assumption not demonstrated at the proposed scale.
  • domain assumption A 128-port optical circuit switch costs about the same as a 64-port electrical packet switch.
    This pricing equivalence, stated in Section 6.2 and Appendix A.7, is a load-bearing input for the claim that RailX costs less than 10% of fat-tree per All-Reduce bandwidth.
  • domain assumption Optical circuit switch reconfiguration time fits into the millisecond-scale gap between communication phases in training.
    Section 5.2 and Appendix A.4 assume the 6 ms gap between CP and EP communication is enough to reconfigure the OCS. This is measured on a small 64-GH200 testbed, not at hyper-scale.
  • domain assumption The analytical model calibrated on 64 GH200 chips extrapolates to 200K chips.
    Section 6.1.1 and Appendix A.4 validate on small-scale hardware and scale by FLOPS multiples and communication volumes. The extrapolation assumes no scale-dependent effects dominate.
  • domain assumption Co-packaged optics provide the port density needed for the node edge ports (e.g., 32 optical ports per chip edge).
    Section 3.3.2 cites Broadcom's CPO result for 32 ports per chip edge. The scalability formulas rely on enough off-package ports per chip edge to reach the claimed chip counts.

how reviews work

0 comments
Cite this review

Pith. "Pith review of RailX: A Flexible, Scalable, and Low-Cost Network Architecture for Hyper-Scale LLM Training Systems." pith.science (2026). https://pith.science/paper/IUHQEA6C

@misc{pith2026250718889,
  author       = {Pith},
  title        = {Pith review of: RailX: A Flexible, Scalable, and Low-Cost Network Architecture for Hyper-Scale LLM Training Systems},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/IUHQEA6C}},
  note         = {Machine review of arXiv:2507.18889}
}
abstract

Increasingly large AI workloads are calling for hyper-scale infrastructure; however, traditional interconnection network architecture is neither scalable nor cost-effective enough. Tree-based topologies such as the \textit{Rail-optimized} network are extremely expensive, while direct topologies such as \textit{Torus} have insufficient bisection bandwidth and flexibility. In this paper, we propose \textit{RailX}, a reconfigurable network architecture based on intra-node direct connectivity and inter-node circuit switching. Nodes and optical switches are physically 2D-organized, achieving better scalability than existing centralized circuit switching networks. We propose a novel interconnection method based on \textit{Hamiltonian Decomposition} theory to organize separate rail-based rings into \textit{all-to-all} topology, simultaneously optimizing ring-collective and all-to-all communication. More than $100$K chips with hyper bandwidth can be interconnected with a flat switching layer, and the diameter is only $2\sim4$ inter-node hops. The network cost per injection/All-Reduce bandwidth of \textit{RailX} is less than $10\%$ of the Fat-Tree, and the cost per bisection/All-to-All bandwidth is less than $50\%$ of the Fat-Tree. Specifically, only $\sim$\$$1.3$B is required to interconnect 200K chips with 1.8TB bandwidth. \textit{RailX} can also be used in the ML-as-a-service (MLaaS) scenario, where single or multiple training workloads with various shapes, scales, and parallelism strategies can be flexibly mapped, and failures can be worked around.

Figures

Figures reproduced from arXiv: 2507.18889 by the authors.

Figure 1
Figure 1. Scalability comparison of different topologies. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Rail-optimized Fat-Tree. The 𝑖-th GPU in each node is connected to the 𝑖-th rail switch. packages into large system-level networks [109], the mis￾matched bandwidth can lead to low utilization. Besides, map￾ping highly parallelized AI training workloads on such net￾works is also challenging. 2.2 Challenges of Existing Networks for AI 2.2.1 Fat-Tree is expensive. In existing architectures, processors within a node are… view at source ↗
Figure 4
Figure 4. High-dimensional (TP, CP, EP, DP, PP) het [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (15 more)
Figure 5

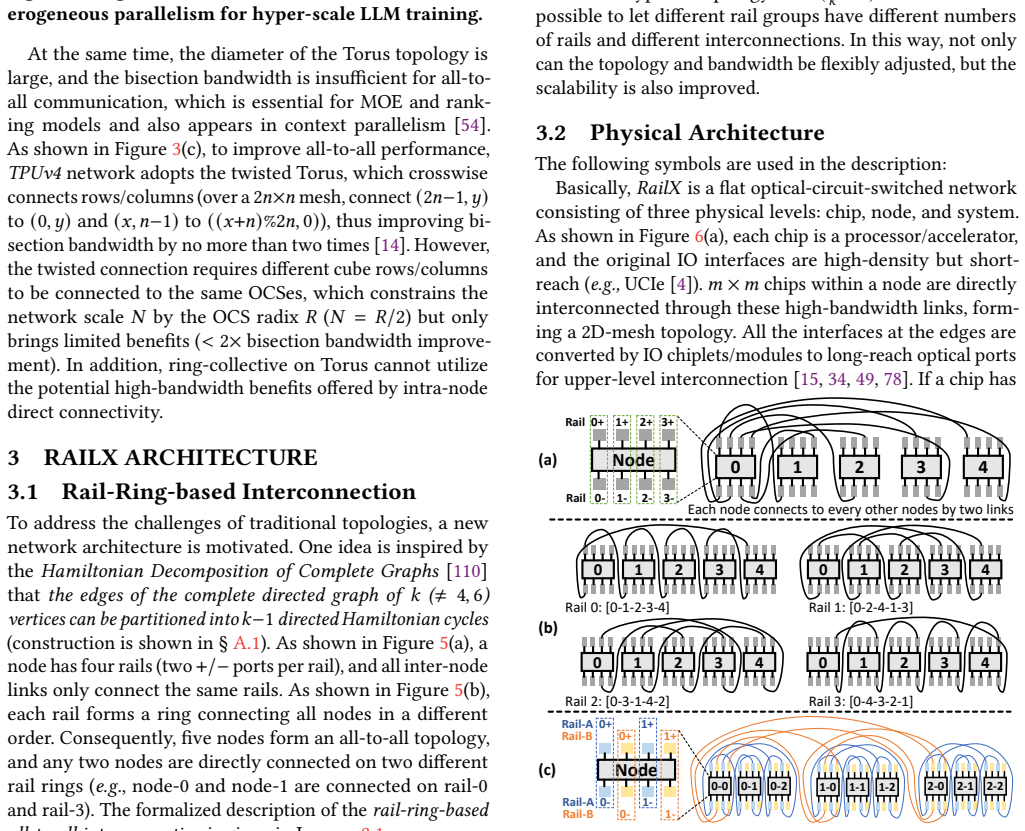

Figure 5. Figure 5: Rail-ring-based interconnection. (a) Each [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 6
Figure 6. Figure 6: RailX physical architecture. (a) Chips within a node are connected into a 2D-mesh topology by high [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: 2D-HyperX configuration of 25 nodes. 4 X [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: Dragonfly configuration. Five nodes are lo [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: High-dimensional heterogeneous topology (4 × 3 × 3 × 𝐷 × 𝑃) and the mapping of the training workload (𝑇 𝑃 × 𝐶𝑃 × 𝐸𝑃 × 𝐷𝑃 × 𝑃𝑃). A more detailed version is shown in § A.3 [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 10

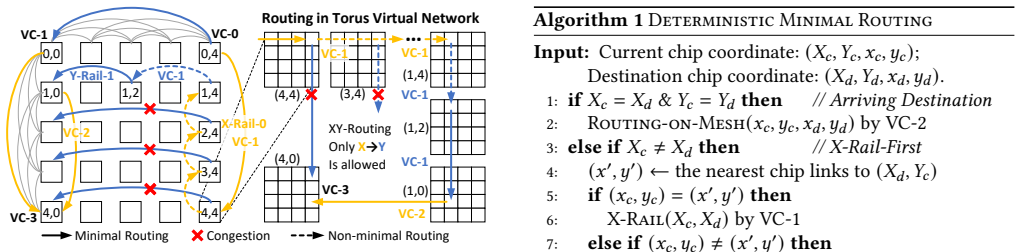

Figure 10. Figure 10: Minimal and non-minimal adaptive routing [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 12
Figure 12. Figure 12: Expert parallelism. algorithm on the 𝑚2 × 𝑝 × 𝑝 RailX network is estimated as 𝑇RailX ≈ 2 × 𝑉 2𝒌𝑛𝐵 +  4𝑝𝛼 + 𝑉 /𝒎2 2𝑛𝐵/𝒎  = 4𝑝𝛼 +  2 𝑘 + 1 𝑚  𝑉 2𝑛𝐵 , (8) where 𝑘 is the multiple of on-package bandwidth (in local 2D-mesh) over off-package bandwidth. We can see that t…
Figure 13
Figure 13. Figure 13: Circuit switching to allocate all bandwidth [PITH_FULL_IMAGE:figures/full_fig_p010_13.png]
Figure 14
Figure 14. Figure 14: All-to-all performance. (a) Different topolo [PITH_FULL_IMAGE:figures/full_fig_p011_14.png]
Figure 15
Figure 15. Figure 15: All-Reduce performance. 6.4 All-Reduce Performance We also evaluate the All-Reduce performance of RailX. 1D￾ring, 2D-Torus [48], and hierarchical-2D-Torus algorithm presented in § 4.2 are evaluated with different scales and sizes. We assume each chip has four ports (d…
Figure 17
Figure 17. Figure 17: Availability of single allocation with OCS [PITH_FULL_IMAGE:figures/full_fig_p012_17.png]
Figure 18
Figure 18. Figure 18: Hamiltonian decomposing of𝐾 ∗ 2𝑚+1 complete graph. It has been proven that a directed complete graph 𝐾𝑛 (𝑛 ≠ 4, 6) can always be decomposed into 𝑛 −1 directed Hamilton￾ian cycles [11, 110]. If 𝑛 = 2𝑚 + 1, there is a straightforward construction to decompose the graph …
Figure 19
Figure 19. Figure 19: High-dimensional heterogeneous topology ( [PITH_FULL_IMAGE:figures/full_fig_p022_19.png]
Figure 20

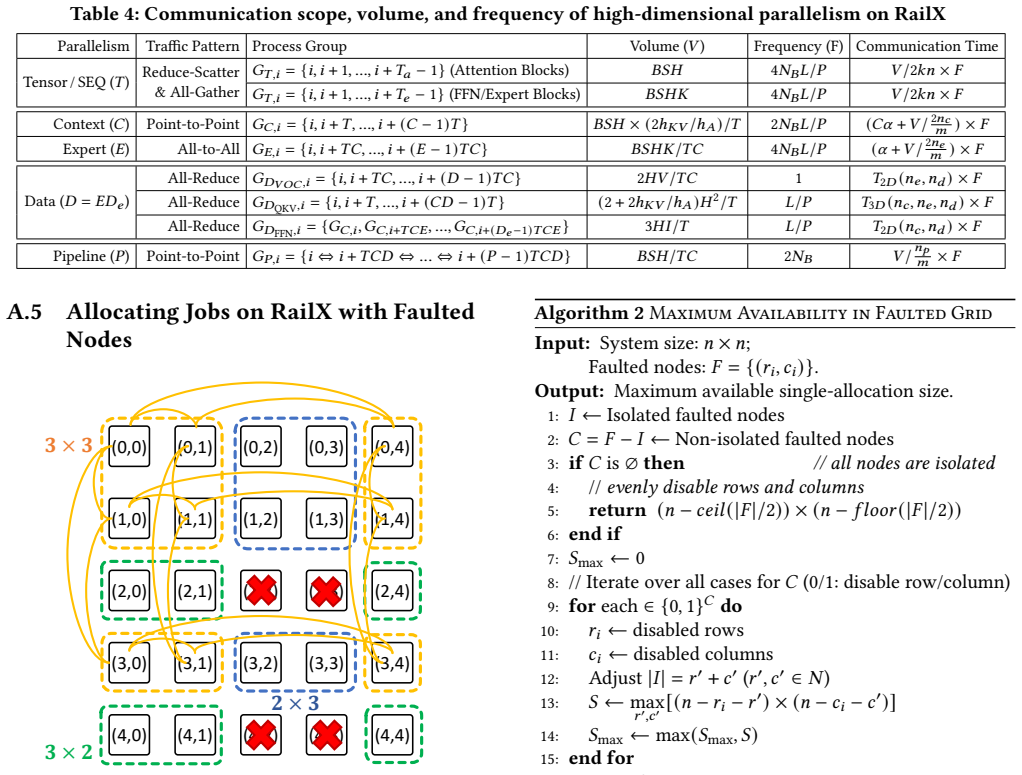

Figure 20. Figure 20: Allocation of jobs with failure nodes. In the MLaaS scenario, we can use multiple small work￾loads to fully utilize all functional nodes in the faulted RailX. As shown in [PITH_FULL_IMAGE:figures/full_fig_p023_20.png]
Figure 21
Figure 21. Figure 21: Trace example. CP and EP are separated by 6 ms. [PITH_FULL_IMAGE:figures/full_fig_p024_21.png]
