Convergence of Discrete Exterior Calculus for the Hodge-Dirac Operator

Radovan Dabeti\'c; Ralf Hiptmair

arxiv: 2507.19405 · v2 · submitted 2025-07-25 · 🧮 math.NA · cs.NA

Convergence of Discrete Exterior Calculus for the Hodge-Dirac Operator

Radovan Dabeti\'c , Ralf Hiptmair This is my paper

Pith reviewed 2026-05-19 02:51 UTC · model grok-4.3

classification 🧮 math.NA cs.NA

keywords discrete exterior calculusHodge-Dirac operatorconvergence analysisnumerical discretizationdifferential formssimplicial meshesfinite element approximation

0 comments

The pith

Discrete exterior calculus approximations converge for the Hodge-Dirac operator.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper gives a short proof that the discrete exterior calculus method produces solutions to the Hodge-Dirac problem that approach the exact continuous solution as the mesh is refined. The argument proceeds by carrying over the estimates already developed for the related Hodge-Laplacian operator and making only small adjustments. If this holds, the same discrete spaces and operators become reliable for a wider set of first-order problems that appear in geometry and mathematical physics. A reader would care because it removes the need to develop a separate convergence theory for each operator in the family.

Core claim

The discretization of the Hodge-Dirac operator within discrete exterior calculus is shown to converge by transferring the convergence analysis from the Hodge-Laplacian case, with only minor modifications to the estimates and without introducing new mesh or regularity assumptions.

What carries the argument

Direct transfer of consistency and stability estimates from the Hodge-Laplacian variational formulation to the first-order Hodge-Dirac system inside the same discrete exterior calculus spaces.

If this is right

The same simplicial meshes and discrete spaces that work for the Hodge-Laplacian also work for the Hodge-Dirac operator.
Error bounds depend on mesh size and solution regularity in the same way as in the related analysis.
No separate stability proof is required once the Hodge-Laplacian estimates are available.
Existing discrete exterior calculus code can be reused for Hodge-Dirac problems with the expected accuracy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same transfer technique could be tried on other first-order operators that share the algebraic structure of the Hodge-Dirac operator.
Numerical tests on problems from electromagnetism or differential geometry would give practical confirmation of the predicted convergence rates.
Software that already implements discrete exterior calculus for the Laplacian could add the Dirac case with only small additional routines.

Load-bearing premise

The analytic techniques developed for the Hodge-Laplacian transfer directly to the Hodge-Dirac operator with only minor adaptations and without new regularity or mesh assumptions.

What would settle it

A sequence of refined meshes on which the computed discrete solution for a known smooth Hodge-Dirac problem remains a fixed distance away from the exact solution would show that convergence does not hold.

Figures

Figures reproduced from arXiv: 2507.19405 by Radovan Dabeti\'c, Ralf Hiptmair.

**Figure 2.** Figure 2: Mesh and convergence of DEC on an equilateral triangle with a structured mesh. [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

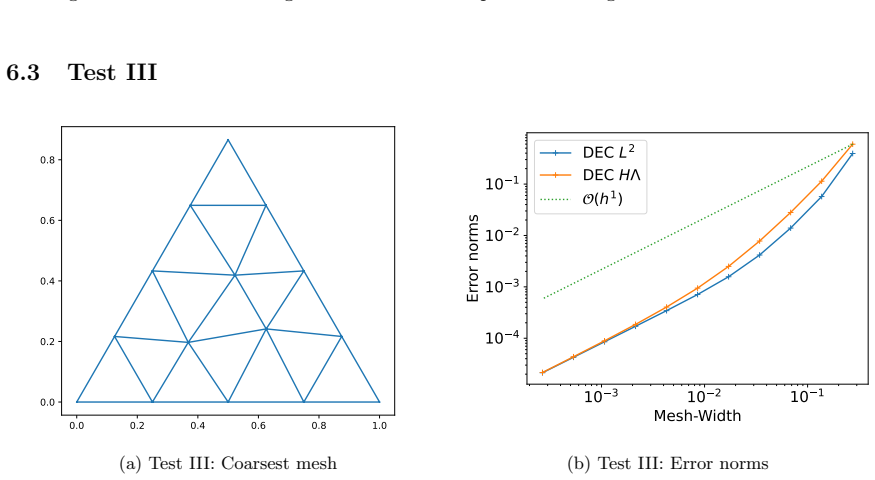

**Figure 3.** Figure 3: Mesh and convergence of DEC on an equilateral triangle with a perturbed mesh. [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

read the original abstract

A short proof of convergence for the discretization of the Hodge-Dirac operator in the framework of discrete exterior calculus (DEC) is provided using the techniques established in [Johnny Guzm\'an and Pratyush Potu, A Framework for Analysis of DEC Approximations to Hodge-Laplacian Problems using Generalized Whitney Forms, arXiv:2505.08934, 2025]

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Short note that adapts the Guzmán-Potu framework to prove convergence for the Hodge-Dirac operator in DEC; the transfer from second-order to first-order is the part worth checking.

read the letter

This paper is a short technical note proving convergence of the discrete exterior calculus scheme for the Hodge-Dirac operator by adapting the analysis from the Guzmán-Potu preprint on the Hodge-Laplacian. It adds the missing case for this first-order operator without introducing new machinery or frameworks. The authors keep the write-up brief and reuse the generalized Whitney forms plus the existing error estimates, which is efficient for an incremental extension like this. That reuse is the main strength and keeps the contribution focused and honest about its scope. The central claim is that the prior techniques carry over with only minor adjustments. The stress-test concern is reasonable on its face because the Hodge-Laplacian is second-order elliptic while the Dirac operator is first-order and skew-adjoint, so discrete stability requires separate control of consistency for both d_h and its adjoint plus appropriate graph-norm estimates. If the manuscript simply asserts that the same arguments apply without re-deriving or clearly adapting the key a-priori bounds, that step becomes load-bearing. From the abstract and the way the work is framed, it appears the authors treat the adaptation as straightforward, but a referee would want to see the explicit estimates spelled out to confirm no extra mesh-regularity hypotheses are hidden. This note is aimed at specialists already working with structure-preserving discretizations of differential forms who follow the cited line of work. It strengthens the catalog of provably convergent DEC operators but does not reorganize the field or open new applications. The citations are appropriate and point to the right external reference rather than creating a loop. I would send it to peer review so a referee can verify the details of the transfer and the precise hypotheses under which the convergence holds.

Referee Report

1 major / 2 minor

Summary. The manuscript presents a short proof of convergence for the discretization of the Hodge-Dirac operator D = d + d* in the discrete exterior calculus (DEC) framework. It adapts the analysis techniques from Guzmán and Potu (arXiv:2505.08934) on generalized Whitney forms for Hodge-Laplacian problems, asserting that the same arguments carry over with only minor adaptations.

Significance. If the adaptation is rigorously justified, the result would usefully extend the generalized Whitney form framework from second-order elliptic operators to first-order skew-adjoint operators. This could support DEC applications in contexts such as electromagnetism or Dirac-type problems where stability in graph norms is required. The brevity of the argument is a potential strength provided the key estimates are verified rather than merely invoked.

major comments (1)

The manuscript's central claim rests on the direct transfer of the a priori estimates and stability arguments from the Hodge-Laplacian setting. Because the Hodge-Dirac operator is first-order and skew-adjoint, the consistency error analysis must separately control both d_h and (d_h)* in the appropriate graph norm; the paper should explicitly re-derive or cite the precise inverse inequalities and discrete Poincaré constants used for this operator rather than stating that the same arguments apply. Without this step, the load-bearing transfer assumption remains unverified.

minor comments (2)

The abstract and introduction should include a brief statement of the precise mesh-regularity hypotheses inherited from arXiv:2505.08934 and any additional assumptions needed for the Dirac case.
Notation for the discrete operators (e.g., d_h versus d_h^*) should be introduced consistently in the main theorem statement to avoid ambiguity when referring to the adjoint.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and the constructive suggestion regarding the transfer of estimates. We agree that the first-order skew-adjoint character of the Hodge-Dirac operator warrants explicit verification of the relevant stability and consistency estimates, and we will revise the manuscript accordingly to make the adaptation fully rigorous.

read point-by-point responses

Referee: The manuscript's central claim rests on the direct transfer of the a priori estimates and stability arguments from the Hodge-Laplacian setting. Because the Hodge-Dirac operator is first-order and skew-adjoint, the consistency error analysis must separately control both d_h and (d_h)* in the appropriate graph norm; the paper should explicitly re-derive or cite the precise inverse inequalities and discrete Poincaré constants used for this operator rather than stating that the same arguments apply. Without this step, the load-bearing transfer assumption remains unverified.

Authors: We accept this point. Although the generalized Whitney forms and core stability framework developed in Guzmán and Potu (arXiv:2505.08934) for the Hodge-Laplacian extend naturally to the Hodge-Dirac operator (via the relation D^2 = Δ), the manuscript's brevity left the necessary adaptations implicit. In the revised version we will insert a short subsection that explicitly recalls the inverse inequalities and discrete Poincaré constants from the cited work, then verifies their application to the graph norm of the discrete Hodge-Dirac operator. This will include separate control of the consistency errors for both d_h and (d_h)*, confirming that only minor modifications to the existing arguments are required. revision: yes

Circularity Check

0 steps flagged

No circularity: convergence proof adapts external techniques from independent preprint

full rationale

The manuscript states that it provides a short proof of convergence for the Hodge-Dirac operator discretization by using the techniques established in the 2025 preprint arXiv:2505.08934 by Johnny Guzmán and Pratyush Potu. The cited authors are distinct from the current paper's authors (Dabetić and Hiptmair), and the referenced work concerns the Hodge-Laplacian rather than the Hodge-Dirac operator. No self-citation, self-definition, fitted-input-as-prediction, or internal reduction of the claimed result to quantities defined within this manuscript is present. The derivation therefore rests on external, independently authored analysis and exhibits no circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The proof inherits standard mathematical assumptions on the underlying manifold, differential forms, and mesh families from the referenced Guzmán-Potu framework; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)

domain assumption Standard Sobolev regularity and mesh quasi-uniformity assumptions required for the Hodge-Laplacian analysis in arXiv:2505.08934 also hold for the Hodge-Dirac operator.
The abstract states that the proof uses the techniques established in the cited paper, implying these background hypotheses are carried over.

pith-pipeline@v0.9.0 · 5584 in / 1137 out tokens · 45494 ms · 2026-05-19T02:51:27.721632+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

A short proof of convergence for the discretization of the Hodge-Dirac operator in the framework of discrete exterior calculus (DEC) is provided using the techniques established in [Guzmán-Potu 2025]

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

7 extracted references · 7 canonical work pages · 1 internal anchor

[1]

Computers & Mathematics with Applications 81 (Jan

Robert Anderson et al. “MFEM: A modular finite element methods library”. In: Computers & Mathematics with Applications 81 (Jan. 2021), pp. 42–74. issn: 0898-1221. doi: 10 . 1016 / j . camwa.2020.06.009. url: http://dx.doi.org/10.1016/j.camwa.2020.06.009

work page doi:10.1016/j.camwa.2020.06.009 2021
[2]

Douglas N. Arnold. Finite Element Exterior Calculus . Society for Industrial and Applied Mathe- matics, Dec. 2018. isbn: 9781611975543. doi: 10.1137/1.9781611975543

work page doi:10.1137/1.9781611975543 2018
[3]

Topics in structure-preserving discretization

Snorre H. Christiansen, Hans Z. Munthe-Kaas, and Brynjulf Owren. “Topics in structure-preserving discretization”. In: Acta Numerica 20 (Apr. 2011), pp. 1–119. issn: 1474-0508. doi: 10.1017/ s096249291100002x

work page 2011
[4]

Johnny Guzm´ an and Pratyush Potu.A Framework for Analysis of DEC Approximations to Hodge- Laplacian Problems using Generalized Whitney Forms. 2025. arXiv: 2505.08934 [math.NA]. url: https://arxiv.org/abs/2505.08934

work page internal anchor Pith review Pith/arXiv arXiv 2025
[5]

Discrete exterior calculus

Anil Nirmal Hirani. “Discrete exterior calculus”. en. PhD thesis. 2003. doi: 10.7907/ZHY8-V329

work page doi:10.7907/zhy8-v329 2003
[6]

The Abstract Hodge–Dirac Operator and Its Stable Discretization

Paul Leopardi and Ari Stern. “The Abstract Hodge–Dirac Operator and Its Stable Discretization”. In: SIAM Journal on Numerical Analysis 54.6 (Jan. 2016), pp. 3258–3279. issn: 1095-7170. doi: 10.1137/15m1047684

work page doi:10.1137/15m1047684 2016
[7]

Convergence and Stability of Discrete Exterior Calculus for the Hodge Laplace Problem in Two Dimensions

Chengbin Zhu et al. Convergence and Stability of Discrete Exterior Calculus for the Hodge Laplace Problem in Two Dimensions . 2025. doi: 10.48550/ARXIV.2505.08966. 10

work page doi:10.48550/arxiv.2505.08966 2025
