Quadratic Programming-Based Posture Manipulation and Thrust-vectoring for Agile Dynamic Walking on Narrow Pathways

T0 review · 5 major / 4 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A single convex controller lets a thrustered quadruped walk a 0.1 m beam and recover from a 40 N push.

desk verdict A standard centroidal-MPC simulation study with a serious state-space inconsistency in its linear model; the push-recovery ablation is solid, but the beam-walking claims need the fix and more baselines. read the letter →

arxiv 2507.23203 v1 pith:M3WQX3H7 submitted 2025-07-31 cs.RO

Chenghao Wang , Eric Sihite , Kaushik Venkatesh Krishnamurthy , Shreyansh Pitroda , Adarsh Salagame , Alireza Ramezani , Morteza Gharib This is my paper · ORCID
classification cs.RO
keywords quadrupedallocomotionthruster-assistedwalkingmodelpredictivecontrolcentroidaldynamicsnarrow-pathpushrecoveryquadraticprogramminglegged-aerialrobot
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that a single model-predictive controller, built on centroidal dynamics and solved as a quadratic program, can coordinate four ground-reaction forces with four knee-mounted thruster forces to stabilize a quadruped robot's frontal dynamics. In simulation, this lets the robot walk steadily along a beam only 0.1 meters wide and recover from a 40-newton lateral push applied for half a second. The authors position this as a step toward a robot that can traverse narrow or flexible pathways that ordinary legged locomotion cannot manage. The payoff, if correct, is that posture and thrust control need not be separate: one convex optimization framework handles both.

What carries the argument

The load-bearing object is the centroidal dynamics model with augmented thruster inputs: the robot's center-of-mass acceleration and angular acceleration are expressed as linear functions of four ground-reaction force vectors and four scalar thruster forces, with lever arms updated in real time from leg kinematics. Under the assumption of small roll and pitch angles, the attitude kinematics are linearized, yielding a convex model-predictive control problem whose constraints include a linearized friction cone and single-direction thrust limits. The optimizer selects both foot forces and thruster forces at 100 Hz, making the thrusters an active part of the stability loop rather than a separate assist.

What would settle it

Run the same ten-second beam-walking task and 40-newton push on the physical robot: if its attitude drifts, it leaves the beam, or it tips over while the simulator stayed upright, the sim-to-hardware transfer claim fails. A quicker in-simulation check is to initialize the walk with a roll angle outside the small-angle range, say 15 to 20 degrees, and see whether the linearized MPC still holds the beam; losing stability there would confirm the small-angle assumption as the effective limit.

Watch

Extended reading notes

Core claim

The central claim is that lateral stability on a narrow path can be achieved by adding thruster forces as inputs to a linearized centroidal dynamics model, then solving a short-horizon model-predictive control problem with ground-reaction-force friction-cone constraints and thrust bounds. The simulation shows the robot maintains a stable lateral position and stance height for ten seconds of beam walking, with thruster forces staying below 7 newtons, and recovers from a 40-newton lateral disturbance that causes the no-thruster controller to fall within two seconds. The authors conclude that thrusters effectively enlarge the feasible region of ground contact forces, so the no-slip condition can be met even when foot placement is severely restricted.

Load-bearing premise

The controller's prediction model assumes the robot's roll and pitch angles stay small, and the simulation assumes the physical robot's thrusters and ground contacts behave as modeled; if either fails in hardware, the demonstrated stability may not transfer.

Editorial extensions

If this is right

  • The same MPC formulation covers both nominal beam walking and large lateral disturbance rejection, so no separate recovery-mode controller is needed.
  • Because thruster forces on the beam stay below 7 newtons (about 7 percent of maximum thrust), only modest thrust authority is needed to stabilize roll dynamics in this scenario.
  • Without thrusters the same controller fails within two seconds under the 40-newton push, showing the thrusters are what expand the recoverable disturbance envelope.
  • The friction-cone constraints are satisfied for all four feet during beam walking, indicating the thrusters offload lateral ground forces enough to prevent slipping.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If this transfers to hardware, the approach implies that trajectories previously classified as infeasible for legged robots due to narrow support areas become feasible once additional unilateral forces are available; the effective support polygon could be widened without widening the foot contact area.
  • The paper's stated next target, walking on a flexible rope, would require extending the model from a rigid beam to time-varying contact geometry; the same convex MPC structure could still work if the reference states and contact point set are updated online.
  • A testable extension is to measure the minimum beam width the controller can sustain as a function of maximum thrust; this would quantify how thrust authority trades off against required foot-placement precision.
  • Because the thrusters act almost directly on the body's lateral dynamics, the framework may also apply to bipedal robots or to recovering from pushes on stairs, not just quadrupeds on beams.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 4 minor

Summary. This paper presents a simulation study of thruster-assisted narrow-beam walking for the Husky Beta quadruped. The authors formulate a centroidal dynamics model with ground reaction forces and propeller thrusts as inputs, linearize the attitude kinematics under a small-angle approximation, and build a model predictive controller that solves a quadratic program at 100 Hz. The paper reports two simulation experiments: a 40 N lateral push-recovery comparison with and without thrusters, and a 10 s walk on a 0.1 m wide beam. The claimed contribution is that a single convex MPC framework can coordinate foot forces and thrust forces to expand the locomotion envelope of a legged-aerial platform in simulation.

Significance. If the central claims held, the paper would provide a useful demonstration of convex MPC with thrust vectoring for multi-modal legged-aerial locomotion, and the push-recovery comparison is a well-posed control experiment. The authors should be credited for formulating the QP with friction-cone constraints, for using a high-fidelity PyBullet model, and for reporting thruster-force and friction-ratio trends. However, the current manuscript contains a state-vector inconsistency in the prediction model, unconstrained swing-foot forces in the QP, a missing no-thruster baseline for beam walking, and unreported controller parameters, so the evidence does not yet support the paper's central claim as written.

major comments (5)
  1. [Section III-A and IV, Eq. (7)] The state is defined as x = [θ^T, p^T, ˙ω^T, ˙p^T]^T, but the first block row of A multiplies the third state component by R_z^T. If the third component is ˙ω, the model predicts ˙θ = R_z^T ˙ω, which is dimensionally inconsistent with Eq. (5), ˙θ ≈ R_z^T ω. There is no ω state or integrator, so a nonzero angular velocity with zero angular acceleration would produce no orientation change in the prediction model. Because this prediction model is the core of the MPC, the state definition must be corrected to include ω (or the A matrix, Eq. (7), and the repeated definition in Section IV must be changed accordingly).
  2. [Section IV, Eq. (12)] The control input u includes u_{g,i} for all four legs and the B matrix in Eq. (7) includes all four ground-force columns, but the friction-cone constraints in Eq. (12) only bound u_{g,i} for i ∈ S_t. For swing legs, no constraint forces u_{g,i} = 0, so the QP can command nonzero ground reaction forces on feet that are not in contact, producing unphysical predicted dynamics and joint torques through Eq. (9). Please add equality constraints u_{g,i} = 0 for swing legs or remove the swing-leg ground-force columns from the prediction model.
  3. [Section V-C] The beam-walking experiment is only run with thrusters enabled. Because the paper's contribution is the thruster-assisted expansion of the locomotion envelope, a no-thruster baseline is needed to establish that the beam walking is enabled or improved by the thrusters. The push-recovery experiment provides such a baseline, but Section V-C does not, so the claim that the sagittal propeller played a significant role in satisfying the friction cone constraint is not supported by an ablation.
  4. [Section V-A and Eq. (12)] The reported simulation setup gives only the horizon (5) and the QP update rate (100 Hz). The state and control weights Q and R, friction coefficient μ_s, thruster limit u_max, stance time T_s, discretization step Δt, and PD gains are not reported. Without these values, the results are not reproducible and the reported friction-ratio and thrust-force margins cannot be interpreted quantitatively.
  5. [Section III-A and V-C] The small-angle linearization of Eq. (5) is load-bearing for the MPC prediction, but the paper does not report the actual roll and pitch excursions during the beam walk or the push recovery. The reader cannot verify that the robot remains in the regime where the approximation is valid. Please report the Euler-angle time histories or numerical maxima, and specify the quantitative bounds implied by the small-angle assumption.
minor comments (4)
  1. [Eq. (11)] The continuous-time gravity term h_g should be multiplied by Δt in the discretized expression, or A_k and B_k should be defined as exact discretization matrices. As written, x_{k+1} = A_k x_k + B_k u_k + h_g mixes continuous and discrete quantities.
  2. [After Eq. (7)] The phrase '0n and 1n donates' should read '0_n and 1_n denote'.
  3. [Eq. (5)] The phrase 'the robot never heads upward' is informal; please state the quantitative small-angle bounds used for the linearization.
  4. [Section V-B] The references to 'snapshots 2-5 in Figure 5(a)' and 'snapshots 6-8 in Figure 5(b)' are unclear because the multi-panel figure layout is not described; please label the snapshots and describe the panel contents in the caption.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the centroidal-dynamics MPC derivation is self-contained, and the simulation outcomes are not forced by the model construction; heavy self-citation is present but not load-bearing.

full rationale

The claimed contribution is a controller, not a derived empirical law, and the validation is simulation success. The model is built from Newton-Euler laws (Eqs. 1-3), linearized kinematics (Eq. 5, borrowed from the external MIT Cheetah 3 reference [29]), and a linearized centroidal prediction (Eqs. 7 and 11). The QP in Eq. 12 optimizes ground-reaction and thrust inputs subject to friction-cone and thrust limits; no parameter is identified from the successful trajectories, and no success metric is imposed as a constraint that would make the outcome definitional. References [6]-[17] are mostly prior work by the same group, but they are cited for hardware lineage and earlier thruster-assisted controllers, not as a uniqueness theorem or as a substitute for the model derivation; the approximation in Eq. 5 cites the external [29], and the foot-placement heuristic cites [30]. The skeptical dimensional inconsistency in the state vector (x contains \dot\omega, while the A matrix's first row maps that block to \dot\theta) is a genuine modeling and notation concern for correctness, but it is not circularity: it does not make the simulation result equal to the problem inputs by construction. Therefore no circular step is identified, and the score is low despite the heavy self-citation.

Assumptions & free parameters 8 free parameters · 6 assumptions · 0 invented entities

The central claim depends on a set of user-chosen controller parameters (cost weights, friction coefficient, thrust limits, gains) and on modeling assumptions (small-angle linearization, friction cone, simulation fidelity). None of these parameters are derived from physical data, and the small-angle and simulation-fidelity assumptions are not validated against hardware experiments.

free parameters (8)
  • Q (state cost weighting matrix) = Not reported
    Chosen by authors to balance tracking versus control effort; numerical values not given in the paper.
  • R (control cost weighting matrix) = Not reported
    Chosen by authors; numerical values not given.
  • mu_s (friction coefficient) = Not reported
    Used in the linearized friction cone constraints in Eq. (12); value not stated.
  • u_max (thruster force limit) = Not reported (plot implies 20 N in push recovery, 100 N max thruster)
    Thrust bounds in Eq. (12); the exact value used in the simulations is not stated.
  • T_s (stance time) = Not reported
    Used in the Raibert heuristic in Eq. (10) for foot placement.
  • Dt (MPC discretization time step) = 0.01 s (implied by 100 Hz)
    MPC is solved at 100 Hz, so Dt is approximately 0.01 s, but this is not explicitly stated.
  • n_h (prediction horizon) = 5
    Horizon length of 5 is stated in Section V-A.
  • PD gains Kp, Kd = Not reported
    Used in the joint-level PD controller in Eq. (8); values not provided.
assumptions (6)
  • standard math Centroidal dynamics (Newton-Euler equations) govern the robot's overall translational and rotational motion.
    Eqs. (1)-(3) are the standard rigid-body equations; they are not proven in the paper but are foundational physics.
  • ad hoc to paper The small-angle approximation for roll and pitch holds during the maneuvers (Eq. 5), linearizing the attitude kinematics.
    This approximation is stated as valid 'under typical walking conditions, the robot never heads upward and maneuvers under only small roll and pitch angles'; it is load-bearing for the linear MPC model.
  • domain assumption Foot-ground contact can be modeled with a linearized friction cone defined by a friction coefficient mu_s, and no-slip is ensured by satisfying these constraints.
    Eq. (12) imposes linearized friction cone constraints; this is standard in legged locomotion but assumes a Coulomb friction model and a known mu_s.
  • domain assumption Thruster forces act as external forces at the knee joint positions with known orientation e_i, and are limited to a single direction (positive thrust only).
    The dynamics model in Eqs. (1)-(2) uses thrust forces u_t,i along directions e_i; the MPC constraint 0 < u_t,i enforces single-direction thrust.
  • standard math The Raibert heuristic provides appropriate foot placement for the desired CoM velocity.
    Eq. (10) is a well-established heuristic; it is assumed sufficient for swing-leg placement.
  • domain assumption The PyBullet simulation with the high-fidelity model faithfully represents the real robot's dynamics, including thruster forces and ground contacts.
    The simulation is the source of all results; if the model is inaccurate, the conclusions may not transfer to hardware.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Quadratic Programming-Based Posture Manipulation and Thrust-vectoring for Agile Dynamic Walking on Narrow Pathways." pith.science (2026). https://pith.science/paper/M3WQX3H7

@misc{pith2026250723203,
  author       = {Pith},
  title        = {Pith review of: Quadratic Programming-Based Posture Manipulation and Thrust-vectoring for Agile Dynamic Walking on Narrow Pathways},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/M3WQX3H7}},
  note         = {Machine review of arXiv:2507.23203}
}
abstract

There has been significant advancement in legged robot's agility where they can show impressive acrobatic maneuvers, such as parkour. These maneuvers rely heavily on posture manipulation. To expand the stability and locomotion plasticity, we use the multi-modal ability in our legged-aerial platform, the Husky Beta, to perform thruster-assisted walking. This robot has thrusters on each of its sagittal knee joints which can be used to stabilize its frontal dynamic as it walks. In this work, we perform a simulation study of quadruped narrow-path walking with Husky $\beta$, where the robot will utilize its thrusters to stably walk on a narrow path. The controller is designed based on a centroidal dynamics model with thruster and foot ground contact forces as inputs. These inputs are regulated using a QP solver to be used in a model predictive control framework. In addition to narrow-path walking, we also perform a lateral push-recovery simulation to study how the thrusters can be used to stabilize the frontal dynamics.

Figures

Figures reproduced from arXiv: 2507.23203 by the authors.

Figure 1
Figure 1. Northeastern University’s Husky β robot traversing a narrow beam uses sagittal thrust force and ground reaction force. The inward red line visualizes the direction and magnitude of the thrust force. Dynamic walking on a rigid pipe demands a control strategy that integrates posture adjustment with thrust vec￾toring, achieved via real-time optimization. In this context, several Python-based QP solvers prove essential.… view at source ↗
Figure 2
Figure 2. Hardware overview of Husky β and its primary computing, power, and actuator components. ambition. The structure of this work is as follows: a brief hardware overview of the Husky β robot, followed by the centroidal dynamic modeling with thrusters, MPC formulation, simula￾tion results and discussion, then finalized by the concluding remarks and future work. II. OVERVIEW OF NORTHEASTERN HUSKY PLATFORM The model used i… view at source ↗
Figure 3
Figure 3. Free-body diagram of Husky-β narrow path walking showing the inertial center of mass model and ground contact forces acting on the stance feet. where pref,i is nominal foot position of foot i with respect to the hip i projected onto the ground plane, Ts is the time duration for stance, and v ∈ R 3 center of mass velocity in world frame. A fourth-order Bezier curve is used to generate the swing ´ trajectory, which ha… view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Simulating a trotting gait with and without thrust force, a 40N disturbance (indicated by a yellow line) was applied from t=1s to t=1.5s. (a) With [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5
Figure 5. Figure 5: Comparison of the robot’s center of mass position and orientation with and without thruster activation during external disturbance. [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 6
Figure 6. Figure 6: Thruster force during the external disturbance. From t=1.0s to t=1.7s, the right pair of thrusters activated to counterbalance the disturbance, also [PITH_FULL_IMAGE:figures/full_fig_p004_6.png]
Figure 9

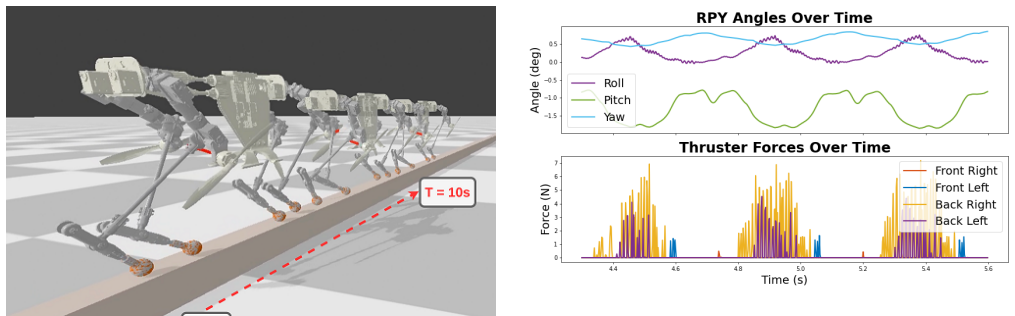

Figure 9. Figure 9: Plot showing the robot’s attitude and thruster forces during the [PITH_FULL_IMAGE:figures/full_fig_p005_9.png]
Figure 8
Figure 8. Figure 8: Plot of the robot’s position state throughout the simulation. The [PITH_FULL_IMAGE:figures/full_fig_p005_8.png]
