Audio-Visual Speech Enhancement: Architectural Design and Deployment Strategies

Anis Hamadouche , Haifeng Luo , Mathini Sellathurai , Amir Hussain , Tharm Ratnarajah This is my paper

Pith reviewed 2026-05-18 23:01 UTC · model grok-4.3

classification 💻 cs.SD eess.SP
keywords audio-visual speech enhancement5G edge computingcloud-edge architectureLSTM fusion networkreal-time multimedianetwork latency bottleneckscompression trade-offsVodafone AWS Wavelength
0
0 comments X

The pith

Public 5G edge networks can sustain real-time audio-visual speech enhancement when compute and uplink resources are orchestrated.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs and evaluates a complete cloud-edge AVSE system that processes audio with CNNs, extracts facial features via OpenCV, and fuses them through an LSTM network to maintain temporal coherence. It deploys this on a Vodafone-compatible AWS Wavelength edge cloud and stress-tests performance across network loads and adaptive compression profiles. Results establish that edge placement is essential to meet delay bounds for interactive use, while uplink capacity emerges as the primary constraint. Aggressive compression cuts payloads by up to 80 percent with little perceptual loss, and a clear trade-off appears between model complexity, latency, and quality in low-SNR conditions.

Core claim

The central claim is that public 5G edge environments can sustain real-time, interactive AVSE workloads when network and compute resources are carefully orchestrated, although performance margins remain tighter than in dedicated infrastructures. Compute placement at the network edge proves critical for meeting real-time coherence constraints, uplink capacity is the dominant bottleneck, only 5G and wired Ethernet consistently satisfy the communication delay bound for uncompressed chunks, and compression enables robust operation under constrained conditions.

What carries the argument

The LSTM fusion network that integrates CNN acoustic enhancement and OpenCV facial features to preserve temporal coherence across the cloud-edge pipeline.

If this is right

  • Edge compute placement is required to keep processing and communication delays low enough for temporal coherence.
  • Uplink capacity must be treated as the primary limit when designing interactive AVSE services.
  • Reduced model complexity lowers delay at the direct expense of reconstruction quality in noisy conditions.
  • Compression profiles can be tuned to maintain perceptual quality while enabling operation on constrained links.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same orchestration approach could apply to other latency-sensitive multimedia tasks such as live translation or AR overlays.
  • Dynamic feedback loops that adjust compression in real time based on measured uplink load would be a natural next extension.
  • Similar edge-cloud splits may prove useful for perceptual enhancement services beyond speech, such as audio-visual source separation.

Load-bearing premise

The stress-testing scenarios and chosen compression levels accurately reflect real interactive use cases without unmodeled degradation in temporal coherence under observed network delays.

What would settle it

An end-to-end delay measurement under typical variable-load interactive conversation patterns that exceeds the coherence threshold even with edge placement and 80 percent compression.

Figures

Figures reproduced from arXiv: 2508.08468 by Amir Hussain, Anis Hamadouche, Haifeng Luo, Mathini Sellathurai, Tharm Ratnarajah.

Figure 1
Figure 1. Figure 1: A block diagram of enabling real-world COG-MHEAR service on terminal devices. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: A schematic describes the experienced latency of this service. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Network latency measured in real-world environments (round-trip latency for transferring [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Audio-video data size versus compression factors. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Algorithm processing latency versus input chunk size. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Time plot and spectrogram of the input noisy audio and output enhanced audio processed with different input chunk [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

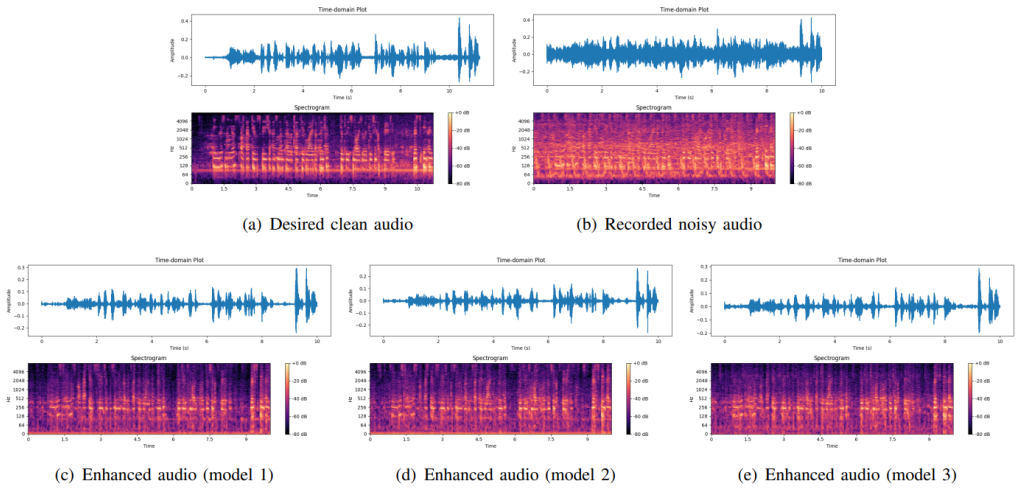

Figure 7. Figure 7: Time plot and spectrogram of the input noisy audio and output enhanced audio processed with different network [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

Real-time audio-visual speech enhancement (AVSE) is a key enabler for immersive and interactive multimedia services, yet its performance is tightly constrained by network latency, uplink capacity, and computational delay. This paper presents the design, deployment, and evaluation of a complete cloud-edge-assisted AVSE system operating over a public 5G edge network. The system integrates CNN-based acoustic enhancement and OpenCV-based facial feature extraction with an LSTM fusion network to preserve temporal coherence, and is deployed on a Vodafone-compatible AWS Wavelength edge cloud. Through extensive stress testing, we analyze end-to-end performance under varying network load and adaptive multimedia profiles. Results show that compute placement at the network edge is critical for meeting real-time coherence constraints, and that uplink capacity is often the dominant bottleneck for interactive AVSE services. Only 5G and wired Ethernet consistently satisfied the required communication delay bound for uncompressed audio-video chunks, while aggressive compression reduced payload sizes by up to 80% with negligible perceptual degradation, enabling robust operation under constrained conditions. We further demonstrate a fundamental trade-off between processing latency and enhancement quality, where reduced model complexity lowers delay but degrades reconstruction performance in low-SNR scenarios. Our findings indicate that public 5G edge environments can sustain real-time, interactive AVSE workloads when network and compute resources are carefully orchestrated, although performance margins remain tighter than in dedicated infrastructures. The architectural insights derived from this study provide practical guidelines for the design of delay-sensitive multimedia and perceptual enhancement services on emerging 5G edge-cloud platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents the design, deployment, and evaluation of a cloud-edge-assisted audio-visual speech enhancement (AVSE) system over a public 5G edge network using a Vodafone-compatible AWS Wavelength platform. It integrates CNN-based acoustic enhancement, OpenCV facial feature extraction, and an LSTM fusion network to maintain temporal coherence, with stress testing under varying network loads and adaptive compression profiles. Key findings include the criticality of edge compute placement, uplink capacity as the dominant bottleneck, satisfaction of delay bounds only by 5G and wired Ethernet for uncompressed streams, up to 80% payload reduction via compression with negligible perceptual loss, and a trade-off between model complexity and enhancement quality in low-SNR conditions. The central claim is that public 5G edge environments can sustain real-time interactive AVSE workloads with careful orchestration, though with tighter margins than dedicated infrastructures.

Significance. If the empirical results hold, the work offers practical architectural guidelines and deployment insights for delay-sensitive perceptual enhancement services on emerging 5G edge-cloud platforms, particularly emphasizing resource orchestration and compression strategies. The stress-testing on a real 5G edge platform is a strength, but the single-provider testbed and absence of detailed quantitative metrics limit the strength of the broader claims.

major comments (2)
  1. [Abstract] Abstract (final paragraph): The claim that 'public 5G edge environments can sustain real-time, interactive AVSE workloads when network and compute resources are carefully orchestrated' is load-bearing for the central contribution, yet rests exclusively on end-to-end measurements from a single Vodafone-compatible AWS Wavelength deployment. No multi-carrier, multi-site, or time-of-day replication is reported to address known variability in public 5G uplink capacity, jitter, and edge availability, weakening the generalization.
  2. [Results] Results paragraph on end-to-end performance: The abstract states that 'only 5G and wired Ethernet consistently satisfied the required communication delay bound' and reports compression benefits, but provides no specific quantitative metrics (e.g., mean delays with standard deviations, exact payload sizes before/after compression, or error bars), full dataset details, or statistical tests. This absence makes it difficult to assess whether the observed margins are robust or specific to the low-congestion test conditions.
minor comments (2)
  1. [System Design] The description of the LSTM fusion network could include more detail on its architecture (e.g., number of layers, hidden units, or training procedure) to allow reproducibility, even if the focus is deployment rather than model innovation.
  2. [Evaluation] Figure captions or tables summarizing the stress-test scenarios (network loads, compression levels, and resulting delays) would improve clarity and help readers quickly compare conditions.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback on generalization and quantitative reporting. We address the major comments point by point below and have made targeted revisions to improve the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract (final paragraph): The claim that 'public 5G edge environments can sustain real-time, interactive AVSE workloads when network and compute resources are carefully orchestrated' is load-bearing for the central contribution, yet rests exclusively on end-to-end measurements from a single Vodafone-compatible AWS Wavelength deployment. No multi-carrier, multi-site, or time-of-day replication is reported to address known variability in public 5G uplink capacity, jitter, and edge availability, weakening the generalization.

    Authors: We agree that the central claim would benefit from explicit qualification regarding the single-deployment scope. The study was performed on a representative public 5G edge platform (Vodafone-compatible AWS Wavelength) to demonstrate feasibility under real-world conditions. We have revised the abstract to state that the findings pertain to this specific deployment and added a dedicated limitations paragraph in the discussion section that acknowledges variability in uplink capacity, jitter, and edge availability across carriers and conditions. This revision maintains the practical insights while avoiding over-generalization. revision: yes

  2. Referee: [Results] Results paragraph on end-to-end performance: The abstract states that 'only 5G and wired Ethernet consistently satisfied the required communication delay bound' and reports compression benefits, but provides no specific quantitative metrics (e.g., mean delays with standard deviations, exact payload sizes before/after compression, or error bars), full dataset details, or statistical tests. This absence makes it difficult to assess whether the observed margins are robust or specific to the low-congestion test conditions.

    Authors: We thank the referee for highlighting the need for greater transparency in the quantitative results. The manuscript already states the 80% payload reduction and delay-bound satisfaction for 5G and Ethernet, but we accept that mean values, standard deviations, exact pre/post-compression sizes, error bars, and expanded dataset descriptions would strengthen the presentation. We have added these details to the results section, including a new table summarizing delay statistics and payload sizes across profiles, and clarified the experimental conditions (controlled stress-test loads on the specific testbed). Statistical hypothesis tests were not performed because the measurements derive from deterministic, repeatable network-load scenarios rather than stochastic sampling; we have instead emphasized the controlled nature of the tests so readers can evaluate robustness directly. revision: yes

standing simulated objections not resolved
  • Replication of the end-to-end measurements on additional carriers, sites, or under varied time-of-day conditions to quantify public 5G variability, as this would require access to multiple independent 5G edge platforms beyond the resources of the present study.

Circularity Check

0 steps flagged

Empirical deployment study with no derivation chain

full rationale

The paper describes the design, deployment, and experimental evaluation of an AVSE system on a public 5G edge testbed, reporting measured end-to-end delays, compression effects, and performance under load. No mathematical derivation, first-principles prediction, or fitted-parameter model is presented whose output is claimed to follow from equations or self-citations; all central claims rest on direct observations from stress testing. Consequently no step reduces by construction to its own inputs, and the work is self-contained as an empirical study.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard neural-network architectures and network-performance assumptions without introducing new physical entities or many ad-hoc fitted constants beyond deployment choices such as compression aggressiveness and model size.

free parameters (2)
  • model complexity reduction
    Choice to lower model complexity to reduce latency, with specific values and exact impact on low-SNR performance not detailed in the abstract.
  • compression aggressiveness
    Level of compression applied to audio-video chunks, reported to achieve up to 80% size reduction.
axioms (2)
  • domain assumption LSTM fusion network preserves temporal coherence under network-induced delays
    Invoked to justify real-time operation of the AVSE pipeline (abstract, system description).
  • domain assumption Perceptual degradation from aggressive compression remains negligible for the target use cases
    Used to support the claim that compression enables robust operation (abstract, results on compression).
