arxiv: 2508.15365 · v2 · submitted 2025-08-21 · 🧮 math.NA · cs.NA

Implementation of Milstein Schemes for Stochastic Delay-Differential Equations with Arbitrary Fixed Delays

Mitchell T. Griggs , Kevin Burrage , Pamela M. Burrage This is my paper

Pith reviewed 2026-05-18 22:20 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords stochastic delay-differential equationsMilstein schemeEuler-Maruyama schemenumerical simulationconvergence orderaugmented time meshlinear interpolationiterated stochastic integrals
0
0 comments X

The pith

Numerical schemes achieve strong orders 1/2 and 1 for SDDEs with arbitrary fixed delays

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops implementation techniques for solving stochastic delay-differential equations when fixed delays do not coincide with the simulation time mesh. For schemes with strong order 1/2, it uses a fixed step size and linear interpolation to approximate values at delayed times. For strong order 1 schemes like Milstein, it builds an augmented mesh including all necessary points and extends a method to simulate the required delayed stochastic integrals. These approaches allow general delays without the previous restriction to divisible cases. Computational examples verify that the expected convergence orders are attained.

Core claim

The central claim is that simulation techniques using linear interpolation on fixed meshes and augmented time meshes with extended delayed integral simulation allow Euler-Maruyama and Milstein schemes to be applied to SDDEs with multiple fixed delays that are not restricted to the time mesh, achieving their theoretical strong convergence orders of 1/2 and 1 respectively, as confirmed by numerical experiments.

What carries the argument

The augmented time mesh construction that incorporates all delayed time points together with the extension of the established method for simulating delayed iterated stochastic integrals on that mesh.

Load-bearing premise

Linear interpolation on the fixed mesh and the augmented mesh with extended integral simulation do not degrade the strong convergence orders below their theoretical values.

What would settle it

Numerical tests with specific indivisible delays showing measured convergence rates matching 0.5 for Euler-Maruyama and 1.0 for Milstein would support the claim, while significant deviation would falsify it.

Figures

Figures reproduced from arXiv: 2508.15365 by Kevin Burrage, Mitchell T. Griggs, Pamela M. Burrage.

Figure 1
Figure 1. Figure 1: Integration regions of Iij (tn, tn+1) and I τk ij (tn, tn+1) shown together on the same plane. To achieve strong order of convergence 1, the integrals are simulated using approximations (18) based on the values of the Wiener paths evaluated on the finest time mesh. If the finest mesh uses a fixed step size hR that divides τk then the delayed and region also aligns with this mesh. In the case i = j, simulat… view at source ↗
Figure 2
Figure 2. Figure 2: Mean-square error graphs for the numerical solutions of equation ( [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Visual depiction of the (past and present) scheme values required to simulate a subsequent value, using the Milstein [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Integration regions of Iij (tn, tn+1) and I τk ij (tn, tn+1), shown over a refined time mesh of fixed step size h R, where the scheme step size h = Fnh R (for natural number Fn) does not divide τk. In this case, the approximation (18) is not suited for I τk ij (tn, tn+1), since the refined mesh does not coincide with the corners of the delayed integration region. 3.4. Discussion of solutions for these issu… view at source ↗
Figure 5
Figure 5. Figure 5: Simulating the delayed scheme value Y (tn − τk) using linear interpolation between the scheme values at the nearest mesh points. The nearest mesh points are those immediately before and after the delayed time tn − τk. Definition 5. Suppose Y = (Yn)n=−p,...,N is a numerical approximation of the solution X = (X(tn))t∈[−τ,T] for (1), with Yn = ϕ(tn) for tn ⩽ 0. Further to this, suppose Y is a scheme of fixed … view at source ↗
Figure 6
Figure 6. Figure 6: Mean-square error graphs for the fixed-step LI numerical solutions of equation ( [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Augmented mesh constructions used to simulate numerical schemes with OoC [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Mean-square error graphs for the numerical solutions of equation ( [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗

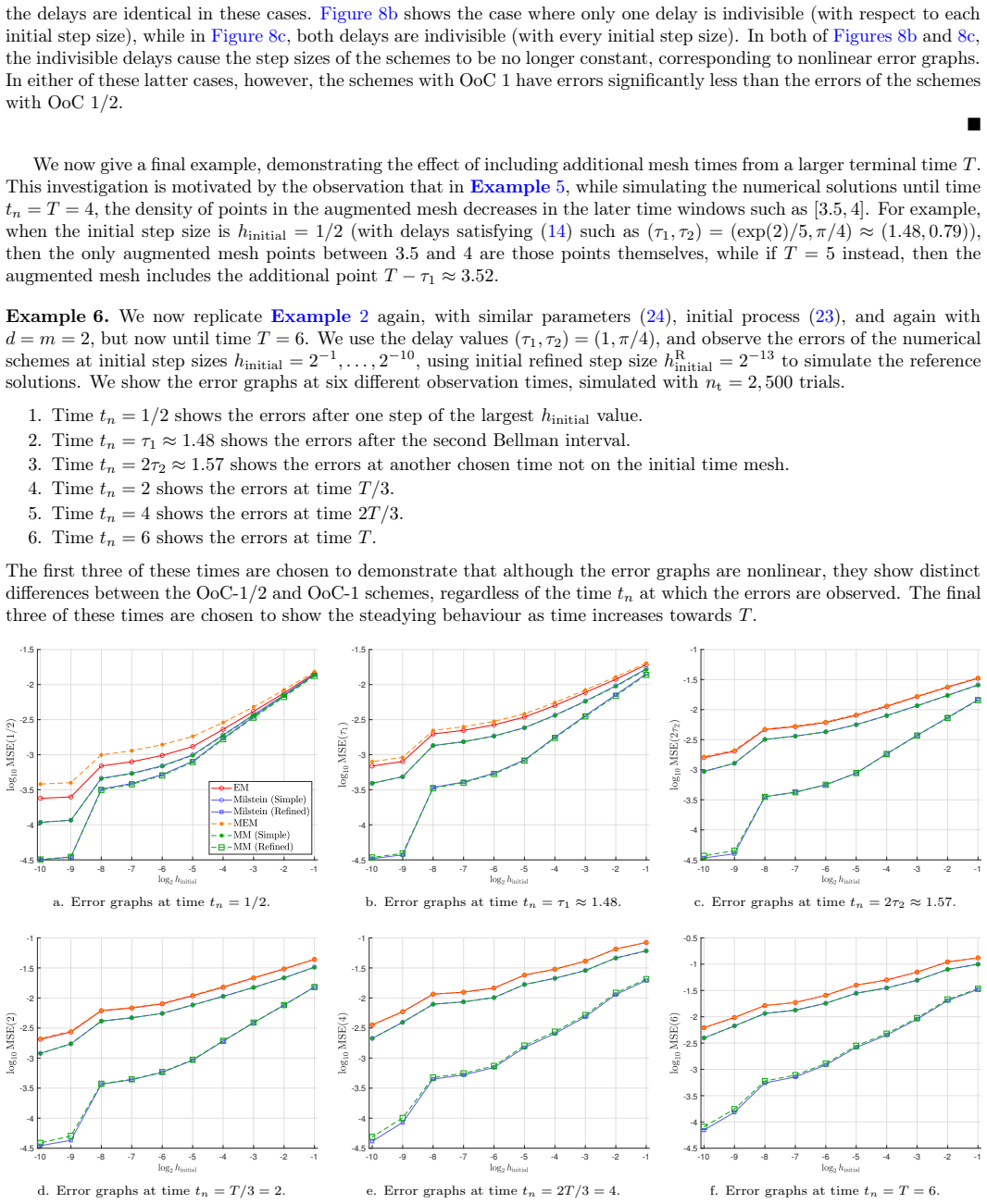

Figure 9
Figure 9. Figure 9: Mean-square error graphs for the numerical solutions of equation ( [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
read the original abstract

This paper develops methods for numerically solving stochastic delay-differential equations (SDDEs) with multiple fixed delays that do not align with a uniform time mesh. We focus on numerical schemes of strong convergence orders $1/2$ and $1$, such as the Euler--Maruyama and Milstein schemes, respectively. Although numerical schemes for SDDEs with delays $\tau_1,\ldots,\tau_K$ are theoretically established, their implementations require evaluations at both present times such as $t_n$, and also at delayed times such as $t_n-\tau_k$ and $t_n-\tau_l-\tau_k$. As a result, previous simulations of these schemes have been largely restricted to the case of divisible delays. We develop simulation techniques for the general case of indivisible delays where delayed times such as $t_n-\tau_k$ are not restricted to a uniform time mesh. To achieve order of convergence (OoC) $1/2$, we implement the schemes with a fixed step size while using linear interpolation to approximate delayed scheme values. To achieve OoC $1$, we construct an augmented time mesh that includes all time points required to evaluate the schemes, which necessitates using a varying step size. We also introduce a technique to simulate delayed iterated stochastic integrals on the augmented time mesh, by extending an established method from the divisible-delays setting. We then confirm that the numerical schemes achieve their theoretical convergence orders with computational examples.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript develops practical implementation techniques for Euler--Maruyama (strong order 1/2) and Milstein (strong order 1) schemes applied to SDDEs with multiple fixed delays that are not necessarily divisible by the time step. For order 1/2 it employs a fixed-step discretization together with linear interpolation to evaluate the scheme at delayed times. For order 1 it constructs an augmented mesh that includes all required delay points (necessitating variable step sizes) and extends an existing method to simulate the additional delayed iterated stochastic integrals. The authors state that computational examples confirm that both implementations attain their respective theoretical strong convergence orders.

Significance. If the proposed implementations preserve the known theoretical orders without introducing order-reducing interpolation or mesh-variation errors, the work would remove a long-standing practical restriction on the use of Milstein-type schemes for SDDEs, thereby enabling higher-accuracy simulation for the general case of incommensurate delays that arise in many applications. The extension of the delayed-integral simulation technique to the augmented-mesh setting is a concrete technical contribution that builds directly on prior divisible-delay results.

major comments (2)
  1. [Abstract / OoC 1/2 implementation] Abstract, paragraph on OoC 1/2 implementation: the assertion that linear interpolation on a fixed mesh preserves strong order 1/2 is load-bearing for the central claim, yet the manuscript supplies no explicit bound on the interpolation remainder inside the Itô-Taylor expansion for the delayed terms, nor does it quantify how this remainder interacts with the stochastic integrals.
  2. [Abstract / OoC 1 implementation] Abstract, paragraph on OoC 1 implementation: the augmented-mesh construction with variable step sizes and the extended simulation of delayed iterated integrals are presented as achieving strong order 1, but the text does not verify that the variable steps satisfy the Lipschitz or moment conditions under which the Milstein scheme retains order 1 when delays are indivisible; this is a load-bearing gap because the schemes were previously established only for the divisible-delay case.
minor comments (1)
  1. The manuscript should include explicit error tables, comparison against known exact solutions (or high-accuracy reference solutions), and a brief discussion of how the observed convergence rates behave under different noise structures or delay ratios.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and for identifying the key theoretical points that require clarification in our presentation. We address each major comment below and outline the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract / OoC 1/2 implementation] Abstract, paragraph on OoC 1/2 implementation: the assertion that linear interpolation on a fixed mesh preserves strong order 1/2 is load-bearing for the central claim, yet the manuscript supplies no explicit bound on the interpolation remainder inside the Itô-Taylor expansion for the delayed terms, nor does it quantify how this remainder interacts with the stochastic integrals.

    Authors: We agree that an explicit treatment of the interpolation remainder would improve the rigor of the argument. In the revised manuscript we will add a short paragraph (or appendix remark) deriving a mean-square bound on the linear interpolation error for the delayed arguments. Under the standard Lipschitz and linear-growth assumptions, this error is O(h) uniformly in the mean-square sense and, when inserted into the Itô-Taylor expansion of the delayed terms, produces a local truncation contribution that remains compatible with the global strong order 1/2 of the Euler–Maruyama scheme. The non-anticipative nature of the interpolation error allows it to be absorbed into the existing Gronwall-type estimates used for SDDEs; we will cite the relevant moment bounds to make this interaction explicit. revision: yes

  2. Referee: [Abstract / OoC 1 implementation] Abstract, paragraph on OoC 1 implementation: the augmented-mesh construction with variable step sizes and the extended simulation of delayed iterated integrals are presented as achieving strong order 1, but the text does not verify that the variable steps satisfy the Lipschitz or moment conditions under which the Milstein scheme retains order 1 when delays are indivisible; this is a load-bearing gap because the schemes were previously established only for the divisible-delay case.

    Authors: The referee is correct that the original strong-order-1 analysis for SDDEs assumed commensurate delays permitting a uniform mesh. For the augmented mesh the step sizes are generated by the fixed delays together with a base step h; consequently there are only finitely many distinct step lengths, each bounded above and below by positive multiples of h. Under the global Lipschitz and linear-growth conditions already stated in the paper, these variable steps satisfy the uniform moment bounds and local Lipschitz requirements needed for the Milstein local truncation error to remain O(h^{3/2}) in the mean-square sense. The extension of the delayed iterated-integral simulation technique preserves the necessary adaptedness and moment properties. We will insert a concise verification subsection that records these facts and thereby justifies retention of strong order 1. revision: yes

Circularity Check

0 steps flagged

No circularity: implementation extends external theory with numerical verification

full rationale

The paper appeals to pre-existing theoretical results establishing strong convergence orders for Milstein-type schemes on SDDEs (with divisible delays) and supplies concrete implementation techniques—fixed-step linear interpolation for order 1/2 and augmented-mesh construction plus extended delayed-integral simulation for order 1—together with computational confirmation on examples. No step reduces a claimed result to a fitted parameter, self-defined quantity, or load-bearing self-citation chain inside the work; the central claims rest on external theory plus direct numerical testing rather than internal tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard stochastic calculus for SDDEs and on the existence of theoretical convergence proofs for the schemes when delays are commensurate. No new free parameters, axioms, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Theoretical strong convergence orders of Euler-Maruyama (1/2) and Milstein (1) schemes hold for SDDEs when all required delayed values lie on the mesh.
    Invoked when the authors state they achieve the theoretical orders after implementing the general-delay case.

pith-pipeline@v0.9.0 · 5798 in / 1471 out tokens · 32592 ms · 2026-05-18T22:20:30.640836+00:00 · methodology
