Search for e^+ e^- to γchi_(bJ) (J = 0, 1, 2) near sqrt{s} = 10.746 GeV at Belle II
Pith reviewed 2026-05-18 22:08 UTC · model grok-4.3
The pith
Upper limits on the Born cross sections for e+e− → γχbJ are set at four energies near 10.746 GeV, with those for χb1 much smaller than rates in ωχb1 and π+π−Υ(2S) channels.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We set upper limits at the 90% confidence level on the Born cross sections for e+ e- → γ χ_bJ at each center-of-mass energy √s near 10.746 GeV. The upper limits at 90% confidence level on the Born cross sections for e+ e- → γ χ_b1 are significantly smaller than the corresponding measured values for e+e-→ωχ_b1 and e+e-→π+π−Υ(2S) at √s = 10.746 GeV.
What carries the argument
Upper limits on Born cross sections extracted from the absence of signal in the invariant-mass distributions of χbJ decay products after efficiency correction from Monte Carlo simulations.
If this is right
- The radiative production channel for χb1 is suppressed relative to the ωχb1 and dipion Υ(2S) channels at the same energy.
- Any resonance or intermediate state responsible for the enhancements seen in the other channels cannot contribute substantially through photon emission to χb1.
- Higher-luminosity runs at the same energies would be required to push the limits low enough to test theoretical predictions for these radiative transitions.
- Similar null results are expected to hold at the nearby energies of 10.653, 10.701, and 10.804 GeV unless new structures appear.
Where Pith is reading between the lines
- If the limits persist with more data, it suggests that the production mechanisms for bottomonium states near 10.746 GeV differ markedly depending on the accompanying particles.
- This pattern could be used to test whether the observed rates arise from vector-meson dominance or from direct coupling to a narrow resonance.
- Comparable searches at other bottomonium facilities could map out the energy dependence of these cross sections and reveal whether the suppression is specific to Belle II energies.
Load-bearing premise
The upper limits depend on the accuracy of Monte Carlo simulations in modeling detector efficiencies, background shapes, and selection criteria.
What would settle it
A statistically significant excess of events in the χbJ candidate mass window at √s = 10.746 GeV that exceeds the reported upper limit on the cross section would falsify the result.
Figures
read the original abstract
We search for the $e^+ e^- \to \gamma \chi_{bJ}$ ($J$ = 0, 1, 2) processes at center-of-mass energies $\sqrt{s}$ = 10.653, 10.701, 10.746, and 10.804 GeV. These data were collected with the Belle II detector at the SuperKEKB collider and correspond to 3.5, 1.6, 9.8, and 4.7 fb$^{-1}$ of integrated luminosity, respectively. We set upper limits at the 90\% confidence level on the Born cross sections for $e^+ e^- \to \gamma \chi_{bJ}$ at each center-of-mass energy $\sqrt{s}$ near 10.746 GeV. The upper limits at 90\% confidence level on the Born cross sections for $e^+ e^- \to \gamma \chi_{b1}$ are significantly smaller than the corresponding measured values for $e^+e^-\to\omega\chi_{b1}$ and $e^+e^-\to\pi^+\pi^-\Upsilon(2S)$ at $\sqrt{s}$ = 10.746 GeV.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports a search for the processes e⁺e⁻ → γ χ_bJ (J=0,1,2) at center-of-mass energies √s = 10.653, 10.701, 10.746, and 10.804 GeV using Belle II data corresponding to integrated luminosities of 3.5, 1.6, 9.8, and 4.7 fb⁻¹. No significant signals are observed, and 90% CL upper limits are placed on the Born cross sections at each energy point. The limits on the χ_b1 channel at √s = 10.746 GeV are stated to be significantly smaller than the previously measured cross sections for e⁺e⁻ → ω χ_b1 and e⁺e⁻ → π⁺π⁻ Υ(2S) at the same energy.
Significance. If the upper limits are robust, the result constrains possible production mechanisms or intermediate states near the Υ(10753) region by showing suppression of the radiative γ χ_bJ modes relative to the ω χ_b1 and dipion Υ(2S) channels. This is a standard experimental search that adds to the body of Belle II measurements in the bottomonium sector.
major comments (2)
- §4 (Analysis): The central upper-limit result depends on MC-derived efficiencies and background shapes for the γ χ_bJ final states. No quantitative data-MC agreement metrics (e.g., pull distributions or χ² values) are reported in the χ_bJ mass or recoil-mass sidebands, which directly affects the reliability of the 90% CL limits and the claim that they are significantly smaller than the ω χ_b1 and π⁺π⁻ Υ(2S) cross sections.
- §5 (Results): Systematic uncertainties on efficiency, background modeling, and luminosity are not quantified or propagated into the final upper limits in a manner that allows independent verification of the significance gap between channels.
minor comments (2)
- Table 1: The integrated luminosities are listed but the corresponding center-of-mass energy points could be aligned more clearly with the rows for readability.
- Figure 2: The recoil-mass distributions would benefit from explicit indication of the signal region boundaries used for the limit setting.
Simulated Author's Rebuttal
We thank the referee for the careful review and constructive comments. We address the major comments point by point below and will revise the manuscript to incorporate additional details that strengthen the presentation of the analysis.
read point-by-point responses
-
Referee: §4 (Analysis): The central upper-limit result depends on MC-derived efficiencies and background shapes for the γ χ_bJ final states. No quantitative data-MC agreement metrics (e.g., pull distributions or χ² values) are reported in the χ_bJ mass or recoil-mass sidebands, which directly affects the reliability of the 90% CL limits and the claim that they are significantly smaller than the ω χ_b1 and π⁺π⁻ Υ(2S) cross sections.
Authors: We acknowledge that explicit quantitative metrics for data-MC agreement, such as pull distributions or χ² values in the sideband regions, were not reported in the original manuscript. The analysis relies on standard Belle II MC modeling validated through the overall selection and sideband studies described in §4. In the revised version we will add pull distributions and χ² values for the χ_bJ mass and recoil-mass sidebands to provide a more quantitative demonstration of agreement, thereby supporting the robustness of the efficiencies and background shapes used for the upper limits. revision: yes
-
Referee: §5 (Results): Systematic uncertainties on efficiency, background modeling, and luminosity are not quantified or propagated into the final upper limits in a manner that allows independent verification of the significance gap between channels.
Authors: We agree that a transparent quantification and propagation of systematic uncertainties is essential for verifying the comparisons with other channels. The manuscript presents the statistical 90% CL upper limits, but we will expand §5 to include a dedicated table or subsection that lists the dominant systematic uncertainties (efficiency, background modeling, luminosity) and describes how they are incorporated into the final limits. This addition will enable independent assessment of the reported suppression relative to the ω χ_b1 and π⁺π⁻ Υ(2S) cross sections. revision: yes
Circularity Check
No circularity: experimental upper limits from data counts and standard MC efficiencies
full rationale
The paper reports a direct experimental search that sets 90% CL upper limits on Born cross sections for e+e- → γ χ_bJ by comparing observed yields in data to expected backgrounds at four specific center-of-mass energies. Efficiencies and background shapes are obtained from Monte Carlo simulations calibrated with control samples, which is a standard, externally validated step rather than a fitted parameter renamed as a prediction or a self-definitional loop. No theoretical derivation chain, uniqueness theorem, or ansatz is invoked; the central claim (limits significantly below other measured channels at √s = 10.746 GeV) follows from the absence of excess events after selection and is falsifiable by the raw data counts themselves. The analysis remains self-contained without reducing any result to its own inputs by construction.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Detector response and background processes are accurately modeled by Monte Carlo simulation and control samples.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.

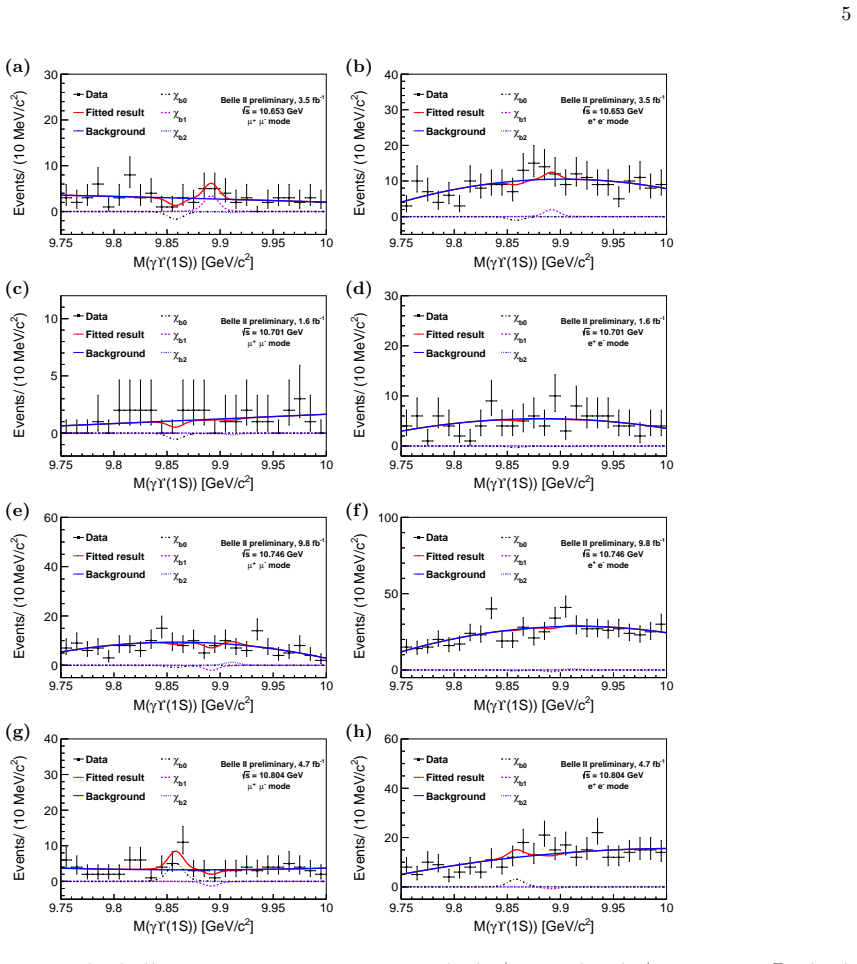

We perform unbinned extended maximum-likelihood fits to γΥ(1S) invariant mass distributions... A second-order Chebyshev polynomial is used to describe the background.
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We set upper limits at the 90% confidence level on the Born cross sections...
