arxiv: 2508.19462 · v2 · submitted 2025-08-26 · 🌌 astro-ph.GA

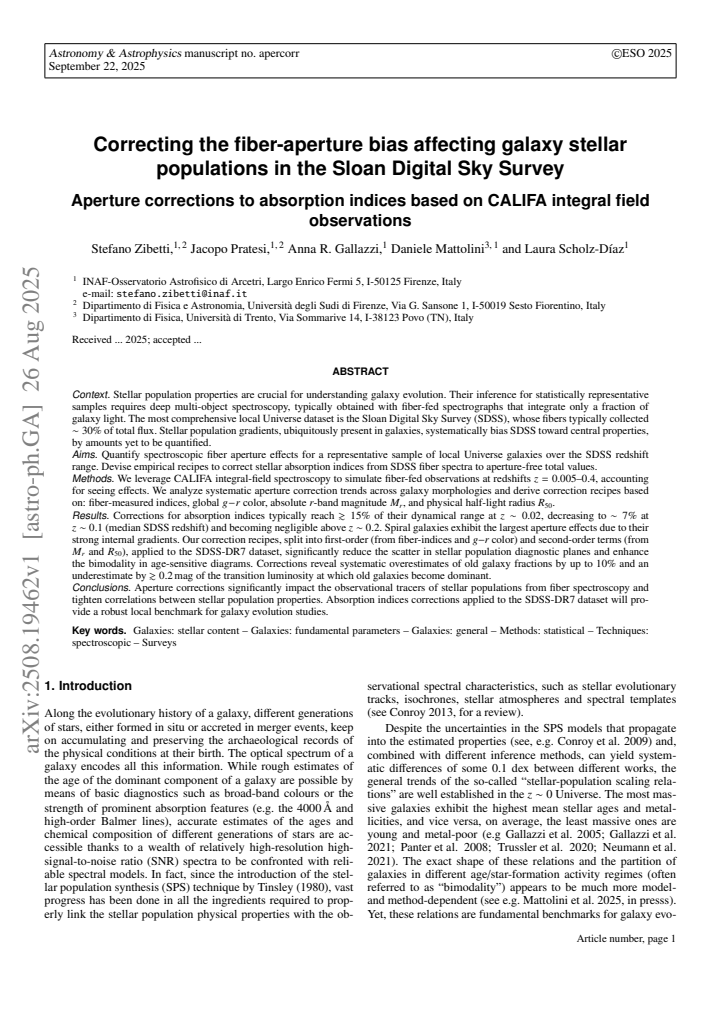

Correcting the fiber-aperture bias affecting galaxy stellar populations in the Sloan Digital Sky Survey. Aperture corrections to absorption indices based on CALIFA integral field observations

Stefano Zibetti (1 , 2) , Jacopo Pratesi (1 , Anna R. Gallazzi (1) , Daniele Mattolini (3 , 1) , Laura Scholz-D\'iaz (1) ((1) INAF-Arcetri Astrophysical Observatory , Firenze
show 4 more authors
Italy (2) Universit\`a degli Studi di Firenze (3) Universit\`a di Trento Italy)
This is my paper

Pith reviewed 2026-05-18 20:32 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords galaxy stellar populationsaperture correctionsabsorption indicesSDSSCALIFAfiber spectroscopystellar population gradientsgalaxy evolution
0
0 comments X p. Extension

The pith

Fiber corrections from CALIFA data applied to SDSS reduce scatter in galaxy stellar population estimates and lower old galaxy fractions by up to 10%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that SDSS fiber spectra capture only part of each galaxy and therefore bias absorption indices because of internal stellar population gradients. By using CALIFA integral-field data to simulate how SDSS fibers would observe the same galaxies at redshifts from 0.005 to 0.4, the authors build practical correction recipes that combine the fiber indices themselves with global color, absolute magnitude, and half-light radius. When these recipes are applied to the full SDSS-DR7 sample the scatter in common diagnostic diagrams shrinks and the separation between young and old populations sharpens. The corrected data indicate that previous uncorrected analyses had overstated the fraction of old galaxies by as much as 10 percent and had placed the luminosity at which old galaxies become dominant about 0.2 magnitudes too faint.

Core claim

Aperture corrections to absorption indices derived from CALIFA integral-field observations that simulate SDSS fiber apertures at z=0.005-0.4, when applied to SDSS-DR7, reduce scatter in stellar-population diagnostic planes, strengthen bimodality in age-sensitive diagrams, and show that old-galaxy fractions were previously overestimated by up to 10 percent while the transition luminosity was underestimated by more than 0.2 mag.

What carries the argument

Correction recipes for absorption indices obtained by simulating fiber-fed observations with CALIFA integral-field spectroscopy, parameterized by the fiber-measured indices, global g-r color, absolute r-band magnitude Mr, and physical half-light radius R50.

Load-bearing premise

The stellar-population gradients and morphological mix observed in the CALIFA sample are statistically representative of the SDSS galaxy population at the redshifts and luminosities used in the simulations.

What would settle it

A set of galaxies observed both with SDSS-like fiber spectroscopy and with full integral-field spectroscopy; after applying the corrections to the fiber data, the stellar-population parameters should match those measured from the full integral-field data within the quoted uncertainties.

Figures

Figures reproduced from arXiv: 2508.19462 by 1), 2), (2) Universit\`a degli Studi di Firenze, (3) Universit\`a di Trento, Anna R. Gallazzi (1), Daniele Mattolini (3, Firenze, Italy, Italy), Jacopo Pratesi (1, Laura Scholz-D\'iaz (1) ((1) INAF-Arcetri Astrophysical Observatory, Stefano Zibetti (1.

Figure 1
Figure 1. Figure 1: The spectra of three galaxies of different morphological types (elliptical, Sb spiral, and irregular) simulated to reproduce what the SDSS fiber-fed spectrograph would see over a redshift range between 0.005 and 0.4. Note the log scale in the y axis. In all panels, the black spectrum is the one obtained from the light integrated over the full galaxy footprint of the galaxy, normalized at 5500 Å. The colour… view at source ↗
Figure 2

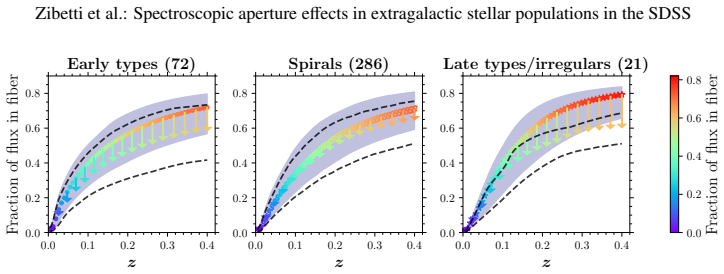

Figure 2. Figure 2: Trends of fractions of flux collected in fiber as a function of redshift, for three broad morphological classes: ETGs (left panel), Spirals (central panel), and late-type/irregular galaxies (right panel). The coloured points (shaded grey areas) represent the median (16th-84th percentile range) fractions relative to the footprint (see Sec. 2.3). The vertical arrows point to the median fractions relative to … view at source ↗
Figure 3
Figure 3. Figure 3: Distributions of the fractions of flux in fiber for the CALIFA simulated spectra (top row) and the SDSS sample (bottom row), at three red￾shifts: z = 0.05, 0.10, 0.20. The orange shaded histogram represents the full CALIFA sample, while the grey shaded histogram is the distribution for the full SDSS (SNR > 10) sample at the given redshift slice. The red, blue and green histograms for both CALIFA and SDSS a… view at source ↗
Figure 4
Figure 4. Figure 4: Trends of differences between indices from full integrated light and from the fiber-aperture flux (i.e. the aperture bias) as a function of redshift, for the three morphological subsamples defined in Sec. 2.3. The points indicate the median trends and are coloured according to the median fraction of flux in fiber as coded by the colorbar. The grey shaded area displays the 16th −84th percentile range, while… view at source ↗
Figure 5
Figure 5. Figure 5: Illustration of the aperture-correction flow for the case of the HδA + HγA index at z = 0.1. In panels a–g the filled circles represent CALIFA simulated spectra, color-coded according to the difference ∆ (HδA + HγA) according to the colorbar. The grey contours overalaid in each panel are the isodensity contours (enclosing 0.05, 0.20, 0.50, 0.75, 0.95, 0.99 of the sample) for SDSS galaxies with SNR ≥ 10 at … view at source ↗
Figure 6
Figure 6. Figure 6: Impact of the aperture corrections of the indices on the Balmer plane HδA + HγA vs. D4000n, for the SDSS sample of galaxies with SNR ≥ 10. Panels a and b display the distributions of the galaxies before (a) and after (b) aperture corrections. The blue arrows in panel a indicate the median shift of galaxies due to the aperture corrections at different locations of the plane. The median error bars are also i… view at source ↗
Figure 7

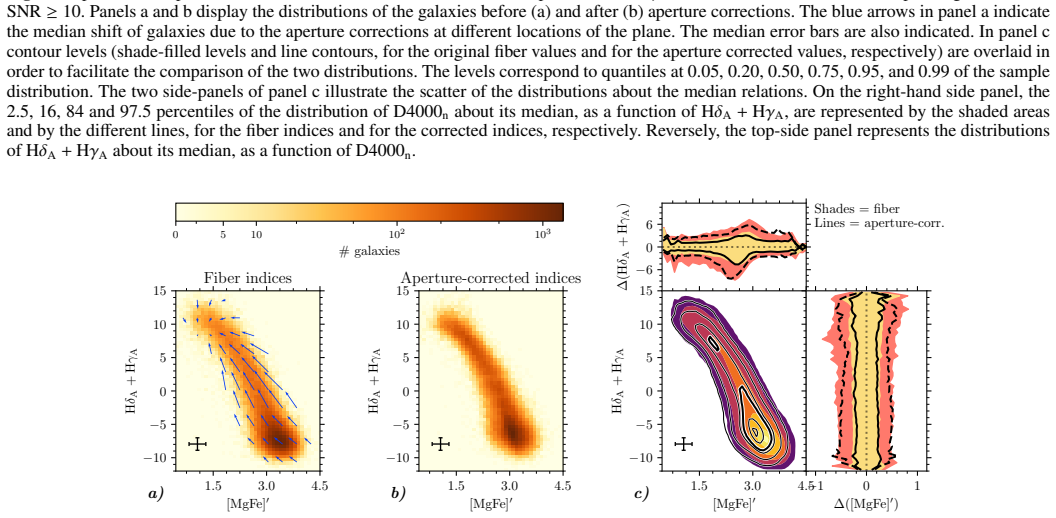

Figure 7. Figure 7: Impact of the aperture corrections of the indices on the metallicity-sensitive plane HδA +HγA vs. [MgFe]′ , for the SDSS sample of galaxies with SNR ≥ 20. Same as [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Impact of the aperture corrections of the D4000n index on the bimodality-diagnostic plane D4000n vs. absolute magnitude Mr , for the SDSS sample with SNR ≥ 10. Panels (a) and (b) and the main plot of panel (c) are analogous to [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: we plot the fraction of old galaxies fold, i.e. those having D4000n larger than the separation defined above10, against the absolute magnitude Mr , in black for the aperture-corrected mea￾surements and in wine red for the uncorrected measurements. At any fixed magnitude, the old fraction is reduced by a few percents up to approximately 10% because of aperture correc￾tions. This implies a shift of the trans… view at source ↗
read the original abstract

Stellar population properties are crucial for understanding galaxy evolution. Their inference for statistically representative samples requires deep multi-object spectroscopy, typically obtained with fiber-fed spectrographs that integrate only a fraction of galaxy light. The most comprehensive local Universe dataset is the Sloan Digital Sky Survey (SDSS), whose fibers typically collected ~30% of total flux. Stellar population gradients, ubiquitously present in galaxies, systematically bias SDSS toward central properties, by amounts yet to be quantified. We leverage CALIFA integral-field spectroscopy to simulate fiber-fed observations at redshifts z=0.005-0.4, accounting for seeing effects. We analyze systematic aperture correction trends across galaxy morphologies and derive correction recipes based on: fiber-measured indices, global g-r color, absolute r-band magnitude Mr, and physical half-light radius R50. Corrections for absorption indices typically reach >~15% of their dynamical range at z~0.02, decreasing to ~7% at z~0.1 (median SDSS redshift) and becoming negligible above z~0.2. Spiral galaxies exhibit the largest aperture effects due to their strong internal gradients. Our correction recipes, applied to the SDSS-DR7 dataset, significantly reduce scatter in stellar population diagnostic planes and enhance bimodality in age-sensitive diagrams. Corrections reveal systematic overestimates of old galaxy fractions by up to 10% and an underestimate by >~0.2 mag of the transition luminosity at which old galaxies become dominant. Aperture corrections significantly impact observational tracers of stellar populations from fiber spectroscopy. Absorption indices corrections applied to SDSS-DR7 will provide a robust local benchmark for galaxy evolution studies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents a method to derive aperture corrections for stellar absorption indices measured in SDSS fiber spectra. By simulating SDSS-like fiber observations on CALIFA integral field spectroscopy data for galaxies at redshifts z = 0.005 to 0.4, including the effects of seeing, the authors identify systematic trends with galaxy morphology and provide practical correction recipes that depend on the fiber-measured indices, the global g-r color, the absolute magnitude Mr, and the half-light radius R50. When these corrections are applied to the SDSS-DR7 sample, the scatter in stellar population diagnostic planes is reduced, the bimodality in age-sensitive diagrams is enhanced, and the estimated fraction of old galaxies is shown to have been overestimated by up to 10%, with the transition luminosity underestimated by approximately 0.2 magnitudes.

Significance. If the central results hold, this work is significant because it quantifies and provides a means to mitigate a previously unaccounted systematic bias in the largest existing sample of local galaxy spectra. The corrections could lead to more accurate determinations of stellar ages, metallicities, and star formation histories for a large number of galaxies, thereby strengthening the local benchmark for galaxy evolution studies. The use of high-quality, independent IFU data to calibrate the fiber bias is a methodological strength that enhances the credibility of the approach.

major comments (2)
  1. [Section 2 (Data and simulations)] The validity of the derived corrections depends critically on the assumption that the stellar population gradients and morphological mix in the CALIFA sample are statistically representative of the SDSS galaxy population at the simulated redshifts and luminosities (z=0.005-0.4). The manuscript would benefit from an explicit comparison of the relevant distributions (e.g., Hubble types, stellar masses, and concentration indices) between CALIFA and the SDSS subsample to demonstrate this representativeness.
  2. [Section 4 (Application to SDSS-DR7)] The reported impacts, such as the reduction in scatter and the shifts in old galaxy fractions (up to 10%) and transition luminosity (~0.2 mag), are central to the paper's conclusions. These should be supported by additional tests, such as applying the corrections to a subset with known independent measurements or assessing sensitivity to the exact form of the correction recipes.
minor comments (2)
  1. [Abstract] Consider adding specific quantitative values for the reduction in scatter to make the claims more precise.
  2. [Figure captions] Clarify the exact definition of the dynamical range used when stating corrections reach >~15% of their dynamical range.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our work and for the constructive major comments. We address each point below and outline the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Section 2 (Data and simulations)] The validity of the derived corrections depends critically on the assumption that the stellar population gradients and morphological mix in the CALIFA sample are statistically representative of the SDSS galaxy population at the simulated redshifts and luminosities (z=0.005-0.4). The manuscript would benefit from an explicit comparison of the relevant distributions (e.g., Hubble types, stellar masses, and concentration indices) between CALIFA and the SDSS subsample to demonstrate this representativeness.

    Authors: We agree that an explicit comparison would strengthen the justification for our approach. Although the CALIFA sample was constructed to be representative of the local galaxy population, we will add a new subsection (or appendix) in Section 2 that directly compares the distributions of morphological types, stellar masses, and concentration indices between the CALIFA galaxies in our simulation set and the SDSS galaxies at matching redshifts and luminosities. This will be included in the revised manuscript. revision: yes

  2. Referee: [Section 4 (Application to SDSS-DR7)] The reported impacts, such as the reduction in scatter and the shifts in old galaxy fractions (up to 10%) and transition luminosity (~0.2 mag), are central to the paper's conclusions. These should be supported by additional tests, such as applying the corrections to a subset with known independent measurements or assessing sensitivity to the exact form of the correction recipes.

    Authors: We thank the referee for highlighting the need for further validation of the reported impacts. We have already performed sensitivity tests by varying the functional form of the correction recipes (e.g., alternative polynomial degrees and bootstrap resampling of the fit coefficients), which confirm that the reductions in scatter and the shifts in old-galaxy fractions and transition luminosity remain stable within the uncertainties quoted in the paper. Application to a large subset with fully independent high-quality stellar-population measurements is limited by the scarcity of overlapping IFU samples; however, we will add a brief cross-check discussion using the available MaNGA overlap and will expand Section 4 to present the sensitivity results explicitly. revision: partial

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper derives aperture corrections by simulating SDSS fiber-fed observations (including seeing effects at z=0.005-0.4) on independent CALIFA IFU data, then extracts recipes as functions of fiber indices, g-r, Mr and R50. These recipes are applied to SDSS-DR7. No step reduces a claimed prediction or correction to a quantity fitted from the target SDSS data itself, nor does any load-bearing premise rest on a self-citation whose content is unverified. The method is externally benchmarked against CALIFA observations and remains self-contained against the SDSS sample being corrected.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the representativeness of CALIFA gradients for SDSS galaxies and on the accuracy of the seeing-inclusive fiber simulation; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption CALIFA galaxies provide a representative sample of internal stellar population gradients for SDSS-like galaxies across the relevant redshift and morphology range
    Used to derive the correction trends and recipes from simulated fiber observations

pith-pipeline@v0.9.0 · 5915 in / 1321 out tokens · 47513 ms · 2026-05-18T20:32:54.390889+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

49 extracted references · 49 canonical work pages

  1. [1]

    N., Adelman-McCarthy, J

    Abazajian, K. N., Adelman-McCarthy, J. K., Agüeros, M. A., et al. 2009, ApJS, 182, 543

    work page 2009

  2. [2]

    2024, A&A, 690, A150

    Bevacqua, D., Saracco, P., Boecker, A., et al. 2024, A&A, 690, A150

    work page 2024

  3. [3]

    G., Kriek, M., Conroy, C., et al

    Beverage, A. G., Kriek, M., Conroy, C., et al. 2023, ApJ, 948, 140

    work page 2023

  4. [4]

    R., Kazin, E., Muna, D., Weaver, B

    Blanton, M. R., Kazin, E., Muna, D., Weaver, B. A., & Price-Whelan, A. 2011, AJ, 142, 31

    work page 2011

  5. [5]

    Blanton, M. R. & Roweis, S. 2007, AJ, 133, 734

    work page 2007

  6. [6]

    R., Schlegel, D

    Blanton, M. R., Schlegel, D. J., Strauss, M. A., et al. 2005, AJ, 129, 2562

    work page 2005

  7. [7]

    Blanton, M. R. et al. 2003, ApJ, 594, 186

    work page 2003

  8. [8]

    Brinchmann, J., Charlot, S., White, S. D. M., et al. 2004, MNRAS, 351, 1151

    work page 2004

  9. [9]

    J., Owers, M

    Bryant, J. J., Owers, M. S., Robotham, A. S. G., et al. 2015, MNRAS, 447, 2857

    work page 2015

  10. [10]

    A., Law, D

    Bundy, K., Bershady, M. A., Law, D. R., et al. 2015, ApJ, 798, 7

    work page 2015

  11. [11]

    M., Alatalo, K., et al

    Cappellari, M., McDermid, R. M., Alatalo, K., et al. 2013, Monthly Notices of the Royal Astronomical Society, 432, 1862

    work page 2013

  12. [12]

    Cleveland, W. S. & Devlin, S. J. 1988, Journal of the American Statistical Asso- ciation, 83, 596

    work page 1988

  13. [13]

    2013, ARA&A, 51, 393

    Conroy, C. 2013, ARA&A, 51, 393

    work page 2013

  14. [14]

    E., & White, M

    Conroy, C., Gunn, J. E., & White, M. 2009, ApJ, 699, 486

    work page 2009

  15. [15]

    M., Owers, M

    Croom, S. M., Owers, M. S., Scott, N., et al. 2021, MNRAS, 505, 991

    work page 2021

  16. [16]

    J., Dunlop, J

    Cullen, F., McLure, R. J., Dunlop, J. S., et al. 2019, MNRAS, 487, 2038

    work page 2019

  17. [17]

    F., Zibetti, S., Brinchmann, J., & Kelson, D

    Gallazzi, A., Bell, E. F., Zibetti, S., Brinchmann, J., & Kelson, D. D. 2014, ApJ, 788, 72

    work page 2014

  18. [18]

    Gallazzi, A., Charlot, S., Brinchmann, J., White, S. D. M., & Tremonti, C. A. 2005, MNRAS, 362, 41

    work page 2005

  19. [19]

    R., Pasquali, A., Zibetti, S., & Barbera, F

    Gallazzi, A. R., Pasquali, A., Zibetti, S., & Barbera, F. L. 2021, MNRAS, 502, 4457 González Delgado, R. M., Cid Fernandes, R., García-Benito, R., et al. 2014a, ApJ, 791, L16 González Delgado, R. M., García-Benito, R., Pérez, E., et al. 2015, A&A, 581, A103 González Delgado, R. M., Pérez, E., Cid Fernandes, R., et al. 2014b, A&A, 562, A47

    work page 2021

  20. [20]

    W., Driver, S

    Graham, A. W., Driver, S. P., Petrosian, V ., et al. 2005, AJ, 130, 1535

    work page 2005

  21. [21]

    W., Glazebrook, K., Gilbank, D

    Green, A. W., Glazebrook, K., Gilbank, D. G., et al. 2017, MNRAS, 470, 639

    work page 2017

  22. [22]

    Gunn, J. E. et al. 2006, AJ, 131, 2332

    work page 2006

  23. [23]

    P., Iovino, A., Krywult, J., et al

    Haines, C. P., Iovino, A., Krywult, J., et al. 2017, A&A, 605, A4 Iglesias-Páramo, J., Vílchez, J. M., Galbany, L., et al. 2013, A&A, 553, L7

    work page 2017

  24. [24]

    M., White, S

    Kauffmann, G., Heckman, T. M., White, S. D. M., et al. 2003, MNRAS, 341, 54

    work page 2003

  25. [25]

    H., Conroy, C., et al

    Kriek, M., Price, S. H., Conroy, C., et al. 2019, ApJ, 880, L31

    work page 2019

  26. [26]

    2020, The Messenger, 180, 24

    Maiolino, R., Cirasuolo, M., Afonso, J., et al. 2020, The Messenger, 180, 24

    work page 2020

  27. [27]

    Nair, P. B. & Abraham, R. G. 2010, ApJS, 186, 427

    work page 2010

  28. [28]

    2021, MNRAS[2109.11564]

    Neumann, J., Thomas, D., Maraston, C., et al. 2021, MNRAS[2109.11564]

    work page arXiv 2021

  29. [29]

    F., & Charlot, S

    Panter, B., Jimenez, R., Heavens, A. F., & Charlot, S. 2008, MNRAS, 391, 1117

    work page 2008

  30. [30]

    2019, MNRAS, 483, 3420

    Parikh, T., Thomas, D., Maraston, C., et al. 2019, MNRAS, 483, 3420

    work page 2019

  31. [31]

    Peletier, R. F. & Balcells, M. 1996, AJ, 111, 2238

    work page 1996

  32. [32]

    M., Charlot, S., et al

    Salim, S., Rich, R. M., Charlot, S., et al. 2007, ApJS, 173, 267 Sánchez, S. F., García-Benito, R., Zibetti, S., et al. 2016, A&A, 594, A36 Sánchez, S. F., Kennicutt, R. C., Gil de Paz, A., et al. 2012, A&A, 538, A8

    work page 2007

  33. [33]

    2023, MNRAS, 520, 3027

    Saracco, P., La Barbera, F., De Propris, R., et al. 2023, MNRAS, 520, 3027

    work page 2023

  34. [34]

    M., et al

    Scott, N., Brough, S., Croom, S. M., et al. 2017, MNRAS, 472, 2833

    work page 2017

  35. [35]

    J., White, S

    Shen, S., Mo, H. J., White, S. D. M., et al. 2003, MNRAS, 343, 978

    work page 2003

  36. [36]

    G., et al

    Slob, M., Kriek, M., Beverage, A. G., et al. 2024, ApJ, 973, 131

    work page 2024

  37. [37]

    2012, A&A, 539, A136

    Sommariva, V ., Mannucci, F., Cresci, G., et al. 2012, A&A, 539, A136

    work page 2012

  38. [38]

    Stoughton, C. et al. 2002, AJ, 123, 485

    work page 2002

  39. [39]

    Strauss, M. A. et al. 2002, AJ, 124, 1810

    work page 2002

  40. [40]

    Tinsley, B. M. 1980, Fund. Cosmic Phys., 5, 287

    work page 1980

  41. [41]

    2020, MNRAS, 491, 5406 van der Wel, A., Noeske, K., Bezanson, R., et al

    Trussler, J., Maiolino, R., Maraston, C., et al. 2020, MNRAS, 491, 5406 van der Wel, A., Noeske, K., Bezanson, R., et al. 2016, ApJS, 223, 29

    work page 2020

  42. [42]

    J., Wisotzki, L., Bekeraité, S., et al

    Walcher, C. J., Wisotzki, L., Bekeraité, S., et al. 2014, A&A, 569, A1

    work page 2014

  43. [43]

    M., Gonzalez, J

    Worthey, G., Faber, S. M., Gonzalez, J. J., & Burstein, D. 1994, ApJS, 94, 687

    work page 1994

  44. [44]

    & Ottaviani, D

    Worthey, G. & Ottaviani, D. L. 1997, ApJS, 111, 377

    work page 1997

  45. [45]

    2018, ApJ, 855, 85

    Wu, P.-F., van der Wel, A., Gallazzi, A., et al. 2018, ApJ, 855, 85

    work page 2018

  46. [46]

    York, D. G. et al. 2000, AJ, 120, 1579

    work page 2000

  47. [47]

    & Gallazzi, A

    Zibetti, S. & Gallazzi, A. R. 2022, MNRAS, 512, 1415

    work page 2022

  48. [48]

    R., Ascasibar, Y ., et al

    Zibetti, S., Gallazzi, A. R., Ascasibar, Y ., et al. 2017, MNRAS, 468, 1902

    work page 2017

  49. [49]

    None”), the fiber index corrected at the first order (correction= “1st order

    Zibetti, S., Gallazzi, A. R., Hirschmann, M., et al. 2020, MNRAS, 491, 3562 Article number, page 15 A&A proofs: manuscript no. apercorr Appendix A: Aperture bias and residual distributions for a set of popular indices In this appendix we report the statistics for the distributions of the differences ∆X (opposite of the bias) between the aperture- free int...

    work page 2020
