arxiv: 2508.19753 · v2 · submitted 2025-08-27 · 📊 stat.AP

Hierarchical Bayesian model updating using Dirichlet process mixtures for structural damage localization

Taro Yaoyama , Tatsuya Itoi , Jun Iyama This is my paper

Pith reviewed 2026-05-18 21:14 UTC · model grok-4.3

classification 📊 stat.AP
keywords hierarchical Bayesian model updatingDirichlet process mixturesstructural damage localizationfinite element model updatingdamage state classificationMetropolis-within-Gibbs samplerstiffness parameter estimation
0
0 comments X

The pith

Dirichlet process mixture priors in hierarchical Bayesian model updating cluster damage states and tighten stiffness estimates in finite element models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a hierarchical Bayesian model updating framework that places a Dirichlet process mixture prior on structural parameters to handle multimodality arising from multiple discrete damage states. This integrates automatic clustering and damage state classification directly into finite element model calibration without pre-specifying the number of clusters. In tests on moment-resisting frame structures with beam-end fractures, the inferred clusters match assumed or observed damage conditions, posterior stiffness distributions align with ground truth or measured fractures, and uncertainty is substantially lower than in non-hierarchical baselines.

Core claim

The DP-HBMU method employs a Dirichlet process mixture prior on structural parameters together with a Metropolis-within-Gibbs sampler to perform joint parameter estimation and damage-state clustering. When applied to numerical and experimental datasets spanning intact to moderate or severe damage, the resulting clusters align with the true damage states while producing posterior stiffness distributions that match ground truth values or observed fractures and exhibit markedly reduced uncertainty relative to a non-hierarchical Bayesian baseline.

What carries the argument

The Dirichlet process mixture prior on structural parameters, which performs nonparametric clustering and thereby folds damage-state classification into the hierarchical Bayesian updating of finite element models.

If this is right

  • Damage localization proceeds without the user having to specify the number of damage states in advance.
  • Posterior distributions of stiffness parameters agree with ground truth or observed fractures while showing substantially lower uncertainty than non-hierarchical methods.
  • The same framework applies to both numerical simulations and experimental data collected across intact, moderate, and severe damage conditions.
  • Clustering performed by the Dirichlet process mixture aligns closely with the actual or assumed sequence of damage states experienced by the structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be embedded in continuous structural health monitoring systems to track progressive damage accumulation over time without manual intervention.
  • Similar nonparametric clustering might improve parameter estimation in other inverse problems that involve discrete operating regimes, such as fatigue in mechanical components.
  • Extensions to time-varying environmental conditions could test whether the mixture prior continues to separate damage-induced multimodality from benign variability.

Load-bearing premise

Structural parameters exhibit multimodality caused by discrete damage states that a Dirichlet process mixture prior can capture, and the Metropolis-within-Gibbs sampler can explore the posterior even though the finite element simulator renders some conditionals intractable.

What would settle it

Apply DP-HBMU to a structure with independently documented multiple distinct damage states and check whether the inferred clusters fail to correspond to those states or whether the posterior stiffness uncertainty fails to decrease relative to the non-hierarchical baseline.

Figures

Figures reproduced from arXiv: 2508.19753 by Jun Iyama, Taro Yaoyama, Tatsuya Itoi.

Figure 1
Figure 1. Figure 1: Graphical model representing a generative model in the DP-HBMU framework. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

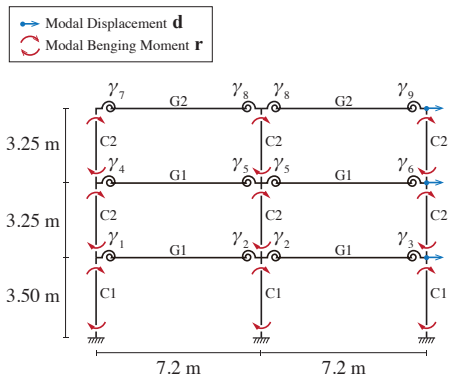

Figure 2. Figure 2: Three-story two-bay planar frame targeted in the numerical example. [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Normalized modal bending moment diagrams for three damage states: (a) intact ( [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Estimated number of classes K during the MCMC iterations. set as s = 0.05, determined by monitoring the acceptance rate. The hyperparameters of the Gamma prior are set as (aβ, bβ) = (10, 0.1). As a performance metric to compare DP-HBMU with non-hierarchical BMU, we use the log posterior probability at the true parameters. Let θ ∗ n denote the true parameters used to synthesize the observation xn. As the jo… view at source ↗
Figure 5

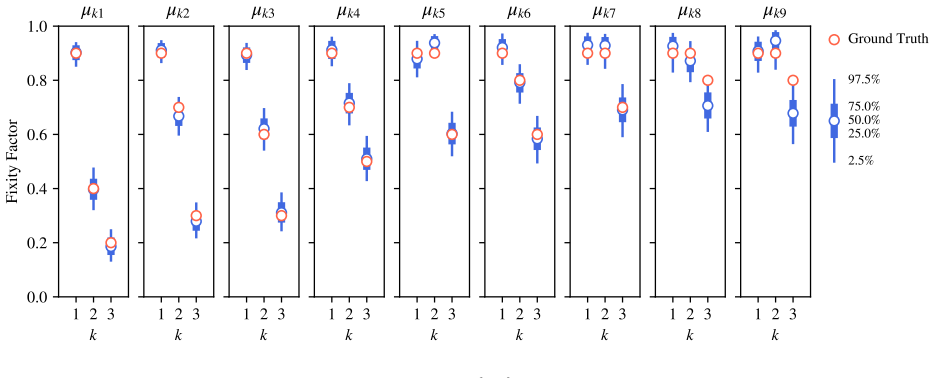

Figure 5. Figure 5: Posterior samples of {µk} conditional on K = 3. components θni, the posterior medians closely align with the ground truth values. Notably, the inferred posteriors track even subtle variations within a cluster, especially evident for θn1, n = 11, ..., 15. In summary, the inference results clearly show that the proposed method, DP-HBMU, classifies damage states included in the datasets without pre-specifying… view at source ↗
Figure 6
Figure 6. Figure 6: Posterior samples of {θn}. In the suite of loading tests, recorded seismic ground motion (JMA Kobe NS) and broadband random noise were alternately applied to the specimen. The amplitude of the JMA Kobe NS wave was incrementally scaled to reproduce progressive damage states. The present study focuses on seven random-wave tests, R3, R4, ..., R9, as listed in [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Target specimen in experimental validation: south-side view after completion of loading tests (from Iyama et al. [27]). [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Target structure in experimental validation [27]: (a) north elevation; (b) finite element model (planar moment frame with [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Normalized modal bending moment distributions evaluated via system identification. [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Estimated number of classes K during the MCMC iterations. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Cluster assignments over MCMC iterations (only the first 1000 iterations shown). [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Posterior samples of {µk}. particularly between one class corresponding to a single beam-end fracture and another corresponding to two beam-end fractures. To address this label switching problem, we relabel cn (and accordingly redefine µk) so that {µk : k = 1, 2, 3} are ordered in descending order, reflecting the progression of damage. In class k = 1, the medians across all beam ends lie between 0.7 and 0… view at source ↗
Figure 13
Figure 13. Figure 13: Posterior samples of fixity factors γi, i = 1, ..., 4 for all tests: (a) non-hierarchical BMU; (b) DP-HBMU (Proposed). that, in (b) (DP-HBMU), the median estimates evolve more smoothly and the associated uncertainty ranges are substantially narrower than in (a) (non-hierarchical BMU), particularly at N2BE and N2BW. These findings demonstrate that the DP-HBMU identifies the distinct damage states present i… view at source ↗
read the original abstract

Bayesian model updating provides a rigorous probabilistic framework for calibrating finite element (FE) models with quantified uncertainties, thereby enhancing damage assessment, response prediction, and performance evaluation of engineering structures. Recent advances in hierarchical Bayesian model updating (HBMU) enable robust parameter estimation under ill-posed/ill-conditioned settings and in the presence of inherent variability in structural parameters due to environmental and operational conditions. However, most HBMU approaches overlook multimodality in structural parameters that often arises when a structure experiences multiple damage states over its service life. This paper presents an HBMU framework that employs a Dirichlet process (DP) mixture prior on structural parameters (DP-HBMU). DP mixtures are nonparametric Bayesian models that perform clustering without pre-specifying the number of clusters, incorporating damage state classification into FE model updating. We formulate the DP-HBMU framework and devise a Metropolis-within-Gibbs sampler that draws samples from the posterior by embedding Metropolis updates for intractable conditionals due to the FE simulator. The applicability of DP-HBMU to damage localization is demonstrated through both numerical and experimental examples. We consider moment-resisting frame structures with beam-end fractures and apply the method to datasets spanning multiple damage states, from an intact state to moderate or severe damage state. The clusters inferred by DP-HBMU align closely with the assumed or observed damage states. The posterior distributions of stiffness parameters agree with ground truth values or observed fractures while exhibiting substantially reduced uncertainty relative to a non-hierarchical baseline. These results demonstrate the effectiveness of the proposed method in damage localization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper introduces a hierarchical Bayesian model updating (HBMU) framework that employs Dirichlet process (DP) mixture priors on structural parameters (DP-HBMU) to capture multimodality arising from multiple discrete damage states in finite element (FE) models. It develops a Metropolis-within-Gibbs sampler to draw from the posterior despite intractable conditionals induced by the FE simulator, and demonstrates the approach on numerical and experimental datasets from moment-resisting frame structures with beam-end fractures spanning intact to moderate/severe damage states. The reported results show that inferred clusters align with assumed or observed damage states, posterior stiffness parameters match ground truth or observed fractures, and uncertainty is substantially reduced relative to a non-hierarchical baseline.

Significance. If the sampler adequately explores the multimodal posterior and the cluster alignments are robust, the work advances structural damage localization by integrating nonparametric clustering directly into hierarchical Bayesian model updating. This addresses a gap in standard HBMU methods that overlook multimodality from multiple damage states, potentially improving robustness for ill-posed inverse problems in engineering structures. The numerical and experimental validation provides concrete evidence of practical applicability.

major comments (2)
  1. [§3.3] §3.3 (Metropolis-within-Gibbs sampler description): The central claims of cluster alignment with damage states and reduced uncertainty rest on the sampler adequately exploring the joint posterior over parameters, cluster assignments, and hyperparameters. However, no convergence diagnostics (trace plots, Gelman-Rubin statistics, effective sample sizes, or multiple-chain comparisons) are reported to address potential poor mixing, label-switching, or failure to escape local modes in the high-dimensional multimodal posterior induced by the DP prior and expensive FE likelihood evaluations. This is load-bearing for the reported results.
  2. [§4.1–4.2] §4.1–4.2 (Numerical and experimental examples): While alignment of clusters with damage states and agreement with ground truth are claimed, the manuscript lacks details on data exclusion criteria, quantitative error bars or credible intervals on cluster assignments, and sensitivity analyses to DP hyperparameters (e.g., concentration parameter). These omissions undermine assessment of whether the uncertainty reduction and localization performance are robust or sensitive to modeling choices.
minor comments (3)
  1. [Abstract] The abstract states 'substantially reduced uncertainty' without providing specific quantitative comparisons (e.g., ratios of posterior variances or widths of credible intervals between DP-HBMU and baseline); adding such metrics would strengthen the presentation.
  2. [Methods] Notation for the DP concentration parameter, base measure, and cluster-specific parameters should be introduced with a summary table or explicit definitions at the start of the methods section to improve readability.
  3. [Figures] Figure captions for posterior density plots should explicitly reference the non-hierarchical baseline comparison to facilitate direct visual evaluation of uncertainty reduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment point by point below. Where revisions are needed to strengthen the presentation of the sampler's reliability and the robustness of the results, we have incorporated or will incorporate the suggested changes in the revised version.

read point-by-point responses

  1. Referee: [§3.3] §3.3 (Metropolis-within-Gibbs sampler description): The central claims of cluster alignment with damage states and reduced uncertainty rest on the sampler adequately exploring the joint posterior over parameters, cluster assignments, and hyperparameters. However, no convergence diagnostics (trace plots, Gelman-Rubin statistics, effective sample sizes, or multiple-chain comparisons) are reported to address potential poor mixing, label-switching, or failure to escape local modes in the high-dimensional multimodal posterior induced by the DP prior and expensive FE likelihood evaluations. This is load-bearing for the reported results.

    Authors: We agree that explicit convergence diagnostics are important for substantiating the performance of the Metropolis-within-Gibbs sampler, especially given the multimodal nature of the posterior induced by the Dirichlet process prior. Although internal diagnostics (including multiple-chain runs and monitoring of mixing across modes) were performed during development and supported the reported cluster alignments and uncertainty reductions, these were not documented in the original manuscript. In the revision we will add a dedicated paragraph in §3.3 together with an appendix containing representative trace plots, Gelman-Rubin statistics computed from four independent chains started from dispersed initial values, effective sample sizes for key parameters, and a brief discussion of post-processing steps used to mitigate label-switching. These additions will directly address the concern and provide transparent evidence that the sampler adequately explored the relevant posterior modes. revision: yes

  2. Referee: [§4.1–4.2] §4.1–4.2 (Numerical and experimental examples): While alignment of clusters with damage states and agreement with ground truth are claimed, the manuscript lacks details on data exclusion criteria, quantitative error bars or credible intervals on cluster assignments, and sensitivity analyses to DP hyperparameters (e.g., concentration parameter). These omissions undermine assessment of whether the uncertainty reduction and localization performance are robust or sensitive to modeling choices.

    Authors: We acknowledge that additional quantitative details would improve the assessment of robustness. In the numerical example (§4.1) all generated data points were retained; we will state this explicitly and describe the noise model used. For the experimental example (§4.2) we will clarify the preprocessing steps (following the protocol of the cited experimental study) and note that no data points were excluded beyond standard signal-quality checks. We will also augment the results with posterior probabilities of cluster membership for each observation together with 95% credible intervals obtained directly from the MCMC samples. Finally, we will include a sensitivity study in which the DP concentration parameter α is varied over a representative range (0.01, 0.1, 1, 10) and demonstrate that the inferred number of clusters, their correspondence to damage states, and the posterior stiffness estimates remain consistent. These elements will be added to the revised §§4.1–4.2. revision: yes

Circularity Check

0 steps flagged

No circularity: DP-HBMU introduces independent prior and sampler validated on ground-truth examples

full rationale

The derivation introduces a Dirichlet process mixture prior on structural parameters to capture multimodality from discrete damage states and a Metropolis-within-Gibbs sampler to handle the intractable FE likelihood. These are standard nonparametric Bayesian and MCMC techniques applied to the HBMU setting. Central claims (cluster alignment with damage states, agreement with ground truth, uncertainty reduction vs. non-hierarchical baseline) are demonstrated directly on numerical and experimental datasets with known damage configurations, providing external grounding rather than reducing to fitted inputs or self-citations by construction. No load-bearing step equates the output to the input.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on the domain assumption that multimodality in structural parameters corresponds to discrete damage states amenable to nonparametric clustering; no free parameters or invented entities are explicitly detailed in the abstract.

axioms (1)
  • domain assumption Structural parameters exhibit multimodality due to multiple damage states over the service life of the structure.
    Invoked to justify the use of DP mixture prior in the HBMU framework as described in the abstract.
