Diffractive neural networks for mode-sorting with flexible detection regions

T0 review · 3 major / 4 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Training a mode-sorter's detection regions along with its phase plates roughly doubles efficiency at matched crosstalk in simulation, and the gain persists in experiment.

desk verdict Good idea, honest experiments, but the flexible-vs-fixed comparison is confounded by an unoptimized baseline; the advantage is real but likely smaller than claimed. read the letter →

arxiv 2508.20058 v1 pith:UNY2Z65F submitted 2025-08-27 physics.optics

Kaden Bearne , Alexander Duplinskiy , Matthew J. Filipovich , A. I. Lvovsky This is my paper · ORCID
classification physics.optics
keywords mode-sortingdiffractiveopticalneuralnetworksmulti-planelightconversiontrainabledetectionregionsHermite-Gaussianmodesefficiency-crosstalktrade-offbackpropagationtrainingspatialmodedemultiplexing
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Mode-sorting is the task of decomposing a light field into transverse spatial modes and steering each mode to its own spot on a detector, so all mode intensities can be read at once. The paper shows that a diffractive optical neural network—an SLM-based multi-plane light converter—can be trained to do this better if the boundaries of the detector regions are themselves trainable parameters, optimised by backpropagation together with the phase plates. Previous methods fix the output field or the detection geometry in advance; the authors argue that for intensity-measuring tasks only the partition of the detector matters, and giving the network freedom over that partition roughly doubles efficiency at equal crosstalk (58.5% versus 30% for 25 Hermite-Gaussian modes at 29% crosstalk in simulation). They confirm the trend in experiments on sorters handling 4, 9, 16, and 25 modes, and show that re-optimising the regions against measured outputs compensates experimental imperfections. If the claim holds, mode-sorters for communication, imaging, and quantum applications become simpler to build and more efficient at the same level of crosstalk.

What carries the argument

The central object is the flexible detection region: a trainable, non-overlapping partition {D_j} of the output plane, into which the network directs each input mode. Instead of prescribing exact output field shapes, the network maximises the diagonal of the intensity matrix I_ij = ∫_{D_j} |Ψ_output^(i)|² dx dy through the weighted loss α·Losseff + (1−α)·Lossxtalk, with Losseff = −(1/n) Σ_i I_ii and Lossxtalk = (1/n) Σ_i (1 − I_ii / Σ_j I_ij). The hyperparameter α sets the efficiency-crosstalk trade-off, and the regions are re-optimised against experimentally measured outputs to compensate SLM imperfections.

What would settle it

An apples-to-apples benchmark settles it: train one sorter with flexible regions and another with fixed regions whose positions and sizes are also optimised (by grid search or joint gradient training, then frozen), using identical phase-plate budgets and 25, 100, and 210 modes across at least two modal bases. If the optimised fixed-region design matches the flexible one in efficiency at equal crosstalk, the central advantage claim would be refuted; if the gap persists, it is confirmed. A purely experimental check: send a free-space communication signal through both sorters and compare channel

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that a mode-sorter's output detection regions should be part of the trainable set of parameters, not a fixed prescription. For tasks that only measure modal intensities, the network need not produce a prescribed output field shape; it only needs to concentrate each input mode's light within its own region of the detection plane. The authors optimise the phase plates and the non-overlapping region set {D_j} jointly by backpropagation, using a loss that weights efficiency against crosstalk via a hyperparameter α. The result is a substantially better efficiency-crosstalk trade-off than the fixed-region baseline—58.5% versus 30% efficiency at 29% crosst

Load-bearing premise

The claim rests on a comparison in which the fixed-region baseline consists of circular regions whose positions and sizes are not themselves optimised; a well-optimised fixed-region design could plausibly close much of the efficiency gap.

Editorial extensions

If this is right

  • Mode-sorters for intensity-measuring applications—free-space communication, imaging, endoscopy, passive superresolution—can collect roughly twice as much light per mode at the same crosstalk without adding phase plates.
  • The hyperparameter α gives a tunable efficiency-crosstalk trade-off, so the same trained hardware can be configured for high-efficiency state discrimination or for low-crosstalk imaging.
  • Re-optimising detection regions against the measured output fields recovers performance lost to experimental imperfections, without redesigning the phase plates; the single-plate, 4-mode sorter then beats even the simulated fixed-region design.
  • Enforcing the HG symmetry of the phase plates in the network parametrisation keeps simulated performance nearly unchanged while making experimental alignment much easier.
  • Because the hardware is just one SLM and one mirror, the sorter is easily reproducible in an ordinary optics lab, and fabricated phase plates can replace the SLM where its cavity effect and pixel crosstalk limit performance.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The method is basis-agnostic: the training loop consumes labelled input modes and never assumes Hermite-Gaussian structure, so the same gain should transfer to LG, OAM, Zernike, or arbitrary speckle bases—a direct next test.
  • How much of the advantage is intrinsic to region flexibility depends on the baseline: a fairer benchmark would optimise fixed-region positions and sizes with comparable effort, and comparing on 100+ modes or non-orthogonal states would bound the effect.
  • The design principle reaches beyond optics: any wave-based processor whose readout integrates intensity over a detector partition has that partition as a legitimate trainable parameter, so acoustic, microwave, or terahertz implementations could adopt the same trick.
  • A promising extension is a hybrid scheme that trains flexible regions while also matching the field where a few output channels couple into fibres, bridging the intensity-measurement and fibre-coupling regimes.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper proposes training diffractive neural network mode-sorters with flexible output detection regions that are jointly optimized with the phase plates. It presents simulations and experiments for 1-, 2-, and 3-plate sorters sorting up to 25 Hermite-Gaussian modes, and reports that flexible regions improve the efficiency-crosstalk trade-off compared to fixed circular detection regions (e.g., 58.5% vs 30% efficiency at 29% crosstalk in simulation). The authors argue that this approach outperforms traditional MPLC mode-sorting methods.

Significance. The idea of including detection-region geometry in the trainable parameter set is simple, general, and potentially useful; if the comparison is fair, the reported efficiency gain is substantial. The manuscript demonstrates the effect in both simulation and experiment, and the use of an open-source differentiable simulator (TorchOptics) supports reproducibility. The explicit Pareto-style trade-off via the hyperparameter alpha is a useful design element. However, the strength of the central claim depends on the fairness of the fixed-detection baseline and on the evaluation protocol; both need strengthening before the 'outperforms' statement can be accepted.

major comments (3)
  1. [§3.2, Fig. 2] The central comparison uses a fixed-detection baseline that is not optimized. The text states that the fixed regions are 'circular at fixed locations, with the radii and center positions chosen such that the total area is similar to the total area of the flexible detection regions.' No optimization of these region parameters is reported. The flexible detector, by contrast, is trained jointly via Eqs. (4)-(7). The reported improvement (30% to 58.5% efficiency at 29% crosstalk) therefore conflates shape flexibility with optimization of region placement. Please optimize the fixed-region centers and radii with the same loss, or compare against another optimized fixed-region sorter (e.g., WMM), and provide the resulting curve. Without this, the 'outperforms' claim is not established.
  2. [§3.3, Fig. 6] The experimental evaluation re-optimizes the flexible detection regions against the measured output fields before computing performance ('we re-optimize the detection regions accounting for the experimentally measured outputs', Fig. 5). If the same measurements are then used to report efficiency and crosstalk, this gives the flexible detector an advantage that the fixed detector does not receive. Please evaluate on held-out measurements, or at least provide a split-data comparison and quantify the optimism. The manuscript should also state explicitly whether the fixed-region results in Fig. 6 were re-optimized in the same way.
  3. [Abstract and §4] The abstract concludes that the approach 'outperforms traditional mode-sorting methods', but the only direct comparator presented is a DONN with unoptimized fixed circular detection. No WMM-trained MPLC, log-polar sorter, or other established mode-sorter is benchmarked. This claim is broader than the evidence. I recommend either adding such a benchmark or narrowing the conclusion to 'outperforms this particular fixed-detection baseline', pending the outcome of the first comment.
minor comments (4)
  1. [§3.2 / Fig. 6] The efficiency definition in the Fig. 6 caption (ratio to output intensity with all phase plates set to 0) differs from the efficiency used in simulation via Eq. (5). Please align the definitions or explain why the experimental metric is equivalent.
  2. [Global] Typographical issues: 'charactrization' in §3.1; 'Fountaineet al.' missing space; 'a∼ 20% crosstalk' spacing. The inset in Fig. 2(a) for alpha≈0 is difficult to read and should be enlarged.
  3. [§3.3 / Fig. 5] The Fig. 5 caption is terse; it would help to state explicitly which panels correspond to simulation and which to experiment, and to define the purple and orange circles referenced in the text.
  4. [Availability] No data-availability or code-availability statement is included. Given the reproducibility-oriented claims, providing trained phase-plate profiles and detection-region parameters (or a link to code) would be valuable.

Circularity Check

1 steps flagged · score 2.0 of 10

No significant circularity: the paper optimizes a differentiable loss (Eqs. 4-7) and reports the optimized values, which is standard optimization. Minor concerns: experimental detection regions are re-optimized on the same measured outputs used for evaluation, and the fixed-detection baseline is unoptimized; these weaken the comparison but do not make the derivation circular.

  1. fitted input called prediction [Section 3.3, 'Experimental Results'; Fig. 6]
    "Experimental imperfections cause the mode output fields to deviate from their theoretically predicted shapes. To address this, we re-optimize the detection regions accounting for the experimentally measured outputs, as illustrated in Fig. 5."

    The experimental efficiency and crosstalk reported in Fig. 6 are computed using detection regions D_j that were re-optimized on the very same measured output fields used for evaluation. Since efficiency (Eq. 5) and crosstalk (Eq. 6) are defined through the region integrals I_ij in Eq. (4), re-optimizing the regions directly maximizes the reported efficiency on the evaluation data. The fixed-region comparison is not re-optimized in the same way, so the flexible-vs-fixed advantage shown in the experiment is partly an in-sample fitting artifact rather than an independent, out-of-sample performance gain.

full rationale

This paper is a standard optimization demonstration: the authors define a differentiable loss (Eqs. 5-7) and train phase plates and detection regions by backpropagation, then report the resulting efficiency and crosstalk. Reporting the optimized training objective is not circular; it is the normal way to present a trained optical system. The central comparison (flexible vs. fixed detection regions) in simulation trains both phase-plate sets with the same loss, so the advantage of flexible regions reflects the inclusion of region parameters in the training set, which matches the paper's stated claim. The only self-citations (TorchOptics [38], prior superresolution works [10,11]) are tool/context citations and are not load-bearing. One caveat deserves note: in the experimental section, the detection regions are re-optimized on the same experimentally measured outputs used to compute the reported efficiency/crosstalk (Fig. 6), and the fixed-region baseline is not given the same re-optimization, so the experimental flexible-vs-fixed advantage is partly an in-sample fitting effect. This weakens the strength of the 'outperforms' claim but does not make the derivation circular, especially because the simulation independently shows the same improvement. The unoptimized fixed baseline (circular regions with area matching, no region-parameter training) is a comparison-quality issue, not a circular-reasoning issue. Overall: no significant circularity; score 2.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

No new physical entities are proposed. The central claim depends on the optimized phase profiles and detection regions, which are trained on simulated and then experimental fields, and on scalar diffraction modeling of the optical system.

free parameters (3)
  • phase plate phase profiles (200x200 pixels per plate, times number of plates) = optimized by gradient descent; not reported in text
    These are the trained network weights that encode the mode-dependent transformations.
  • detection region geometry (positions, sizes, shapes) = optimized by gradient descent; not reported, only visualized in Figures 4(a) and 5
    The central innovation: these regions are part of the trainable set, and the claimed advantage comes from their flexibility.
  • loss weight alpha = varied between 0 and 1
    Controls the trade-off between efficiency and crosstalk; swept to generate the curves in Figs. 2 and 6.
assumptions (3)
  • domain assumption Scalar diffraction theory accurately models the free-space propagation between phase plates.
    The simulations and training use TorchOptics, which is based on scalar Fresnel diffraction; this is standard but not validated against vectorial effects.
  • domain assumption The SLM phase plates are ideal phase-only modulators in the first diffraction order.
    The setup uses holograms and spatial filtering to approximate ideal phase modulation; the paper acknowledges SLM cavity effects and pixel crosstalk as error sources.
  • domain assumption Input HG modes are generated with high fidelity (97.8% mean fidelity).
    The characterization in Fig. 3 shows residual modal overlap of 1.5%, which sets the floor for achievable crosstalk.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Diffractive neural networks for mode-sorting with flexible detection regions." pith.science (2026). https://pith.science/paper/UNY2Z65F

@misc{pith2026250820058,
  author       = {Pith},
  title        = {Pith review of: Diffractive neural networks for mode-sorting with flexible detection regions},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/UNY2Z65F}},
  note         = {Machine review of arXiv:2508.20058}
}
read the original abstract

Mode-sorting is a procedure that decomposes a light field into a basis of transverse modes, directing each mode into a separate spatial location, allowing the constituent mode intensities to be measured simultaneously. We demonstrate a mode-sorter based on a diffractive optical neural network and show that it is advantageous to include the output detection regions into the trainable set of parameters of that network. This approach outperforms traditional mode-sorting methods, achieving higher efficiency for the same crosstalk levels.

Figures

Figures reproduced from arXiv: 2508.20058 by the authors.

Figure 1
Figure 1. Mode-generator and mode-sorting setup. in the first diffraction order and take care to prevent the unmodulated light from all plates from entering the final measurement. 3.2. Numerical Comparison of Training Methods We perform numerical simulations to train the phase plates and test their performance in various experimental situations. These simulations are performed in Python using TorchOptics [38], a package for s… view at source ↗
Figure 2
Figure 2. (a) Crosstalk vs. efficiency (simulation) for mode-sorters trained with fixed and [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. The generated input modes characterized via off-axis holography (a) and their [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: 3-plate, 25-mode sorter. (a) Trained detection regions, different modes are [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Comparison of trained detection regions (colour coded) for sorting 4 modes [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6

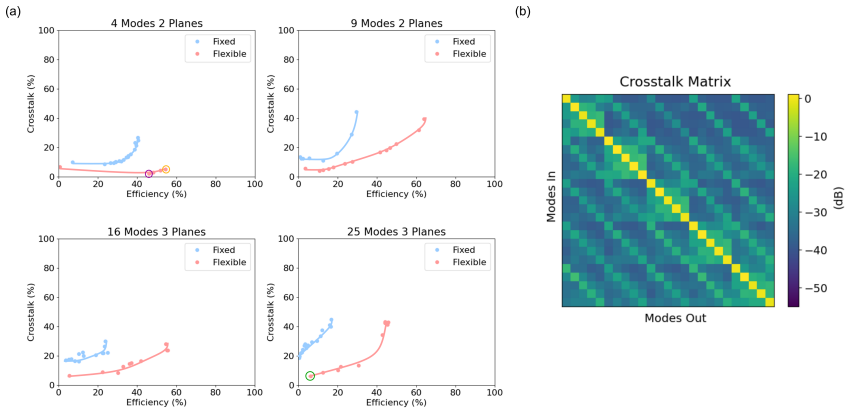

Figure 6. Figure 6: (a) Crosstalk vs. efficiency (experimental), shown for mode-sorters trained [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: Crosstalk vs. efficiency for a single-plane 4-mode sorter, shown for mode-sorters [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
