arxiv: 2509.01331 · v2 · submitted 2025-09-01 · 📡 eess.SP

Comparison between Supervised and Unsupervised Learning in Deep Unfolded Sparse Signal Recovery

Koshi Nagahisa , Ryo Hayakawa , Youji Iiguni This is my paper

Pith reviewed 2026-05-18 19:55 UTC · model grok-4.3

classification 📡 eess.SP
keywords deep unfoldingsparse signal recoverysupervised learningunsupervised learningISTAIHTl0 regularizationl1 regularization
0
0 comments X

The pith

Unsupervised loss in deep unfolded IHT reaches better minima and generalizes to mismatched test conditions while supervised MSE degrades.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper compares supervised learning with mean squared error against unsupervised learning with the original objective function when unfolding the iterative shrinkage thresholding algorithm and iterative hard thresholding for sparse signal recovery. For convex l1-regularized problems, supervised ISTA reaches higher recovery accuracy but does not minimize the original objective as well, while unsupervised ISTA converges faster to nearly the same point as the unlearned algorithm. For nonconvex l0-regularized problems both versions find better local minima than standard IHT and perform similarly when test data matches training data, yet only the unsupervised version keeps its performance when test conditions differ from training. A reader would care because practical sparse recovery often encounters signal statistics or noise levels that were not seen during training.

Core claim

For convex l1-regularized problems, supervised-ISTA achieves better final recovery accuracy but fails to minimize the original objective function, whereas unsupervised-ISTA converges to a nearly identical solution as conventional ISTA but with accelerated convergence. For nonconvex l0-regularized problems, both supervised-IHT and unsupervised-IHT converge to better local minima than the original IHT and show similar performance under matched training and test conditions; however, when test conditions differ from training, unsupervised-IHT generalizes well while supervised-IHT suffers performance degradation.

What carries the argument

Deep unfolding of ISTA and IHT into trainable networks, with parameters learned either by minimizing mean squared error on known sparse signals or by minimizing the original l1 or l0 regularized objective without ground-truth labels.

If this is right

  • Supervised-ISTA achieves better final recovery accuracy than conventional ISTA but does not minimize the original objective function as effectively.
  • Unsupervised-ISTA converges to a nearly identical solution as conventional ISTA but with accelerated convergence for convex problems.
  • Both supervised-IHT and unsupervised-IHT converge to better local minima than the original IHT for nonconvex problems.
  • Under matched training and test conditions, supervised-IHT and unsupervised-IHT show similar performance regardless of loss choice.
  • When test conditions differ from training, unsupervised-IHT maintains performance while supervised-IHT degrades.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • When real-world signal statistics are uncertain, unsupervised training may be the safer default for nonconvex deep-unfolded recovery networks.
  • The fact that both loss choices improve on the original IHT suggests unfolding itself helps escape poor local minima even before the loss choice is considered.
  • Hybrid loss designs that combine elements of supervised and unsupervised objectives could be tested to gain accuracy without losing generalization.

Load-bearing premise

The specific signal dimensions, sparsity levels, and noise models chosen for the training and testing simulations represent the distribution mismatch that occurs in practical sparse recovery applications.

What would settle it

Apply both trained networks to test signals whose sparsity level or noise variance lies outside the range used during training and check whether recovery error rises sharply for the supervised network but stays low for the unsupervised network.

Figures

Figures reproduced from arXiv: 2509.01331 by Koshi Nagahisa, Ryo Hayakawa, Youji Iiguni.

Figure 1

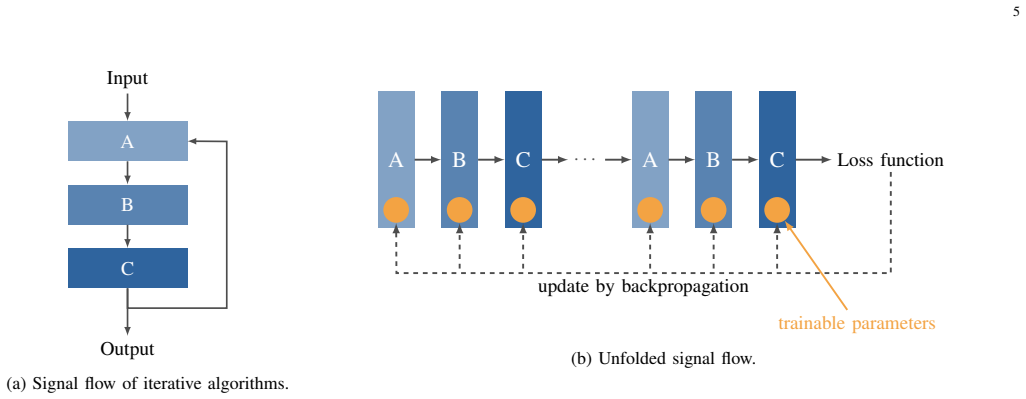

Figure 1. Figure 1: An example of signal flow for an iterative algorithm and its unfolded version. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

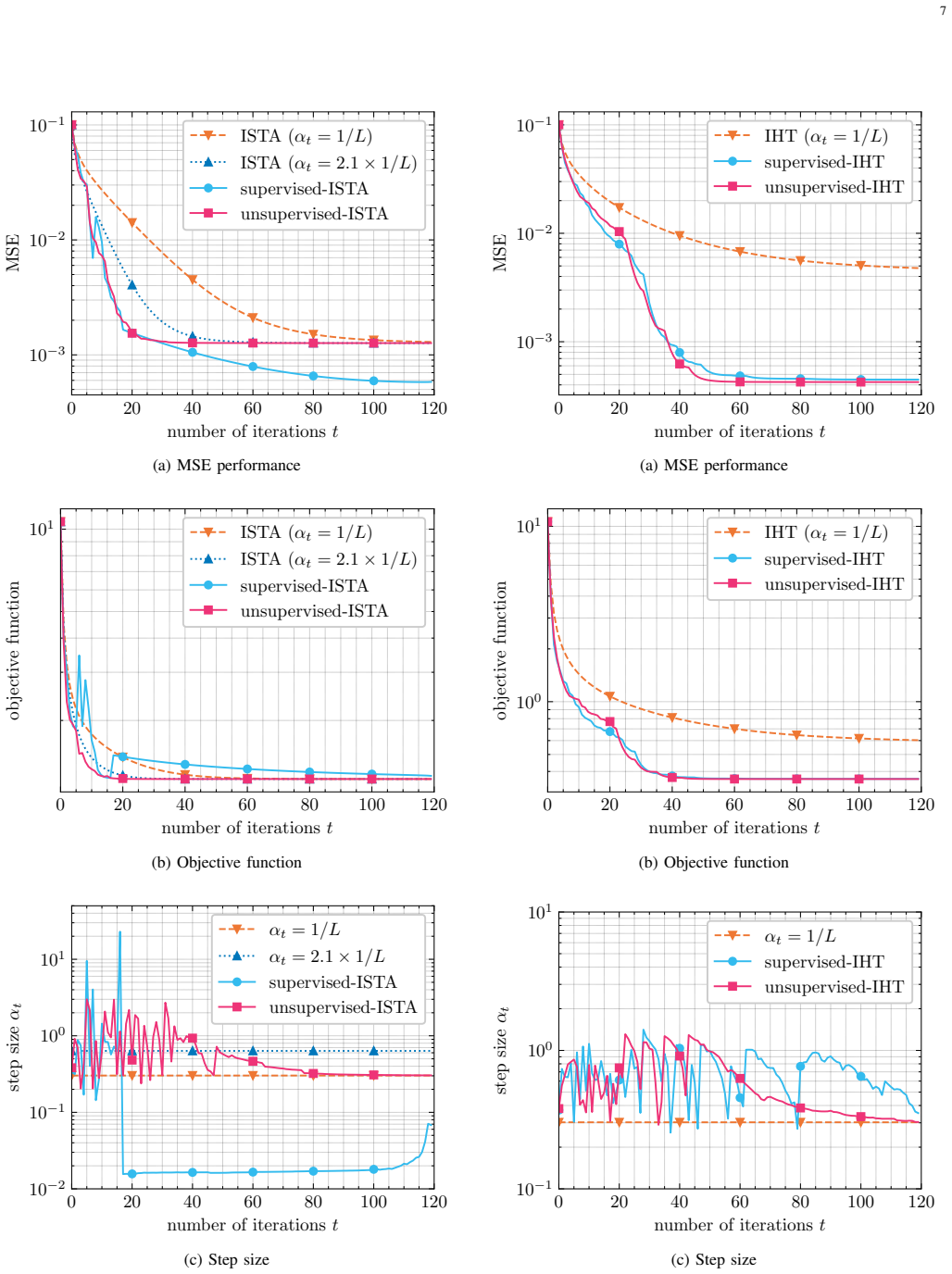

Figure 2. Figure 2: Simulation results of ISTA (N = 300, M = 210). 0 20 40 60 80 100 120 number of iterations t 10−3 10−2 10−1 MSE IHT (αt = 1/L) supervised-IHT unsupervised-IHT (a) MSE performance 0 20 40 60 80 100 120 number of iterations t 100 101 objective function IHT (αt = 1/L) supervised-IHT unsupervised-IHT (b) Objective function 0 20 40 60 80 100 120 number of iterations t 10−1 100 101 step size αt αt = 1/L supervise… view at source ↗
read the original abstract

This paper investigates the impact of loss function selection in deep unfolding techniques for sparse signal recovery algorithms. Deep unfolding transforms iterative optimization algorithms into trainable lightweight neural networks by unfolding their iterations as network layers, with various loss functions employed for parameter learning depending on application contexts. We focus on deep unfolded versions of the fundamental iterative shrinkage thresholding algorithm (ISTA) and the iterative hard thresholding algorithm (IHT), comparing supervised learning using mean squared error with unsupervised learning using the objective function of the original optimization problem. Our simulation results reveal that the effect of the choice of loss function significantly depends on the convexity of the optimization problem. For convex $\ell_1$-regularized problems, supervised-ISTA achieves better final recovery accuracy but fails to minimize the original objective function, whereas we empirically observe that unsupervised-ISTA converges to a nearly identical solution as conventional ISTA but with accelerated convergence. Conversely, for nonconvex $\ell_0$-regularized problems, both supervised-IHT and unsupervised-IHT converge to better local minima than the original IHT, showing similar performance under the training conditions regardless of the loss function employed. However, when the test conditions differ from the training conditions, unsupervised-IHT generalizes well whereas supervised-IHT tends to suffer from performance degradation, suggesting that unsupervised learning offers better robustness to distribution mismatch. These findings provide valuable insights into the design of effective deep unfolded networks for sparse signal recovery applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript compares supervised (MSE loss) versus unsupervised (original objective loss) training of deep-unfolded ISTA and IHT networks for sparse signal recovery. Simulations indicate that for convex ℓ₁-regularized problems supervised-ISTA yields higher recovery accuracy but does not minimize the original objective while unsupervised-ISTA accelerates convergence to nearly identical solutions; for nonconvex ℓ₀-regularized problems both supervised- and unsupervised-IHT reach better local minima than vanilla IHT under matched conditions, yet only unsupervised-IHT maintains performance under train-test distribution mismatch.

Significance. If the reported trends hold under properly documented controls, the work supplies concrete empirical guidance on loss-function choice in deep unfolding, showing unsupervised training can confer robustness to mismatch in nonconvex sparse recovery. This is a useful, if incremental, contribution to the design of trainable iterative algorithms in signal processing.

major comments (2)
  1. Abstract: the abstract states performance trends and generalization claims but supplies no information on the number of Monte Carlo trials, statistical significance testing, or exact hyperparameter settings; these controls are load-bearing for the central empirical assertions about supervised versus unsupervised behavior.
  2. Simulation setup (presumably §4 or equivalent): the chosen signal dimensions, sparsity levels, and noise models are presented as representative of practical distribution mismatch, yet no sensitivity analysis or justification is given; this weakens the claim that unsupervised-IHT’s robustness will extend beyond the specific tested conditions.
minor comments (2)
  1. Add error bars or confidence intervals to all recovery-accuracy and objective-value plots so that variability across trials is visible.
  2. Clarify the precise layer-wise parameterization and initialization of the unfolded networks; readers unfamiliar with deep unfolding would benefit from an explicit diagram or pseudocode.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important aspects of empirical rigor that we have addressed through targeted revisions to improve clarity and support for our claims regarding supervised versus unsupervised training in deep-unfolded sparse recovery.

read point-by-point responses

  1. Referee: Abstract: the abstract states performance trends and generalization claims but supplies no information on the number of Monte Carlo trials, statistical significance testing, or exact hyperparameter settings; these controls are load-bearing for the central empirical assertions about supervised versus unsupervised behavior.

    Authors: We agree that these experimental controls are necessary to substantiate the reported trends. In the revised manuscript, we have updated the simulation section (Section 4) to specify the number of Monte Carlo trials (1000 independent realizations per configuration), the use of mean and standard deviation across trials with paired t-tests for significance where differences are claimed, and the precise hyperparameter values (e.g., learning rate 0.001, unfolding depth 10 layers, Adam optimizer settings, and initialization). The abstract has been revised to note that results are averaged over multiple Monte Carlo trials to ensure statistical reliability, within the word limit. revision: yes

  2. Referee: Simulation setup (presumably §4 or equivalent): the chosen signal dimensions, sparsity levels, and noise models are presented as representative of practical distribution mismatch, yet no sensitivity analysis or justification is given; this weakens the claim that unsupervised-IHT’s robustness will extend beyond the specific tested conditions.

    Authors: We acknowledge the value of explicit justification and sensitivity checks. The revised manuscript now includes a dedicated paragraph in the simulation setup justifying the selected parameters (N=256, K/N=0.1, SNR=20 dB) by alignment with common benchmarks in the sparse recovery literature. We have also added a sensitivity analysis subsection that varies sparsity ratio (0.05–0.2) and noise levels (SNR 10–30 dB), demonstrating that the robustness advantage of unsupervised-IHT under distribution mismatch holds consistently. These additions directly address the concern about extension beyond the tested conditions. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper is an empirical comparison of supervised versus unsupervised deep unfolding for ISTA and IHT algorithms. It reports simulation results on recovery accuracy and objective values under matched and mismatched conditions for convex ℓ1 and nonconvex ℓ0 problems. No derivation chain, first-principles prediction, or mathematical reduction is claimed; performance differences are directly measured from experiments with fixed unfolded architectures. The work is therefore self-contained with no steps that reduce to fitted inputs or self-citations by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard assumptions of sparse recovery (signals are exactly or approximately sparse, measurements are linear) plus training hyperparameters whose values are not reported in the abstract.

axioms (1)
  • domain assumption The iterative shrinkage and hard thresholding algorithms converge to useful solutions under the chosen step sizes and regularization parameters.
    Invoked when comparing unfolded versions to the original algorithms.

pith-pipeline@v0.9.0 · 5788 in / 1197 out tokens · 26992 ms · 2026-05-18T19:55:16.176229+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    We focus on deep unfolded versions of ... ISTA and ... IHT, comparing supervised learning using mean squared error with unsupervised learning using the objective function of the original optimization problem.

  • IndisputableMonolith/Foundation/BranchSelection.lean branch_selection unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    For nonconvex ℓ0-regularized problems, both supervised-IHT and unsupervised-IHT converge to better local minima than the original IHT ... unsupervised-IHT generalizes well whereas supervised-IHT tends to suffer from performance degradation

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages

  1. [1]

    Compressed sensing,

    D. L. Donoho, “Compressed sensing,” IEEE Trans. Inf. Theory , vol. 52, no. 4, pp. 1289–1306, 2006

    work page 2006

  2. [2]

    Decoding by linear programming,

    E. J. Candes and T. Tao, “Decoding by linear programming,” IEEE Trans. Inf. Theory , vol. 51, no. 12, pp. 4203–4215, Dec. 2005

    work page 2005

  3. [3]

    Robust uncertainty principles: exact signal reconstruction from highly incomplete frequency informa- tion,

    E. J. Candes, J. Romberg, and T. Tao, “Robust uncertainty principles: exact signal reconstruction from highly incomplete frequency informa- tion,” IEEE Trans. Inf. Theory , vol. 52, no. 2, pp. 489–509, Feb. 2006

    work page 2006

  4. [4]

    Sparse MRI: The application of compressed sensing for rapid MR imaging,

    M. Lustig, D. Donoho, and J. M. Pauly, “Sparse MRI: The application of compressed sensing for rapid MR imaging,” Magn. Reson. Med., vol. 58, no. 6, pp. 1182–1195, Dec. 2007

    work page 2007

  5. [5]

    A user’s guide to compressed sensing for communications systems,

    K. Hayashi, M. Nagahara, and T. Tanaka, “A user’s guide to compressed sensing for communications systems,” IEICE Trans. Commun. , vol. E96.B, no. 3, pp. 685–712, 2013

    work page 2013

  6. [6]

    Compressed sensing for wireless communications: Useful tips and tricks,

    J. W. Choi, B. Shim, Y . Ding, B. Rao, and D. I. Kim, “Compressed sensing for wireless communications: Useful tips and tricks,” IEEE Commun. Surv. Tutor ., vol. 19, no. 3, pp. 1527–1550, 2017

    work page 2017

  7. [7]

    Nagahara, Sparsity methods for systems and control , ser

    M. Nagahara, Sparsity methods for systems and control , ser. NowOpen. now publishers, Sep. 2020

    work page 2020

  8. [8]

    Ergodic convergence to a zero of the sum of monotone operators in hilbert space,

    G. B. Passty, “Ergodic convergence to a zero of the sum of monotone operators in hilbert space,” Journal of Mathematical Analysis and Applications, vol. 72, no. 2, pp. 383–390, 1979

    work page 1979

  9. [9]

    Applications of a splitting algorithm to decomposition in convex programming and variational inequalities,

    P. Tseng, “Applications of a splitting algorithm to decomposition in convex programming and variational inequalities,” SIAM Journal on Control and Optimization , vol. 29, no. 1, pp. 119–138, 1991

    work page 1991

  10. [10]

    An iterative thresholding algorithm for linear inverse problems with a sparsity constraint,

    I. Daubechies, M. Defrise, and C. De Mol, “An iterative thresholding algorithm for linear inverse problems with a sparsity constraint,” Com- munications on Pure and Applied Mathematics: A Journal Issued by the Courant Institute of Mathematical Sciences , vol. 57, no. 11, pp. 1413– 1457, 2004

    work page 2004

  11. [11]

    Signal recovery by proximal Forward- Backward splitting,

    P. L. Combettes and V . R. Wajs, “Signal recovery by proximal Forward- Backward splitting,” Multiscale Model. Simul. , vol. 4, no. 4, pp. 1168– 1200, Jan. 2005

    work page 2005

  12. [12]

    Gradient projection for sparse reconstruction: Application to compressed sensing and other inverse problems,

    M. A. T. Figueiredo, R. D. Nowak, and S. J. Wright, “Gradient projection for sparse reconstruction: Application to compressed sensing and other inverse problems,” IEEE J. Sel. Top. Signal Process. , vol. 1, no. 4, pp. 586–597, Dec. 2007

    work page 2007

  13. [13]

    Iterative hard thresholding for compressed sensing,

    T. Blumensath and M. E. Davies, “Iterative hard thresholding for compressed sensing,” Applied and Computational Harmonic Analysis , vol. 27, no. 3, pp. 265–274, 2009

    work page 2009

  14. [14]

    Learning fast approximations of sparse coding,

    K. Gregor and Y . LeCun, “Learning fast approximations of sparse coding,” in Proceedings of the 27th International Conference on In- ternational Conference on Machine Learning , 2010, pp. 399–406

    work page 2010

  15. [15]

    Algorithm unrolling: Interpretable, efficient deep learning for signal and image processing,

    V . Monga, Y . Li, and Y . C. Eldar, “Algorithm unrolling: Interpretable, efficient deep learning for signal and image processing,” IEEE Signal Process. Mag., vol. 38, no. 2, pp. 18–44, Mar. 2021

    work page 2021

  16. [16]

    Model-based deep learning,

    N. Shlezinger, J. Whang, Y . C. Eldar, and A. G. Dimakis, “Model-based deep learning,” Proceedings of the IEEE , vol. 111, no. 5, pp. 465–499, May 2023

    work page 2023

  17. [17]

    Learning step sizes for unfolded sparse coding,

    P. Ablin, T. Moreau, M. Massias, and A. Gramfort, “Learning step sizes for unfolded sparse coding,” Advances in Neural Information Processing Systems, vol. 32, 2019

    work page 2019

  18. [18]

    Trainable ISTA for sparse signal recovery,

    D. Ito, S. Takabe, and T. Wadayama, “Trainable ISTA for sparse signal recovery,”IEEE Trans. Signal Process. , vol. 67, no. 12, pp. 3113–3125, 2019

    work page 2019

  19. [19]

    Coordinate descent optimization for ℓ1 minimiza- tion with application to compressed sensing; a greedy algorithm,

    Y . Li and S. Osher, “Coordinate descent optimization for ℓ1 minimiza- tion with application to compressed sensing; a greedy algorithm,”Inverse Problems and Imaging , vol. 3, no. 3, pp. 487–503, 2009

    work page 2009

  20. [20]

    A fast iterative shrinkage-thresholding algorithm for linear inverse problems,

    A. Beck and M. Teboulle, “A fast iterative shrinkage-thresholding algorithm for linear inverse problems,” SIAM J. Imaging Sci. , vol. 2, no. 1, pp. 183–202, Jan. 2009

    work page 2009

  21. [21]

    Proximal algorithms,

    N. Parikh and S. Boyd, “Proximal algorithms,” F ound. Trends Optim., vol. 1, no. 3, pp. 127–239, Jan. 2014

    work page 2014

  22. [22]

    Adam: A method for stochastic optimization,

    D. P. Kingma and J. Ba, “Adam: A method for stochastic optimization,” arXiv [cs.LG] , Dec. 2014

    work page 2014

  23. [23]

    Trainable projected gradient detector for massive overloaded MIMO channels: Data-driven tuning approach,

    S. Takabe, M. Imanishi, T. Wadayama, R. Hayakawa, and K. Hayashi, “Trainable projected gradient detector for massive overloaded MIMO channels: Data-driven tuning approach,” IEEE Access , vol. 7, pp. 93 326–93 338, 2019

    work page 2019

  24. [24]

    Convergence acceleration via chebyshev step: Plausible interpretation of deep-unfolded gradient descent,

    S. Takabe and T. Wadayama, “Convergence acceleration via chebyshev step: Plausible interpretation of deep-unfolded gradient descent,” IEICE Trans. Fundam. Electron. Commun. Comput. Sci. , vol. E105.A, no. 8, pp. 1110–1120, Aug. 2022

    work page 2022

  25. [25]

    Deep unfolding-aided parame- ter tuning for plug-and-play-based video snapshot compressive imaging,

    T. Matsuda, R. Hayakawa, and Y . Iiguni, “Deep unfolding-aided parame- ter tuning for plug-and-play-based video snapshot compressive imaging,” IEEE Access , vol. 13, pp. 24 867–24 879, 2025

    work page 2025

  26. [26]

    Proximal splitting methods in signal processing,

    P. L. Combettes and J.-C. Pesquet, “Proximal splitting methods in signal processing,” in Fixed-Point Algorithms for Inverse Problems in Science and Engineering . Springer New York, 2011, pp. 185–212

    work page 2011

  27. [27]

    A survey on nonconvex regularization-based sparse and low-rank recovery in signal processing, statistics, and machine learning,

    F. Wen, L. Chu, P. Liu, and R. C. Qiu, “A survey on nonconvex regularization-based sparse and low-rank recovery in signal processing, statistics, and machine learning,” IEEE Access , vol. 6, pp. 69 883– 69 906, 2018

    work page 2018
