arxiv: 2509.06243 · v2 · submitted 2025-09-07 · 🌌 astro-ph.HE

Evidence for Two SNe Type Triggering GRB 220101A: a Pair SN and a Rotating Magnetized Core Collapse SN

R. Ruffini , M. T. Mirtorabi , P. Chardonnet , C. L. Fryer , M. Hohmann , Yu Wang This is my paper

Pith reviewed 2026-05-18 17:27 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords GRB 220101ABinary Driven HypernovaPair Instability SupernovaRotating Magnetized CorePulsar FormationNeutron Star CollapseCore Collapse Supernova
0
0 comments X

The pith

GRB 220101A is produced by a pair-instability supernova from a rotating magnetized CO core together with the collapse of a companion neutron star to a black hole.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the binary-driven hypernova model to explain GRB 220101A through the combined effects of two supernova types in a binary system containing a carbon-oxygen core and a neutron-star companion. A rapidly rotating, strongly magnetized CO core undergoes pair instability, collapses, and forms a newborn neutron star that evolves into a pulsar, while ejecta accretion drives the companion neutron star to collapse into a black hole. This produces seven distinct physical episodes, with the final stage powered by the newly formed pulsar rather than radioactive nickel decay. The model incorporates magnetic-field amplification and magnetohydrodynamic processes such as overcritical fields and electron-positron pair production. A sympathetic reader would care because the framework accounts for the observed energetic light curve and spectra of GRB 220101A within a single binary scenario that replaces earlier non-rotating interpretations.

Core claim

The central claim is that GRB 220101A arises from the combined action of a pair-instability supernova triggered in a rapidly rotating magnetized CO core and the subsequent collapse of the companion neutron star into a black hole. The collapse and possible fission of the CO core produce a highly magnetized, rapidly rotating newborn neutron star that later becomes a pulsar. Concurrently, supernova ejecta accrete onto the neutron-star companion, inducing its collapse to a black hole that powers the high-energy emission. The model introduces two supernova classes: pair-instability events leaving no compact remnant and magnetized rotating core collapses that produce pulsars. BdHNe are describedby

What carries the argument

The extended Binary Driven Hypernova model with seven physical episodes, in which the final episode is powered by pulsar formation from the newborn neutron star rather than nickel decay.

If this is right

  • The framework distinguishes pair-instability supernovae that leave no remnant from magnetized rotating core collapses that produce pulsars.
  • High-energy emission arises from accretion of supernova ejecta onto the neutron-star companion, leading to black-hole formation.
  • Magnetic-field amplification and magnetohydrodynamic processes, including overcritical fields and pair production, govern the dynamics.
  • This replaces nickel-decay powering of the final stage with energy input from the newly formed pulsar.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar energetic GRBs may exhibit combined signatures of both supernova types in their multi-wavelength light curves and spectra.
  • Late-time monitoring could reveal periodic signals from the newly formed pulsar in events fitted by this model.
  • The approach may connect to other transients involving rapidly rotating magnetized compact objects, such as certain X-ray binaries or magnetar-driven events.

Load-bearing premise

The light curve and spectral features of GRB 220101A can be uniquely decomposed into the seven BdHN episodes with the final stage powered by a newly formed pulsar instead of radioactive decay.

What would settle it

A quantitative mismatch between the observed light curve and the seven-episode decomposition, or the clear detection of nickel-decay signatures without corresponding pulsar signals, would undermine the claim.

Figures

Figures reproduced from arXiv: 2509.06243 by C. L. Fryer, M. Hohmann, M. T. Mirtorabi, P. Chardonnet, R. Ruffini, Yu Wang.

Figure 1
Figure 1. Figure 1: Demonstration of gravitational potential contours for two configurations: an isolated CO core (left) and a binary system with the CO core and a neutron star companion (right). The CO core (MCO = 10 M⊙, RCO = 1010 cm) and neutron star (Mns = 2 M⊙, Rns = 106 cm) potentials are numerically calculated on a spatial grid, with their separation of 2 × 1010 cm at a given moment. Equipotential surfaces reveal disti… view at source ↗
Figure 2

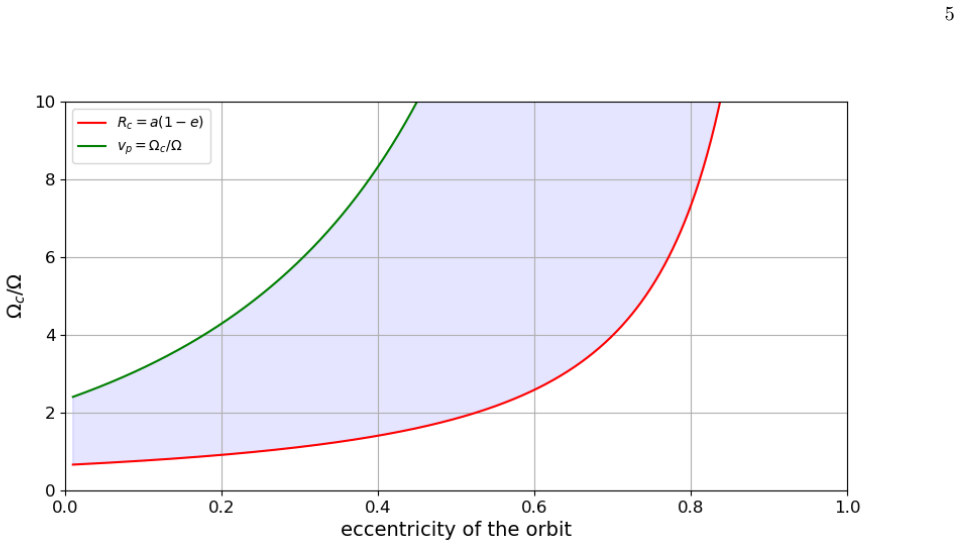

Figure 2. Figure 2: Constraints imposed on the ratio of CO core angular velocity to orbital angular velocity and orbital eccentricity. Blue regions are allowed values that can spin up the CO core. conservation must be applied to the process. As an illus￾trative example of imposing the condition of compress￾ibility after the occurrence of fission, necessary for the introduction of ℏ in the astrophysical description, we ex￾empl… view at source ↗
Figure 3

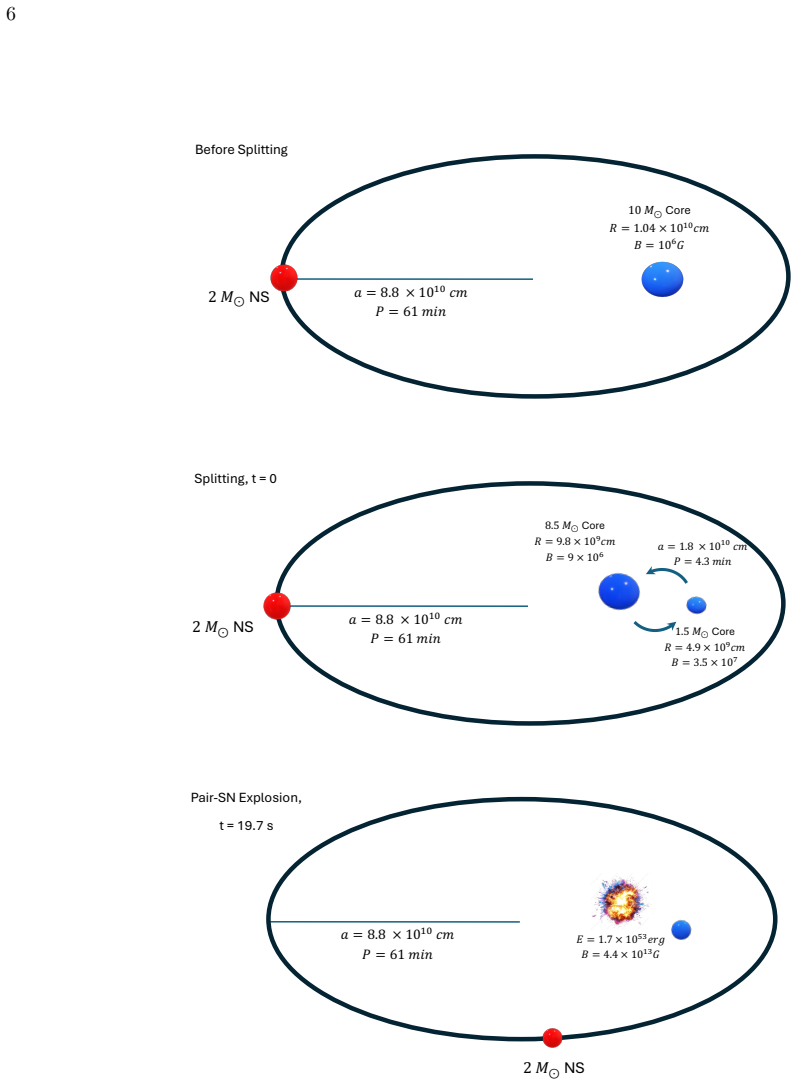

Figure 3. Figure 3: The evolution of the binary system: from top to bottom, first, The 10 M⊙ core and 2 M⊙ neutron star are initially at an eccentric orbit. Second, tidal interaction between the CO core and NS companion transfer orbital angular momentum from the orbit to CO core up to the point that the CO core reaches to bifurcation eccentricity and trigger splitting. The results is a three-body system composed of a new bina… view at source ↗
Figure 4

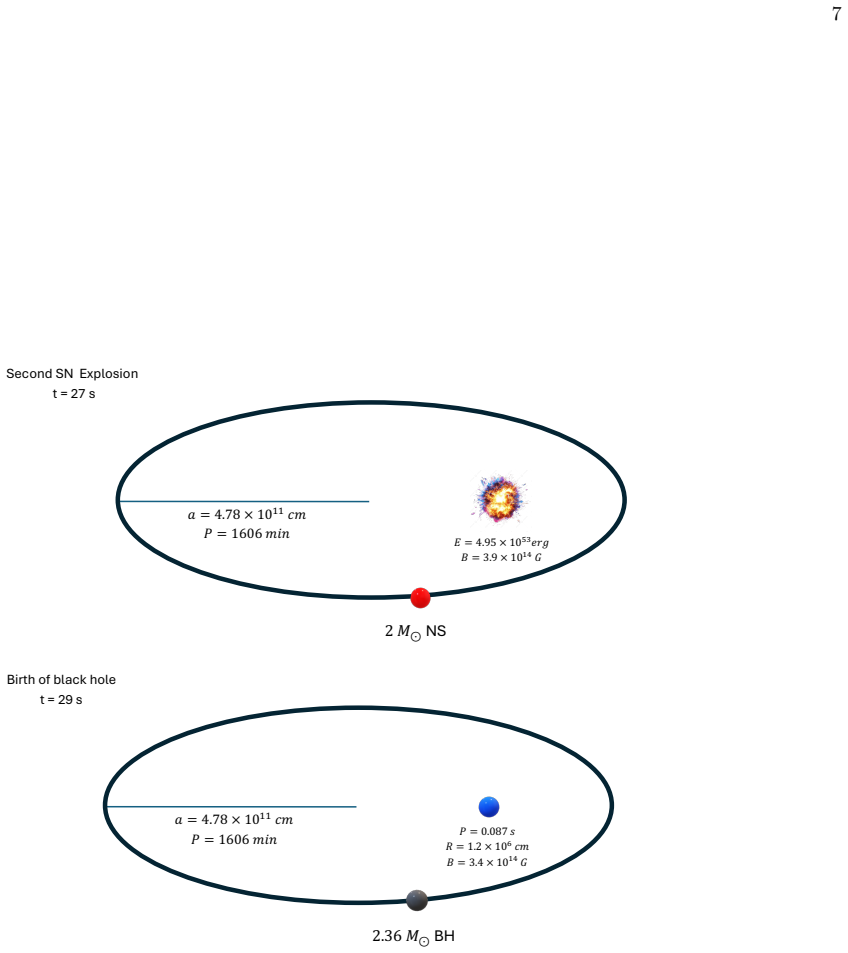

Figure 4. Figure 4: The evolution of the binary system after the explosion of pair-SN. top: the system turns back to a stable two-body. Accretion from pair-SN into 1.5 M⊙ make it unstable. The 1.5 M⊙ core collapse as a normal supernova and leave behind a millisecond pulsar. Bottom: Accretion onto 2 M⊙ component NS turn it to a black hole which generate the GeV emission [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

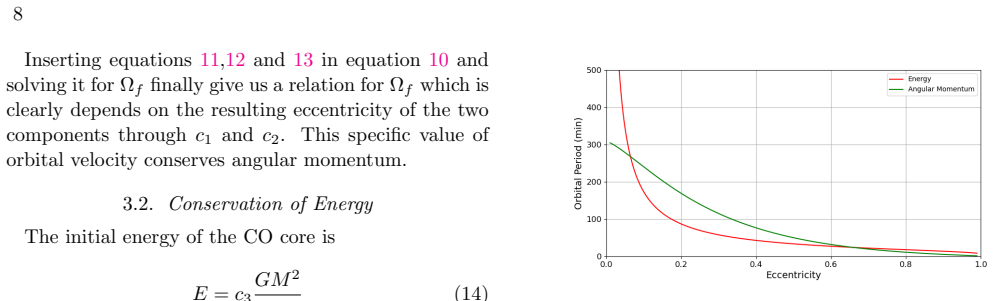

Figure 5. Figure 5: Plots of final orbital period of the new binary system after splitting vs. final eccentricity of components. The red plot shows Ωf which conserves energy and green one conserves angular momentum. that normally there are two solution The red curve lo￾cates all (e, period) pairs that conserve energy, while the green curve conserves angular momentum. There are two intersections, both with eccentricity lower t… view at source ↗
Figure 6

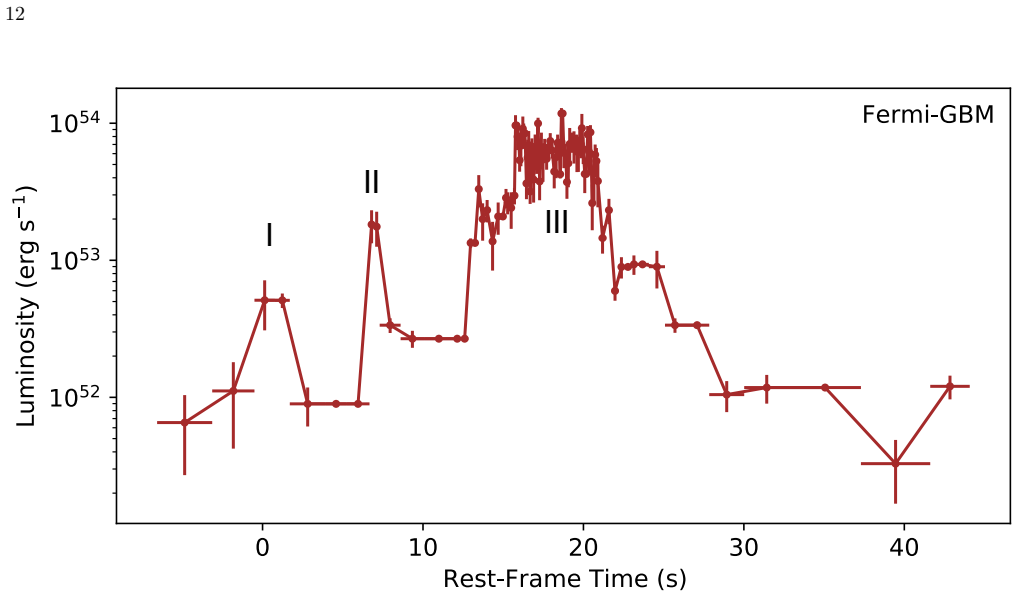

Figure 6. Figure 6: The Isotropic luminosity light-curve from Fermi-GBM of 1 keV to 10 MeV. Including the three episodes of I, II and III (Ruffini, et. al. in preparation 10 1 10 2 10 3 10 4 10 5 10 6 10 7 Rest-Frame Time (s) 10 43 10 45 10 47 10 49 10 51 10 53 L u min o sit y (erg s 1 ) 10 20 30 40 50 10 49 10 50 10 51 10 52 GRB 220101A Xinglong & CATA: I and i Swift-UVOT (white) [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7

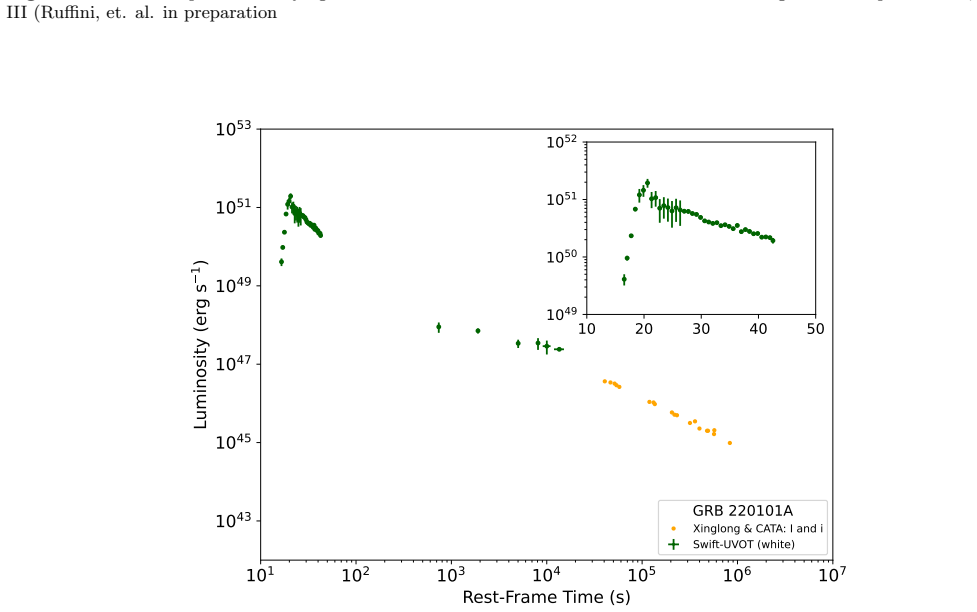

Figure 7. Figure 7: The first 100 second of optical light curve of GRB 220101A taken by Swift-UVOT. During the raising part it is assumed the underlying NS absorb angular momentum from ejecta provided by supernova and spin up from 52 ms to 1 ms [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8

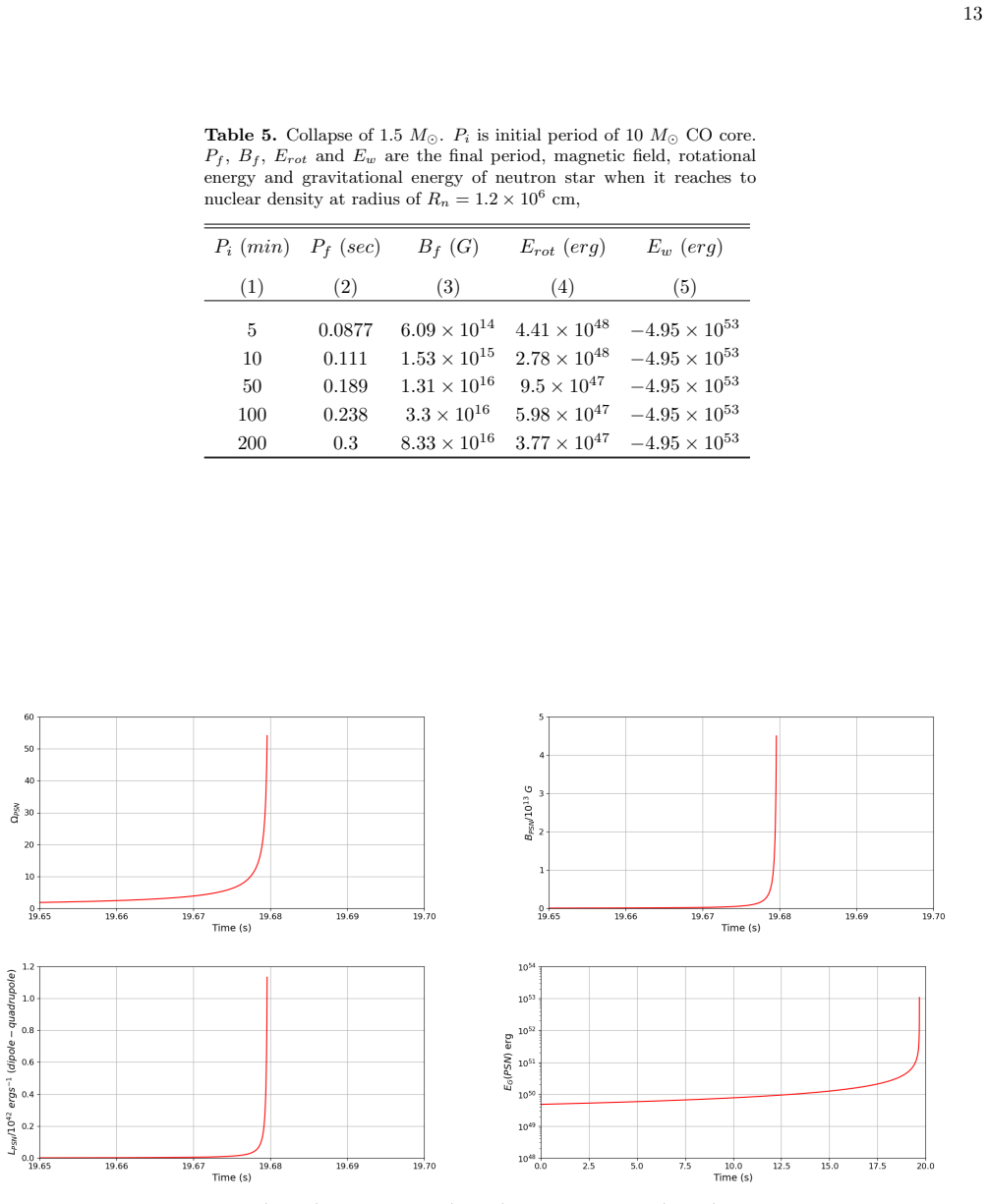

Figure 8. Figure 8: Plots of angular velocity (ΩP SN ), magnetic field (BP SN ), dipole luminosity (LP SN ) and released gravitational energy (Eg (PSN) of 8.5 M⊙ core during its collapse to a pair-SN vs. collapse time [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9

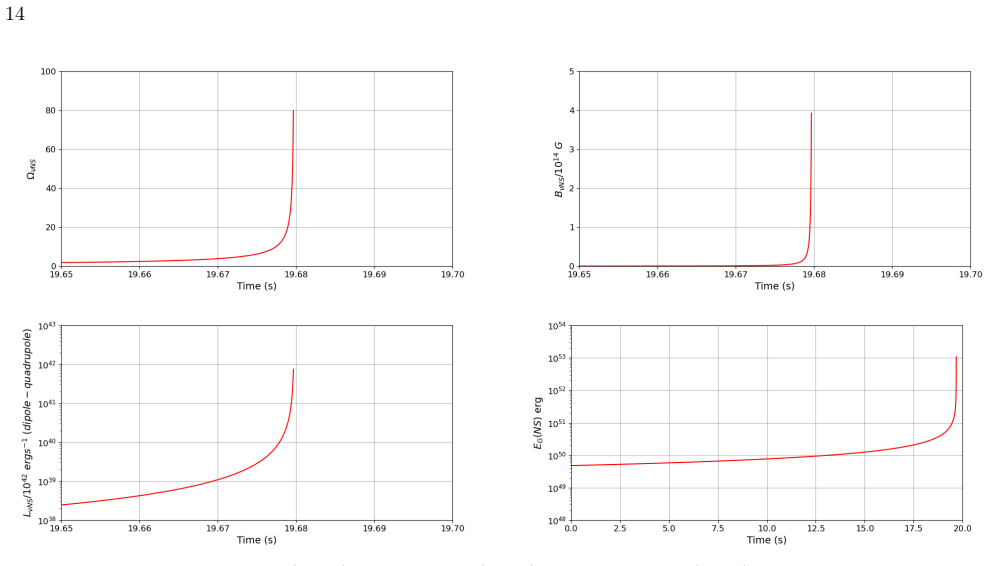

Figure 9. Figure 9: Plots of angular velocity (ΩνNS), magnetic field (BνNS), dipole luminosity (LνNS) and released gravitational energy (Eg (νNS) of 1.5 M⊙ core during its collapse to a neutron star vs. collapse time. the neutron star at its fastest spinning at the maximum of the optical light curve accreted plasma interact with the magnetic field and reduce it down to 1013 G at maxi￾mum of optical light curve. During this pe… view at source ↗
read the original abstract

The traditional interpretation of gamma ray bursts (GRBs) as originating from a single black hole has been extended by the Binary Driven Hypernova (BdHN) model, in which a GRB arises from a binary system composed of a carbon oxygen (CO) core and a neutron star (NS) companion. This framework successfully reproduces the six canonical emission episodes observed in GRBs. Recent observations of energetic events, such as GRB 220101 and GRB 240825, suggest a more powerful variant involving a rapidly rotating, strongly magnetized CO core in a binary system with an NS. In this scenario, the collapse and possible fission of the CO core lead to the formation of a highly magnetized, rapidly rotating newborn neutron star. A pair instability supernova (pair SN) is triggered when rotation and magnetic effects drive the core to instability, influencing its collapse dynamics. This process results in a millisecond neutron star that later evolves into a pulsar. Concurrently, accretion of supernova ejecta onto the NS companion can induce its collapse into a black hole, powering high energy emission. This framework introduces two distinct classes of supernovae: (i) pair instability supernovae leaving no compact remnant, and (ii) magnetized, rotating core collapses producing pulsars. The model further incorporates the role of magnetic field amplification and magnetohydrodynamic processes, including the generation of overcritical fields and electron positron pair production. This represents a significant departure from earlier non rotating models and aligns with modern pair SN scenarios. BdHNe are characterized by seven physical episodes; notably, in pair SN cases, the final episode is not powered by radioactive nickel decay but by pulsar formation. These modifications are described within a leading order analytical framework.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript extends the Binary Driven Hypernova (BdHN) model to interpret GRB 220101A as arising from two supernovae in a CO core–NS binary: a pair-instability supernova from a rapidly rotating, strongly magnetized CO core and a rotating magnetized core-collapse supernova that forms a pulsar. It introduces a seven-episode framework in which the terminal emission is powered by the newborn pulsar rather than nickel decay, incorporates magnetic-field amplification and MHD processes including overcritical fields and pair production, and distinguishes two SN classes, all within a leading-order analytical description.

Significance. If the proposed decomposition were shown to be quantitatively superior to alternatives, the work would offer a coherent extension of BdHN models that links pair-instability supernovae with binary systems and replaces radioactive powering with pulsar spin-down in the final stage. The explicit inclusion of rotation, magnetization, and pair-production effects aligns with current theoretical expectations for energetic core-collapse events and could provide a unified account for the most luminous GRBs.

major comments (2)
  1. [Model description and results] The central claim of 'evidence' for the two-SN, seven-episode scenario rests on the assertion that the observed light curve and spectral features of GRB 220101A can be uniquely mapped onto the seven BdHN episodes with pulsar (rather than Ni-decay) powering in the final stage. No quantitative light-curve or spectral fitting, parameter optimization, residual analysis, or statistical comparison (e.g., likelihood ratios) against the actual data or against single-SN collapsar models is presented.
  2. [Final episode and powering mechanism] The replacement of nickel-decay powering by pulsar formation in the terminal episode is introduced as a defining feature of the pair-SN case, yet the manuscript supplies no explicit calculation showing how the pulsar spin-down luminosity reproduces the observed late-time emission once the preceding six episodes are subtracted.
minor comments (1)
  1. [Introduction] The distinction between the two supernova classes (pair-instability leaving no remnant versus magnetized rotating collapse producing a pulsar) would benefit from a concise table summarizing the key differences in remnant, powering, and expected observables.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript extending the Binary Driven Hypernova framework to GRB 220101A. We address each major comment below, clarifying the scope of our leading-order analytical description.

read point-by-point responses

  1. Referee: [Model description and results] The central claim of 'evidence' for the two-SN, seven-episode scenario rests on the assertion that the observed light curve and spectral features of GRB 220101A can be uniquely mapped onto the seven BdHN episodes with pulsar (rather than Ni-decay) powering in the final stage. No quantitative light-curve or spectral fitting, parameter optimization, residual analysis, or statistical comparison (e.g., likelihood ratios) against the actual data or against single-SN collapsar models is presented.

    Authors: The manuscript presents a leading-order analytical framework that maps the observed temporal and spectral features of GRB 220101A onto the seven episodes of the extended BdHN model, incorporating pair-instability effects, magnetic amplification, and pulsar formation in the terminal stage. This mapping constitutes the primary evidence offered, consistent with the qualitative and semi-quantitative character of prior BdHN papers. We acknowledge that no statistical fitting, optimization, or model comparison against collapsar alternatives is included. We will revise the manuscript to explicitly state the analytical scope and note that quantitative fitting remains for future work. revision: partial

  2. Referee: [Final episode and powering mechanism] The replacement of nickel-decay powering by pulsar formation in the terminal episode is introduced as a defining feature of the pair-SN case, yet the manuscript supplies no explicit calculation showing how the pulsar spin-down luminosity reproduces the observed late-time emission once the preceding six episodes are subtracted.

    Authors: Within the pair-SN extension, the final episode is powered by the spin-down of the newborn pulsar rather than nickel decay. The manuscript outlines this transition at leading order but does not perform an explicit subtraction of the preceding episodes followed by a spin-down luminosity calculation matched to late-time data. We agree this calculation would strengthen the presentation and will add a schematic estimate of the pulsar spin-down luminosity scaling in the revised manuscript. revision: yes

Circularity Check

1 steps flagged

BdHN seven-episode structure and pulsar (vs. Ni-decay) powering imported from authors' prior self-citations; GRB 220101A interpretation reduces to reapplication of pre-defined model

specific steps
  1. self citation load bearing [Abstract]
    "BdHNe are characterized by seven physical episodes; notably, in pair SN cases, the final episode is not powered by radioactive nickel decay but by pulsar formation. These modifications are described within a leading order analytical framework."

    The seven-episode sequence and the explicit replacement of nickel-decay powering by pulsar formation are stated as characteristics of the BdHN model. Since the BdHN model (including its episode structure and powering assumptions) originates in the authors' prior papers, applying this structure to GRB 220101A as 'evidence' for two distinct SNe types is a re-labeling within the self-defined framework rather than an independent derivation from the observations.

full rationale

The paper's central claim of 'evidence' for a two-SN (pair SN + rotating magnetized core collapse) scenario in GRB 220101A rests on extending the authors' own BdHN framework. The seven physical episodes, binary CO-NS setup, and replacement of radioactive nickel decay by pulsar formation in the final episode are all defined within that prior model rather than derived anew from the GRB 220101A data. No independent quantitative light-curve fitting, statistical comparison to alternatives, or external calibration is supplied; the decomposition is presented as following from the pre-established analytical framework. This matches self-citation load-bearing circularity because the load-bearing premises (episode count, powering mechanism, binary configuration) reduce to the authors' earlier definitions without new first-principles content or falsifiable external anchor.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the pre-existing BdHN episode taxonomy, the assumption that rotation and magnetic fields can be treated at leading order without full MHD simulation, and the identification of the final emission episode with pulsar spin-down rather than nickel decay. No new free parameters are explicitly introduced in the abstract, but the model inherits fitted scales from prior papers.

axioms (2)
  • domain assumption The six (now seven) canonical emission episodes of GRBs are produced by the binary CO-NS interaction sequence defined in earlier BdHN papers.
    Invoked throughout the abstract as the framework that successfully reproduces observed episodes.
  • domain assumption Magnetic field amplification and overcritical fields can be incorporated analytically without resolving full magnetohydrodynamic instabilities.
    Stated as part of the leading-order analytical framework for the rotating magnetized core.

pith-pipeline@v0.9.0 · 5883 in / 1637 out tokens · 44829 ms · 2026-05-18T17:27:36.541879+00:00 · methodology
