A Parallel-in-Time Combination Method for Parabolic Problems

Michael Griebel , Marc Alexander Schweitzer , Lukas Troska This is my paper

Pith reviewed 2026-05-18 12:54 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords parallel-in-timeMGRITsparse gridsspace-filling curvesdomain decompositionparabolic PDEsheat equationhigh-dimensional problems
0
0 comments X

The pith

A combination of parallel-in-time multigrid, sparse-grid discretization, and space-filling-curve decomposition produces an embarrassingly parallel solver for parabolic problems up to six dimensions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a discretization and solution approach for parabolic problems that integrates three existing techniques into one framework. It applies the multigrid reduction-in-time algorithm to advance the solution in parallel across time steps, uses the sparse-grid combination method to discretize the elliptic problems that arise in space, and adds a space-filling-curve domain decomposition to distribute each subproblem. The resulting method is described as extremely fast with excellent speedup and scale-up properties. A sympathetic reader would care because many applications in physics, chemistry, and stochastic modeling require solutions in four to six space dimensions, where conventional time-marching and full-grid approaches quickly become prohibitive on even large parallel machines.

Core claim

The authors present a parallel discretization and solution method for parabolic problems with a higher number of space dimensions. It consists of a parallel-in-time approach using the multigrid reduction-in-time algorithm MGRIT with its implementation in the library XBraid, the sparse grid combination method for discretizing the resulting elliptic problems in space, and a domain decomposition method for each of the subproblems in the combination method based on the space-filling curve approach. As a result, they obtain an extremely fast and embarrassingly parallel solver with excellent speedup and scale-up qualities, which is perfectly suited for parabolic problems with up to six space 1.5 2

What carries the argument

The integrated parallel solver formed by combining MGRIT for time-parallel integration, the sparse-grid combination technique for spatial discretization, and space-filling-curve domain decomposition for each subproblem.

Load-bearing premise

The three component techniques can be integrated without destroying stability, accuracy, or parallel efficiency for the parabolic problems tested.

What would settle it

Solve a six-dimensional heat equation with the combined method on a large parallel machine and check whether measured wall-clock time continues to drop linearly with added processors while the computed solution remains within a fixed error tolerance of a reference solution obtained by a standard sequential method.

Figures

Figures reproduced from arXiv: 2509.22156 by Lukas Troska, Marc Alexander Schweitzer, Michael Griebel.

Figure 6
Figure 6. Figure 6: C tl,0 Tl,0 Φl,0 Φcoarse,l,0 F tl,1 Φl,1 F tl,2 Φl,2 C tl,3 Tl,1 Φl,3 Φcoarse,l,1 F tl,4 Φl,4 F tl,5 Φl,5 C tl,6 Tl,2 Φl,6 Φcoarse,l,2 F tl,7 Φl,7 F tl,8 Φl,8 C tl,9 Tl,3 Φl,9 Φcoarse,l,3 F tl,10 Φl,10 F tl,11 Φl,11 C tl,12 Tl,4 1 [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

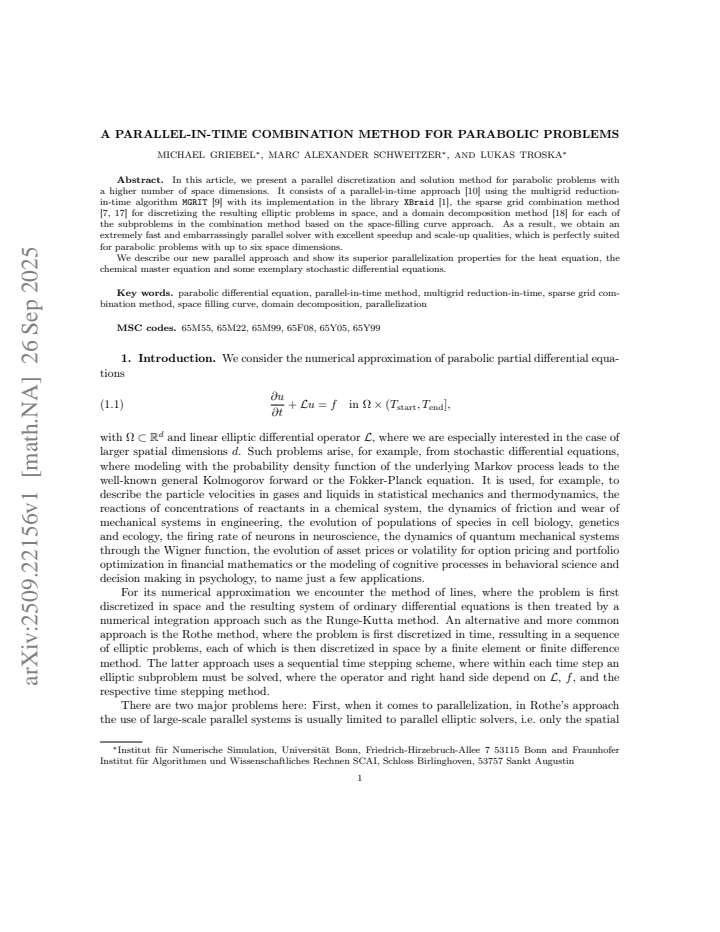

In this article, we present a parallel discretization and solution method for parabolic problems with a higher number of space dimensions. It consists of a parallel-in-time approach using the multigrid reduction-in-time algorithm MGRIT with its implementation in the library XBraid, the sparse grid combination method for discretizing the resulting elliptic problems in space, and a domain decomposition method for each of the subproblems in the combination method based on the space-filling curve approach. As a result, we obtain an extremely fast and embarrassingly parallel solver with excellent speedup and scale-up qualities, which is perfectly suited for parabolic problems with up to six space dimensions. We describe our new parallel approach and show its superior parallelization properties for the heat equation, the chemical master equation and some exemplary stochastic differential equations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript presents a parallel discretization and solution method for high-dimensional parabolic problems. It combines the multigrid reduction-in-time (MGRIT) algorithm implemented in XBraid for time-parallelism, the sparse-grid combination technique for spatial discretization of the resulting elliptic problems, and a space-filling-curve domain decomposition approach for each subproblem. Numerical experiments on the heat equation, the chemical master equation, and selected stochastic differential equations are used to demonstrate the method's parallel performance, with claims of excellent speedup, scale-up, and suitability for problems with up to six space dimensions.

Significance. If the reported numerical results hold under the combined scheme, the work offers a practical route to solving parabolic problems in up to six dimensions with an embarrassingly parallel approach that leverages existing libraries. The integration of established components (MGRIT, sparse grids, SFC partitioning) is a strength for immediate applicability, and the focus on real-world examples such as the chemical master equation adds relevance. However, the absence of any convergence or stability analysis for the composite scheme limits the long-term significance beyond the specific test cases shown.

major comments (2)
  1. [Section 4] Section 4 (Numerical Results), heat-equation experiments: the reported L2 errors and speedup factors for d=6 are presented without a dedicated study isolating the effect of applying MGRIT coarse-grid corrections to the anisotropic operators produced by the sparse-grid combination; this interaction is load-bearing for the central claim that the three techniques integrate without loss of accuracy or stability.
  2. [Section 3] Section 3 (Method Description), combination step: no estimate is given for how the spectrum of the spatial operators changes when MGRIT is applied to the individual sparse-grid subproblems, nor for the additional communication introduced by SFC partitioning; this is central to the assertion of preserved parallel efficiency up to six dimensions.
minor comments (3)
  1. [Introduction] Introduction: the claim of an 'extremely fast and embarrassingly parallel solver' should be qualified by reference to the specific hardware and problem sizes used in the experiments.
  2. [Figure 2] Figure 2: axis labels and legends are too small to read the different combination levels clearly.
  3. [References] References: the original sparse-grid combination paper by Griebel et al. is cited, but a more recent review on high-dimensional parabolic solvers would help contextualize the contribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback on our manuscript. We address the two major comments point by point below, proposing revisions that strengthen the presentation while remaining faithful to the numerical focus of the work.

read point-by-point responses

  1. Referee: [Section 4] Section 4 (Numerical Results), heat-equation experiments: the reported L2 errors and speedup factors for d=6 are presented without a dedicated study isolating the effect of applying MGRIT coarse-grid corrections to the anisotropic operators produced by the sparse-grid combination; this interaction is load-bearing for the central claim that the three techniques integrate without loss of accuracy or stability.

    Authors: We agree that a more explicit isolation of the MGRIT–anisotropic-operator interaction would clarify the results. The L2 errors reported for d=6 remain consistent with the known accuracy of the sparse-grid combination technique applied to the heat equation, and the observed speedups track the expected parallel scaling of XBraid on the individual subproblems. To address the concern directly, we will add a short comparative study in the revised Section 4 that recomputes selected d=6 cases both with and without MGRIT coarse-grid corrections on the anisotropic sparse-grid operators, thereby isolating any effect on accuracy and stability. revision: yes

  2. Referee: [Section 3] Section 3 (Method Description), combination step: no estimate is given for how the spectrum of the spatial operators changes when MGRIT is applied to the individual sparse-grid subproblems, nor for the additional communication introduced by SFC partitioning; this is central to the assertion of preserved parallel efficiency up to six dimensions.

    Authors: The sparse-grid combination technique yields a fixed set of anisotropic but still elliptic spatial operators whose spectra are already documented in the sparse-grid literature; MGRIT acts only on the temporal direction and inherits the spatial spectrum of each subproblem. We therefore do not expect a qualitative change in the spatial spectrum. For communication, the space-filling-curve partitioning is selected to maintain spatial locality, and the scale-up results up to six dimensions already demonstrate that parallel efficiency is preserved. In the revision we will insert a concise paragraph in Section 3 that recalls the spectral properties of the anisotropic operators and provides a first-order estimate of the additional communication volume induced by the SFC-based domain decomposition across the combination levels. revision: partial

Circularity Check

0 steps flagged

No circularity detected in method composition for high-dimensional parabolic solvers

full rationale

The paper presents a composition of three established techniques—MGRIT for parallel-in-time integration, the sparse-grid combination method for spatial discretization, and space-filling-curve domain decomposition—for parabolic problems up to six dimensions. Claims of excellent speedup, scale-up, and suitability rest on numerical tests for the heat equation, chemical master equation, and stochastic differential equations rather than any first-principles derivation, fitted parameters renamed as predictions, or load-bearing self-citations that reduce the result to its inputs by construction. No equations or theoretical steps are shown that would make the performance claims equivalent to the method definition itself; the work is self-contained as an empirical demonstration of integrated existing components.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract describes an assembly of standard numerical components; no new free parameters, axioms, or invented entities are introduced beyond those already present in MGRIT, sparse grids, and domain decomposition.
