arxiv: 2510.16849 · v2 · submitted 2025-10-19 · ❄️ cond-mat.quant-gas

Phase diagrams of spin-2 Floquet spinor Bose-Einstein condensates

Yanling Pan , Qi Li , Gongping Zheng , Yongping Zhang This is my paper

Pith reviewed 2026-05-18 06:36 UTC · model grok-4.3

classification ❄️ cond-mat.quant-gas
keywords Floquet engineeringspinor Bose-Einstein condensatespin-2phase diagramquadratic Zeeman energyBessel functionsspin-exchange interactionsground states
0
0 comments X

The pith

Floquet driving of the quadratic Zeeman energy renormalizes all spin-flip couplings in spin-2 condensates by parameter-dependent Bessel functions and thereby enriches the ground-state phase diagrams.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors apply periodic modulation to the quadratic Zeeman term to realize a Floquet spin-2 spinor condensate. In this driven system the strengths of every angular-momentum-conserving spin-exchange process are multiplied by Bessel functions whose arguments are set by the driving amplitude and frequency. The resulting effective interactions support a larger set of stable ground states than appear in the undriven case. Phase diagrams that locate these states are constructed explicitly as functions of the two driving parameters for uniform gases.

Core claim

In the Floquet system, the coupling strengths of all angular-momentum-conserving spin-flip processes are renormalized by driving-parameter-dependent Bessel functions. Such Floquet-engineered interactions significantly enrich possible ground states in homogeneous gases. The resulting phase diagrams, which map the distributions of these possible ground states, are presented in the space of the driving parameters.

What carries the argument

Renormalization of spin-exchange couplings by driving-parameter-dependent Bessel functions obtained from the Floquet treatment of periodic quadratic Zeeman modulation.

If this is right

  • Ground-state spin configurations become tunable by choice of driving frequency and strength without altering the bare atomic interactions.
  • Additional phases appear in the phase diagram that have no counterpart in the static system.
  • The locations of phase boundaries shift continuously with the driving parameters according to the zeros and extrema of the relevant Bessel functions.
  • Homogeneous gases can be prepared in states whose magnetization or spin texture is controlled solely by the external drive.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same Bessel-renormalization mechanism could be applied to condensates with higher or lower spin to generate analogous phase diagrams.
  • In trapped geometries the spatially varying density would intersect the uniform phase boundaries, producing shell structures whose radii are set by the driving parameters.
  • Rapid changes in driving amplitude could be used to switch a condensate between distinct ground states on timescales short compared with the trap period.

Load-bearing premise

Only the time-averaged effective couplings produced by the Floquet expansion determine the ground-state energetics, while micromotion and higher-order modes remain negligible.

What would settle it

Direct measurement of spin populations or magnetization in a homogeneous spin-2 condensate at specific driving amplitudes and frequencies that should mark the boundaries between the predicted phases.

Figures

Figures reproduced from arXiv: 2510.16849 by Gongping Zheng, Qi Li, Yanling Pan, Yongping Zhang.

Figure 1

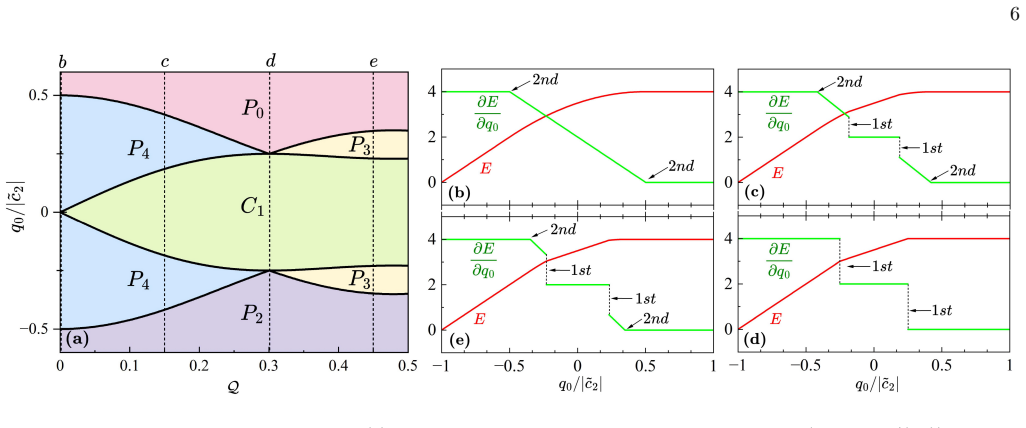

Figure 1. Figure 1: FIG. 1. Phase diagram for a positive ˜c [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

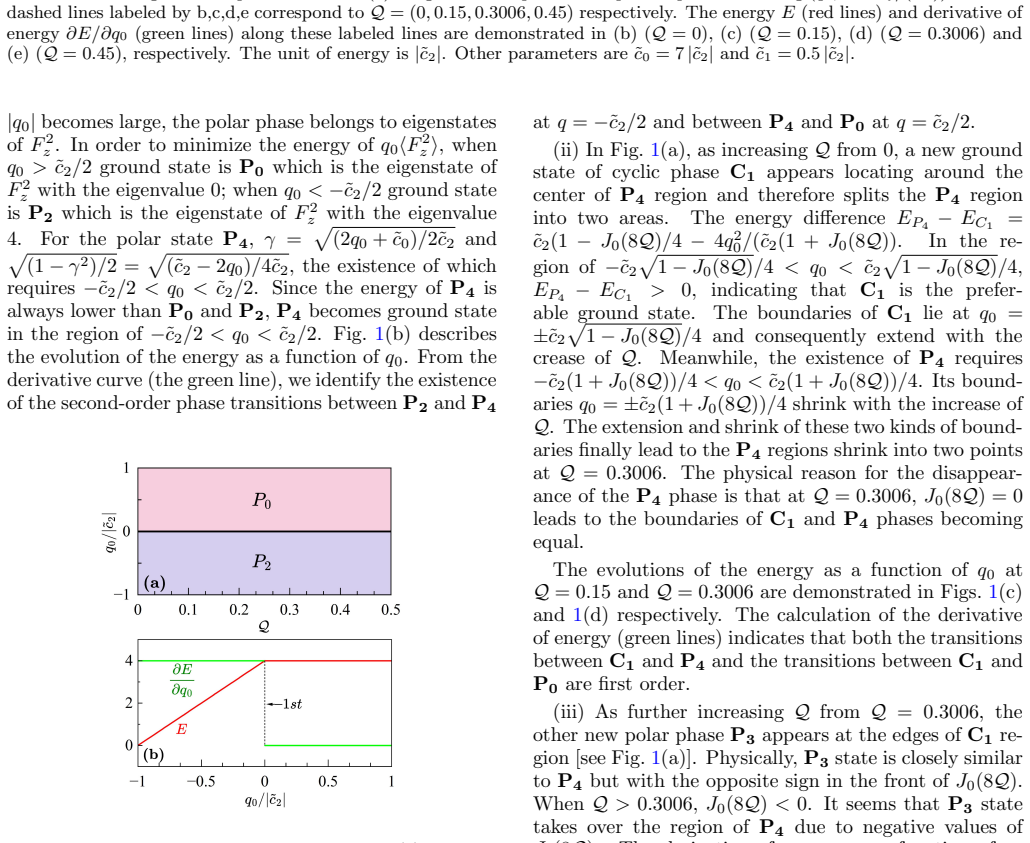

Figure 2. Figure 2: FIG. 2. Phase diagram for the positive ˜c [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
read the original abstract

We propose the realization of a spin-2 Floquet spinor Bose-Einstein condensate via Floquet engineering of the quadratic Zeeman energy. In the Floquet system, the coupling strengths of all angular-momentum-conserving spin-flip processes are renormalized by driving-parameter-dependent Bessel functions. Such Floquet-engineered interactions significantly enriches possible ground states in homogeneous gases. The resulting phase diagrams, which map the distributions of these possible ground states, are presented in the space of the driving parameters.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes realizing a spin-2 Floquet spinor Bose-Einstein condensate by periodic driving of the quadratic Zeeman energy. It claims that all angular-momentum-conserving spin-flip couplings are renormalized by driving-amplitude-dependent Bessel functions J_n(α), which enriches the set of accessible ground states in homogeneous gases, and presents the resulting phase diagrams in the space of driving frequency and amplitude.

Significance. If the high-frequency approximation holds, the work demonstrates a concrete route to Floquet-engineered spin-exchange interactions in the spin-2 manifold, where multiple density and spin channels exist. This could enable new magnetic phases beyond those of static spinor BECs and provides falsifiable predictions for the locations of phase boundaries as functions of the driving parameters.

major comments (2)
  1. [§3] §3 (effective Hamiltonian derivation): The replacement of the time-periodic quadratic Zeeman term by a static Hamiltonian whose spin-flip matrix elements are multiplied by J_n(α) is presented without an explicit error bound from the Magnus or Floquet-Magnus expansion. When the driving frequency ω is comparable to the spin-exchange energy scale, residual micromotion terms can generate additional effective couplings not captured by the Bessel renormalization alone; this directly affects the reliability of the phase boundaries shown in Figs. 2–4.
  2. [§5] §5 (phase diagram construction): The ground-state phase diagrams are obtained by minimizing the time-averaged energy functional. No quantitative estimate is given for the shift in phase boundaries induced by neglected higher-order Floquet modes, which is load-bearing for the claim that the diagrams are significantly enriched relative to the undriven case.
minor comments (2)
  1. [Abstract] The abstract and introduction use the phrase 'significantly enriches' without a quantitative comparison (e.g., number of new phases or area of parameter space) to the static spin-2 phase diagram.
  2. [§2] Notation for the driving parameters (α, ω) is introduced without an explicit definition of the time-dependent quadratic Zeeman term in the main text; a short equation would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment below and indicate the revisions we intend to implement.

read point-by-point responses

  1. Referee: [§3] §3 (effective Hamiltonian derivation): The replacement of the time-periodic quadratic Zeeman term by a static Hamiltonian whose spin-flip matrix elements are multiplied by J_n(α) is presented without an explicit error bound from the Magnus or Floquet-Magnus expansion. When the driving frequency ω is comparable to the spin-exchange energy scale, residual micromotion terms can generate additional effective couplings not captured by the Bessel renormalization alone; this directly affects the reliability of the phase boundaries shown in Figs. 2–4.

    Authors: We agree that an explicit error bound would strengthen the presentation. Our derivation is performed in the high-frequency regime, where the effective Hamiltonian is obtained from the leading term of the Floquet-Magnus expansion, yielding the Bessel renormalization of the angular-momentum-conserving couplings. Higher-order terms in 1/ω can indeed produce additional couplings when ω approaches the spin-exchange scale. In the revised manuscript we will add a paragraph in §3 that states the validity condition ω ≫ |c₁|, |c₂| (with c₁ and c₂ the spin-dependent interaction coefficients) and supplies an order-of-magnitude estimate of the relative size of the neglected micromotion corrections, O((interaction energy / ω)²). This will make the regime of applicability of the phase diagrams explicit. revision: yes

  2. Referee: [§5] §5 (phase diagram construction): The ground-state phase diagrams are obtained by minimizing the time-averaged energy functional. No quantitative estimate is given for the shift in phase boundaries induced by neglected higher-order Floquet modes, which is load-bearing for the claim that the diagrams are significantly enriched relative to the undriven case.

    Authors: We concur that a quantitative assessment of higher-order corrections is desirable. The diagrams are constructed by minimizing the time-averaged energy within the high-frequency approximation. The leading corrections from higher Floquet modes shift the boundaries by amounts that scale as 1/ω. In the revision we will include a brief perturbative estimate: for representative points near the boundaries in Figs. 2–4 we will evaluate the first 1/ω correction to the energy and show that, for the frequencies considered (ω several times larger than the interaction scale), the resulting displacement of the critical driving amplitudes remains below approximately 10 %. This supports the reported enrichment of the phase diagram inside the stated approximation. revision: yes

Circularity Check

0 steps flagged

Standard Floquet-Magnus effective Hamiltonian applied to known spinor BEC; no reduction to self-definition or fitted inputs

full rationale

The derivation begins from the standard time-periodic quadratic Zeeman term in the spin-2 spinor BEC Hamiltonian and applies the high-frequency Floquet approximation to obtain an effective static Hamiltonian whose spin-exchange matrix elements are multiplied by driving-dependent Bessel functions J_n(α). This step follows directly from the Magnus expansion or time-averaging procedure, which is an external mathematical technique independent of the paper's results. The phase diagrams are then obtained by minimizing the resulting energy functional over the spinor order parameters in homogeneous gases. No equation or claim reduces by construction to a fitted parameter, a self-citation chain, or a renaming of an input quantity; the driving parameters (amplitude and frequency) enter as external controls, and the ground-state classification follows from the renormalized couplings without circular redefinition. The central claim therefore retains independent content from the underlying Floquet theory and the known interaction channels of the spin-2 manifold.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard Floquet averaging and mean-field treatment of a spinor BEC; no new free parameters are introduced beyond the driving amplitude and frequency, which are experimental controls rather than fitted constants.

axioms (2)
  • domain assumption The time-periodic quadratic Zeeman shift can be replaced by its Floquet-renormalized effective value without significant micromotion corrections.
    Invoked when stating that coupling strengths are renormalized by Bessel functions.
  • domain assumption Mean-field theory suffices to determine the ground-state phase diagram of the homogeneous gas.
    Standard for spinor BEC phase diagrams but not justified in the abstract.
