Paramagnetic electron-nuclear spin entanglement in HoCo2Zn20

Takafumi Kitazawa , Yasuyuki Shimura , Takahiro Onimaru , Shun Tsuchida , Katsunori Kubo , Yoshinori Haga , Hironori Sakai , Yoshifumi Tokiwa
show 2 more authors
Shinsaku Kambe Yo Tokunaga
This is my paper

Pith reviewed 2026-05-18 05:17 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords electron-nuclear entanglementhyperfine couplingcrystalline electric fieldparamagnetic ground stateHoCo2Zn20nuclear spinrare-earth compoundsGamma5 state
0
0 comments X

The pith

The true paramagnetic ground state in HoCo2Zn20 is a quasi-sextet formed by entanglement of the f-electron spin and the holmium nuclear spin.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes through magnetization and specific heat measurements that the Gamma5 crystalline electric field ground state in HoCo2Zn20 is split by hyperfine coupling to the 165Ho nucleus, producing an energy width of 1.3 K at zero field. The resulting ground state is a quasi-sextet that arises mainly from coupling between the effective electron spin S=1 and the nuclear spin I=7/2. A reader would care because low-temperature behavior in this and similar rare-earth compounds cannot be understood without including this electron-nuclear entanglement. The work also shows that modest changes in the crystal-field parameters can switch the ground state to a coupled dectet instead.

Core claim

Analyses of magnetization and specific heat data determine the cubic CEF parameters, magnetic exchange constant, and hyperfine coupling constant. These show that the Gamma5 CEF ground state is split by the hyperfine coupling into an energy width of 1.3 K at 0 T. The true paramagnetic ground state is therefore a quasi-sextet arising primarily from entanglement between the f-electron effective spin S = 1 and the 165Ho nuclear spin I = 7/2. Depending on the CEF parameters, the paramagnetic ground state can switch to an electron-nuclear coupled dectet.

What carries the argument

Hyperfine coupling between the 4f magnetic moment and the 165Ho nuclear spin that splits the Gamma5 CEF level into a quasi-sextet.

If this is right

  • The Gamma5 CEF ground state splits into states with a 1.3 K energy width at zero magnetic field.
  • The ground state is a quasi-sextet dominated by entanglement of S=1 electron spin and I=7/2 nuclear spin.
  • The paramagnetic ground state can change to an electron-nuclear coupled dectet when CEF parameters are varied.
  • Accurate identification of the full electron-nuclear level scheme is required to explain low-temperature properties in rare-earth compounds that contain spin-active nuclei.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar electron-nuclear entanglement may need to be considered in other cubic rare-earth compounds with large nuclear spins when interpreting data below 2 K.
  • Experiments that directly probe the nuclear spin polarization or the detailed level spacing below 1 K could test the quasi-sextet structure.
  • The possibility of switching between sextet and dectet ground states suggests that chemical substitution or pressure could be used to tune between different entangled states.

Load-bearing premise

The Gamma5 level is the crystalline-electric-field ground state and the hyperfine interaction splits this level as a simple perturbation without mixing in higher CEF states.

What would settle it

Low-temperature specific heat or magnetization data showing a different degeneracy or a splitting width clearly different from 1.3 K at zero field would contradict the claimed quasi-sextet ground state.

Figures

Figures reproduced from arXiv: 2510.21158 by Hironori Sakai, Katsunori Kubo, Shinsaku Kambe, Shun Tsuchida, Takafumi Kitazawa, Takahiro Onimaru, Yasuyuki Shimura, Yoshifumi Tokiwa, Yoshinori Haga, Yo Tokunaga.

Figure 1

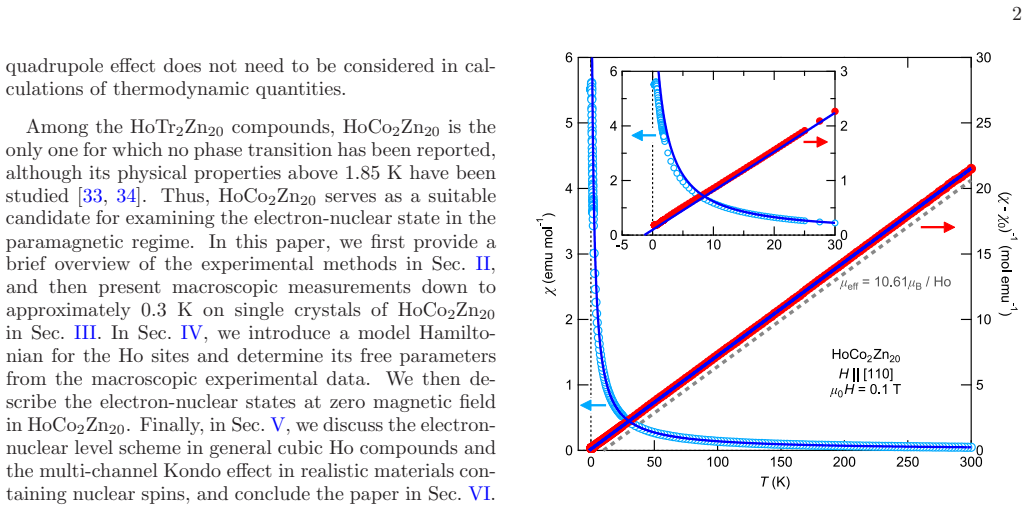

Figure 1. Figure 1: FIG. 1. Temperature dependence of the magnetization di [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Phase transition in HoCo [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Magnetization curves [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

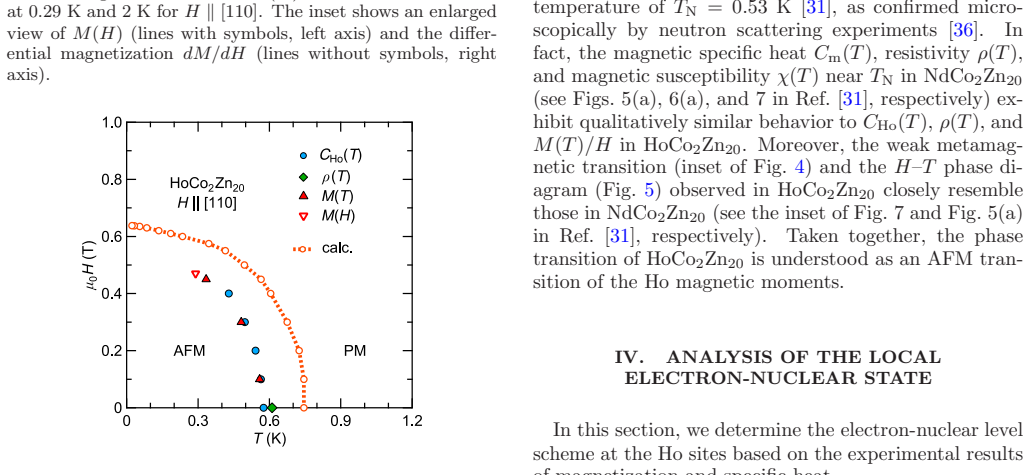

Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Magnetization curves of HoCo [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Temperature dependence of the specific heat contri [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. (a) Schematic energy level diagram of the Ho sites [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Temperature dependence of [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Comparison of (a) [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Temperature dependence of the specific heat in [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

We investigated electron-nuclear spin entanglement in the paramagnetic ground state of the Ho-based cubic compound HoCo2Zn20. From analyses of magnetization and specific heat data, we determined the cubic crystalline electric field (CEF) parameters, the magnetic exchange constant, and the hyperfine coupling constant between the 4f magnetic moment and the 165Ho nuclear spin. Our results show that the Gamma5 CEF ground state is split by the hyperfine coupling, with an energy width of 1.3 K at 0 T, and that the true paramagnetic ground state is a quasi-sextet arising primarily from entanglement between the f-electron effective spin S = 1 and the 165Ho nuclear spin I = 7/2. We further demonstrate that, depending on the CEF parameters, the paramagnetic ground state can switch to an electron-nuclear coupled dectet. These findings underscore the importance of accurately identifying the electron-nuclear level scheme for understanding the low-temperature properties of rare-earth compounds containing spin-active nuclei.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates electron-nuclear spin entanglement in the paramagnetic ground state of HoCo2Zn20. From fits to magnetization and specific heat data, the authors extract cubic CEF parameters, a magnetic exchange constant, and the hyperfine coupling constant. They conclude that the Gamma5 CEF ground state is split by hyperfine coupling into a 1.3 K wide quasi-sextet arising from entanglement between the effective f-electron spin S=1 and the 165Ho nuclear spin I=7/2, and that the ground state can switch to an electron-nuclear dectet depending on the CEF parameters.

Significance. If the central analysis holds, the work highlights how hyperfine interactions can entangle electronic and nuclear degrees of freedom to produce a composite paramagnetic ground state in rare-earth compounds containing spin-active nuclei. This has implications for the interpretation of low-temperature thermodynamic and magnetic properties in such systems, and the parameter-dependent switching between sextet and dectet states illustrates the sensitivity of the ground state to CEF details.

major comments (2)
  1. [Results section on thermodynamic data analysis] The extraction of cubic CEF parameters, magnetic exchange constant, and hyperfine coupling constant from magnetization and specific heat data is presented without error bars, raw data, fitting details, or goodness-of-fit metrics. This is load-bearing for the central claim because the identification of the Gamma5 level as the isolated ground state (split by 1.3 K hyperfine interaction) rests directly on these fitted values.
  2. [Discussion of Gamma5 splitting and quasi-sextet formation] The perturbation treatment of hyperfine coupling on an isolated Gamma5 triplet assumes the gap to the first excited CEF level greatly exceeds the 1.3 K hyperfine scale so that mixing remains negligible. The manuscript does not explicitly verify this condition using the fitted CEF parameters (e.g., by reporting the calculated gap and comparing it to the hyperfine width), which is required to confirm that the true ground state is the claimed quasi-sextet.
minor comments (2)
  1. An energy-level diagram showing the hyperfine-split quasi-sextet (and the alternative dectet) would clarify the entanglement picture for readers.
  2. [Abstract and main text] The abstract states an energy width of 1.3 K but does not specify whether this is the full splitting or a characteristic scale; a precise definition in the main text would help.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address each major comment below, providing clarifications and indicating where revisions will be made to improve the rigor and transparency of the analysis.

read point-by-point responses

  1. Referee: [Results section on thermodynamic data analysis] The extraction of cubic CEF parameters, magnetic exchange constant, and hyperfine coupling constant from magnetization and specific heat data is presented without error bars, raw data, fitting details, or goodness-of-fit metrics. This is load-bearing for the central claim because the identification of the Gamma5 level as the isolated ground state (split by 1.3 K hyperfine interaction) rests directly on these fitted values.

    Authors: We acknowledge that additional details on the fitting procedure would enhance the presentation. The magnetization and specific heat datasets are shown with overlaid model curves in the relevant figures. In the revised manuscript we will report the fitted parameters together with their uncertainties from the least-squares minimization, include the reduced chi-squared values as goodness-of-fit metrics, and add a brief description of the simultaneous fitting protocol (including the relative weighting of the two datasets). Raw data files will be provided in the supplementary information or made available upon request. revision: yes

  2. Referee: [Discussion of Gamma5 splitting and quasi-sextet formation] The perturbation treatment of hyperfine coupling on an isolated Gamma5 triplet assumes the gap to the first excited CEF level greatly exceeds the 1.3 K hyperfine scale so that mixing remains negligible. The manuscript does not explicitly verify this condition using the fitted CEF parameters (e.g., by reporting the calculated gap and comparing it to the hyperfine width), which is required to confirm that the true ground state is the claimed quasi-sextet.

    Authors: We agree that an explicit check of the perturbation validity is warranted. Using the fitted cubic CEF parameters, the lowest excited level lies approximately 8 K above the Gamma5 ground state, which is more than six times the 1.3 K hyperfine width. This separation ensures that mixing between the ground and excited manifolds is negligible at the temperatures of interest. We will add this numerical comparison, together with a short statement justifying the isolated-Gamma5 approximation, to the revised text. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained against thermodynamic data

full rationale

The paper fits cubic CEF parameters, magnetic exchange constant, and hyperfine coupling constant directly to experimental magnetization and specific-heat curves. The Gamma5 ground-state identification and its hyperfine-induced splitting into a 1.3 K quasi-sextet then follow by constructing and diagonalizing the full electron-nuclear Hamiltonian with those fitted values. This is a standard forward calculation from independently constrained parameters; the low-energy spectrum is not presupposed but emerges from the fit. No self-definitional loop, no fitted quantity relabeled as an independent prediction, and no load-bearing self-citation or imported uniqueness theorem appears. The chain remains falsifiable against the same thermodynamic datasets and is therefore scored as non-circular.

Axiom & Free-Parameter Ledger

3 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard crystal-field theory for cubic symmetry, the assumption that hyperfine coupling can be treated perturbatively on the Gamma5 doublet, and three fitted quantities extracted from thermodynamic data.

free parameters (3)
  • cubic CEF parameters
    Determined from magnetization and specific heat; these fix the Gamma5 level as ground state.
  • magnetic exchange constant
    Fitted to account for interactions between Ho moments.
  • hyperfine coupling constant
    Fitted to reproduce the observed splitting of the Gamma5 state.
axioms (2)
  • domain assumption The Gamma5 level is the crystalline-electric-field ground state of the Ho 4f electrons in cubic symmetry.
    Invoked to identify which electronic level is split by the hyperfine interaction.
  • domain assumption Hyperfine coupling acts as a weak perturbation that splits but does not strongly mix higher CEF levels.
    Required for the quasi-sextet picture to hold at the reported energy scale.
