arxiv: 2510.22776 · v2 · submitted 2025-10-26 · 🌌 astro-ph.HE

Prospects for Observing the Microquasar SS 433 with the LACT Array

Zhen Xie , Zhipeng Zhang , Ruizhi Yang This is my paper

Pith reviewed 2026-05-18 04:04 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords microquasarSS 433LACT arrayCherenkov telescopesgamma-ray astronomyhadronic emissionPeVatronsparticle acceleration
0
0 comments X

The pith

Simulations show LACT can detect microquasar SS 433 at 5 sigma in roughly 30 hours and separate its jets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses detailed simulations to assess the performance of the upcoming LACT Cherenkov telescope array on the microquasar SS 433. It finds that 30 hours of observation would yield a 5 sigma detection, with the array's angular resolution sufficient to resolve the eastern and western jets separately. Drawing on LHAASO spectral and morphological data, the simulations indicate that the central hadronic emission component becomes distinguishable after about 100 hours. The work further tests LACT's capacity to distinguish between spectral models from H.E.S.S. and LHAASO observations.

Core claim

Detailed simulations indicate that LACT can achieve a 5 sigma detection significance for SS 433 with approximately 30 hours of observation. This exposure, combined with LACT's excellent angular resolution, enables the spatial separation of the eastern and western jets. Based on LHAASO spectral and morphological findings, the array is expected to distinguish the central hadronic component after roughly 100 hours of observation. LACT can also differentiate between the H.E.S.S. and LHAASO spectral models.

What carries the argument

Monte Carlo simulations of LACT array observations of SS 433 that incorporate its spectral and morphological properties from prior LHAASO and H.E.S.S. measurements.

If this is right

  • The eastern and western jets of SS 433 can be spatially separated with 30 hours of data.
  • The central hadronic component becomes identifiable after approximately 100 hours of observation.
  • LACT observations can distinguish between the H.E.S.S. and LHAASO spectral models for SS 433.
  • These capabilities would yield new constraints on particle acceleration and radiation processes in microquasars.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Successful detection and jet separation would allow direct mapping of acceleration sites within the microquasar system.
  • Distinguishing the hadronic component could test whether microquasars contribute to the galactic cosmic-ray spectrum at PeV energies.
  • The exposure times derived here could inform scheduling for similar targets with next-generation Cherenkov arrays.

Load-bearing premise

The spectral and morphological properties of SS 433 taken from prior LHAASO and H.E.S.S. publications accurately represent the emission that LACT would observe.

What would settle it

Conducting 30 hours of LACT observations on SS 433 and obtaining a detection significance well below 5 sigma or failing to spatially resolve the jets.

Figures

Figures reproduced from arXiv: 2510.22776 by Ruizhi Yang, Zhen Xie, Zhipeng Zhang.

Figure 1
Figure 1. Figure 1: FIG. 1. Angular resolution and effective area of the LACT [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

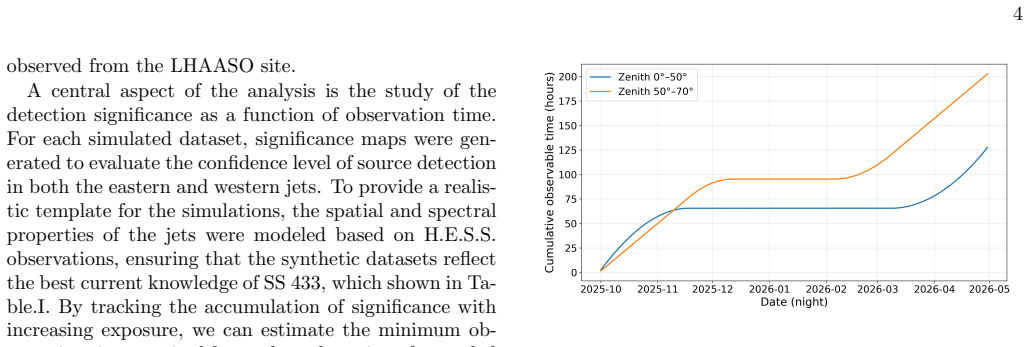

Figure 2. Figure 2: FIG. 2. Cumulative observable time of SS 433 from the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

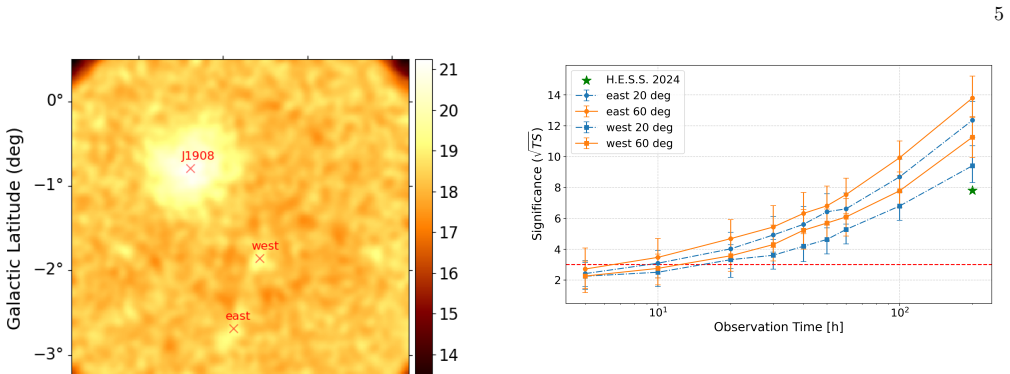

Figure 4. Figure 4: FIG. 4. The detection significance of the SS 433 eastern and [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 3

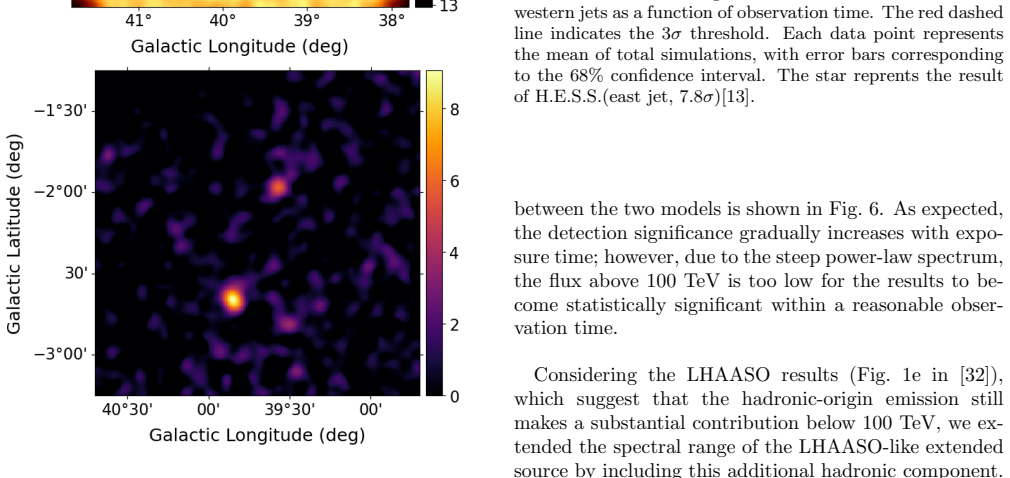

Figure 3. Figure 3: FIG. 3. Top: A counts map of the SS 433 eastern and western [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 6

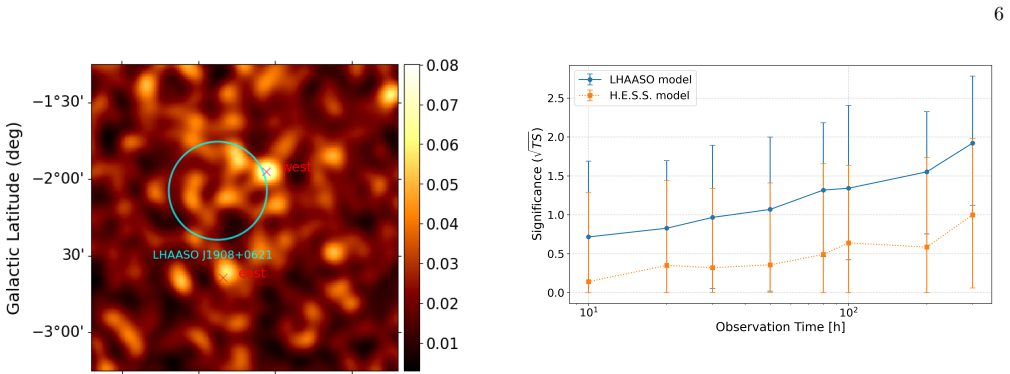

Figure 6. Figure 6: FIG. 6. Difference in significance between fits with H.E.S.S. [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

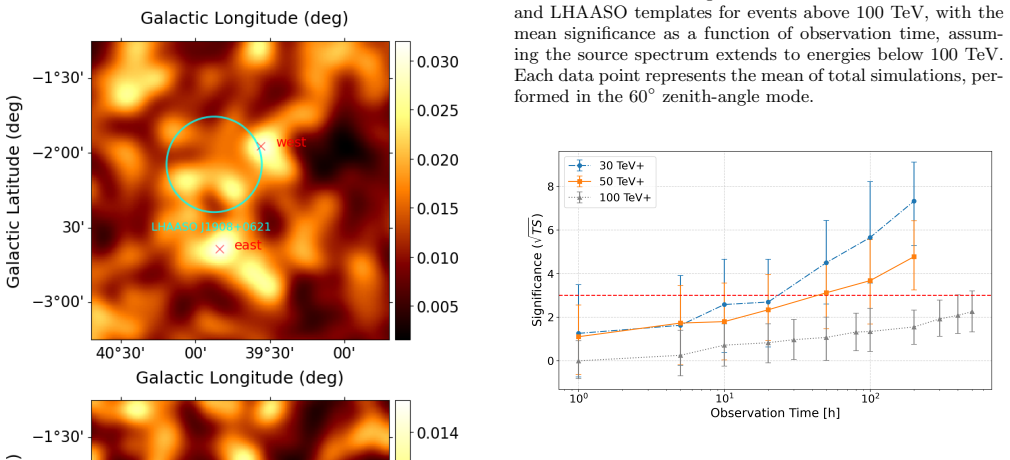

Figure 7. Figure 7: FIG. 7. Detection significance of the central hadronic com [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 5

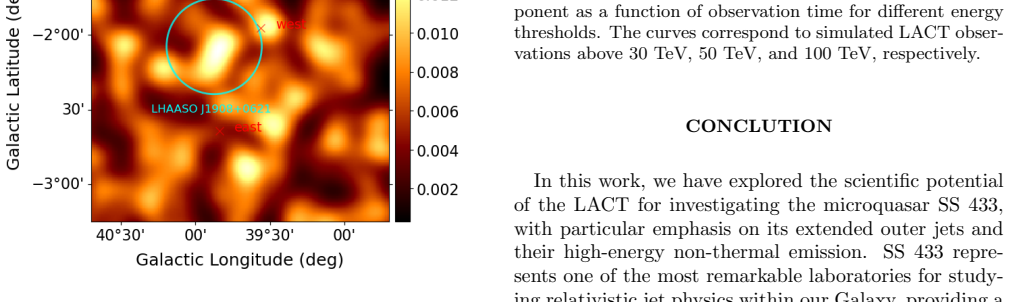

Figure 5. Figure 5: FIG. 5. Simulated LACT counts maps for SS 433 based [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

We investigate the observational capabilities of the upcoming LACT Cherenkov telescope array for the microquasar SS 433 through detailed simulations. Our results indicate that a detection significance of 5 sigma can be achieved with approximately 30 hours of observation. This exposure, coupled with LACT's excellent angular resolution, enables the spatial separation of the eastern and western jets. Furthermore, based on the LHAASO spectral and morphological findings, the array is expected to distinguish the central hadronic component after roughly 100 hours of observation. We also examine its ability to differentiate between the H.E.S.S. and LHAASO spectral models. These findings demonstrate LACT's strong potential to provide critical insights into particle acceleration in PeVatrons and the radiation mechanisms of microquasars.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents Monte Carlo simulations of the LACT Cherenkov telescope array's performance on the microquasar SS 433. It claims a 5σ detection is achievable in approximately 30 hours of observation, enabling spatial separation of the eastern and western jets thanks to LACT's angular resolution. Based on LHAASO spectral and morphological templates, the central hadronic component is expected to be distinguishable after roughly 100 hours, and the array can differentiate between H.E.S.S. and LHAASO spectral models.

Significance. If the simulation results hold, this work provides concrete exposure estimates that highlight LACT's potential to deliver key insights into particle acceleration and radiation mechanisms in microquasars and PeVatrons. The use of detailed instrument-response Monte Carlo simulations fed with published LHAASO and H.E.S.S. templates is a clear strength, offering falsifiable predictions for future observations.

major comments (2)
  1. [§4] §4 (Results): The central claims of 5σ detection in 30 h and hadronic-component separation in 100 h are obtained by injecting fixed LHAASO and H.E.S.S. spectral indices, normalizations, and jet morphologies into the LACT Monte Carlo. No systematic scan over published uncertainties (e.g., ±0.2 on photon index or factor-of-two flux scale) is reported; a modest shift in any input moves the required exposure by a factor of two or more and can erase the claimed spatial separation at the array's angular resolution.
  2. [§3.2] §3.2 (Simulation Setup): The background rejection cuts, angular resolution quantification, and treatment of SS 433 variability are not described in sufficient detail to allow verification of the quoted significances or the feasibility of distinguishing the central hadronic component from the jets.
minor comments (2)
  1. [Figure 3] Figure 3: The legend distinguishing H.E.S.S. and LHAASO model curves is unclear; adding explicit labels for each curve would improve readability.
  2. The manuscript would benefit from a short table summarizing the input spectral parameters taken from LHAASO and H.E.S.S. publications.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important aspects of robustness and clarity that we will address in the revision. We respond to each major comment below.

read point-by-point responses

  1. Referee: [§4] §4 (Results): The central claims of 5σ detection in 30 h and hadronic-component separation in 100 h are obtained by injecting fixed LHAASO and H.E.S.S. spectral indices, normalizations, and jet morphologies into the LACT Monte Carlo. No systematic scan over published uncertainties (e.g., ±0.2 on photon index or factor-of-two flux scale) is reported; a modest shift in any input moves the required exposure by a factor of two or more and can erase the claimed spatial separation at the array's angular resolution.

    Authors: We agree that the absence of a systematic uncertainty scan limits the robustness of the quoted exposure times. While our primary results use the published best-fit LHAASO and H.E.S.S. parameters, we will add a new subsection in §4 presenting Monte Carlo results for photon-index variations of ±0.2 and flux normalizations scaled by factors of 0.5 and 2.0. The revised text will report the resulting ranges of detection significance and discuss whether spatial separation of the jets remains feasible under these shifts. This analysis will be performed using the same LACT instrument response functions. revision: yes

  2. Referee: [§3.2] §3.2 (Simulation Setup): The background rejection cuts, angular resolution quantification, and treatment of SS 433 variability are not described in sufficient detail to allow verification of the quoted significances or the feasibility of distinguishing the central hadronic component from the jets.

    Authors: We acknowledge that additional technical detail is needed for reproducibility. In the revised §3.2 we will expand the description as follows: background rejection employs a boosted decision tree trained on Hillas parameters and timing variables, with explicit cut values and efficiency curves provided; angular resolution is quantified via the 68 % containment radius obtained from dedicated point-source Monte Carlo simulations at representative energies (0.04–0.07 deg between 0.5 and 10 TeV); for variability, the simulations adopt the time-averaged LHAASO spectrum, but we will add a paragraph discussing the impact of known periodic and flaring behavior on required exposure and component separation, including a note that contemporaneous monitoring could reduce this uncertainty. These additions will enable independent verification of the reported significances. revision: yes

Circularity Check

0 steps flagged

No significant circularity; predictions rest on external LHAASO/H.E.S.S. templates

full rationale

The paper obtains its 5σ/30 h and 100 h claims by feeding published LHAASO spectral indices, normalizations, and jet morphologies (plus H.E.S.S. models) into LACT instrument-response Monte Carlo simulations. No equation or section defines the target significances or separation capabilities in terms of quantities fitted inside this manuscript, nor does any load-bearing step rely on self-citation for uniqueness, ansatz smuggling, or renaming. The derivation chain therefore remains self-contained against independent external benchmarks and is directly falsifiable by future LACT observations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on the accuracy of previously published spectral models and on standard assumptions about Cherenkov telescope response; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Spectral and morphological properties of SS 433 reported by LHAASO and H.E.S.S. are accurate inputs for the simulation.
    The exposure estimates and separation capabilities are computed by feeding these external measurements into the LACT response model.
