General properties of the RABBITT at parity mixing conditions
Pith reviewed 2026-05-18 00:24 UTC · model grok-4.3
The pith
In a two-sideband RABBITT setup with even and odd harmonics, parity mixing produces symmetry violations in photoelectron angular distributions that differ from those seen in other schemes.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the two-sideband RABBITT scheme enabled by even and odd harmonics, parity mixing produces interference that breaks symmetries in the angle-resolved photoelectron angular distributions in a manner distinct from the symmetry patterns found in other photoionization processes that allow parity mixing.
What carries the argument
Two-sideband interference under parity-mixing conditions, which generates observable symmetry violations in angle-resolved photoelectron angular distributions for specified polarization geometries.
If this is right
- Symmetry violations appear specifically in angle-resolved distributions for the polarization geometries examined.
- The pattern of these violations differs from patterns in single-sideband RABBITT or other parity-mixing processes.
- Angle-resolved measurements in neon can in principle recover the temporal profile of the driving pulse.
- The effects remain observable with pulse parameters typical of current free-electron laser facilities.
Where Pith is reading between the lines
- The distinct symmetry signature may enable cleaner separation of pulse characterization from atomic response in experiments.
- Similar two-sideband setups could be tested on other rare-gas targets to map how the symmetry difference scales with atomic number.
- Extension to molecular targets would test whether the reported symmetry distinction survives when additional rotational degrees of freedom are present.
Load-bearing premise
The two-sideband interference under parity mixing conditions produces observable and distinct symmetry violations in angle-resolved photoelectron angular distributions for the considered polarization geometries and neon target.
What would settle it
If angle-resolved photoelectron angular distributions measured in the two-sideband RABBITT geometry exhibit exactly the same symmetry properties as those in conventional parity-mixing schemes without the reported crucial difference, the central claim would be falsified.
Figures
read the original abstract

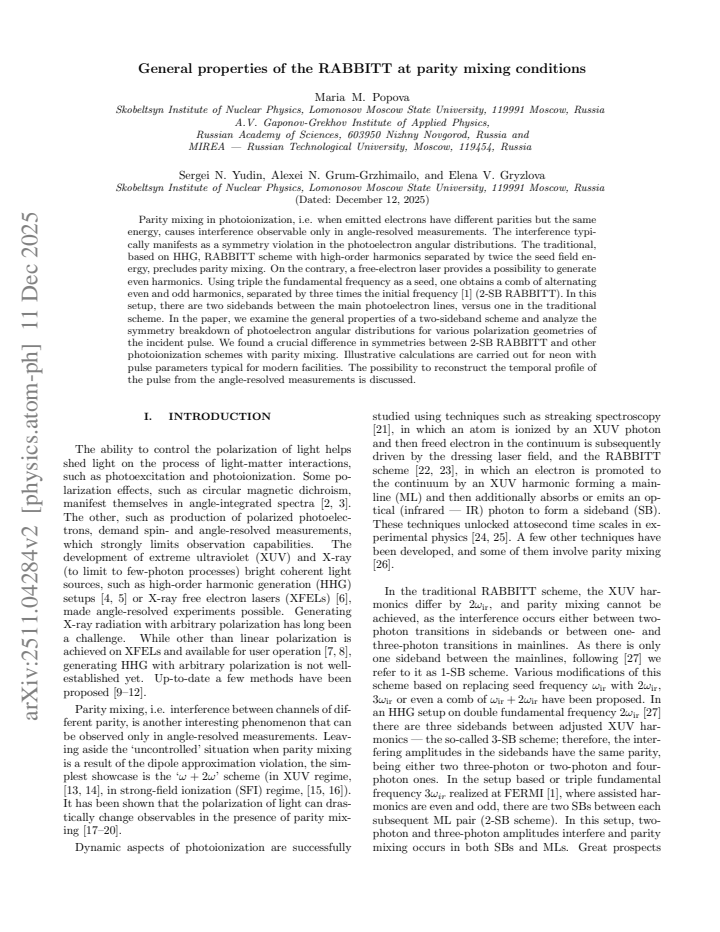

Parity mixing in photoionization, i.e. when emitted electrons have different parities but the same energy, causes interference observable only in angle-resolved measurements. The interference typically manifests as a symmetry violation in the photoelectron angular distributions. The traditional, based on HHG, RABBITT scheme with high-order harmonics separated by twice the seed field energy, precludes parity mixing. On the contrary, a free-electron laser provides a possibility to generate even harmonics. Using triple the fundamental frequency as a seed, one obtains a comb of alternating even and odd harmonics, separated by three times the initial frequency [Nature 578, 386-391 (2020)] (2-SB RABBITT). In this setup, there are two sidebands between the main photoelectron lines, versus one in the traditional scheme. In the paper, we examine the general properties of a two-sideband scheme and analyze the symmetry breakdown of photoelectron angular distributions for various polarization geometries of the incident pulse. We found a crucial difference in symmetries between 2-SB RABBITT and other photoionization schemes with parity mixing. Illustrative calculations are carried out for neon with pulse parameters typical for modern facilities. The possibility to reconstruct the temporal profile of the pulse from the angle-resolved measurements is discussed.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript analyzes general properties of the two-sideband (2-SB) RABBITT scheme under parity-mixing conditions, enabled by FELs that generate alternating even and odd harmonics separated by 3ω. It derives the relevant interference terms absent in traditional single-sideband RABBITT, examines how these terms break forward-backward or left-right symmetry in photoelectron angular distributions across multiple polarization geometries, presents illustrative neon calculations with facility-typical parameters, and discusses reconstruction of the pulse temporal profile from angle-resolved data. The central claim is a crucial difference in symmetries relative to other photoionization schemes that permit parity mixing.
Significance. If the derived cross terms and resulting symmetry violations hold, the work identifies a structurally distinct interference mechanism in 2-SB RABBITT that is directly traceable to the two-sideband structure and even/odd harmonic alternation. This could open new routes for probing parity mixing and attosecond pulse characterization at FEL facilities. The explicit construction of the interference terms, rather than parameter fitting, is a strength.
major comments (1)
- The symmetry analysis relies on tracking additional cross terms between even and odd harmonics; however, the manuscript does not provide the explicit angular-distribution expressions (or the relevant section/equation) that demonstrate how these terms produce observable violations distinct from single-sideband or conventional parity-mixing schemes. Adding these expressions would make the 'crucial difference' claim directly verifiable.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive comment. We address the point raised below.
read point-by-point responses
-
Referee: The symmetry analysis relies on tracking additional cross terms between even and odd harmonics; however, the manuscript does not provide the explicit angular-distribution expressions (or the relevant section/equation) that demonstrate how these terms produce observable violations distinct from single-sideband or conventional parity-mixing schemes. Adding these expressions would make the 'crucial difference' claim directly verifiable.
Authors: We agree that making the explicit angular-distribution expressions more prominent would improve verifiability of the symmetry distinctions. The interference cross terms between even and odd harmonics are derived in Section 3 and enter the general photoelectron angular distribution via Eq. (12). Their role in breaking forward-backward and left-right symmetries is then analyzed for the polarization geometries in Section 4. To directly address the referee's suggestion, we will add the fully expanded angular-distribution formulas (including the parity-mixing cross terms) for the principal geometries in the revised manuscript, together with a short comparison to the corresponding single-sideband expressions. This addition will render the distinct symmetry violations explicit and traceable to the two-sideband structure. revision: yes
Circularity Check
No significant circularity
full rationale
The paper's central derivation consists of an explicit symmetry analysis of photoelectron angular distributions in the 2-SB RABBITT scheme, constructed from the two-sideband interference terms that arise when even and odd harmonics are separated by 3ω. These cross terms between different-parity harmonics are absent in traditional single-sideband RABBITT and are tracked directly through the polarization geometries and neon target calculations. The manuscript relies on standard photoionization interference theory and the cited external Nature reference for the 2-SB setup itself; no predictions reduce to parameters fitted inside the paper, no equations are self-definitional, and no load-bearing steps depend on self-citations or imported uniqueness theorems. The illustrative calculations visualize the symmetry violations rather than defining them, leaving the derivation self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- standard math Standard quantum mechanical description of two-photon interference and parity selection rules in photoionization
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We examine the general properties of a two-sideband scheme and analyze the symmetry breakdown of photoelectron angular distributions for various polarization geometries... We found a crucial difference in symmetries between 2-SB RABBITT and other photoionization schemes with parity mixing.
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The PAD is parametrized as W(θ;ε) = W0/4π (1 + Σ βk Pk(cosθ)) with odd anisotropy parameters β1,3 arising from parity-mixing interference.
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
In order to observe the IR field phase dependence of the photoelectron spectrum, one needs the inter- ference of the pathways originating from different mainlines. The absorption of one IR photon from N-th ML brings an electron to the continuum at (N+1)-th SB, while the emission of one IR photon from the subsequent (N+3)-th ML brings an elec- tron to the ...
-
[2]
Angle-integrated spectra do not depend on the IR field phase as all the IR phase-dependent interfer- ence terms are vanished due to parity conservation
-
[3]
On the contrary, the interference of two- and three- order amplitudes (absorption of one IR photon from N-th ML and emission of two IR photons from (N+3)-th ML bring an electron to the continuum at (N+1)-th SB), observable in the angle-resolved spectra, depends on the IR delay
-
[4]
Any allowed oscillations in the angle-resolved spectra occur on triple 3ω ir frequency (‘e−i(ωt+ϕ)(ei(ωt+ϕ)ei(ωt+ϕ))∗’) instead of the double 2ωir in conventional 1-SB RABBITT
-
[5]
The contributions to the angle-resolved spectra which inherited symmetries from the electromag- netic field (k= 0,2,4. . .) do not depend on IR field phase, while contributions that violate the symme- try (k= 1,3,5. . .) do depend. Unlike the case of 4 1-SB scheme, where the interfering terms are even and their ratios to angle-integrated photoionization p...
-
[6]
P. K. Maroju, C. Grazioli, M. Di Fraia, M. Moioli, D. Er- tel, H. Ahmadi, O. Plekan, P. Finetti, E. Allaria, L. Gi- annessi, G. De Ninno, C. Spezzani, G. Penco, S. Spamp- inati, A. Demidovich, M. B. Danailov, R. Borghes, G. Kourousias, C. E. Sanches Dos Reis, F. Bill´ e, A. A. Lutman, R. J. Squibb, R. Feifel, P. Carpeggiani, M. Re- duzzi, T. Mazza, M. Mey...
work page 2020
-
[7]
B. Ritchie, Theory of the angular distribution of pho- toelectrons ejected from optically active molecules and molecular negative ions, Phys. Rev. A13, 1411 (1976)
work page 1976
-
[8]
Fano, Spin orientation of photoelectrons ejected by circularly polarized light, Phys
U. Fano, Spin orientation of photoelectrons ejected by circularly polarized light, Phys. Rev.178, 131 (1969)
work page 1969
-
[9]
M. Lewenstein, P. Balcou, M. Y. Ivanov, A. L’Huillier, and P. B. Corkum, Theory of high-harmonic generation by low-frequency laser fields, Phys. Rev. A49, 2117 (1994)
work page 1994
-
[10]
V. V. Strelkov, V. T. Platonenko, A. F. Sterzhantov, and M. Y. Ryabikin, Attosecond electromagnetic pulses: generation, measurement, and application. generation of high-order harmonics of an intense laser field for attosec- ond pulse production, Physics-Uspekhi59, 425 (2016)
work page 2016
-
[11]
C. Callegari, A. N. Grum-Grzhimailo, K. L. Ishikawa, K. C. Prince, G. Sansone, and K. Ueda, Atomic, molec- ular and optical physics applications of longitudinally coherent and narrow bandwidth free-electron lasers, Physics Reports904, 1 (2021)
work page 2021
-
[12]
E. Allaria, B. Diviacco, C. Callegari, P. Finetti, B. Mahieu, J. Viefhaus, M. Zangrando, G. De Ninno, G. Lambert, E. Ferrari, J. Buck, M. Ilchen, B. Vodungbo, N. Mahne, C. Svetina, C. Spezzani, S. Di Mitri, G. Penco, M. Trov´ o, W. M. Fawley, P. R. Rebernik, D. Gau- thier, C. Grazioli, M. Coreno, B. Ressel, A. Kivim¨ aki, T. Mazza, L. Glaser, F. Scholz, J...
work page 2014
-
[13]
C. von Korff Schmising, D. Weder, T. Noll, B. Pfau, M. Hennecke, C. Str¨ uber, I. Radu, M. Schneider, S. Staeck, C. M. G¨ unther, J. L¨ uning, A. e. d. Merhe, J. Buck, G. Hartmann, J. Viefhaus, R. Treusch, and S. Eisebitt, Generating circularly polarized radiation in the extreme ultraviolet spectral range at the free-electron laser flash, Review of Scient...
work page 2017
-
[14]
O. Kfir, P. Grychtol, E. Turgut, R. Knut, D. Zusin, D. Popmintchev, T. Popmintchev, H. Nembach, J. M. Shaw, A. Fleischer, H. Kapteyn, M. Murnane, and O. Co- hen, Generation of bright phase-matched circularly- polarized extreme ultraviolet high harmonics, Nature Photonics9, 99 (2015)
work page 2015
- [15]
-
[16]
M. A. Khokhlova, M. Y. Emelin, M. Y. Ryabikin, and V. V. Strelkov, Polarization control of quasimonochro- matic xuv light produced via resonant high-order har- monic generation, Phys. Rev. A103, 043114 (2021)
work page 2021
-
[17]
M. Emelin and M. Ryabikin, High-ellipticity resonant below-threshold harmonic generation by a helium atom driven by a moderately intense elliptically polarized laser field., Opt Quant Electron57, 434 (2025)
work page 2025
-
[18]
A. N. Grum-Grzhimailo, E. V. Gryzlova, E. I. Starosel- skaya, J. Venzke, and K. Bartschat, Interfering one- photon and two-photon ionization by femtosecond vuv pulses in the region of an intermediate resonance, Phys. Rev. A91, 063418 (2015)
work page 2015
-
[19]
K. C. Prince, E. Allaria, C. Callegari, R. Cucini, G. D. Ninno, S. D. Mitri, and ithers, Coherent control with a short-wavelength free-electron laser, Nat. Photonics10, 176 (2016)
work page 2016
-
[20]
M. V. Frolov, N. L. Manakov, A. A. Silaev, and N. V. Vvedenskii, Analytic description of high-order harmonic generation by atoms in a two-color laser field, Phys. Rev. A81, 063407 (2010)
work page 2010
-
[21]
C. A. Mancuso, D. D. Hickstein, K. M. Dorney, J. L. Ellis, E. Hasovi´ c, R. Knut, P. Grychtol, C. Gentry, M. Gopalakrishnan, D. Zusin, F. J. Dollar, X.-M. Tong, D. B. Miloˇ sevi´ c, W. Becker, H. C. Kapteyn, and M. M. Murnane, Controlling electron-ion rescattering in two- color circularly polarized femtosecond laser fields, Phys. Rev. A93, 053406 (2016)
work page 2016
-
[22]
N. Douguet, A. N. Grum-Grzhimailo, E. V. Gryzlova, E. I. Staroselskaya, J. Venzke, and K. Bartschat, Photo- electron angular distributions in bichromatic atomic ion- ization induced by circularly polarized vuv femtosecond pulses, Phys. Rev. A93, 033402 (2016)
work page 2016
-
[23]
E. V. Gryzlova, M. M. Popova, A. N. Grum-Grzhimailo, E. I. Staroselskaya, N. Douguet, and K. Bartschat, Co- herent control of the photoelectron angular distribution in ionization of neon by a circularly polarized bichromatic field in the resonance region, Phys. Rev. A100, 063417 (2019)
work page 2019
-
[24]
A. S. Jaˇ sarevi´ c, E. Hasovi´ c, and D. B. Miloˇ sevi´ c, High- order above-threshold ionization using a bi-elliptic or- thogonal two-color laser field with optimal field parame- ters, Atoms11, 10.3390/atoms11060091 (2023)
- [25]
-
[26]
J. Itatani, F. Qu´ er´ e, G. L. Yudin, M. Y. Ivanov, F. Krausz, and P. B. Corkum, Attosecond streak cam- era, Phys. Rev. Lett.88, 173903 (2002)
work page 2002
-
[27]
V. V´ eniard, R. Ta¨ ıeb, and A. Maquet, Phase dependence of (n+ 1)-color (n >1) ir-uv photoionization of atoms with higher harmonics, Phys. Rev. A54, 721 (1996)
work page 1996
-
[28]
P. M. Paul, E. S. Toma, P. Breger, G. Mullot, F. Aug´ e, P. Balcou, H. G. Muller, and P. Agostini, Observation of a train of attosecond pulses from high harmonic generation, Science292, 1689 (2001), https://www.science.org/doi/pdf/10.1126/science.1059413
-
[29]
O. Smirnova, Y. Mairesse, S. Patchkovskii, N. Dudovich, D. Villeneuve, P. Corkum, and M. Y. Ivanov, High harmonic interferometry of multi-electron dynamics in molecules, Nature460, 972 (2009)
work page 2009
-
[30]
M. Moioli, M. M. Popova, K. R. Hamilton, D. Ertel, D. Busto, I. Makos, M. D. Kiselev, S. N. Yudin, H. Ah- madi, C. D. Schr¨ oter, T. Pfeifer, R. Moshammer, E. V. Gryzlova, A. N. Grum-Grzhimailo, K. Bartschat, and G. Sansone, Role of intermediate resonances in attosec- ond photoelectron interferometry in neon, Phys. Rev. Res.7, 023034 (2025)
work page 2025
-
[31]
D. You, K. Ueda, E. V. Gryzlova, A. N. Grum- Grzhimailo, M. M. Popova, E. I. Staroselskaya, O. Tugs, Y. Orimo, T. Sato, K. L. Ishikawa, P. A. Carpeg- giani, T. Csizmadia, M. F¨ ule, G. Sansone, P. K. Maroju, A. D’Elia, T. Mazza, M. Meyer, C. Callegari, M. Di Fraia, O. Plekan, R. Richter, L. Giannessi, E. Al- laria, G. De Ninno, M. Trov` o, L. Badano, B. D...
work page 2020
-
[32]
D. Bharti, D. Atri-Schuller, G. Menning, K. R. Hamilton, R. Moshammer, T. Pfeifer, N. Douguet, K. Bartschat, and A. Harth, Decomposition of the transition phase in multi-sideband schemes for reconstruction of attosecond beating by interference of two-photon transitions, Phys. Rev. A103, 022834 (2021)
work page 2021
-
[33]
T. Fan, P. Grychtol, R. Knut, C. Hern´ andez-Garc´ ıa, D. D. Hickstein, D. Zusin, C. Gentry, F. J. Dollar, C. A. Mancuso, C. W. Hogle, O. Kfir, D. Legut, K. Carva, J. L. Ellis, K. M. Dorney, C. Chen, O. G. Shpyrko, E. E. Fullerton, O. Cohen, P. M. Oppe- neer, D. B. Miloˇ sevi´ c, A. Becker, A. A. Jaro´ n-Becker, T. Popmintchev, M. M. Murnane, and H. C. Ka...
-
[34]
L. Barreau, K. Veyrinas, V. Gruson, S. J.Weber, T. Au- guste, J.-F. Hergott, F. Lepetit, B. Carr´ e, J.-C. Houver, D. Dowek, and P. Sali` eres, Nat. Commun.9, 4727 (2018)
work page 2018
-
[35]
D. Villeneuve, P. Hockett, M. Vrakking, and H. Niikura, Coherent imaging of an attosecond electron wave packet, Science356, 1150 (2017)
work page 2017
- [36]
-
[37]
I. Barth and O. Smirnova, Spin-polarized electrons pro- duced by strong-field ionization, Phys. Rev. A.88, 013401 (2013)
work page 2013
-
[38]
A. Hartung, F. Morales, M. Kunitski, K. Hen- richs, A. Laucke, M. Richter, T. Jahnke, A. Kalinin, M. Sch¨ offler, L. P. H. Schmidt, M. Ivanov, O. Smirnova, and D. Reinhard, Electron spin polarization in strong- field ionization of xenon atoms, Nat. Photonics10, 526 (2016)
work page 2016
-
[39]
D. B. Miloˇ sevi´ c, Possibility of introducing spin into at- toscience with spin-polarized electrons produced by a 11 bichromatic circularly polarized laser field, Phys. Rev. A93, 051402 (2016)
work page 2016
-
[40]
E. V. Gryzlova, M. M. Popova, and A. N. Grum- Grzhimailo, Spin polarization of photoelectrons in bichromatic extreme-ultraviolet atomic ionization, Phys. Rev. A102, 053116 (2020)
work page 2020
-
[41]
R. E. Goetz, C. P. Koch, and L. Greenman, Perfect con- trol of photoelectron anisotropy for randomly oriented ensembles of molecules by xuv rempi and polarization shaping, The Journal of Chemical Physics151, 074106 (2019)
work page 2019
-
[42]
D. B. Miloˇ sevi´ c, Atomic and molecular processes in a strong bicircular laser field, Atoms6(2018)
work page 2018
-
[43]
M. M. Popova, E. V. Gryzlova, M. D. Kiselev, and A. N. Grum-Grzhimailo, Ionization of atoms by a bichromatic fields ofω+2ωmultiple frequencies with arbitrary polar- ization, Journal of Experimental and Theoretical Physics 135, 58–72 (2022)
work page 2022
-
[44]
P. Hockett, Angle-resolved RABBITT: theory and nu- merics, Journal of Physics B: Atomic, Molecular and Op- tical Physics50, 154002 (2017)
work page 2017
-
[45]
D. I. R. Boll and O. A. Foj´ on, Attosecond polarization control in atomic RABBITT-like experiments assisted by a circularly polarized laser, J. Phys. B50(2017)
work page 2017
-
[46]
A. S. Kheifets and Z. Xu, Polarization control of RAB- BITT in noble gas atoms, Journal of Physics B: Atomic, Molecular and Optical Physics56, 155601 (2023)
work page 2023
-
[47]
M. M. Popova, E. V. Gryzlova, S. N. Yudin, and A. N. Grum-Grzhimailo, Advantages of polarization control in rabbitt, Phys. Rev. A111, 033105 (2025)
work page 2025
- [48]
-
[49]
V. V. Balashov, A. N. Grum-Grzhimailo, and N. M. Kabachnik,Polarization and Correlation Phenomena in Atomic Collisions: A Practical Theory Course(Kluwer Academic/Plenum Publishers, New York, 2000)
work page 2000
-
[50]
C. Froese Fischer, T. Brage, and P. J¨ onsson,Computa- tional Atomic Structure. An MCHF Approach(Bristol, Institute of Physics Publishing, 1997)
work page 1997
-
[51]
T. Mercouris, Y. Komninos, S. Dionissopoulou, and C. A. Nicolaides, Effects on observables of the singularity in the multiphoton free - free dipole matrix elements, Journal of Physics B: Atomic, Molecular and Optical Physics29, L13 (1996)
work page 1996
-
[52]
T. K. G.A. Korn,MATHEMATICAL HANDBOOK, sec- ond, extended and revised edition(McGraw-Hill Book Company, New York, San Francisco, Toronto, London, Sydney, 1968)
work page 1968
- [53]
