arxiv: 2511.05172 · v2 · submitted 2025-11-07 · ⚛️ physics.ins-det

Proof-of-concept of a xenon-based cryogenic heat pump demonstrator for future liquid xenon observatories

P. Schulte , D. Wenz , L. Althueser , R. Braun , V. Hannen , C. Huhmann , D. Koke , Y.-T. Lin

show 2 more authors

P. Unkhoff C. Weinheimer

This is my paper

Pith reviewed 2026-05-18 00:24 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords cryogenic heat pumpxenonradon removalliquid xenon detectordistillationClausius-Rankine cycleXLZD

0 comments

The pith

Xenon-based heat pump delivers 120 W cooling for radon removal using 386 W electricity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a proof-of-concept cryogenic heat pump that circulates xenon through a closed left-turning Clausius-Rankine cycle to supply both cooling and heating for xenon distillation. The design keeps the entire heat-pump loop hermetically isolated from the detector xenon, which simplifies keeping the target material free of radon and other contaminants. Bench tests at 3.3 bar and 4.3 bar produced 118–121 W of cooling and heating power while drawing only 386 W of electrical input. This is far below the several-kilowatt demand of existing helium-compressor cold heads. The authors also outline a scaling estimate indicating that the same principle could supply the 60 kW cooling and heating needed for a 1600 kg/h purification flow in the planned XLZD detector.

Core claim

A small-scale xenon heat-pump demonstrator operating on a left-turning Clausius-Rankine cycle achieved a cooling power of 118±3 W and a heating power of 121±3 W at nominal pressures of 3.3 bar and 4.3 bar. These outputs are sufficient to drive a small distillation column with a virtual purification mass flow of 3.1 kg/h while consuming 386±1 W of electrical power, and the authors compare this favorably with the 6 kW typically required by commercial helium-driven cold heads.

What carries the argument

Left-turning Clausius-Rankine cycle using xenon as the phase-changing working medium that provides both cooling and heating while remaining hermetically separated from the radon-removal loop.

If this is right

The heat pump can operate a small distillation system at a purification mass flow of about 3.1 kg/h.
Electrical power consumption is reduced to roughly 386 W, compared with the 6 kW typical of helium-compressor systems.
Both cooling and heating are supplied by a single hermetically closed xenon loop.
A scaled version could meet the 1600 kg/h flow and 60 kW power requirement projected for the XLZD experiment.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Hermetic separation may relax constraints on material selection inside the heat-pump loop itself.
Lower power draw could make continuous high-flow purification practical even for very large detector volumes.
The same xenon-cycle approach might be adapted for other noble-liquid purification tasks that require both cooling and heating.

Load-bearing premise

The cold head and electrical heaters accurately mimic the thermal loads of a real xenon distillation column and the simplified scaling model to 1600 kg/h and 60 kW for XLZD introduces no major additional losses or engineering constraints.

What would settle it

Directly coupling the heat-pump demonstrator to a working xenon distillation column and measuring whether the delivered cooling power and electrical efficiency match the values obtained with the simulated cold-head and heater loads.

Figures

Figures reproduced from arXiv: 2511.05172 by C. Huhmann, C. Weinheimer, D. Koke, D. Wenz, L. Althueser, P. Schulte, P. Unkhoff, R. Braun, V. Hannen, Y.-T. Lin.

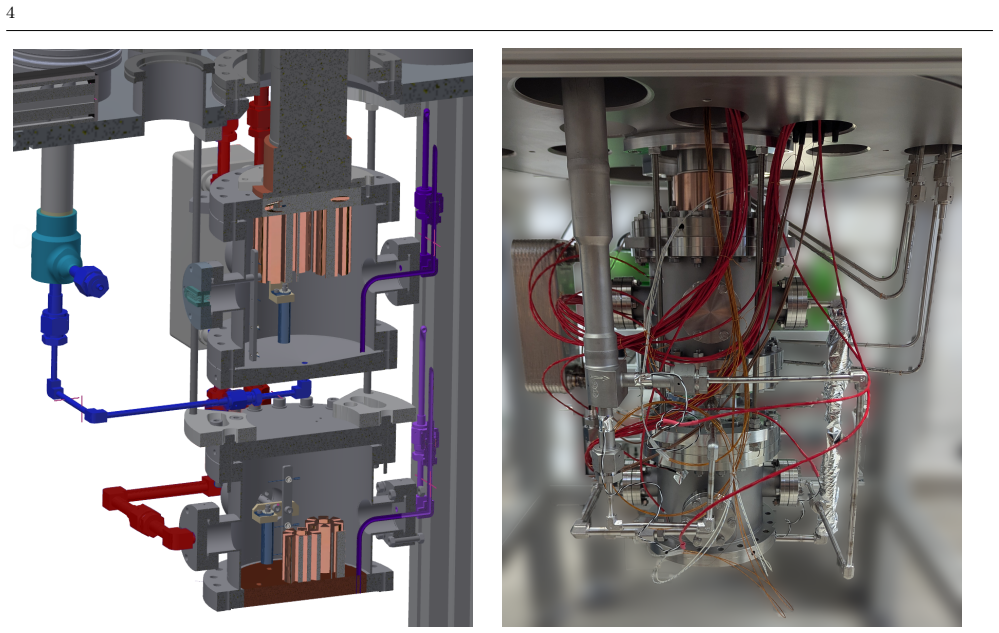

**Figure 2.** Figure 2: Left: CAD rendering of the heat pump demonstrator with a cutaway view into the condenser (top vessel) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

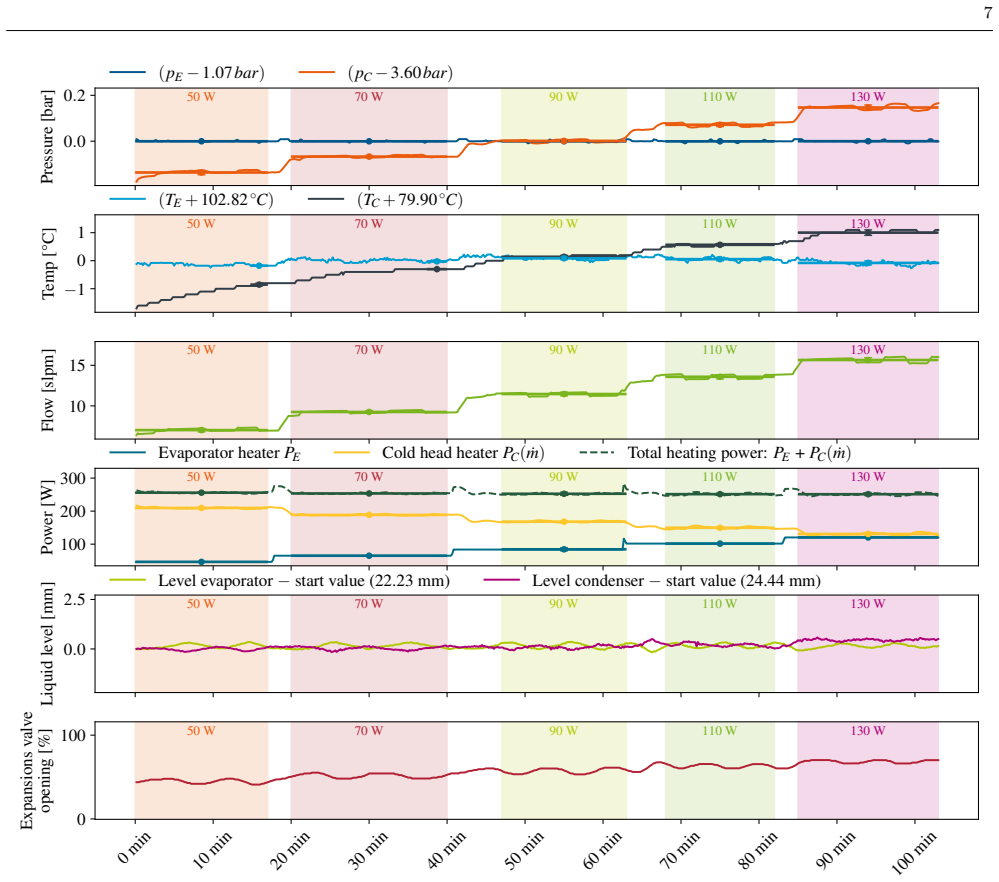

**Figure 3.** Figure 3: System parameters as function of time for the [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

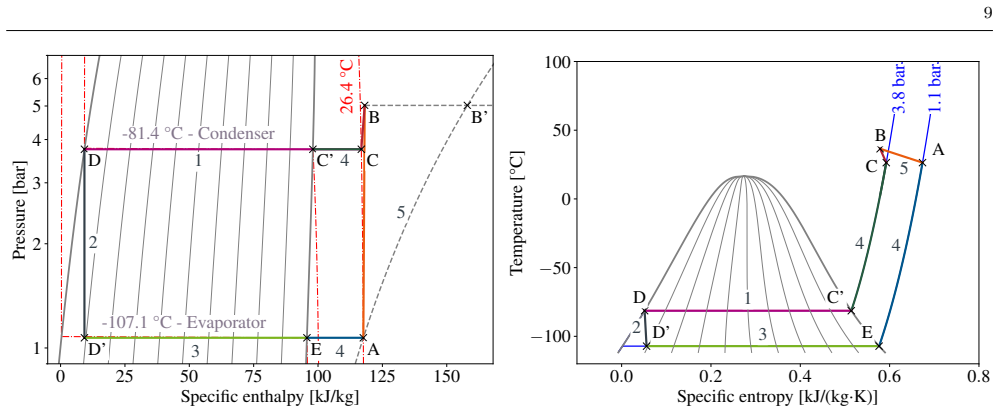

**Figure 4.** Figure 4: Pressure-enthalpy (left) and temperature-entropy (right) diagram of the Clausius-Rankine cycle for the [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

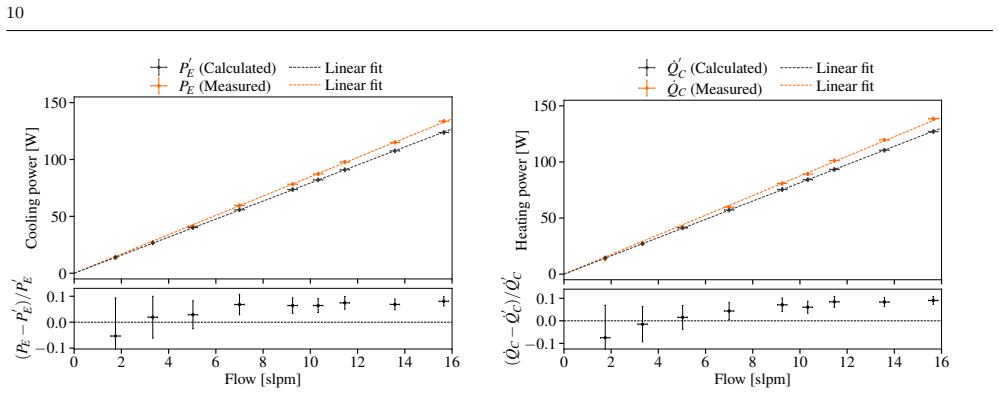

**Figure 5.** Figure 5: The figure on the left and right hand side show the measured and calculated cooling and heating powers as [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

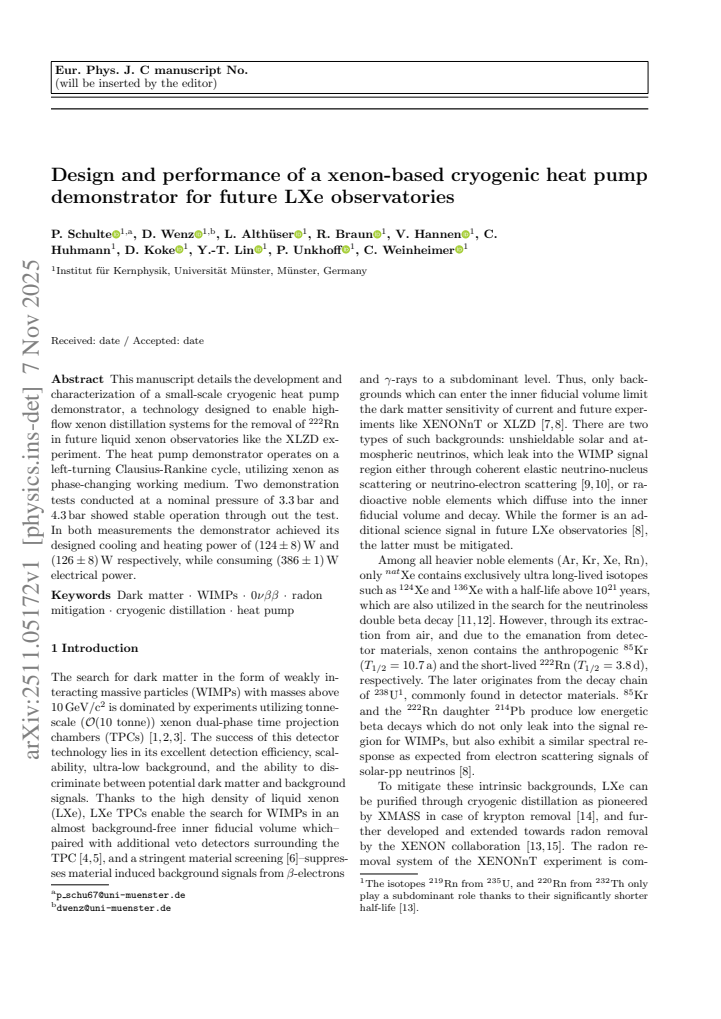

read the original abstract

This manuscript details the proof-of-concept of a small-scale cryogenic heat pump demonstrator, a technology designed to enable high-flow xenon distillation systems for the removal of $^{222}$Rn in future liquid xenon observatories such as the XLZD experiment. The heat pump demonstrator operates on a left-turning Clausius-Rankine cycle, utilizing xenon as a phase-changing working medium. The design aims to fully hermetically separate the heat pump from the radon removal system, simplifying material cleanliness and maintenance compared to currently operating systems. Two demonstration tests were conducted at nominal pressures of $3.3\,\mathrm{bar}$ and $4.3\,\mathrm{bar}$, utilizing a cold head and electrical heaters to mimic the behavior of a xenon distillation system. In both measurements, the demonstrator achieved a cooling and heating power of $(118\pm3)\,\mathrm{W}$ and $(121\pm3)\,\mathrm{W}$, respectively. This is sufficient to operate a small distillation system with a virtual purification mass flow of about $3.1\,\mathrm{kg/h}$, while consuming $386\pm1\,\mathrm{W}$ electrical power. Compered to currently operating applications using commercial cold heads driven by helium compressors, which typically require about $6\,\mathrm{kW}$ of electrical power, this is significantly lower. The presented proof-of-concept heat pump demonstrator is further put into perspective with the currently planned XLZD experiment using a simplified scaling model. This model indicates that a radon removal system with a purification mass flow of $1600\,\mathrm{kg/h}$ and a required cooling and heating power of about $60\,\mathrm{kW}$ each, will be sufficient to cover a variety of different detector masses and background conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows a working small-scale xenon heat pump with measured low power draw, but the link to real distillation columns and the linear scaling to XLZD rest on unvalidated assumptions.

read the letter

Hi colleague, the main result here is a small xenon-based cryogenic heat pump running on a closed Clausius-Rankine cycle. In two tests at 3.3 and 4.3 bar they measured 118-121 W of cooling and heating power at 386 W electrical input, which they compare favorably to the 6 kW helium systems now in use. The hermetic isolation of the working fluid from the purification loop is the practical design point that could reduce contamination and maintenance headaches in future detectors. The numbers come from direct hardware runs with reported uncertainties, so the small-scale performance claim is on solid ground. What is new is the specific choice of xenon as the phase-changing medium for this radon-removal application rather than a routine helium extension. The softer spot is the mimicry step. They substitute a cold head and resistive heaters for the actual vapor-liquid counterflow, reboiler, and condenser of a distillation column. That static setup does not reproduce the mass-flow-dependent heat transfer, pressure drops, or non-equilibrium effects that appear in real operation. Their scaling to 1600 kg/h and 60 kW for XLZD is labeled simplified and lacks intermediate-scale checks or a detailed loss budget. If those assumptions shift by more than the stated uncertainties, the claimed electrical advantage does not automatically carry over. This is aimed at groups building or upgrading large liquid xenon detectors who need practical radon removal at high flow. A reader working on background budgets for dark matter or neutrino experiments would find the power comparison and isolation idea worth noting. I would send it for peer review. The experimental data is there and the engineering problem is real, even if the extrapolation needs more work.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a proof-of-concept for a small-scale xenon-based cryogenic heat pump demonstrator operating on a left-turning Clausius-Rankine cycle. Designed to enable high-flow xenon distillation for 222Rn removal in future liquid xenon observatories such as XLZD, the device uses xenon as the working fluid and aims for hermetic separation from the purification system. Two tests at 3.3 bar and 4.3 bar employed a cold head and electrical heaters to mimic distillation thermal loads, achieving cooling and heating powers of (118±3) W and (121±3) W at an electrical input of 386±1 W. This is claimed sufficient for a virtual purification mass flow of ~3.1 kg/h. Results are compared to commercial helium-compressor systems (~6 kW) and extrapolated via a simplified scaling model to a 1600 kg/h, ~60 kW system for XLZD covering various detector masses and backgrounds.

Significance. If the mimicry and scaling hold, the approach could substantially lower electrical power demands for large-scale xenon purification while simplifying material cleanliness and maintenance through hermetic separation. The direct measurements with stated uncertainties provide concrete support for small-scale performance. This offers a potential advantage over existing cold-head technologies, but the overall significance for XLZD-scale radon removal depends on validating the assumptions about load replication and linear scaling without major additional losses.

major comments (2)

[Experimental demonstration and results] The experimental setup uses a cold head and electrical heaters to mimic the thermal loads of a xenon distillation column. This static configuration does not reproduce continuous mass-flow-dependent heat transfer, pressure-drop contributions, or non-equilibrium phase-change effects present in real vapor-liquid counterflow. The correspondence of the measured (118±3) W cooling to a 3.1 kg/h purification flow therefore rests on an unvalidated assumption that is load-bearing for the small-scale sufficiency claim.
[XLZD scaling model] The simplified scaling model projects ~60 kW cooling/heating for 1600 kg/h in XLZD but provides no detailed loss budget, analysis of super-linear penalties (e.g., increased heat leaks or compressor inefficiencies at larger scales), or cross-check against intermediate-scale data. This extrapolation is central to the claim that the demonstrator enables practical radon removal for future observatories.

minor comments (1)

[Abstract] Abstract contains a typographical error: 'Compered' should read 'Compared'.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment below, clarifying the scope of this proof-of-concept work while strengthening the presentation of assumptions and limitations.

read point-by-point responses

Referee: The experimental setup uses a cold head and electrical heaters to mimic the thermal loads of a xenon distillation column. This static configuration does not reproduce continuous mass-flow-dependent heat transfer, pressure-drop contributions, or non-equilibrium phase-change effects present in real vapor-liquid counterflow. The correspondence of the measured (118±3) W cooling to a 3.1 kg/h purification flow therefore rests on an unvalidated assumption that is load-bearing for the small-scale sufficiency claim.

Authors: We agree that the setup is a static mimic using a cold head and heaters rather than a dynamic counterflow distillation column. The measured cooling power of (118±3) W and heating power of (121±3) W are direct experimental results obtained while the xenon-based heat pump operated on the left-turning Clausius-Rankine cycle. The 3.1 kg/h virtual flow is derived from the measured thermal power divided by the specific enthalpy change (latent heat plus sensible heat) required to process xenon at the operating pressures of 3.3 bar and 4.3 bar. This calculation provides a conservative estimate of the flow that could be supported by the delivered power. We will revise the manuscript to explicitly document this enthalpy-based calculation, state all assumptions, and add a paragraph discussing how dynamic effects (pressure drops, non-equilibrium condensation) could reduce the effective flow in a real column. These additions will make the load-bearing assumption transparent without altering the reported measurements. revision: yes
Referee: The simplified scaling model projects ~60 kW cooling/heating for 1600 kg/h in XLZD but provides no detailed loss budget, analysis of super-linear penalties (e.g., increased heat leaks or compressor inefficiencies at larger scales), or cross-check against intermediate-scale data. This extrapolation is central to the claim that the demonstrator enables practical radon removal for future observatories.

Authors: The scaling model is presented as a simplified linear extrapolation intended only to place the small-scale results in the context of XLZD-scale purification needs, as stated in the manuscript. We will revise the relevant section to include a qualitative discussion of potential super-linear effects, such as increased heat leaks scaling with surface area and possible changes in compressor or heat-exchanger efficiency at higher mass flows. We will also note that a full loss budget and optimization would be part of future engineering work. No intermediate-scale data exist because this is the first xenon-based cryogenic heat-pump demonstration; the model therefore serves as an indicative projection rather than a validated design tool. These clarifications will better bound the extrapolation while preserving its role as perspective for future observatories. revision: partial

standing simulated objections not resolved

Full experimental validation of the static mimic under continuous mass-flow conditions with a real vapor-liquid distillation column, which would require integration with a complete purification system outside the scope of the present proof-of-concept.

Circularity Check

0 steps flagged

No circularity: results from direct measurements and simplified scaling

full rationale

The paper reports experimental measurements of cooling and heating power (118±3 W and 121±3 W) at stated pressures using a cold head and heaters to mimic loads, with electrical input of 386±1 W. These are compared to commercial helium systems and extrapolated via a simplified scaling model to XLZD parameters (1600 kg/h, 60 kW). No equations, fits, or derivations are presented that reduce by construction to their own inputs; the central claims rest on hardware data and a non-self-referential scaling estimate without load-bearing self-citations or ansatzes. The derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work is an experimental hardware demonstration with no theoretical derivations, fitted constants, or new postulated entities. Operating pressures are chosen test conditions rather than free parameters fitted to data.

axioms (1)

standard math Standard thermodynamic properties and phase behavior of xenon
Used to design and interpret the left-turning Clausius-Rankine cycle.
