arxiv: 2511.06576 · v4 · submitted 2025-11-09 · 📡 eess.SY · cs.SY

Dissipativity-Based Synthesis of Distributed Control and Communication Topology Co-Design for AC Microgrids

Mohammad Javad Najafirad , Shirantha Welikala , Lei Wu , Panos J. Antsaklis This is my paper

Pith reviewed 2026-05-17 23:10 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords dissipativity theorydistributed controlcommunication topologyAC microgridsLMI optimizationvoltage regulationpower sharingfrequency synchronization
0
0 comments X

The pith

Dissipativity theory reduces joint controller and topology design for AC microgrids to a convex LMI problem.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a dissipativity-based framework for simultaneously designing distributed controllers and sparse communication topologies in AC microgrids. It represents the system as networked subsystems and derives necessary and sufficient dissipativity conditions that ensure global performance. These conditions convert the co-design into a single convex LMI optimization that selects controller parameters and communication links while respecting the nonlinear dq-frame dynamics. A reader would care because the result delivers voltage regulation, frequency synchronization, and proportional power sharing with reduced communication needs.

Core claim

Leveraging dissipativity theory, the authors derive necessary and sufficient subsystem dissipativity conditions. The global co-design is then cast as a convex linear matrix inequality optimization that jointly determines distributed controller parameters and sparse communication architecture while managing the highly nonlinear, coupled dq-frame dynamics of the AC microgrid.

What carries the argument

Subsystem dissipativity conditions that convert global performance requirements into a convex LMI optimization jointly selecting controller gains and communication topology.

If this is right

  • The optimized topology is sparse and reduces communication requirements while preserving performance.
  • Robust guarantees hold for voltage regulation, frequency synchronization, and proportional power sharing.
  • The convex formulation handles the nonlinear coupled dynamics through dissipativity conditions.
  • A three-layer hierarchical structure separates steady-state setting, local tracking, and distributed consensus.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same dissipativity-to-LMI reduction could apply to other networked cyber-physical systems with topology constraints.
  • Joint topology optimization may scale better than fixed dense graphs when the number of generators grows.
  • The separation of steady-state optimization from dynamic dissipativity conditions supports modular extensions to uncertain loads.

Load-bearing premise

The necessary and sufficient dissipativity conditions derived for subsystems remain sufficient to guarantee global closed-loop performance for the full nonlinear, coupled dq-frame dynamics when the communication topology is also optimized.

What would settle it

Apply the derived LMI optimization to an AC microgrid model and check whether the resulting controllers and topology fail to achieve frequency synchronization or proportional power sharing under a sudden load change in simulation.

Figures

Figures reproduced from arXiv: 2511.06576 by Lei Wu, Mohammad Javad Najafirad, Panos J. Antsaklis, Shirantha Welikala.

Figure 1
Figure 1. Figure 1: A representative diagram of the AC MG network. The sets [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Electrical schematic of a DG ΣDG i with a local load and a line ΣLine l . with state xˇm ≜ Vm, exogenous input ˇdm ≜ ¯ILm, coupling input uˇm ≜ Im, and matrices: Aˇm ≜ " − YLm Ctm ω0 −ω0 − YLm Ctm # , Bˇm ≜  − 1 Ctm 0 0 − 1 Ctm  . (9) D. Distribution Line Model Each line Σ line l , as shown in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Electrical scheme of ZIP load in AC MG. distribution. The complete closed-loop system is then for￾mulated as a networked system, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Hierarchical control architecture combining local and distributed controllers through physical and communication interconnections. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Networked system representation showing interconnections between [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Error networked system configuration showing interconnections [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

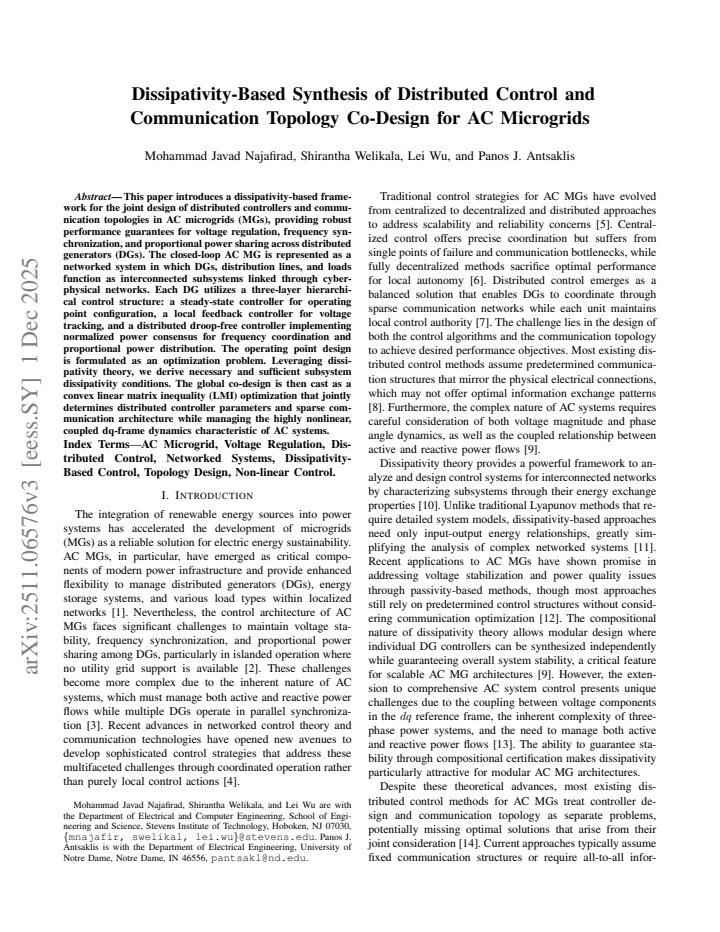

read the original abstract

This paper introduces a dissipativity-based framework for the joint design of distributed controllers and communication topologies in AC microgrids (MGs), providing robust performance guarantees for voltage regulation, frequency synchronization, and proportional power sharing across distributed generators (DGs). The closed-loop AC MG is represented as a networked system in which DGs, distribution lines, and loads function as interconnected subsystems linked through cyber-physical networks. Each DG utilizes a three-layer hierarchical control structure: a steady-state controller for operating point configuration, a local feedback controller for voltage tracking, and a distributed droop-free controller implementing normalized power consensus for frequency coordination and proportional power distribution. The operating point design is formulated as an optimization problem. Leveraging dissipativity theory, we derive necessary and sufficient subsystem dissipativity conditions. The global co-design is then cast as a convex linear matrix inequality (LMI) optimization that jointly determines distributed controller parameters and sparse communication architecture while managing the highly nonlinear, coupled dq-frame dynamics characteristic of AC systems. Simulation results from an islanded AC MG in a MATLAB/Simulink environment verify that the proposed framework achieves robust voltage regulation, frequency synchronization, and proportional power sharing through the optimized communication topology.
