arxiv: 2511.09368 · v2 · submitted 2025-11-12 · 🧮 math.GT · math.CV· math.DG· math.MG

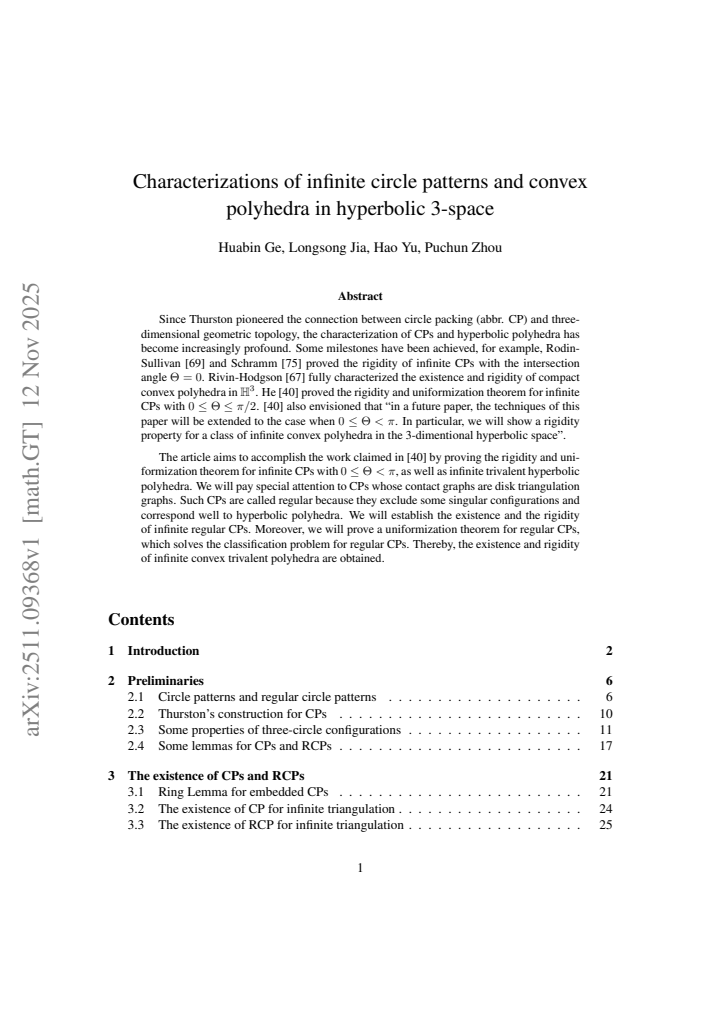

Characterizations of infinite circle patterns and convex polyhedra in hyperbolic 3-space

Huabin Ge , Longsong Jia , Hao Yu , Puchun Zhou This is my paper

Pith reviewed 2026-05-17 22:33 UTC · model grok-4.3

classification 🧮 math.GT math.CVmath.DGmath.MG
keywords circle patternshyperbolic polyhedrarigidityuniformization theoremdisk triangulation graphstrivalent polyhedrahyperbolic 3-spaceinfinite patterns
0
0 comments X

The pith

Infinite regular circle patterns with intersection angles below pi are rigid and classified by a uniformization theorem that also characterizes infinite convex trivalent polyhedra in hyperbolic 3-space.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper completes earlier work on circle patterns by proving both rigidity and a uniformization theorem for infinite patterns whose contact graphs are disk triangulations and whose intersection angles satisfy zero up to but not including pi. These regular patterns are singled out because they avoid singular configurations and correspond directly to trivalent polyhedra. The uniformization result solves the classification problem by showing that prescribed angle data determine the pattern up to isometry. The same statements then yield existence and rigidity for the associated infinite convex trivalent polyhedra in hyperbolic three-space.

Core claim

The authors establish the existence and rigidity of infinite regular circle patterns and prove a uniformization theorem for them, which solves the classification problem for regular circle patterns. Thereby the existence and rigidity of infinite convex trivalent polyhedra in hyperbolic 3-space are obtained.

What carries the argument

The uniformization theorem for regular circle patterns whose contact graphs are disk triangulations, which classifies them by their intersection angles and produces the corresponding convex trivalent polyhedra.

Load-bearing premise

The combinatorial restriction to disk-triangulation contact graphs is narrow enough to exclude singular configurations while still capturing all intended infinite regular patterns and their polyhedral counterparts.

What would settle it

An explicit infinite disk-triangulation graph together with angle data 0 ≤ Θ < π for which either no circle pattern exists or two non-isometric patterns exist would falsify the uniformization and rigidity claims.

Figures

Figures reproduced from arXiv: 2511.09368 by Hao Yu, Huabin Ge, Longsong Jia, Puchun Zhou.

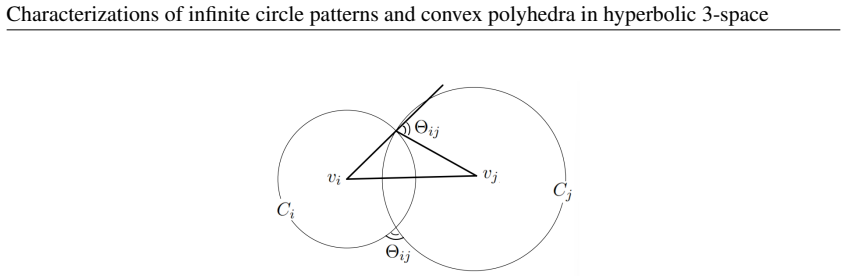

Figure 1
Figure 1. Figure 1: two circle configuration abstract angled graph (G, Θ), it is called realized by a circle pattern P if G is the contact graph of P and Θ is the intersection angle of P, and it is called weakly realized by P if it can be extended to an angled graph (G, ˜ Θ) ˜ which is realized by P and has the same vertex set as G. In order to characterize the geometry and combinatorics of CPs, a natural question arises [PI… view at source ↗

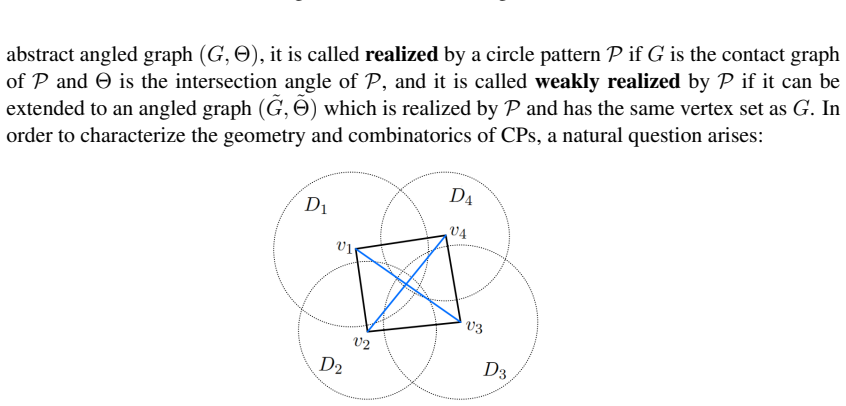

Figure 2
Figure 2. Figure 2: two reducible edges Problem 2.1. Given an abstract angled graph (G, Θ) with angle 0 ≤ Θ < π, can it be realized (or weakly realized) by some circle pattern P? And if it does, is the circle pattern unique? Before addressing Problem 2.1, we first clarify the difference between the definition of “P realizes (G, Θ)” here and the original definition of He in [40], where the angled graph (G, Θ) being considered … view at source ↗
Figure 3

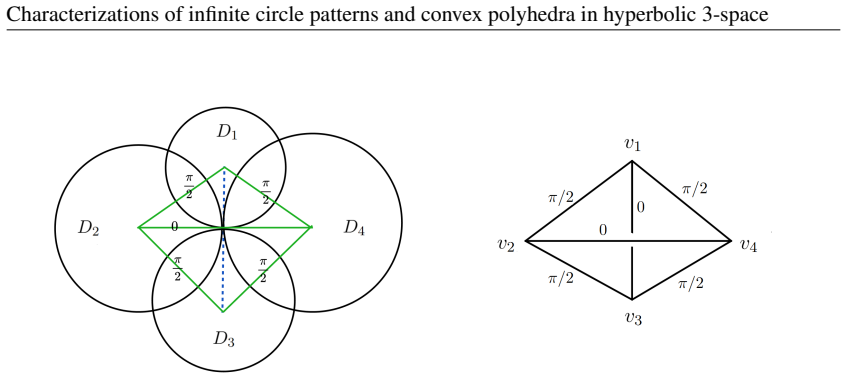

Figure 3. Figure 3: He’s reducible configuration (Bowers-Stephenson’s extraneous tangencies) [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

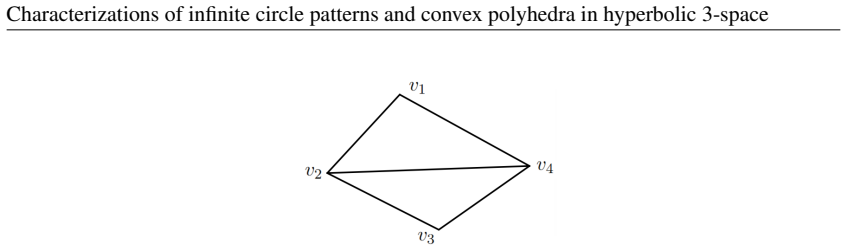

Figure 4. Figure 4: two adjacent triangle configuration phenomenon does not occur in case Θ ∈ [0, π/2]E, where such relationships are determined solely by (G, Θ). This phenomenon makes the obtuse angle case significantly more difficult to handle, rendering it impossible to add reducible edges without considering the disk radii. Now come back to Problem 2.1. It is well posed when further assuming Θ ≤ π/2. In fact, by Koebe-And… view at source ↗
Figure 5

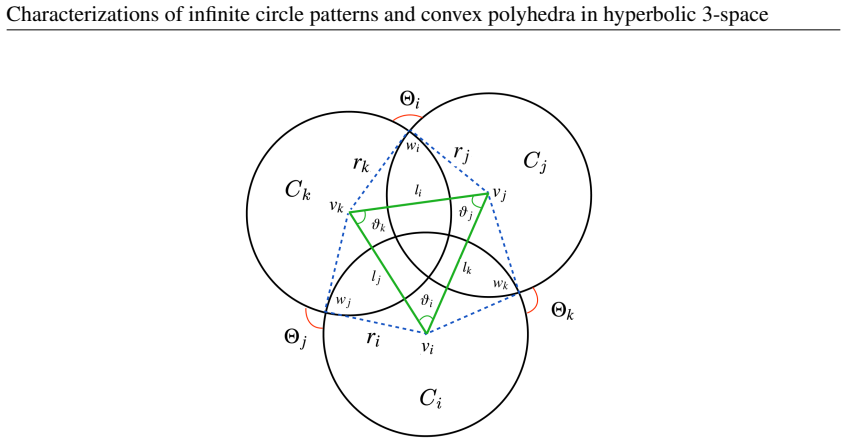

Figure 5. Figure 5: three circle configuration (1) in Euclidean geometry, ∂ϑi ∂ri < 0, rj ∂ϑi ∂rj = ri ∂ϑj ∂ri ≥ 0. (2) in hyperbolic geometry, ∂ϑi ∂ri < 0, sinh rj ∂ϑi ∂rj = sinh ri ∂ϑj ∂ri ≥ 0, ∂ Area (∆vivjvk) ∂ri > 0, where Area (∆vivjvk) denotes the area of ∆vivjvk. In particular, set ui = ln ri (or ln tanh (ri/2) resp.) in the Euclidean (or hyperbolic resp.) background geometry, then we have ∂νi ∂uj = ∂νj ∂ui , (2.8) wh… view at source ↗
Figure 6

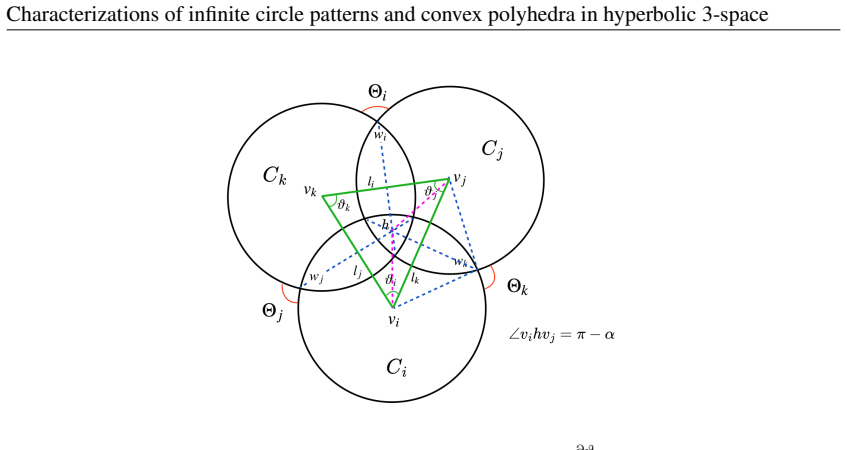

Figure 6. Figure 6: the geometric meaning of rj ∂ϑi ∂rj . Proof. Let Li , Lj and Lk be straight lines passing through the intersection points of the pairs {Cj , Ck}, {Ci , Ck} and {Ci , Cj} respectively. By [28, Lemma A-1], as shown in [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗

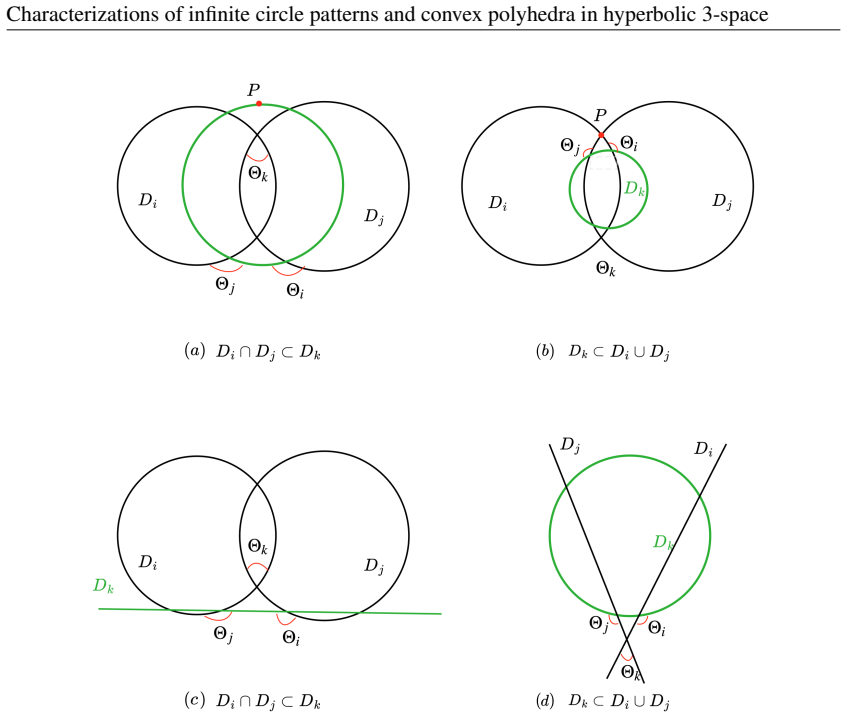

Figure 7
Figure 7. Figure 7: critical three-circle configurations. Lemma 2.12. As shown in [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8

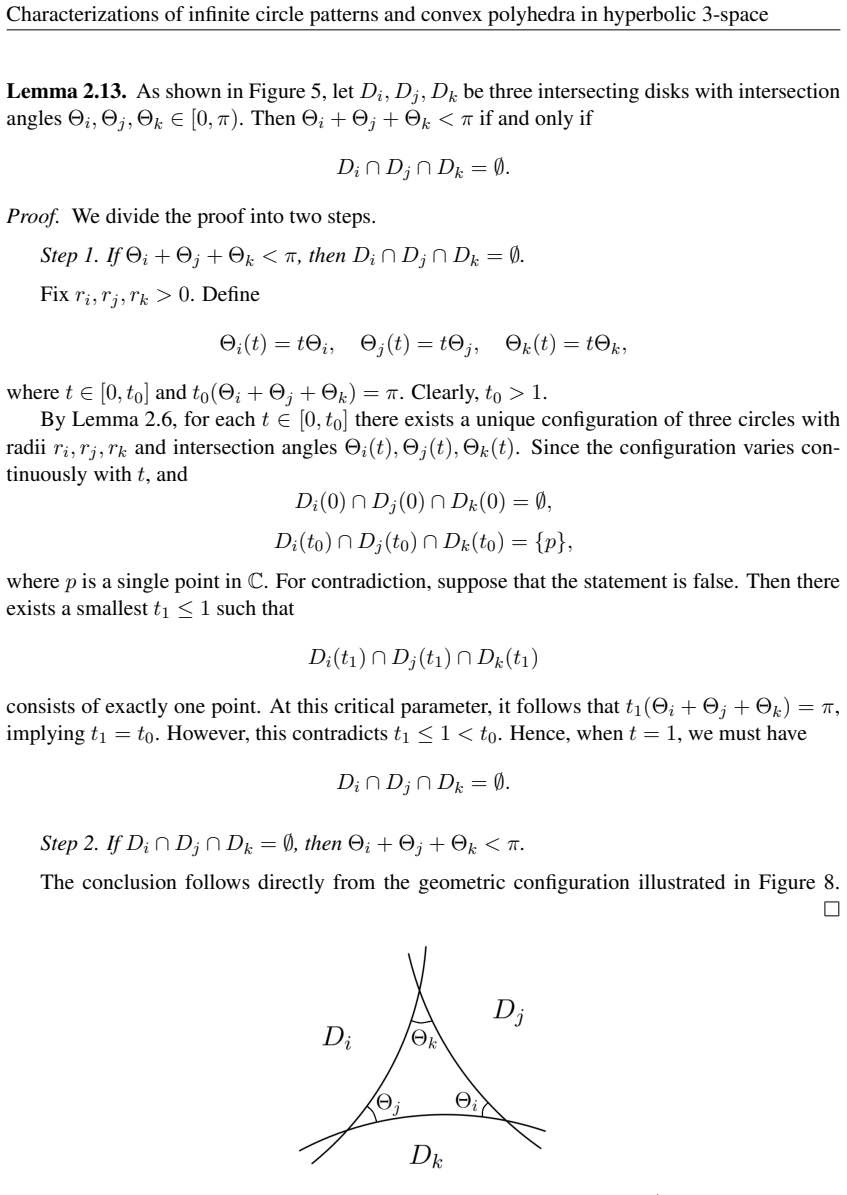

Figure 8. Figure 8: the local configuration of Di ∩ Dj ∩ Dk = ∅. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9

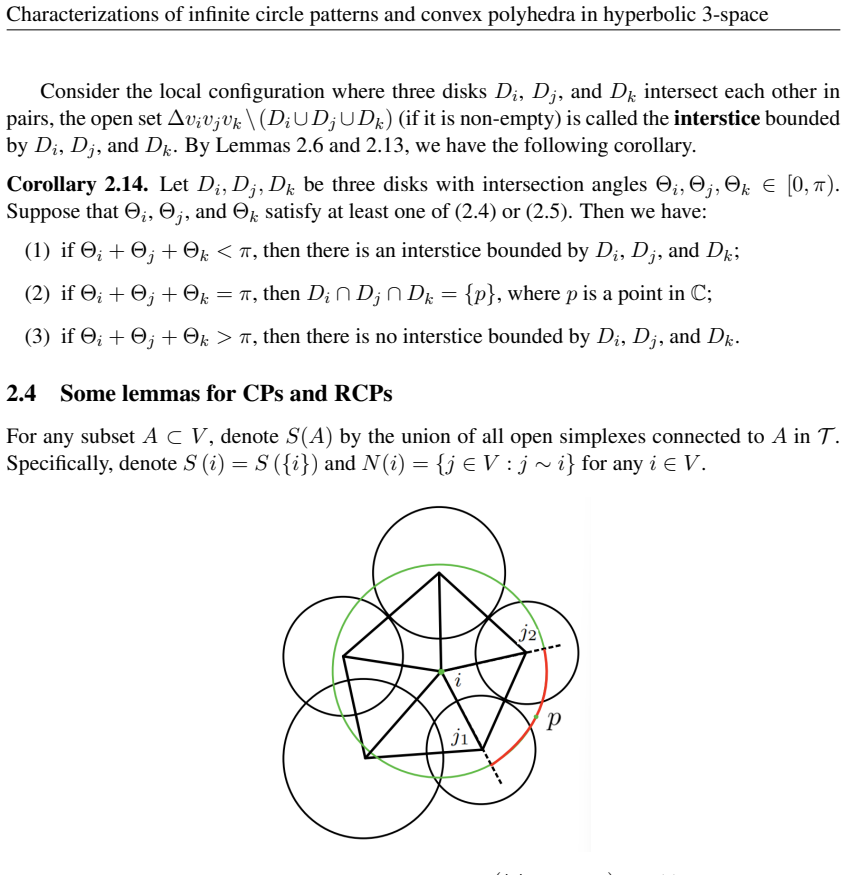

Figure 9. Figure 9: the configuration of Di and S j∈N(i) Dj  ∪ S(i). Lemma 2.15. Let T = (V, E, F) be a disk triangulation and let Θ ∈ [0, π) E be an intersection angle function. Suppose that P = {Di}i∈V is a CP that realizes (T , Θ). If further assume that condition (Z1) holds, then Di ⊂ [ j∈N(i) Dj  ∪ S(i). Proof. We divide the proof into three steps. Step 1. We show ∂Di ⊂ S j∈N(i) Dj . We argue by contradiction. Without … view at source ↗

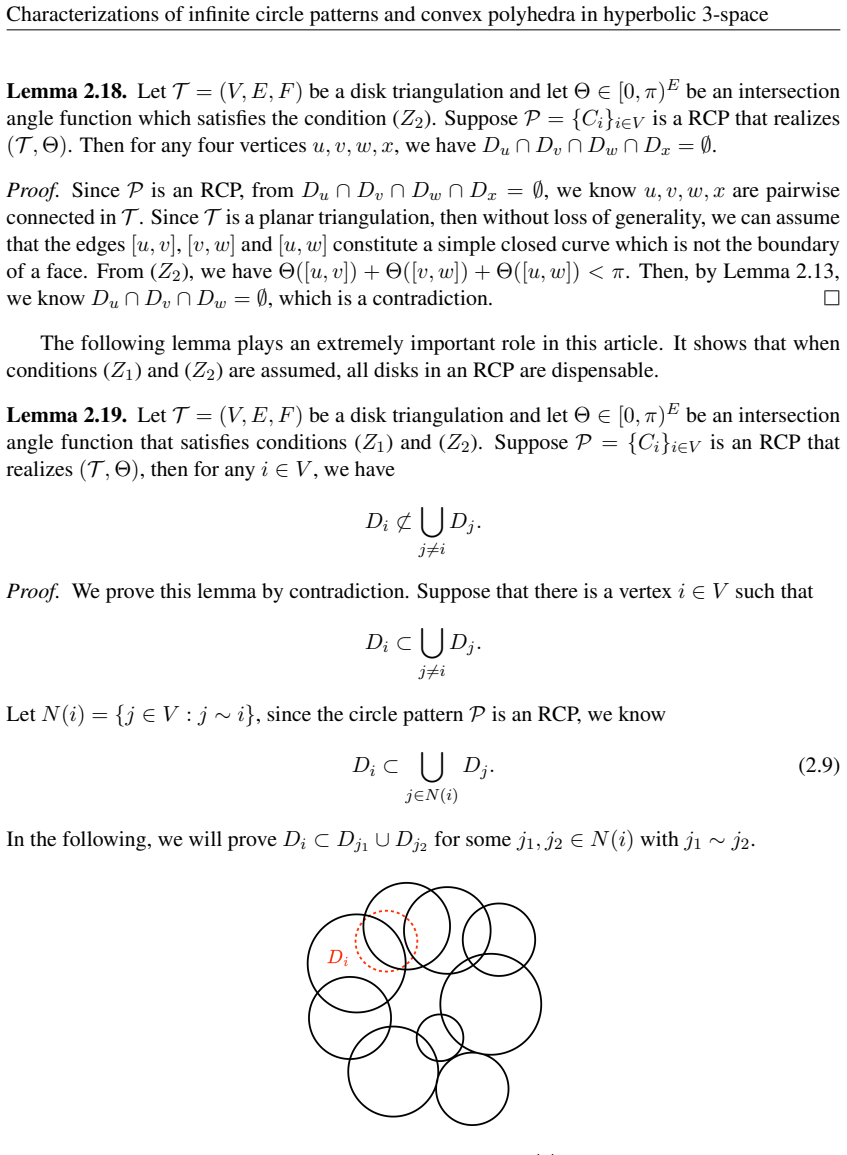

Figure 10
Figure 10. Figure 10: the configuration of Di ⊂ S j∈N(i) Dj For each edge [l, m] with ends l, m ∈ N(i), let Kl,m = Dl ∩ Dm\ ∪s∈N(i)\{l,m} Ds and let Em l = ∂Kl,m ∩ Dl . We claim that Di ∩ ∂Kl,m ⊂ Em l ∪ El m for each edge [l, m] with two ends 19 [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 11

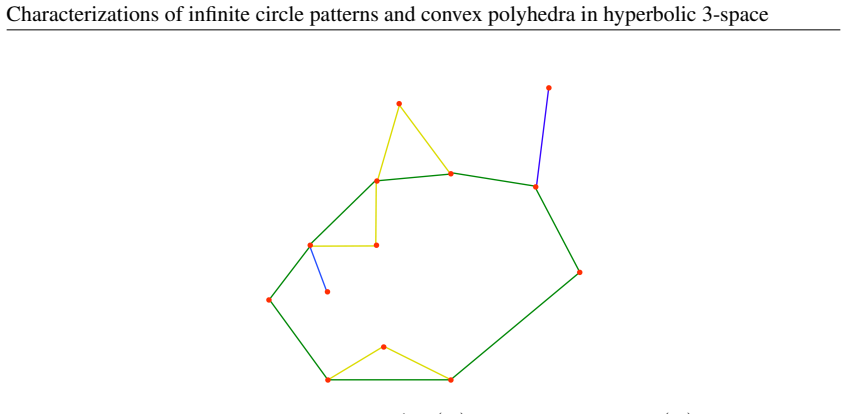

Figure 11. Figure 11: the structure of TC(r) (P) associated with VC(r) (P) Clearly, Ai , B[i,j] and C[i,j,k] are non-empty disjoint sets that divide Carr(P) = Ω. We construct a subcomplex TC(r) (P) ⊂ T associated with VC(r) (P). For any point p ∈ C(r), it belongs to one of the above three types of domains. We will discuss separately as follows: • If p ∈ Ai for some i ∈ V , then p corresponds to i ∈ TC(r) (P). • If p ∈ B[i,j] f… view at source ↗

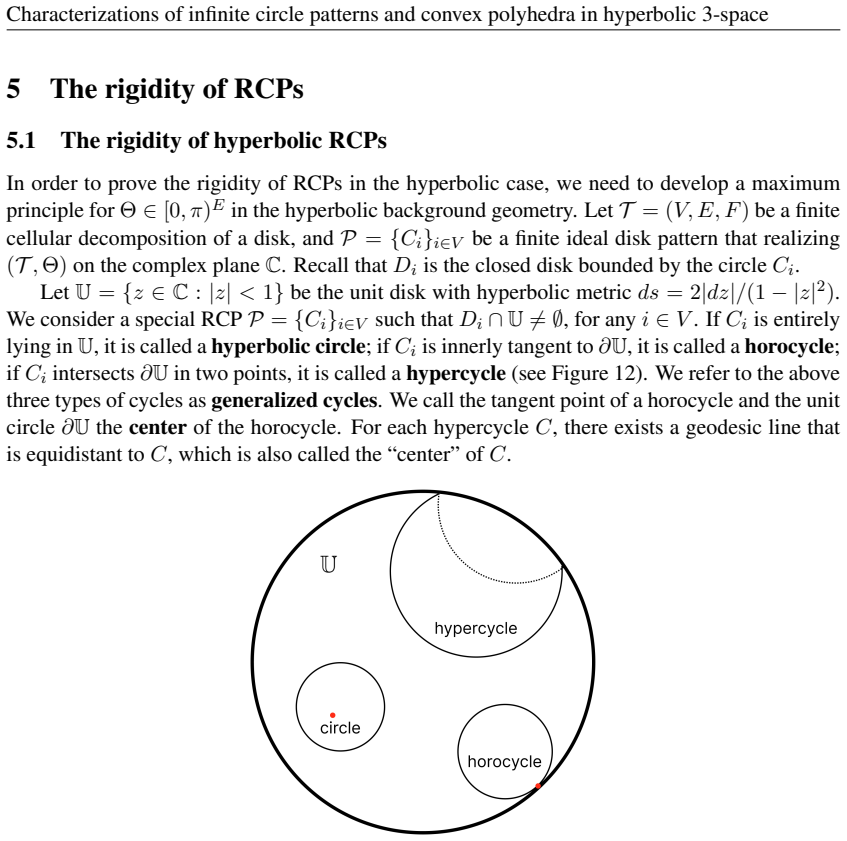

Figure 12
Figure 12. Figure 12: three types of generalized cycles The following geodesic curvature provides a convenient parameter for generalized cycles. Definition 5.1 (Geodesic curvature). Let ri be the Euclidean radius of Ci , and oi be the center of Ci in C. If Ci is a hyperbolic circle, we denote by ρi the hyperbolic radius of Ci with respect to U. If Ci is a hypercycle, we denote by αi the intersection angle of Ci and ∂U. The geo… view at source ↗
Figure 13
Figure 13. Figure 13: the configuration of three generalized cycles [PITH_FULL_IMAGE:figures/full_fig_p037_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Two types of THPs It is clear that this definition does not depend on the choice of exhausting sequence. Since it is easy to draw in two dimensions, one can use this simple two-dimensional case to imagine the three-dimensional situation. In two dimensions, a parabolic “hyperbolic polygon” has a single accumulation point, whereas a hyperbolic “hyperbolic polygon” has two accumulation points, which are anti… view at source ↗
Figure 15
Figure 15. Figure 15: an example that violates conditions (Z1) and (Z2) Conversely, we consider the inverse process of the above construction, i.e. how to go from THP to RCPs. Given a THP P = T i∈V Hi , which is combinatorically equivalent to the Poincare´ dual of T , with dihedral angles that satisfy Θ(e ∗ ) = Θ(e) for e ∈ E. Each region Hi ⊂ H3 corresponds to a circle Ci , defined as ∂Hi ∩ ∂H3 . Then P = {Ci}i∈V (6.2) is obv… view at source ↗

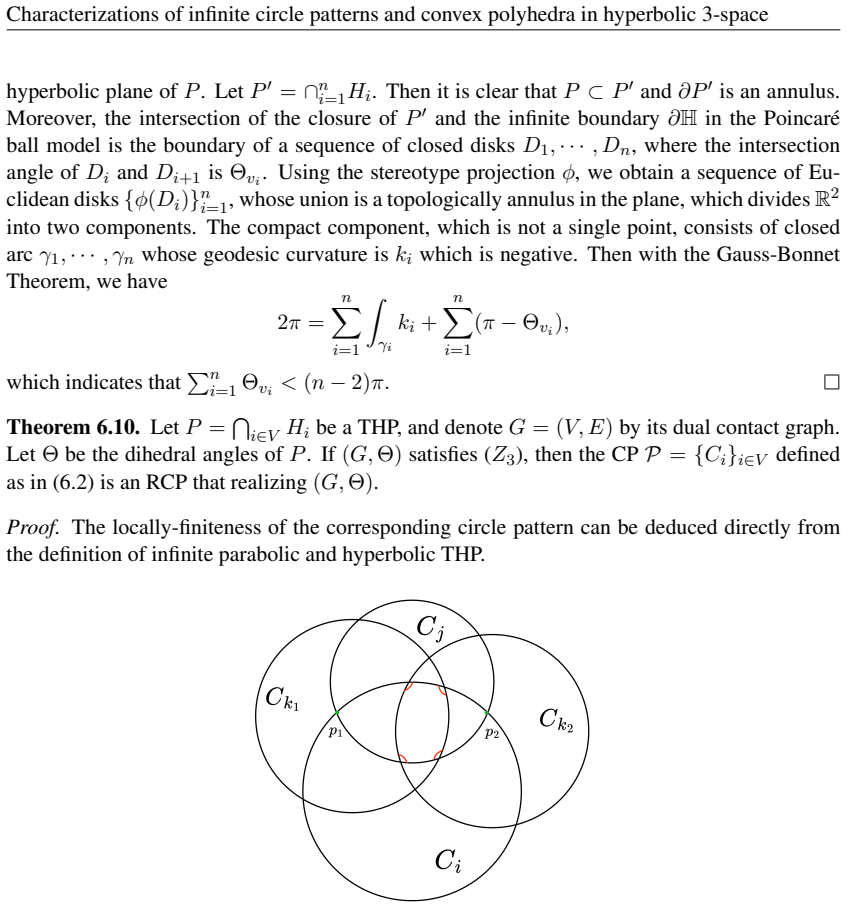

Figure 16
Figure 16. Figure 16: a four circle configuration For any i, j ∈ V , recall d(i, j) is the combinatorial distance in the graph induced by T . By Lemma 2.15, we only need to prove Di ∩ Dj = ∅, for any i, j ∈ V with d(i, j) = 2. We prove this by contradiction. If the previous property is not true, then we assume Di ∩ Dj ̸= ∅. From Lemma 2.15, we have Di ∩ Dj ⊂ [ k∈N(i) Dk 59 [PITH_FULL_IMAGE:figures/full_fig_p059_16.png] view at source ↗
read the original abstract

Since Thurston pioneered the connection between circle packing (abbr. CP) and three-dimensional geometric topology, the characterization of CPs and hyperbolic polyhedra has become increasingly profound. Some milestones have been achieved, for example, Rodin-Sullivan \cite{Rodin-Sullivan} and Schramm \cite{schramm91} proved the rigidity of infinite CPs with the intersection angle $\Theta=0$. Rivin-Hodgson \cite{RH93} fully characterized the existence and rigidity of compact convex polyhedra in $\mathbb{H}^3$. He \cite{He} proved the rigidity and uniformization theorem for infinite CPs with $0\leq\Theta\leq \pi/2$. Therefore, the remaining unresolved issues are the rigidity and uniformization theorems for infinite CPs with $0\leq\Theta<\pi$, as well as for infinite hyperbolic polyhedra. In fact, He specifically claimed in the abstract of \cite{He} that ``in a future paper, the techniques of this paper will be extended to the case when $0\leq\Theta<\pi$. In particular, we will show a rigidity property for a class of infinite convex polyhedra in the 3-dimensional hyperbolic space". The objective of the article is to accomplish the work claimed in \cite{He} by proving the rigidity and uniformization theorem for infinite CPs with $0\leq\Theta<\pi$, as well as infinite trivalent hyperbolic polyhedra. We will pay special attention to CPs whose contact graphs are disk triangulation graphs. Such CPs are called regular because they exclude some singular configurations and correspond well to hyperbolic polyhedra. We will establish the existence and rigidity of infinite regular CPs. Moreover, we will prove a uniformization theorem for regular CPs, which solves the classification problem for regular CPs. Thereby, the existence and rigidity of infinite convex trivalent polyhedra are obtained.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proves existence and rigidity theorems for infinite regular circle patterns (CPs) with 0 ≤ Θ < π whose contact graphs are disk triangulations, along with a uniformization theorem that classifies these regular CPs. It thereby derives existence and rigidity results for infinite convex trivalent polyhedra in H^3, extending prior work by Rodin-Sullivan, Schramm, Rivin-Hodgson, and He on infinite CPs and hyperbolic polyhedra.

Significance. If the central theorems hold, the work completes the program outlined by He for the remaining cases of infinite CPs with intersection angles up to but not including π and supplies corresponding characterizations for infinite trivalent hyperbolic polyhedra. The restriction to regular CPs (disk triangulation contact graphs) is presented as a means to exclude singularities while preserving correspondence with polyhedra, yielding a uniformization result that solves the classification problem in this subclass.

major comments (2)
  1. [Abstract] Abstract and Introduction: The claim that the uniformization theorem for regular CPs implies existence and rigidity for infinite convex trivalent polyhedra ('thereby obtained') is load-bearing for the central result. The manuscript must explicitly verify that every infinite convex trivalent polyhedron in H^3 induces a contact graph that is a disk triangulation without accumulation points or unavoidable singularities at infinity; absent this verification, the implication classifies only a proper subclass and does not resolve the full classification problem for trivalent polyhedra.
  2. [§2] §2 (Definitions of regular CPs): The assertion that disk triangulation contact graphs exclude singular configurations and ensure good correspondence with hyperbolic polyhedra requires a precise statement of what constitutes a singularity in the infinite setting and a proof that no infinite convex trivalent polyhedron falls outside this combinatorial class. If some polyhedra produce non-triangulated faces or accumulation points, the rigidity and uniformization statements would not apply to the intended full class.
minor comments (2)
  1. [Abstract] The abstract's phrasing 'abbr. CP' could be expanded to 'abbreviated as CP' for improved readability on first use.
  2. [Introduction] Notation for the range of intersection angles Θ could be introduced with a brief reminder of the distinction from the compact case treated by Rivin-Hodgson.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and for identifying these important points about the correspondence between regular circle patterns and infinite convex trivalent polyhedra. We address each major comment below and will revise the manuscript accordingly to strengthen the exposition and proofs.

read point-by-point responses

  1. Referee: [Abstract] Abstract and Introduction: The claim that the uniformization theorem for regular CPs implies existence and rigidity for infinite convex trivalent polyhedra ('thereby obtained') is load-bearing for the central result. The manuscript must explicitly verify that every infinite convex trivalent polyhedron in H^3 induces a contact graph that is a disk triangulation without accumulation points or unavoidable singularities at infinity; absent this verification, the implication classifies only a proper subclass and does not resolve the full classification problem for trivalent polyhedra.

    Authors: We agree that the load-bearing implication requires explicit verification in the infinite setting. The manuscript currently relies on the standard polar dual construction (extending the finite case of Rivin-Hodgson) together with the definition of regular CPs to assert the correspondence, but we acknowledge that a self-contained argument for the infinite case is needed. In the revised manuscript we will add a dedicated paragraph in the introduction and a short subsection following the definition of regular CPs that proves: (i) every infinite convex trivalent polyhedron in H^3 determines a locally finite circle pattern whose contact graph is a disk triangulation, (ii) convexity and trivalence preclude accumulation points at infinity, and (iii) no unavoidable singularities arise. This will make the derivation of existence and rigidity for the full class of trivalent polyhedra rigorous. revision: yes

  2. Referee: [§2] §2 (Definitions of regular CPs): The assertion that disk triangulation contact graphs exclude singular configurations and ensure good correspondence with hyperbolic polyhedra requires a precise statement of what constitutes a singularity in the infinite setting and a proof that no infinite convex trivalent polyhedron falls outside this combinatorial class. If some polyhedra produce non-triangulated faces or accumulation points, the rigidity and uniformization statements would not apply to the intended full class.

    Authors: We will revise §2 to include a precise definition of singularities for infinite circle patterns: a configuration is singular if the pattern fails to be locally finite, if intersection angles accumulate to π at infinity, or if the contact graph contains non-triangular faces or accumulation points that prevent the pattern from being a proper disk triangulation. We will then prove that no infinite convex trivalent polyhedron produces such singularities. The argument proceeds by noting that trivalence implies the dual graph is a triangulation, convexity of the polyhedron ensures the circles remain disjoint except at tangency points, and the absence of accumulation follows from the proper embedding in H^3. This proof will be inserted into the revised §2 and cross-referenced in the polyhedra section. revision: yes

Circularity Check

0 steps flagged

No significant circularity; theorems extend independent prior results

full rationale

The paper defines regular circle patterns combinatorially via disk triangulation contact graphs and proves existence, rigidity, and uniformization theorems for them with 0 ≤ Θ < π, then obtains corresponding results for infinite convex trivalent polyhedra. These steps build directly on cited independent prior theorems (Rodin-Sullivan, Schramm, Rivin-Hodgson, He) without any quoted equation or claim reducing the new results to fitted parameters, self-definitions, or unverified self-citations by construction. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claims rest on standard axioms of hyperbolic geometry and combinatorial graph theory with no free parameters fitted to data and no new entities postulated.

axioms (2)
  • standard math Hyperbolic 3-space satisfies the standard axioms of constant negative curvature and the properties of circle intersections therein.
    Invoked as background for all geometric constructions and rigidity arguments.
  • domain assumption Contact graphs that are disk triangulations exclude singular configurations and correspond to trivalent polyhedra.
    Used to define the regular class of circle patterns studied in the paper.
