Data-Driven Design Rules for TADF Emitters from a High-Throughput Screening of 747 Molecules
Pith reviewed 2026-05-18 01:56 UTC · model grok-4.3
The pith
D-A-D architectures with 50-90 degree twists give the smallest singlet-triplet energy gaps in TADF emitters
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By applying a validated xTB-based high-throughput workflow to 747 known TADF molecules, the study shows that D-A-D architectures achieve the smallest ΔE_ST. Torsional angles of 50°-90° provide an effective balance between a reduced singlet-triplet gap and adequate spin-orbit coupling for reverse intersystem crossing. Clustering separates high-performance candidates and identifies multi-resonance emitters suited to blue emission, resulting in the selection of 127 molecules with predicted ΔE_ST < 0.1 eV and oscillator strength f > 0.1.
What carries the argument

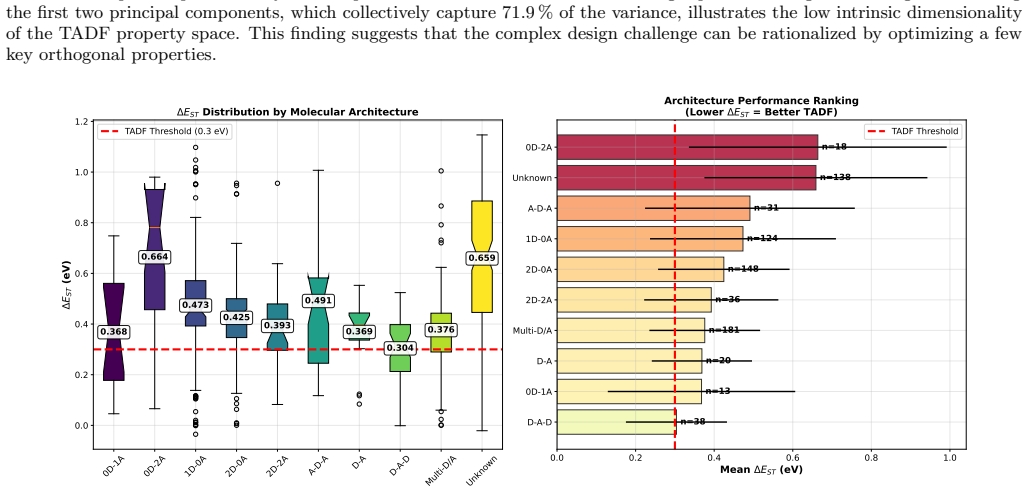

D-A-D molecular architecture and 50°-90° torsional angles as the parameters that minimize ΔE_ST while preserving spin-orbit coupling for reverse intersystem crossing
If this is right
- D-A-D frameworks should be prioritized when designing new TADF emitters to achieve smaller singlet-triplet energy gaps.

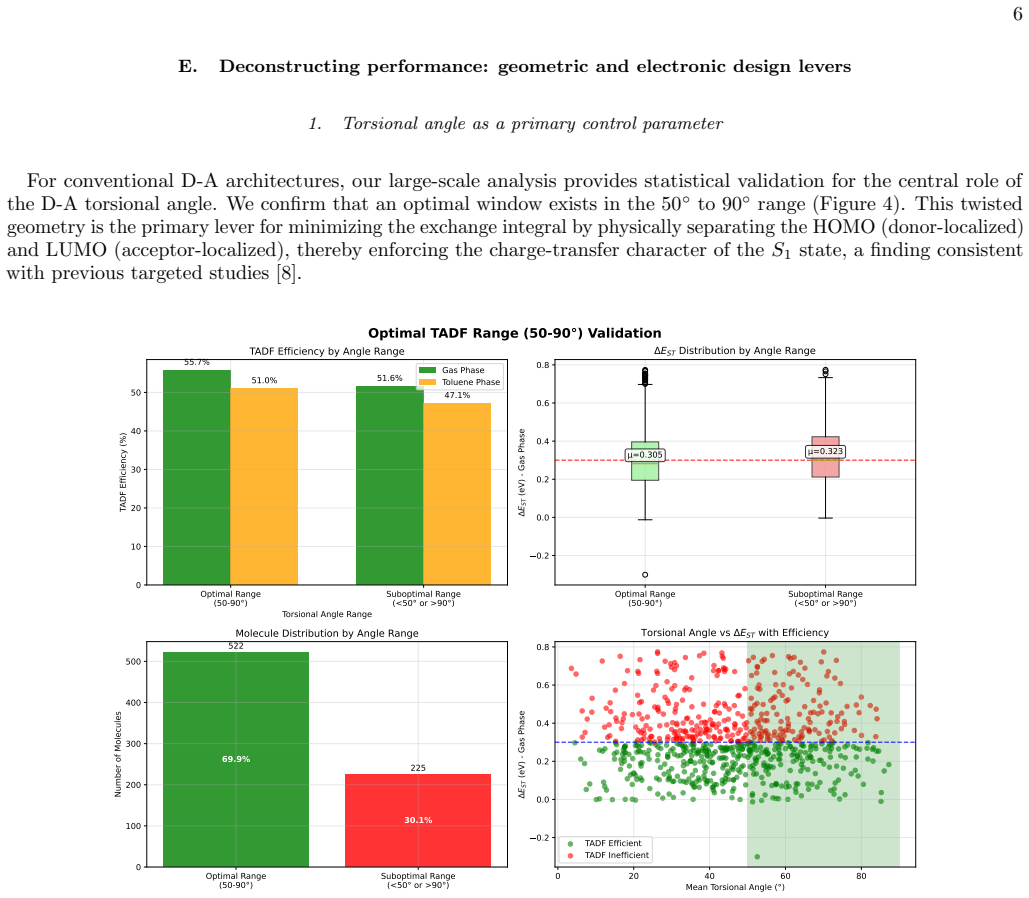

- Torsional angles kept between 50° and 90° optimize the trade-off between small ΔE_ST and sufficient coupling for reverse intersystem crossing.
- Multi-resonance structures stand out as promising for blue-emitting TADF materials.
- The 127 identified candidates become direct targets for synthesis and testing in devices.

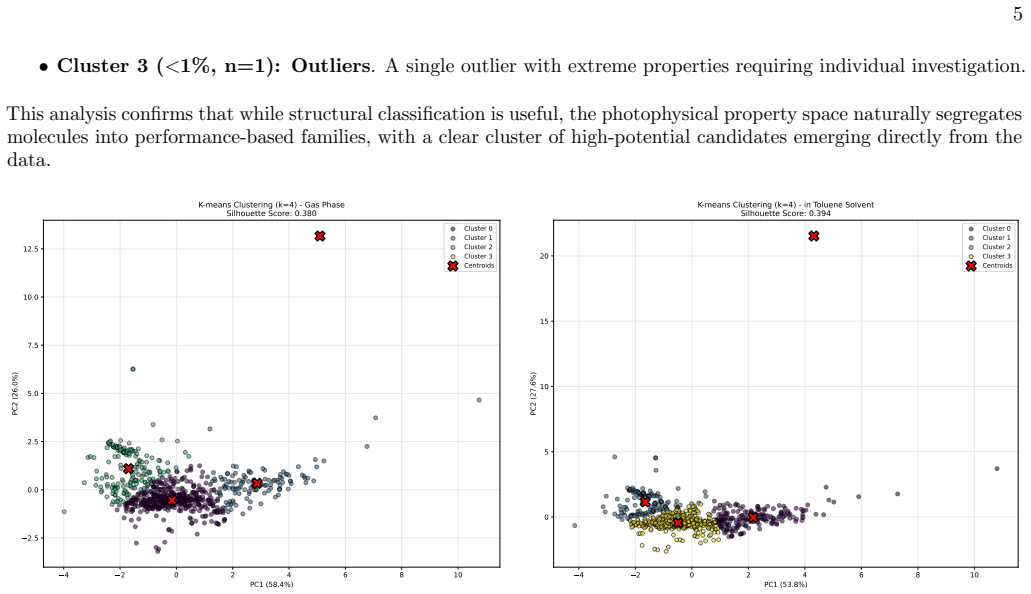

- Clustering methods can be reused to separate high-performance molecules from the broader chemical space.
Where Pith is reading between the lines
- The design rules could be combined with charge-transport simulations to predict full device efficiency rather than isolated molecular properties.
- Applying the same screening approach to solvent or solid-state environments would test how the guidelines hold under realistic operating conditions.
- Extending the workflow to larger virtual libraries might reveal additional candidates outside the original 747.
- Controlling molecular rigidity around the identified torsional range could improve long-term stability in operating OLEDs.
Load-bearing premise
The xTB workflow accurately ranks ΔE_ST and oscillator strength across the full chemical diversity of the 747 molecules without systematic errors that would alter the extracted design rules or candidate list.
What would settle it
Measuring ΔE_ST experimentally for several of the 127 flagged candidates and finding values above 0.1 eV would show the screening predictions do not hold.
Figures

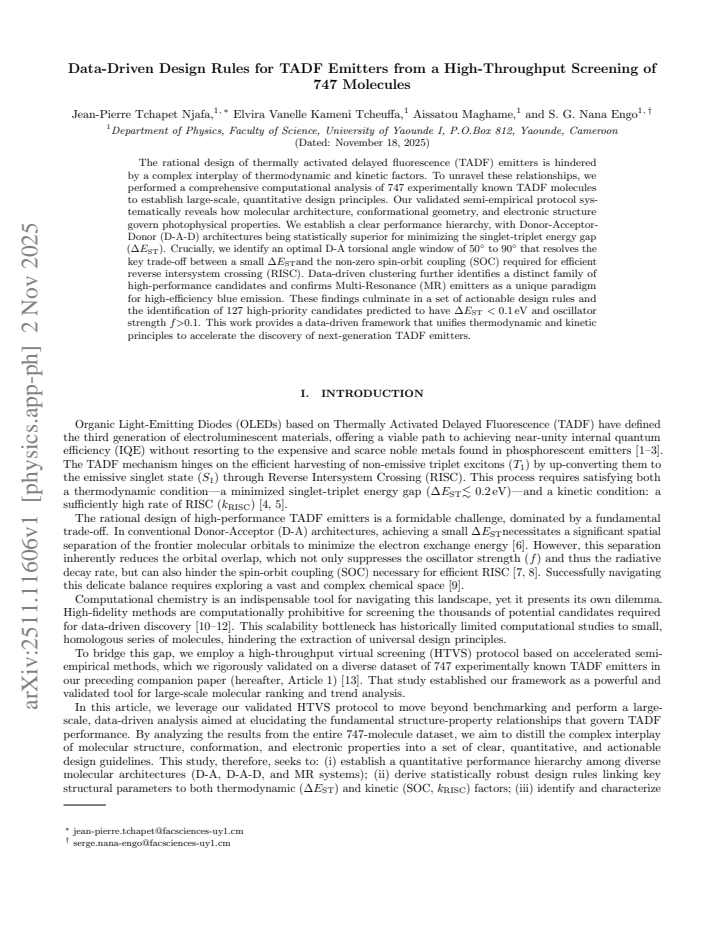

read the original abstract
TADF emitter performance depends on both thermodynamic and kinetic factors. We analyze 747 experimentally known TADF molecules computationally to extract quantitative design guidelines. Using a validated xTB-based workflow, we examine how architecture, geometry, and electronic structure affect photophysical properties. Among architectures, D-A-D frameworks achieve the smallest \deltaest. A favorable torsional angle of $50{\deg}-90{\deg}$ balances small $\Delta E_{\text{ST}}$ with the spin--orbit coupling needed for reverse intersystem crossing. Clustering separates high-performance candidates and highlights multi-resonance emitters for blue emission. From these results, we identify 127 candidates with predicted $\Delta E_{\text{ST}} < 0.1 eV$ and oscillator strength $f > 0.1$. These HTVS-derived design guidelines and candidates can guide future TADF emitter development.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports a high-throughput virtual screening of 747 experimentally known TADF molecules using a validated xTB-based workflow. It extracts quantitative design rules, finding that D-A-D architectures yield the smallest ΔE_ST, that a 50°–90° torsional angle optimally balances small ΔE_ST with sufficient spin-orbit coupling for reverse intersystem crossing, and that 127 molecules satisfy the thresholds ΔE_ST < 0.1 eV and oscillator strength f > 0.1. Clustering is used to separate high-performance candidates and highlight multi-resonance emitters for blue emission.
Significance. If the xTB rankings prove reliable across architectures, the work supplies concrete, data-driven guidelines that could accelerate rational design of efficient TADF emitters, particularly for blue OLEDs. The scale of the experimental-molecule dataset and the focus on both thermodynamic and kinetic factors constitute a useful contribution to applied organic electronics.
major comments (2)
- [Abstract and Methods] Abstract and Methods (validation subsection): The claim that the xTB workflow is 'validated' is not supported by reported error bars, cross-validation statistics, or an assessment of architecture-dependent systematic errors in ΔE_ST. Because the central design rules (D-A-D superiority, 50°–90° torsion optimum) and the selection of the 127 candidates rest directly on these rankings, the absence of such diagnostics leaves the quantitative thresholds and architecture comparisons vulnerable to bias that correlates with the very variables used to derive the rules.
- [Results] Results (architecture and torsion analysis): No quantitative comparison is shown between xTB-predicted ΔE_ST values and higher-level reference calculations (e.g., TD-DFT or experimental values) stratified by architecture class or by torsional angle. Without this, it is unclear whether the reported ordering of D-A-D versus other frameworks or the identification of the 50°–90° window survives possible method-specific errors in charge-transfer character or spin-orbit coupling.
minor comments (2)
- [Methods] The manuscript should specify the exact criteria and algorithm used for post-screening clustering and architecture classification, including any thresholds applied to separate multi-resonance emitters.
- [Figures] Figure captions and text should consistently report the number of molecules in each architectural class and the distribution of torsional angles to allow readers to judge the statistical robustness of the extracted trends.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed feedback. The points raised regarding validation metrics and stratified method comparisons are important for strengthening the reliability of the reported design rules. We respond to each major comment below and will revise the manuscript to incorporate additional supporting analyses.
read point-by-point responses
-
Referee: [Abstract and Methods] Abstract and Methods (validation subsection): The claim that the xTB workflow is 'validated' is not supported by reported error bars, cross-validation statistics, or an assessment of architecture-dependent systematic errors in ΔE_ST. Because the central design rules (D-A-D superiority, 50°–90° torsion optimum) and the selection of the 127 candidates rest directly on these rankings, the absence of such diagnostics leaves the quantitative thresholds and architecture comparisons vulnerable to bias that correlates with the very variables used to derive the rules.
Authors: We agree that the current manuscript would benefit from more explicit validation diagnostics. The description of the workflow as 'validated' draws on benchmarks established in our earlier publications for TADF-relevant systems, but these details are not reproduced here. In the revised manuscript we will expand the Methods section with a new validation subsection that reports MAE/RMSE values against TD-DFT and experimental ΔE_ST for a representative subset, includes error bars, and provides a breakdown of any systematic deviations by architecture class. This addition will directly support the robustness of the D-A-D and torsional-angle trends. revision: yes
-
Referee: [Results] Results (architecture and torsion analysis): No quantitative comparison is shown between xTB-predicted ΔE_ST values and higher-level reference calculations (e.g., TD-DFT or experimental values) stratified by architecture class or by torsional angle. Without this, it is unclear whether the reported ordering of D-A-D versus other frameworks or the identification of the 50°–90° window survives possible method-specific errors in charge-transfer character or spin-orbit coupling.
Authors: We acknowledge that a stratified comparison would increase confidence in the architecture and geometry trends. Performing higher-level calculations on the full set of 747 molecules is not feasible, but we will add to the revised Results section a quantitative comparison for a curated subset of approximately 40 molecules that evenly samples the different architecture classes and torsional-angle ranges. This will include side-by-side xTB versus TD-DFT (and available experimental) ΔE_ST values, with explicit discussion of any architecture- or angle-dependent discrepancies. We anticipate that the D-A-D preference and the 50°–90° optimum will be preserved, but any observed deviations will be reported transparently. revision: yes
Circularity Check
No significant circularity: data-driven statistical patterns from external experimental molecules
full rationale
The paper performs high-throughput computational screening of 747 experimentally known TADF molecules using an xTB workflow to extract empirical design rules regarding architectures (e.g., D-A-D), torsional angles, and property thresholds. All central claims derive from statistical analysis of computed properties on this independent external dataset rather than from internal parameter fitting, self-referential definitions, or load-bearing self-citations. No derivation step reduces by construction to the inputs (e.g., no fitted quantities renamed as predictions or ansatzes smuggled via prior self-work). The workflow is presented as validated, but the validation and screening results remain externally anchored to known molecules, keeping the chain self-contained and non-circular.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption xTB semi-empirical method provides sufficiently accurate relative rankings of ΔE_ST and oscillator strength for TADF molecules
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.lean (Jcost, washburn_uniqueness_aczel); Foundation/DimensionForcing.lean (D=3 from 8-tick)reality_from_one_distinction; J_uniquely_calibrated_via_higher_derivative unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Using a validated xTB-based workflow, we examine how architecture, geometry, and electronic structure affect photophysical properties. Among architectures, D-A-D frameworks achieve the smallest δE_ST. A favorable torsional angle of 50°-90° balances small ΔE_ST with the spin-orbit coupling needed for reverse intersystem crossing.
-
IndisputableMonolith/Foundation/ArithmeticFromLogic.lean; Constants/RSUnitsHelpers.leanLogicNat recovery; phi_golden_ratio unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Principal Component Analysis (PCA) was performed on the standardized matrix of all descriptors... K-means clustering... identifies four distinct molecular families
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Hiroki Uoyama, Kenichi Goushi, Katsuyuki Shizu, Hiroko Nomura, and Chihaya Adachi. Highly efficient organic light-emitting diodes from delayed fluorescence.Nature, 492(7428):234–238, December 2012. ISSN 1476-4687. doi: 10.1038/nature11687
-
[2]
Chihaya Adachi. Third-generation organic electroluminescence materials.Japanese Journal of Applied Physics, 53(6): 060101, May 2014. ISSN 1347-4065. doi:10.7567/jjap.53.060101
-
[3]
Yuchao Liu, Chensen Li, Zhongjie Ren, Shouke Yan, and Martin R. Bryce. All-organic thermally activated de- layed fluorescence materials for organic light-emitting diodes.Nature Reviews Materials, 3(4):18020, apr 2018. doi: 10.1038/natrevmats.2018.20
-
[4]
Fernando B Dias, Thomas J Penfold, and Andrew P Monkman. Photophysics of thermally activated delayed fluorescence molecules.Methods and applications in fluorescence, 5(1):012001, mar 2017. doi:10.1088/2050-6120/aa537e
-
[5]
Xian-Kai Chen, Dongwook Kim, and Jean-Luc Br´ edas. Thermally activated delayed fluorescence (tadf) path toward efficient electroluminescence in purely organic materials: Molecular level insight.Accounts of Chemical Research, 51(9):2215, aug
-
[6]
doi:10.1021/acs.accounts.8b00174
- [7]
-
[8]
doi:10.1021/ct500957s
-
[9]
Thomas J. Penfold. On predicting the excited-state properties of thermally activated delayed fluorescence emitters.Journal of Physical Chemistry C, 119(24):13535, jun 2015. doi:10.1021/acs.jpcc.5b03530. 45
-
[10]
Yoann Olivier, M´ onica Moral, Luca Muccioli, and Juan-Carlos Sancho-Garc´ ıa. Dynamic nature of excited states of donor-acceptor tadf materials for oleds: How theory can reveal structure-property relationships.Journal of Materials Chemistry C, 5(23):5718–5729, 2017. doi:10.1039/c6tc05075a
-
[11]
Jamie Gibson, Andrew P. Monkman, and Thomas J. Penfold. The importance of vibronic coupling for efficient reverse intersystem crossing in thermally activated delayed fluorescence molecules.ChemPhysChem, 17(19):2956–2961, July 2016. ISSN 1439-7641. doi:10.1002/cphc.201600662
-
[12]
Haitao Sun, Cheng Zhong, and Jean-Luc Br´ edas. Reliable prediction with tuned range-separated functionals of the singlet-triplet gap in organic emitters for thermally activated delayed fluorescence.Journal of Chemical Theory and Computation, 11(8):3851–3858, jul 2015. doi:10.1021/acs.jctc.5b00431
-
[13]
Sunwoo Kang and Taekyung Kim. Comparative study of tddft and tddft-based steom-dlpno-ccsd calculations for predicting the excited-state properties of mr-tadf.Heliyon, 10(10):e30926, May 2024. ISSN 2405-8440. doi:10.1016/j.heliyon.2024.e30926
-
[14]
Y. Olivier, B. Yurash, L. Muccioli, G. D’Avino, O. Mikhnenko, J. C. Sancho-Garc´ ıa, C. Adachi, T.-Q. Nguyen, and D. Beljonne. Nature of the singlet and triplet excitations mediating thermally activated delayed fluorescence.Physical Review Materials, 1(7):075602, dec 2017. doi:10.1103/PhysRevMaterials.1.075602
-
[15]
T. J. Penfold, E. Gindensperger, C. Daniel, and C. M. Marian. Structure-property relationships in donor-acceptor tadf emitters.Chemical Reviews, 118:6975–7025, 2018. doi:10.1021/acs.chemrev.7b00617
-
[16]
Dingyun Huang and Jacqueline M. Cole. A database of thermally activated delayed fluorescent molecules auto-generated from scientific literature with chemdataextractor.Scientific Data, 11(1), January 2024. ISSN 2052-4463. doi:10.1038/s41597- 023-02897-3
-
[17]
Philipp Pracht, Fabian Bohle, and Stefan Grimme. Automated exploration of the low-energy chemical space with fast quantum chemical methods.Physical Chemistry Chemical Physics, 22(14):7169–7192, 2020. ISSN 1463-9076. doi:10.1039/c9cp06869d
-
[18]
Christoph Bannwarth, Sebastian Ehlert, and Stefan Grimme. Gfn2-xtb—an accurate and broadly parametrized self-consistent tight-binding quantum chemical method with multipole electrostatics and density-dependent dispersion contributions. Journal of chemical theory and computation, 15(3):1652–1671, 2019. ISSN 1549-9618. doi:10.1021/acs.jctc.8b01176
-
[19]
Christoph Bannwarth, Eike Caldeweyher, Sebastian Ehlert, Andreas Hansen, Philipp Pracht, Jakob Seibert, Sebastian Spicher, and Stefan Grimme. Extended tight-binding quantum chemistry methods.WIREs Computational Molecular Science, 11(2):e1493, August 2021. ISSN 1759-0884. doi:10.1002/wcms.1493
-
[20]
Sebastian Ehlert, Marcel Stahn, Sebastian Spicher, and Stefan Grimme. Robust and efficient implicit solvation model for fast semiempirical methods.Journal of Chemical Theory and Computation, 17(7):4250–4261, 2021. ISSN 1549-9618. doi:10.1021/acs.jctc.1c00471
-
[21]
Stefan Grimme and Christoph Bannwarth. Ultra-fast computation of electronic spectra for large systems by tight-binding based simplified tamm-dancoff approximation (stda-xtb).The Journal of Chemical Physics, 145(5):054103, August 2016. ISSN 0021-9606. doi:10.1063/1.4959605
-
[22]
The exact integral simplified time-dependent density functional theory (xstd-dft)
Marc de Wergifosse and Stefan Grimme. The exact integral simplified time-dependent density functional theory (xstd-dft). The Journal of Chemical Physics, 160(20), May 2024. ISSN 1089-7690. doi:10.1063/5.0206380
-
[23]
Jan-Michael Mewes. Modeling tadf in organic emitters requires a careful consideration of the environment and going beyond the franck–condon approximation.Physical Chemistry Chemical Physics, 20(18):12454–12469, 2018. doi:10.1039/c8cp01792a
-
[24]
Xian-Kai Chen, Youichi Tsuchiya, Yuma Ishikawa, Cheng Zhong, Chihaya Adachi, and Jean-Luc Br´ edas. A new design strategy for efficient thermally activated delayed fluorescence organic emitters: From twisted to planar structures.Advanced Materials, 29(46):1702767, oct 2017. doi:10.1002/adma.201702767
-
[25]
Ji Ae Kang, Seung Chan Kim, and Jun Yeob Lee. Isomer engineering of universal electron transport materials for suppressed exciton quenching in organic light-emitting diodes.Dyes and Pigments, 203:110319, July 2022. ISSN 0143-7208. doi:10.1016/j.dyepig.2022.110319. URLhttp://dx.doi.org/10.1016/j.dyepig.2022.110319
-
[26]
Lu, A comprehensive electron wavefunction analysis toolbox for chemists, Multiwfn, J
Tian Lu. A comprehensive electron wavefunction analysis toolbox for chemists, Multiwfn.The Journal of Chemical Physics, 161(8):082503, 08 2024. ISSN 0021-9606. doi:10.1063/5.0216272. URLhttps://doi.org/10.1063/5.0216272
-
[27]
Thibaud Etienne, Xavier Assfeld, and Antonio Monari. Toward a quantitative assessment of electronic transitions’ charge-transfer character.Journal of Chemical Theory and Computation, 10(9):3896–3905, aug 2014. doi:10.1021/ct5003994
-
[28]
M. A. El-Sayed. Triplet state. its radiative and nonradiative properties.Accounts of Chemical Research, 1:8–16, 1968. doi:10.1021/ar50001a002
-
[29]
Qian Li, Jingyi Xu, Shuer Tan, Yu Dai, Jie Xue, and Juan Qiao. Approaching 800 ˆA nm near-infrared thermally activated delay fluorescence materials via simple malononitrile condensation strategy.Organic Electronics, 110:106645, November
-
[30]
doi:10.1016/j.orgel.2022.106645
ISSN 1566-1199. doi:10.1016/j.orgel.2022.106645. URLhttp://dx.doi.org/10.1016/j.orgel.2022.106645
-
[31]
Takuji Hatakeyama, Kazushi Shiren, Kiichi Nakajima, Shintaro Nomura, Soichiro Nakatsuka, Keisuke Kinoshita, Jingping Ni, Yohei Ono, and Toshiaki Ikuta. Ultrapure blue thermally activated delayed fluorescence molecules: Efficient homo-lumo separation by the multiple resonance effect.Advanced Materials, 28(14):2777–2781, feb 2016. doi:10.1002/adma.201505491
-
[32]
Stefan Grimme. Exploration of chemical compound, conformer, and reaction space with meta-dynamics simulations based on tight-binding quantum chemical calculations.Journal of chemical theory and computation, 15(5):2847–2862, 2019. doi:10.1021/acs.jctc.9b00143
-
[33]
Marc de Wergifosse. Computing excited states of very large systems with range-separated hybrid functionals and the exact integral simplified time-dependent density functional theory (xstd-dft).The Journal of Physical Chemistry Letters, 15(51): 12628–12635, December 2024. ISSN 1948-7185. doi:10.1021/acs.jpclett.4c03193
-
[34]
Thibaud Etienne, Xavier Assfeld, and Antonio Monari. New insight into the topology of excited states through de- tachment/attachment density matrices-based centroids of charge.Journal of Chemical Theory and Computation, 10(9): 46 3906–3914, aug 2014. doi:10.1021/ct500400s
-
[35]
R. A. Marcus and N. Sutin. Electron transfer reactions in chemistry. theory and experiment.Biochimica et Biophysica Acta, 811:265–322, 1985. doi:10.1016/0304-4173(85)90014-X
-
[36]
P. Friederich, F. H¨ ase, J. Proppe, and A. Aspuru-Guzik. Machine-learned potentials for next-generation matter simulations. Nature Materials, 20:750–761, 2021. doi:10.1038/s41563-020-0777-6
-
[37]
Y. H. Lee, S. Park, J. H. Oh, S. J. Shin, J. Dell, P. Cronin, T. Earmme, S. H. Woo, and S. J. Yoo. Machine learning-based design of thermally activated delayed fluorescence emitters.The Journal of Physical Chemistry Letters, 12:6970–6977, 2021. doi:10.1021/acs.jpclett.1c01553
