arxiv: 2511.13651 · v2 · submitted 2025-11-17 · 🌌 astro-ph.GA

High-resolution radio imaging of TGSSJ1530+1049, a radio galaxy in a dense environment at z=4

K. \'E. Gab\'anyi , S. Frey , L. I. Gurvits , Z. Paragi , K. Perger , A. Saxena , R. A. Overzier , M. Villar-Mart\'in
show 5 more authors
V. Reynaldi G. Miley H. J. A. R\"ottgering A. Humphrey Gy. Mez\H{o}
This is my paper

Pith reviewed 2026-05-17 21:53 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords high-redshift radio galaxiesactive galactic nucleiVLBImedium-sized symmetric objectsgalaxy clustersionized gas
0
0 comments X

The pith

High-resolution radio imaging shows TGSSJ1530+1049 at z=4 as a medium-sized symmetric object with lobes and hot spots from a jetted AGN.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents EVN and e-MERLIN observations that resolve the previously unresolved radio source TGSSJ1530+1049 into a north-south complex of steep-spectrum features. These are interpreted as the lobes and hot spots of a jetted active galactic nucleus whose linear size of about 5.5 kpc and radio power match the class of medium-sized symmetric objects. The source sits inside one of the densest known galaxy and ionized-gas structures at redshift 4, as revealed by companion JWST data, and the radio axis aligns with the extended optical emission-line gas although the radio emission remains more compact. This supplies a concrete example of early AGN activity embedded in a rapidly assembling massive system.

Core claim

We recovered a complex north-south oriented structure with steep-spectrum radio-emitting features, which are associated with lobes and hot spots of a jetted active galactic nucleus. The centre of the radio galaxy proved to be too faint at cm wavelengths to be unambiguously detected. Nevertheless, the linear size (~5.5 kpc) and the radio power place it among the so-called medium-sized symmetric objects, a smaller and/or confined version of larger radio galaxies.

What carries the argument

Milliarcsecond-scale imaging with the European VLBI Network combined with ~100-mas imaging with e-MERLIN, used to map the steep-spectrum extended features and to infer the presence of an undetected central core.

If this is right

  • The radio source is confined to roughly 5.5 kpc, consistent with a younger or environmentally confined stage of radio-galaxy evolution.
  • The close alignment between the radio axis and the ionized gas traced by JWST implies that the AGN and the surrounding medium are interacting on scales of several kiloparsecs.
  • The source provides a resolved radio view of AGN activity inside one of the densest galaxy overdensities known at redshift 4.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If medium-sized symmetric objects are common at z~4, they may represent an early phase of feedback that regulates star formation during cluster assembly.
  • Multi-wavelength follow-up at X-ray or sub-millimeter wavelengths could test whether an undetected core is present and whether the source is still accreting vigorously.

Load-bearing premise

The steep-spectrum features are lobes and hot spots and the true center is the undetected core, based on morphology and spectral index rather than direct core detection or kinematic data.

What would settle it

Higher-resolution imaging or spectral-index maps that fail to show symmetric steep-spectrum lobes on either side of a faint central component, or that reveal a different overall orientation, would undermine the medium-sized symmetric object classification.

Figures

Figures reproduced from arXiv: 2511.13651 by A. Humphrey, A. Saxena, G. Miley, Gy. Mez\H{o}, H. J. A. R\"ottgering, K. \'E. Gab\'anyi, K. Perger, L. I. Gurvits, M. Villar-Mart\'in, R. A. Overzier, S. Frey, V. Reynaldi, Z. Paragi.

Figure 1
Figure 1. Figure 1: EVN 1.7-GHz maps of J1530+1049. On the right-hand side, the two detected features are shown zoomed-in. The peak intensity of the whole image is 0.70 mJy beam−1 . The contour levels are at (±0.23, 0.33, 0.47, 0.66) mJy beam−1 . The lowest positive contour level corresponds to 5σ image noise. The restoring beam is shown in the lower left corner of the panels. Its FWHM size is 4.48 mas × 3.61 mas at a positio… view at source ↗
Figure 2
Figure 2. Figure 2: 1.5-GHz e-MERLIN image of J1530+1049. The peak intensity is 3.7 mJy beam−1 . The lowest contours are drawn at ±0.24 mJy beam−1 corresponding to 6σ image noise level. Further positive contour levels increase by a factor of two. The restoring beam is shown in the upper left corner, its FWHM size is 284 mas × 120 mas and its major axis is oriented at a position angle of 21◦ . each other change with frequency,… view at source ↗
Figure 4
Figure 4. Figure 4: The flux densities of the two Gaussian components that can be fitted to the e-MERLIN visibilities of J1530+1049. Circles and squares are for the components N and S, respectively. The solid and dashed lines are power-law fits to the corresponding data points. For comparison, the sum of the flux densities of the EVN-detected components is also shown with a yellow upward triangle. Empty downward brown triangl… view at source ↗
Figure 3

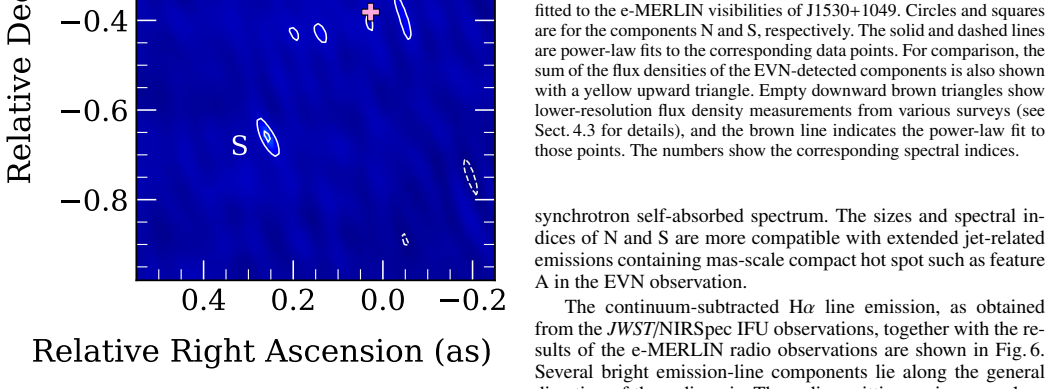

Figure 3. Figure 3: 5-GHz e-MERLIN image of J1530+1049. The peak intensity is 0.17 mJy beam−1 . The lowest contours are drawn at ±0.046 mJy beam−1 corresponding to 3.5σ image noise level. Further positive contour levels increase by a factor of √ 2. The restoring beam is shown in the upper left corner, its FWHM size is 121 mas×36 mas and its major axis is oriented at a position angle of 23◦ . The pink crosses indicate the posi… view at source ↗
Figure 5
Figure 5. Figure 5: The e-MERLIN images of the calibrator source, J1525+1107. Left: at 1.5-GHz. The peak intensity is 420 mJy beam−1 . The lowest positive contour is drawn at 1.1 mJy beam−1 corresponding to 7σ image noise level. The FWHM size of the restoring beam is 321 mas × 144 mas and its major axis is oriented at a position angle of 21◦ . Right: 5-GHz. The peak intensity is 274 mJy beam−1 . The lowest positive contour is… view at source ↗
Figure 6
Figure 6. Figure 6: Overlay of the JWST Hα+[N ii] emission line map from Sax￾ena et al. (submitted) and the e-MERLIN maps of J1530+1049. The colour scale shows the continuum-subtracted Hα line map, where low￾significance pixels have been masked (for details, see Saxena et al., sub￾mitted). The white and pink contours represent the 1.5-GHz and the 5-GHz e-MERLIN data. Contour levels are the same as in Figs. 2, 3, except that n… view at source ↗
read the original abstract

High-redshift radio galaxies can provide insights into the structure formation and galaxy evolution at earlier cosmological epochs. TGSSJ1530+1049 was selected as a candidate high-redshift radio galaxy. Subsequent observations with the James Webb Space Telescope (JWST) presented in a companion paper (Saxena et al., 2026) have shown that it is located at a redshift z=4.0. The JWST data furthermore showed that the radio source is part of one of the densest structures of galaxies and ionized gas known at these redshifts. The complex system qualitatively resembles a massive (cluster) galaxy forming early through a rapid succession of mergers. TGSSJ1530+1049 is an unresolved source down to ~0.6" scale in multiple radio surveys. To reveal its high-resolution radio structure and allow for a detailed comparison with JWST observations, we studied its morphology at various angular scales with different radio interferometric instruments. We observed TGSSJ1530+1049 at milliarcsecond (mas) scale angular resolution with the European VLBI Network (EVN), and at ~100-mas scale resolution with the enhanced Multi-Element Remotely Linked Interferometer Network (e-MERLIN). We recovered a complex north--south oriented structure with steep-spectrum radio-emitting features, which are associated with lobes and hot spots of a jetted active galactic nucleus. The centre of the radio galaxy proved to be too faint at cm wavelengths to be unambiguously detected in our observations. Nevertheless, the linear size (~5.5 kpc) and the radio power place it among the so-called medium-sized symmetric objects, a smaller and/or confined version of larger radio galaxies. Comparison between the radio morphology and that of the ionized gas observed by JWST shows that the two are closely aligned. However, the optical emission line gas extends out to ~25 kpc, which is well beyond the detected radio structures. (Abridged)

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports EVN milliarcsecond and e-MERLIN ~100-mas radio imaging of TGSSJ1530+1049, a radio galaxy at z=4 confirmed by companion JWST observations. It recovers a north-south oriented complex structure with steep-spectrum features interpreted as lobes and hot spots of a jetted AGN. The source is classified as a medium-sized symmetric object (MSO) on the basis of a projected linear size of ~5.5 kpc and radio power, with the radio morphology shown to align with but be smaller than the ~25 kpc ionized gas structure seen by JWST.

Significance. If the morphological interpretation is robust, the work supplies one of the few resolved radio structures for a high-redshift radio galaxy embedded in a dense merging environment at z=4. The direct comparison between radio lobes/hotspots and JWST ionized gas provides a concrete observational anchor for models of early AGN feedback and jet propagation in forming massive galaxies. The multi-scale interferometric approach (EVN + e-MERLIN) is a clear methodological strength.

major comments (1)
  1. [Abstract and Results (EVN imaging)] Abstract and Results section on core detection: the classification as an MSO with linear size ~5.5 kpc and the identification of the north-south features as symmetric lobes/hotspots both require placing the undetected core at the midpoint. The abstract states that 'the centre of the radio galaxy proved to be too faint at cm wavelengths to be unambiguously detected,' so the symmetry axis and size measurement are inferences from morphology and steep-spectrum properties alone. No quantitative error analysis on possible core offsets or alternative (non-symmetric) models is presented; this assumption is load-bearing for the central claim and the claimed alignment with JWST gas.
minor comments (2)
  1. [Abstract] The abstract is somewhat dense with observational details; moving the precise linear-size value and power comparison to the main text would improve readability while retaining the key result.
  2. [Figure captions] Figure captions should explicitly state the restoring beam sizes and contour levels for both EVN and e-MERLIN images to allow readers to assess resolution and dynamic range directly.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and positive assessment of the work's significance. We address the single major comment below regarding the undetected core and symmetry assumptions. We agree that this is a load-bearing aspect of the interpretation and will revise the manuscript accordingly to strengthen the discussion of uncertainties.

read point-by-point responses

  1. Referee: [Abstract and Results (EVN imaging)] Abstract and Results section on core detection: the classification as an MSO with linear size ~5.5 kpc and the identification of the north-south features as symmetric lobes/hotspots both require placing the undetected core at the midpoint. The abstract states that 'the centre of the radio galaxy proved to be too faint at cm wavelengths to be unambiguously detected,' so the symmetry axis and size measurement are inferences from morphology and steep-spectrum properties alone. No quantitative error analysis on possible core offsets or alternative (non-symmetric) models is presented; this assumption is load-bearing for the central claim and the claimed alignment with JWST gas.

    Authors: We acknowledge the referee's point that the core remains undetected at cm wavelengths, making the midpoint placement an inference. The north-south complex structure consists of two steep-spectrum components separated by approximately 0.7 arcsec, which we interpret as lobes/hotspots based on their spectral indices and morphology. The linear size of ~5.5 kpc is the projected separation between these outermost features, with the core assumed at the geometric center to define the symmetry axis. This assumption is supported by the overall alignment with the JWST ionized gas and the absence of any detected core offset in the multi-scale data. We agree that a quantitative discussion of possible core offsets and alternative models would strengthen the paper. In the revised manuscript, we will add a dedicated paragraph in the Results section (and update the abstract if needed) that explores the range of plausible core positions consistent with the data, estimates the resulting uncertainty in linear size (e.g., ±0.5 kpc), and briefly considers non-symmetric interpretations. This revision will not change the main conclusions but will make the assumptions more transparent. revision: yes

Circularity Check

0 steps flagged

No significant circularity: direct observational reporting of radio morphology and size

full rationale

The paper presents results from new EVN and e-MERLIN radio interferometric observations of TGSSJ1530+1049. It describes the recovered north-south steep-spectrum structure, associates the features with lobes and hot spots via morphological and spectral properties, notes the undetected core, and computes the projected linear size of ~5.5 kpc using the redshift supplied by the companion JWST paper. These steps are empirical measurements and interpretations from the imaging data; no equations, fitted parameters, or predictions are defined in terms of the target quantities, no self-citation chain supplies a load-bearing uniqueness theorem or ansatz, and the MSO classification follows directly from the measured size and power matching an external category definition. The analysis is self-contained as observational reporting.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

This is a pure observational report; the claim rests on standard radio-astronomy assumptions about spectral indices indicating lobe emission and on the redshift and environment reported in the companion JWST paper. No free parameters are fitted in the present work.

axioms (2)
  • domain assumption Steep radio spectrum indicates optically thin synchrotron emission from lobes/hot spots rather than core or star formation
    Invoked when associating the detected features with AGN lobes
  • domain assumption Redshift z=4.0 and dense environment from companion JWST paper (Saxena et al. 2026)
    Used to place the source in cosmological context
