arxiv: 2512.01433 · v2 · submitted 2025-12-01 · 📡 eess.SP

zea: A Toolbox for Cognitive Ultrasound Imaging

Tristan S.W. Stevens , Wessel L. van Nierop , Ben Luijten , Vincent van de Schaft , Ois\'in Nolan , Beatrice Federici , Louis D. van Harten , Simon W. Penninga
show 2 more authors
Noortje I.P. Schueler Ruud J.G. van Sloun
This is my paper

Pith reviewed 2026-05-17 03:22 UTC · model grok-4.3

classification 📡 eess.SP
keywords ultrasound imagingPython toolboxdeep learning integrationdifferentiable pipelineKeras 3signal processingcognitive imaging
0
0 comments X

The pith

Zea provides a modular Python pipeline for ultrasound data that supports custom reconstruction and direct integration of deep learning models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents zea as a toolbox for cognitive ultrasound imaging. It supplies a flexible, modular, and differentiable pipeline along with pre-defined models for handling ultrasound images and signals. A high-level interface lets users build their own processing chains and insert deep learning components without low-level coding. The implementation rests on Keras 3, which automatically works with TensorFlow, PyTorch, and JAX backends. A sympathetic reader would care because the package lowers the effort needed to combine traditional ultrasound methods with modern machine-learning techniques in medical imaging.

Core claim

Zea offers a flexible, modular, and differentiable pipeline for ultrasound data processing together with a collection of pre-defined models for ultrasound image and signal processing, all accessible through a high-level interface that lets users define custom reconstruction pipelines and integrate deep learning models seamlessly while supporting TensorFlow, PyTorch, and JAX via Keras 3.

What carries the argument

The high-level interface built on Keras 3 that supplies differentiability, modularity, and automatic support for the three major deep-learning backends.

If this is right

  • Users gain ready-made models for common ultrasound image and signal tasks.
  • Custom reconstruction pipelines become straightforward to assemble and modify.
  • Machine-learning components plug directly into ultrasound workflows across frameworks.
  • The same code runs unchanged under TensorFlow, PyTorch, or JAX.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The design could shorten the time from idea to working prototype for adaptive, data-driven ultrasound systems.
  • Similar modular interfaces might be adopted in neighboring fields such as photoacoustic or magnetic-resonance imaging.
  • The differentiability property opens the door to end-to-end optimization of entire imaging chains rather than isolated stages.

Load-bearing premise

That the high-level interface and Keras 3 backend will let users create custom pipelines and add deep learning models without needing substantial extra implementation work.

What would settle it

A documented attempt by an external user to build and train a custom differentiable ultrasound pipeline with an inserted neural network that requires more than a few lines of code beyond the advertised interface.

Figures

Figures reproduced from arXiv: 2512.01433 by Beatrice Federici, Ben Luijten, Louis D. van Harten, Noortje I.P. Schueler, Ois\'in Nolan, Ruud J.G. van Sloun, Simon W. Penninga, Tristan S.W. Stevens, Vincent van de Schaft, Wessel L. van Nierop.

Figure 1

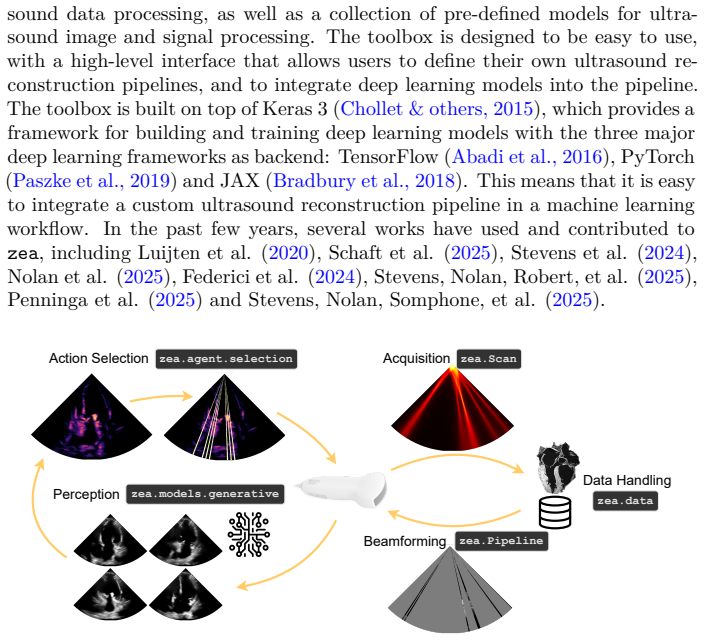

Figure 1. Figure 1: High-level overview of an ultrasound perception-action loop imple￾mented in zea. Statement of need The ultrasound research community has advanced significantly due to publically available high-quality software, including simulation tools such as Field II (Jensen, 2004) and k-wave (Treeby & Cox, 2010), as well as reconstruction and real-time processing libraries like USTB (Rodriguez-Molares et al., 2017), M… view at source ↗
Figure 2
Figure 2. Figure 2: Diffusion posterior samples of a model trained on the EchoNet￾dynamic dataset. surement models mapping from fully-observed to subsampled data. import keras import zea # (batch, height, width) data = ... # create a Greedy Entropy Minimization agent agent = zea.agent.selection.GreedyEntropy( n_actions=width // 8, n_possible_actions=width, img_width=width, img_height=height, ) # these would normally be sample… view at source ↗
Figure 3

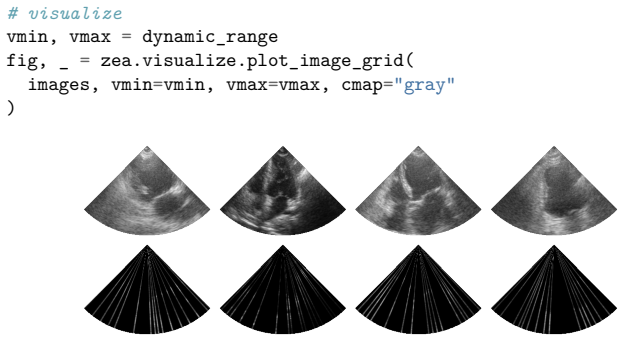

Figure 3. Figure 3: Selected scan-lines as chosen by a Greedy Entropy Minimization agent. Availability, Development, and Documentation zea is available through PyPI via pip install zea, and the development version is available via GitHub. GitHub Actions manage continuous integra￾tion through automated code testing (PyTest), code linting and formatting (Ruff), and documentation generation (Sphinx). The documentation is hosted … view at source ↗
read the original abstract

We present zea (pronounced ze-yah), a Python package for cognitive ultrasound imaging that offers a flexible, modular, and differentiable pipeline for ultrasound data processing. Additionally, it includes a collection of pre-defined models for ultrasound image and signal processing. The toolbox is designed to be easy to use, with a high-level interface that enables users to define custom ultrasound reconstruction pipelines and integrate deep learning models seamlessly. Built on top of Keras 3, it supports all three major deep learning backends: TensorFlow, PyTorch, and JAX, making it straightforward to incorporate custom ultrasound processing pipelines into machine learning workflows. Documentation is available at https://zea.readthedocs.io/.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript introduces zea, a Python package for cognitive ultrasound imaging. It claims to deliver a flexible, modular, and differentiable pipeline for ultrasound data processing built on Keras 3, with support for TensorFlow, PyTorch, and JAX backends. The toolbox includes pre-defined models for image and signal processing and a high-level interface allowing users to define custom reconstruction pipelines and integrate deep learning models.

Significance. If the differentiability and modularity claims hold with working implementations, the toolbox would enable end-to-end gradient flow from deep learning models through ultrasound-specific steps such as beamforming and envelope detection. This could lower the barrier for research on adaptive, learning-driven ultrasound systems and support reproducible workflows across major deep-learning frameworks.

major comments (1)
  1. [Abstract and pipeline-description section] The central claim that custom pipelines remain end-to-end differentiable when users compose pre-defined models or insert custom blocks is asserted in the abstract and introduction but is not accompanied by any code examples, gradient-verification tests, or explicit treatment of classically non-differentiable operations (Hilbert transform, log compression, thresholding, or certain apodization windows). Without such evidence the seamless-integration guarantee for cognitive-imaging use cases cannot be evaluated.
minor comments (1)
  1. The documentation link is provided but no usage examples or benchmark results appear in the manuscript itself; adding a short code snippet illustrating a differentiable pipeline would improve clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive comments on the manuscript. We respond to the major comment below and outline the planned revisions.

read point-by-point responses

  1. Referee: [Abstract and pipeline-description section] The central claim that custom pipelines remain end-to-end differentiable when users compose pre-defined models or insert custom blocks is asserted in the abstract and introduction but is not accompanied by any code examples, gradient-verification tests, or explicit treatment of classically non-differentiable operations (Hilbert transform, log compression, thresholding, or certain apodization windows). Without such evidence the seamless-integration guarantee for cognitive-imaging use cases cannot be evaluated.

    Authors: We agree that the differentiability claim would be strengthened by explicit supporting material. The implementation relies on Keras 3 primitives to enable automatic differentiation where the underlying operations permit it, but the manuscript does not currently demonstrate this with examples or tests. In the revised version we will add code examples of pipeline composition and custom block insertion, numerical gradient-verification tests across the three backends, and a dedicated discussion of non-differentiable steps: the Hilbert transform is realized via FFT (differentiable), log compression will be treated with a differentiable approximation or gradient detachment where appropriate, and thresholding/apodization will be addressed with straight-through estimators or explicit notes on gradient flow. These additions will appear in an expanded pipeline-description section. revision: yes

Circularity Check

0 steps flagged

Software toolbox description contains no derivations or predictions

full rationale

The paper is a description of the zea Python package for cognitive ultrasound imaging. It presents a high-level interface, pre-defined models, and Keras 3 backend support but contains no mathematical derivations, equations, fitted parameters, predictions, or uniqueness theorems. Claims about differentiability and modularity are implementation assertions rather than results derived from prior steps within the paper, so no load-bearing step reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced; the work consists of a software implementation that depends on existing libraries such as Keras 3.
