arxiv: 2512.01501 · v4 · submitted 2025-12-01 · 💻 cs.CG · cs.GR

A Unified Architecture for N-Dimensional Visualization and Simulation: 4D Implementation and Evaluation including Boolean Operations

Hirohito Arai This is my paper

Pith reviewed 2026-05-17 03:34 UTC · model grok-4.3

classification 💻 cs.CG cs.GR
keywords unified architectureN-dimensional visualization4D simulationconvex hullBoolean operationshyperplane slicingXPBDPlex file format
0
0 comments X

The pith

A unified architecture supports visualization and simulation in N-dimensional spaces by integrating convex hull generation, Boolean operations, transformations, and slicing, with a working 4D implementation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proposes a single software architecture built around an N-dimensional design that brings together mesh creation, shape operations, viewing tools, and dynamic simulation. The integrated parts include Quickhull for convex hull meshes, Boolean operations on those meshes, pose and view transformations, hyperplane slicing to reveal cross-sections, and XPBD for non-rigid body movement over time. The work also defines a Plex file format for storing and exchanging N-dimensional mesh data and uses an approximate approach that accepts numerical errors to keep the code straightforward. All experiments and interaction design, including FPS-style navigation, are shown only for the 4D case on a standard computer. A sympathetic reader would care because the approach suggests one codebase could handle higher-dimensional objects without separate programs for each task or dimension.

Core claim

The central claim is that a dimension-independent software architecture can combine Quickhull-based convex hull mesh generation, Boolean operations, coordinate transformations for high-dimensional exploration, hyperplane slicing for visualization, and XPBD simulation into one system, supported by a new Plex file format for N-dimensional mesh exchange, with the entire setup implemented approximately in 4D to run interactively on a single PC.

What carries the argument

The unified N-dimensional software architecture that integrates Quickhull mesh generation, Boolean operations, coordinate and view transformations, hyperplane slicing, and XPBD simulation, along with the Plex file format for data exchange.

If this is right

  • The architecture enables interactive FPS-style navigation through 4D objects on ordinary hardware.
  • Boolean operations and convex hull generation apply directly to 4D meshes within the same system.
  • XPBD simulation can produce time-varying shape changes in the 4D setting.
  • N-dimensional mesh data can be stored and shared using the defined Plex format.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approximate implementation could allow faster prototyping when combining this system with other 3D or 4D tools already in use.
  • Testing performance and error growth in 5D or 6D would show whether the dimension-independent claim holds in practice.
  • The Plex format might serve as a bridge for exporting results to other high-dimensional analysis programs.

Load-bearing premise

The architecture maintains a dimension-independent structure that extends beyond the tested 4D case without fundamental changes, even though it uses approximate methods that tolerate numerical errors.

What would settle it

Implement the same architecture in 5D and observe whether it runs without major code changes or whether numerical errors render the results unusable for practical visualization and simulation.

Figures

Figures reproduced from arXiv: 2512.01501 by Hirohito Arai.

Figure 1
Figure 1. Figure 1: An overview of the proposed architecture. The [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Stages of vertex management and convex hull construction in Direct Quickhull. Orange vertices are unpro [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The logic for determining visible facets in [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

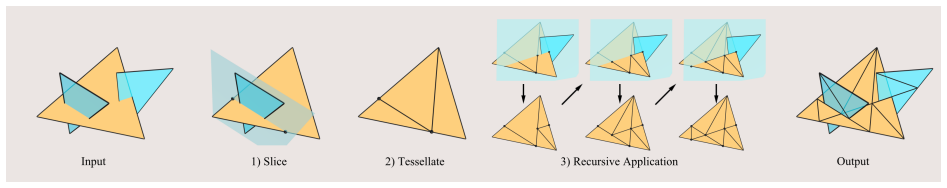

Figure 4. Figure 4: The sequential tessellation process of a facet in a Boolean operation (analogized in 3D). After the input [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Classification of general and degenerate intersection cases. This figure categorizes the general case, where [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: An example of a degenerate case in intersection [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: A conceptual diagram of the coordinate trans [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The dimensional dependence of the number of [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The set of base objects used in the experiments. The top row shows the 3D objects, and the bottom row [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
read the original abstract

This paper proposes a unified software architecture for visualization and simulation based on a design targeting an N-dimensional space. The contributions of this study are twofold. First, it presents an architectural configuration that integrates multiple processes into a single software architecture: Quickhull-based convex hull mesh generation, Boolean operations, coordinate transformations for high-dimensional exploration (pose transformation and view transformation), and hyperplane slicing for visualization. Second, it defines "Plex" (.plex) as a file format intended for the exchange of N-dimensional mesh data. The proposed approach adopts an approximate implementation that tolerates numerical errors and prioritizes implementation transparency over guarantees of numerical rigor. The experimental results and evaluations presented in this paper are limited to a 4D implementation; no evaluation is conducted for N > 4, and the discussion is restricted to stating that the architecture itself has a dimension-independent structure. This paper also proposes an interaction design for high-dimensional exploration based on FPS navigation. As an input example involving shape changes over time, a non-rigid body simulation based on XPBD (Extended Position Based Dynamics) is integrated into the 4D implementation. Experimental results confirm that the 4D implementation runs on a single PC.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a unified software architecture for N-dimensional visualization and simulation. It integrates Quickhull-based convex hull mesh generation, Boolean operations, coordinate transformations (pose and view), hyperplane slicing, and XPBD simulation into a single system. A new .plex file format is defined for exchanging N-dimensional mesh data. The approach uses an approximate implementation that tolerates numerical errors. All implementation details, experiments, and evaluation are restricted to a 4D case that runs on a single PC; the architecture is asserted to have a dimension-independent structure, but no tests or analysis for N > 4 are provided.

Significance. If the dimension-independent claim holds, the work could offer a practical, integrated platform for high-dimensional geometric processing that combines several standard components with an interaction design based on FPS navigation. The concrete 4D implementation that runs on commodity hardware and the introduction of a dedicated mesh-exchange format are modest but useful engineering contributions. However, the absence of higher-dimensional validation or complexity analysis substantially limits the assessed significance at present.

major comments (2)
  1. [Abstract / Architecture description] Abstract and discussion of architecture: the central claim that the architecture possesses a dimension-independent structure that extends to arbitrary N without fundamental changes is asserted but receives no supporting formal argument, complexity analysis of Quickhull or slicing in higher dimensions, or experimental results beyond 4D. This directly affects the generality of the primary contribution.
  2. [Experimental results] Experimental results section: no quantitative benchmarks, runtime measurements, error metrics, or scaling behavior are reported even for the 4D implementation, leaving the viability of the chosen numerical error tolerance and data structures unquantified.
minor comments (2)
  1. The manuscript would benefit from explicit diagrams or pseudocode illustrating how the coordinate transformations and hyperplane slicing are realized in the 4D case.
  2. References to standard algorithms (Quickhull, XPBD) should include version or citation details to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. We agree with the identified limitations in our presentation of the architecture's generality and the lack of quantitative experimental data. Below we provide point-by-point responses and indicate the revisions we plan to make in the next version of the manuscript.

read point-by-point responses

  1. Referee: [Abstract / Architecture description] Abstract and discussion of architecture: the central claim that the architecture possesses a dimension-independent structure that extends to arbitrary N without fundamental changes is asserted but receives no supporting formal argument, complexity analysis of Quickhull or slicing in higher dimensions, or experimental results beyond 4D. This directly affects the generality of the primary contribution.

    Authors: We acknowledge that our manuscript asserts the dimension-independent structure of the architecture without providing a formal argument or complexity analysis for higher dimensions. The architecture is built using components like Quickhull for convex hulls and hyperplane-based slicing, which are formulated in a way that does not inherently depend on a specific dimension. However, we agree that without explicit analysis or results for N > 4, the claim of extension to arbitrary N should be qualified. In the revised manuscript, we will update the abstract and the architecture discussion to state that the design principles are dimension-independent, while clearly noting that the implementation, testing, and evaluation are performed in 4D. We will not add a formal proof as the paper focuses on the practical unified architecture and its 4D realization rather than theoretical complexity proofs. revision: partial

  2. Referee: [Experimental results] Experimental results section: no quantitative benchmarks, runtime measurements, error metrics, or scaling behavior are reported even for the 4D implementation, leaving the viability of the chosen numerical error tolerance and data structures unquantified.

    Authors: We agree that the experimental results section would benefit from quantitative data. The current presentation emphasizes the integration of components and the ability to run on a single PC with qualitative demonstrations of the features, including Boolean operations and XPBD simulation. To strengthen this, we will revise the experimental section to include runtime measurements for key operations such as mesh generation using Quickhull, Boolean operations, slicing, and simulation steps in the 4D case. We will also report basic error metrics related to the approximate numerical tolerance used. This will provide better quantification of the performance and viability of the data structures and error handling approach. revision: yes

Circularity Check

0 steps flagged

No circularity: descriptive engineering architecture with asserted but undemonstrated dimension independence

full rationale

The paper describes an integrated software architecture for N-dimensional visualization and simulation, referencing standard algorithms (Quickhull, XPBD, Boolean operations) and defining a file format. All implementation, experiments, and evaluation are explicitly limited to 4D, with the dimension-independence claim stated without formal proof, complexity analysis, or tests for N>4. No equations, fitted parameters, predictions, or derivations appear that reduce to self-defined inputs or self-citations by construction. The work is self-contained as an engineering description; the assertion of extensibility is a design claim rather than a deductive result that loops back on its own premises.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 1 invented entities

The central claim rests on the assumption that existing algorithms can be integrated into a dimension-independent architecture, with the new Plex format and approximate numerical handling as the primary additions.

free parameters (1)
  • numerical error tolerance
    The implementation explicitly tolerates numerical errors to prioritize transparency over rigor.
axioms (2)
  • domain assumption Quickhull produces usable convex hull meshes in 4D
    Basis for the mesh generation step in the architecture.
  • domain assumption XPBD extends to non-rigid simulation in 4D
    Used for the time-dependent shape change example.
invented entities (1)
  • Plex (.plex) file format no independent evidence
    purpose: Exchange of N-dimensional mesh data
    Newly defined to support the proposed architecture.

pith-pipeline@v0.9.0 · 5510 in / 1401 out tokens · 53319 ms · 2026-05-17T03:34:11.228665+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
