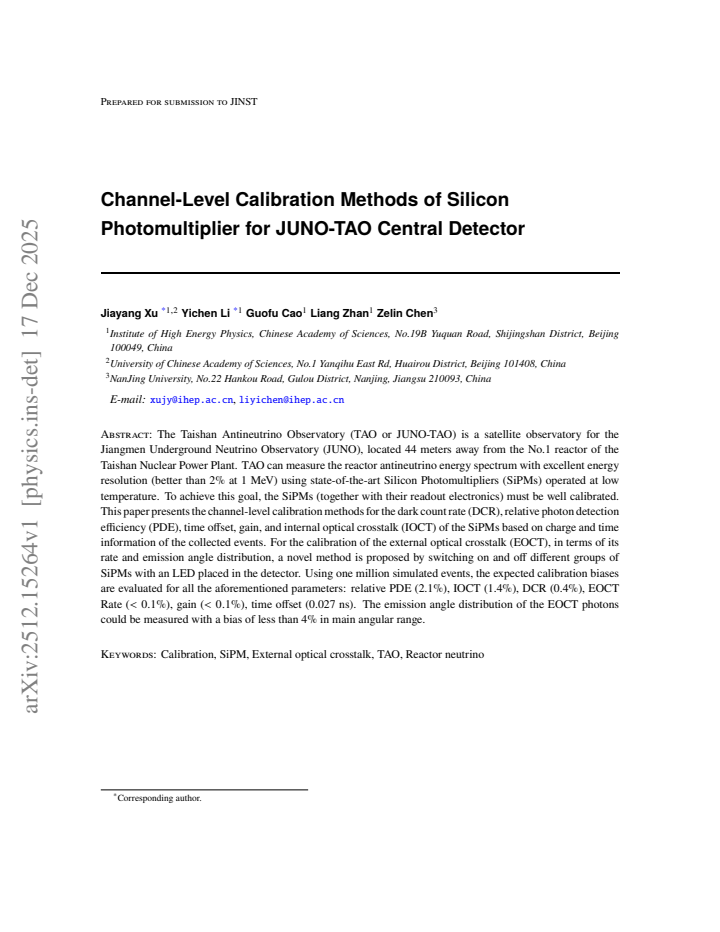

Calibration Methods of Silicon Photomultiplier for JUNO-TAO Central Detector

Jiayang Xu , Yichen Li , Zhan Liang , Guofu Cao , Zelin Chen This is my paper
