Comprehensive study of solar type II radio bursts and the properties of the associated shock waves

K. Bhandari , D. E. Morosan , S. Normo This is my paper

Pith reviewed 2026-05-16 20:10 UTC · model grok-4.3

classification 🌌 astro-ph.SR
keywords type II radio burstscoronal mass ejectionsshock wavescoronal streamerselectron accelerationMHD simulationssolar coronaAlfvén Mach number
0
0 comments X

The pith

Type II solar radio bursts form only where coronal mass ejections interact with streamers to create super-critical shocks

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines ten type II radio bursts from Solar Cycle 25 by locating their radio sources through imaging observations. These positions are combined with geometrical models of the expanding coronal mass ejection shock and magneto-hydrodynamic simulations of the surrounding corona to calculate the local shock strength and orientation. In every case the bursts appear near or inside coronal streamers, where the shocks reach Alfvén Mach numbers between 3.8 and 7.7 and most often strike the magnetic field at oblique angles. The authors conclude that these streamer-interaction zones supply the plasma conditions required for the shocks to become super-critical and accelerate electrons that produce the radio emission. Readers would care because the bursts mark the early phase of solar eruptions that can disturb the near-Earth space environment.

Core claim

For all ten events the type II bursts are located near or inside coronal streamers. The estimated shock speeds produce super-critical shocks with Alfvén Mach numbers 3.8 to 7.7 at the radio-source sites. In most events the geometry is oblique rather than near-perpendicular, showing that the shock structure is more complex at local scales than the spherical models usually applied to coronal mass ejection shocks. The results indicate that CME-streamer interaction regions are necessary for type II bursts because they furnish the plasma conditions that allow super-critical shocks and subsequent electron acceleration.

What carries the argument

Radio imaging positions of the type II sources, combined with geometrical fitting of the CME shock front and MHD simulations that supply the local plasma density and magnetic field, used to compute the Alfvén Mach number and the angle between the shock normal and the magnetic field at the acceleration sites.

If this is right

  • Type II bursts occur only in regions where coronal mass ejections interact with streamers.
  • These interactions produce super-critical shocks with Alfvén Mach numbers from 3.8 to 7.7.
  • Most shocks at the radio sites are oblique, not perpendicular, so local shock geometry is more complex than global spherical models assume.
  • Electron acceleration that generates the radio emission takes place inside these streamer-interaction zones.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same streamer-interaction requirement may help forecast which eruptions will produce observable type II bursts and associated particle events.
  • Higher-resolution radio imaging could test whether the acceleration sites lie precisely at the streamer boundaries or slightly offset.
  • Extending the analysis to events from earlier solar cycles would show whether the streamer condition is universal or cycle-dependent.

Load-bearing premise

The radio source positions mark the exact electron acceleration sites and the MHD simulations correctly reproduce the plasma density and magnetic field at those sites.

What would settle it

A single well-imaged type II burst whose source lies well outside any coronal streamer or whose modeled shock has an Alfvén Mach number below roughly 2 would falsify the claim that streamer interactions are required for super-critical shocks.

Figures

Figures reproduced from arXiv: 2512.21846 by D. E. Morosan, K. Bhandari, S. Normo.

Figure 1
Figure 1. Figure 1: Composite dynamic spectrum and radio source locations from 29 May 2024. Panel a: Low-frequency dynamic spectrum [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Herringbone burst. Panel a: Zoomed-in dynamic spectrum showing the herringbone structures, at 173 MHz (blue) and 150 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Density isosurface corresponding to the plasma frequency of 150 MHz har￾monic emission, overlaid with Alfvén speed (vA) values. Grey spheres of radius 1.2 R⊙ pro￾vide a visual reference for the height of the density isosurface. De-projected radio sources (coloured spheres), shock reconstruction (magenta wire mesh), and closed magnetic field lines (green) are overlaid on the density isosurface. The coordina… view at source ↗
Figure 4

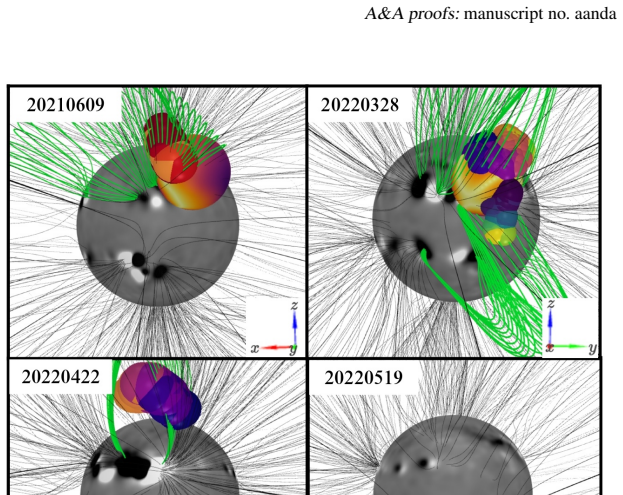

Figure 4. Figure 4: Shock reconstruction in 3D (when visible) for all ten events included in the study. The reconstruction is timed to coin￾cide with the onset of the type II radio burst or the earliest in￾stance at which the shock recon￾struction was possible. The time of the shock reconstruction for all the events is indicated as a solid vertical line in their respec￾tive spectrums in [PITH_FULL_IMAGE:figures/full_fig_p006… view at source ↗
read the original abstract

Type II radio bursts are solar radio emissions generated by electrons accelerated by coronal shocks. These bursts are typically found close to expanding coronal mass ejections (CMEs), making them valuable for studying the properties and dynamics of CME-driven shocks in the solar corona. Here, we aim to determine the regions in the solar corona where shock waves accelerate electrons and determine their characteristic properties. To do this, we combine radio observations of type II solar radio bursts with magneto-hydrodynamic (MHD) simulations of the solar corona. We analyse ten type II radio bursts from Solar Cycle 25 exhibiting emissions. The novelty of this study lies in using radio imaging data for all type II bursts to examine the positions of the radio sources. The radio source positions, combined with a geometrical fitting of the CME shock and the MHD simulations, are used to determine essential shock parameters at the acceleration region, such as the Alfv\'en Mach number $(M_{\rm A}$ and $\theta_{\rm BN}$. The shock parameters are then combined with the properties of the radio emission and the associated eruption in a comprehensive study. We found that for all events, the type II bursts are located near or inside coronal streamers. The estimated shock speeds are high, resulting in the formation of super-critical shocks ($3.8~\leq~M_{\rm A}~\leq~7.7$) at the type II locations. In most events, type II bursts are located at oblique shocks rather than near-perpendicular geometries, suggesting that the shock structure is more complex at local scales than the simple spherical shock models usually applied to CME shocks. Our results suggest that CME-streamer interaction regions are necessary for the generation of type II bursts, as they provide ideal plasma conditions for the formation of super-critical shocks and the subsequent acceleration of electrons.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript analyzes ten type II radio bursts from Solar Cycle 25, using radio imaging to locate emission sources, geometrically fitting the associated CME-driven shock surfaces, and extracting local Alfvén Mach numbers (MA) and shock-normal angles (θBN) from MHD simulations at those sites. All ten events are found near or inside coronal streamers, yielding super-critical shocks with 3.8 ≤ MA ≤ 7.7 and predominantly oblique geometries. The authors conclude that CME-streamer interaction regions are necessary to supply the plasma conditions for super-critical shocks and electron acceleration that produce type II bursts.

Significance. If the localization and parameter extraction hold, the work would strengthen the empirical link between specific coronal structures and efficient electron acceleration at CME shocks. The direct use of radio imaging for all events, rather than model-dependent assumptions, combined with MHD-derived local conditions, offers a clearer picture of why only certain fast CMEs generate type II emission and could inform models of particle acceleration in the corona.

major comments (2)
  1. [Abstract and Conclusions] The necessity claim in the abstract and conclusions—that streamer interactions are required for type II generation—rests on a positively selected sample of ten radio-loud events. No control sample of fast CMEs lacking type II emission is analyzed to test whether comparable MA values (3.8–7.7) can occur outside streamers, so the inference remains an extrapolation from correlation within the chosen events rather than a demonstration of necessity.
  2. [Methods and Results] The reported MA range and streamer association lack documented error propagation, uncertainty estimates on the radio-source positions, and explicit criteria for event selection or exclusion. Without these, it is unclear whether the consistency across all ten events or the oblique-shock statistics are robust to reasonable variations in the input data or fitting choices.
minor comments (1)
  1. [Abstract] The abstract contains the incomplete phrase 'exhibiting emissions,' which should be completed or rephrased for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review of our manuscript. We have carefully considered the major comments and will make revisions to address the concerns regarding the strength of our conclusions and the documentation of uncertainties.

read point-by-point responses

  1. Referee: [Abstract and Conclusions] The necessity claim in the abstract and conclusions—that streamer interactions are required for type II generation—rests on a positively selected sample of ten radio-loud events. No control sample of fast CMEs lacking type II emission is analyzed to test whether comparable MA values (3.8–7.7) can occur outside streamers, so the inference remains an extrapolation from correlation within the chosen events rather than a demonstration of necessity.

    Authors: We acknowledge that our sample is selected from events exhibiting type II radio bursts, and we did not include a control sample of fast CMEs without type II emission. The study focuses on characterizing the shock properties at the sites of type II emission using radio imaging and MHD simulations. In all ten cases, we find the emission originates near or within streamers with super-critical Mach numbers. While this supports the importance of streamer interactions, we agree that claiming 'necessity' may overstate the case without a control sample. In the revised manuscript, we will modify the abstract and conclusions to indicate that CME-streamer interaction regions provide favorable conditions for super-critical shocks and type II generation, based on the analyzed events, rather than asserting they are strictly necessary. We will also add a brief discussion of this limitation. revision: yes

  2. Referee: [Methods and Results] The reported MA range and streamer association lack documented error propagation, uncertainty estimates on the radio-source positions, and explicit criteria for event selection or exclusion. Without these, it is unclear whether the consistency across all ten events or the oblique-shock statistics are robust to reasonable variations in the input data or fitting choices.

    Authors: We agree that providing these details is essential for assessing the robustness of the results. In the revised manuscript, we will add a dedicated subsection in the Methods describing the event selection criteria, including the criteria for inclusion and any events that were excluded. We will also include uncertainty estimates on the radio source positions from the imaging data and propagate these uncertainties through the geometrical fitting and MHD parameter extraction to provide error bars on the MA and θBN values. This will allow readers to evaluate the significance of the reported ranges and statistics. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation uses independent observations and simulations

full rationale

The paper selects ten type II events, locates radio sources via imaging, fits a geometrical shock surface to the CME, and extracts MA and θBN from MHD simulations at those sites. All events lie near streamers with MA in 3.8–7.7, supporting an inference that streamer interactions supply conditions for supercritical shocks. This is an empirical correlation drawn from a positively selected sample; no step defines a quantity in terms of the conclusion, renames a fitted parameter as a prediction, or reduces the central claim to a self-citation chain. The necessity statement is an extrapolation, not a definitional or fitted tautology. The derivation chain remains self-contained against the input data and external MHD runs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced beyond standard solar MHD and radio emission physics; the work relies on established models of coronal streamers and shock geometry.

pith-pipeline@v0.9.0 · 5639 in / 1020 out tokens · 18854 ms · 2026-05-16T20:10:15.729529+00:00 · methodology
