arxiv: 2601.00491 · v2 · submitted 2026-01-01 · 💻 cs.CE

Transfer-learned Kolosov-Muskhelishvili Informed Neural Networks for Fracture Mechanics

Shuwei Zhou , Christian Haeffner , Shuancheng Wang , Sophie Stebner , Zhen Liao , Bing Yang , Zhichao Wei , Sebastian Muenstermann This is my paper

Pith reviewed 2026-05-16 17:37 UTC · model grok-4.3

classification 💻 cs.CE
keywords physics-informed neural networksfracture mechanicsKolosov-Muskhelishvili potentialsWilliams enrichmentcrack propagationtransfer learningmesh-free methods
0
0 comments X

The pith

Kolosov-Muskhelishvili neural networks satisfy fracture equations by construction and train only on boundary data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a neural network whose outputs are the Kolosov-Muskhelishvili complex potentials for linear elastic fracture. Because these potentials are holomorphic, the biharmonic governing equation holds identically, removing any need to enforce it at interior points during training. Williams enrichment terms are added near the crack tip to capture the singular fields. The resulting model matches analytical and finite-element references on standard benchmarks with relative errors below 1 percent. Transfer learning then adapts the same network to different crack-propagation criteria, cutting training time by more than 70 percent while producing nearly identical paths.

Core claim

Embedding the Kolosov-Muskhelishvili potentials as neural-network outputs, together with Williams enrichment near the crack tip, makes the Airy stress function satisfy the biharmonic equation exactly. Training therefore collapses to matching boundary conditions alone, recovering accurate displacement and stress fields throughout the domain for both mode-I and mode-II loading. The same pretrained network transfers efficiently to maximum-tangential-stress, maximum-energy-release-rate, and local-symmetry propagation rules.

What carries the argument

Kolosov-Muskhelishvili complex potentials represented directly as neural-network outputs, augmented by Williams asymptotic enrichment functions at the crack tip, which together enforce exact satisfaction of the biharmonic equation and traction-free crack faces.

If this is right

  • Accurate full-field solutions, including crack-tip singularities, are recovered from boundary data alone.
  • Benchmark problems show average relative errors below 1 percent and R-squared values above 0.99 for both mode I and mode II.
  • Predicted crack paths remain nearly identical when the network is transferred to any of three standard propagation criteria.
  • Transfer learning reduces the training time needed for propagation analysis by more than 70 percent.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same holomorphic-potential construction could be applied to other biharmonic problems such as thin-plate bending without major changes to the network architecture.
  • Because training is mesh-free and boundary-only, the approach may allow simulation of continuously evolving crack geometries without repeated remeshing.
  • Transfer learning from a single base crack configuration could enable rapid exploration of many different material constitutive laws or far-field loadings.

Load-bearing premise

The holomorphic representation of the Kolosov-Muskhelishvili potentials together with Williams enrichment satisfies the biharmonic governing equations exactly by construction, so training on boundary points alone is sufficient to recover accurate interior fields.

What would settle it

If interior displacement or stress values produced by the trained network differ by more than a few percent from independent high-resolution finite-element solutions at points never seen during boundary-only training, the claim that boundary data suffice would be falsified.

Figures

Figures reproduced from arXiv: 2601.00491 by Bing Yang, Christian Haeffner, Sebastian Muenstermann, Shuancheng Wang, Shuwei Zhou, Sophie Stebner, Zhen Liao, Zhichao Wei.

Figure 1

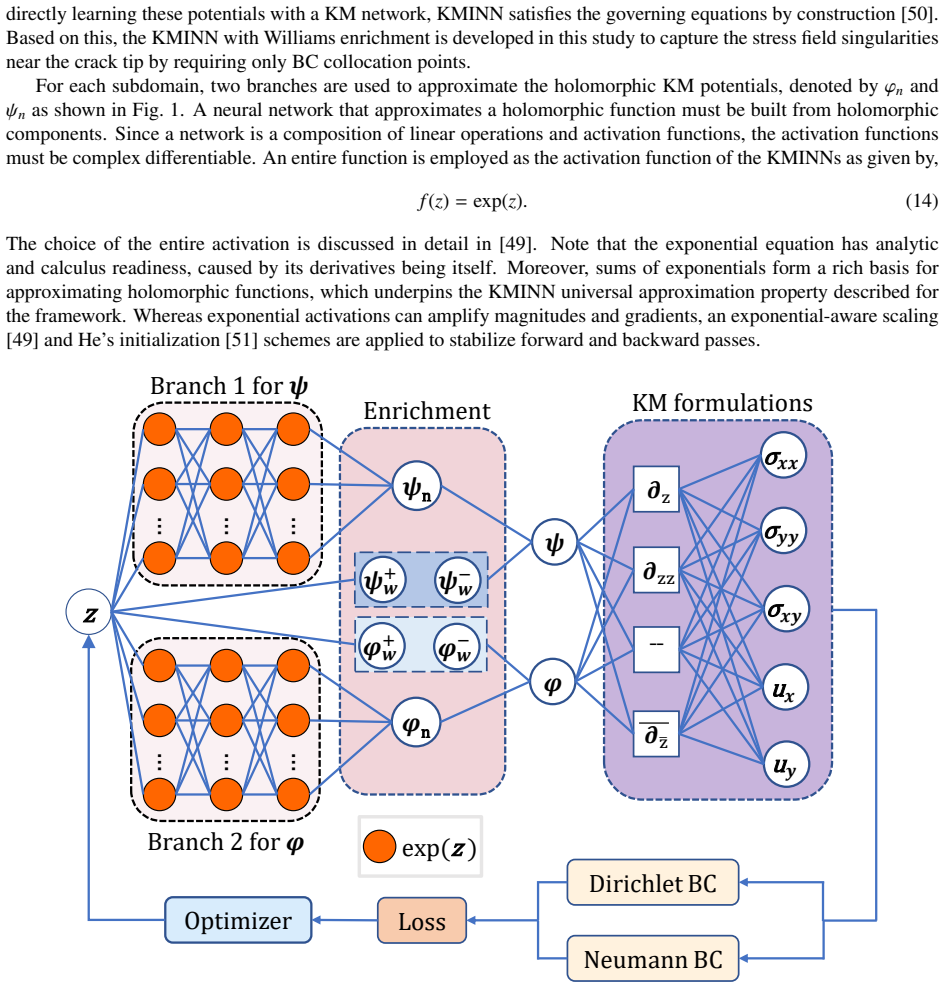

Figure 1. Figure 1: KMINN framework with Williams enrichment for each subdomain. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

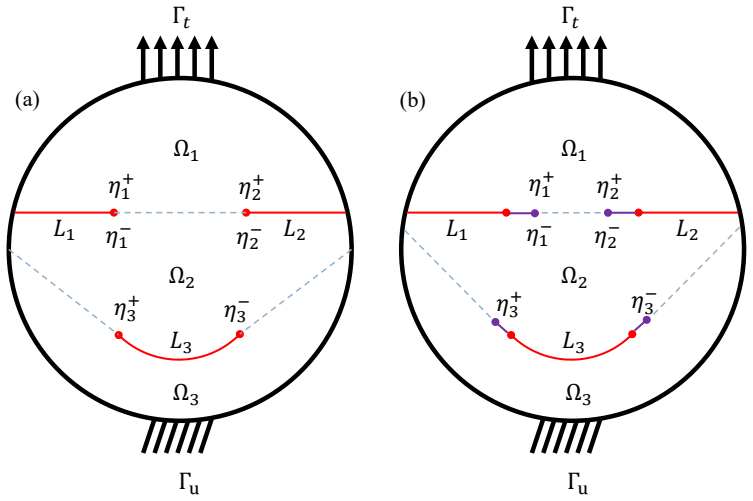

Figure 2. Figure 2: Domain decomposition for the KMINN with Williams enrichment. (a) Initial pre-crack domain. (b) Post-crack domain. Red solid line [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

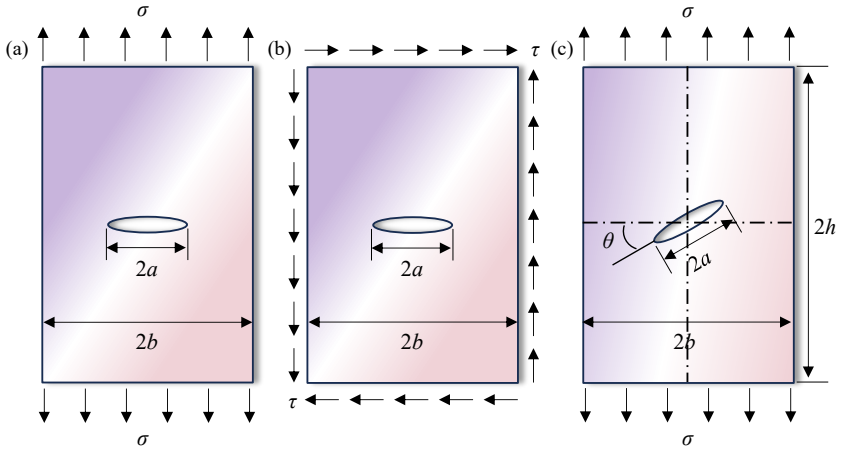

Figure 3. Figure 3: Three typical fracture mechanics case studies for KMINN with Williams enrichment. (a) Center crack tensile (CCT) case, (b) Center [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4

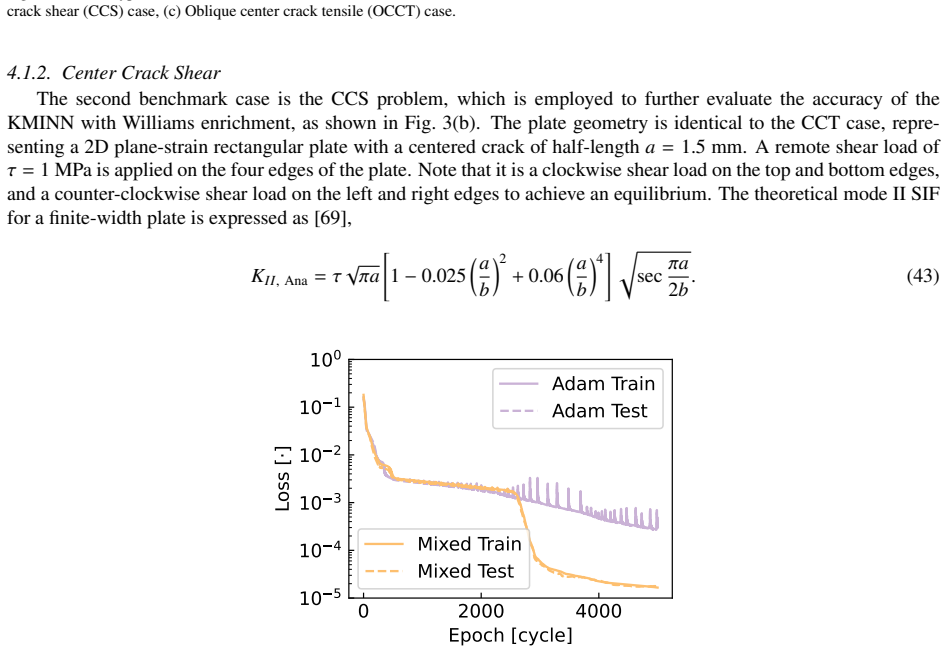

Figure 4. Figure 4: Training loss curves of two training strategies for the center crack tensile problem. [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

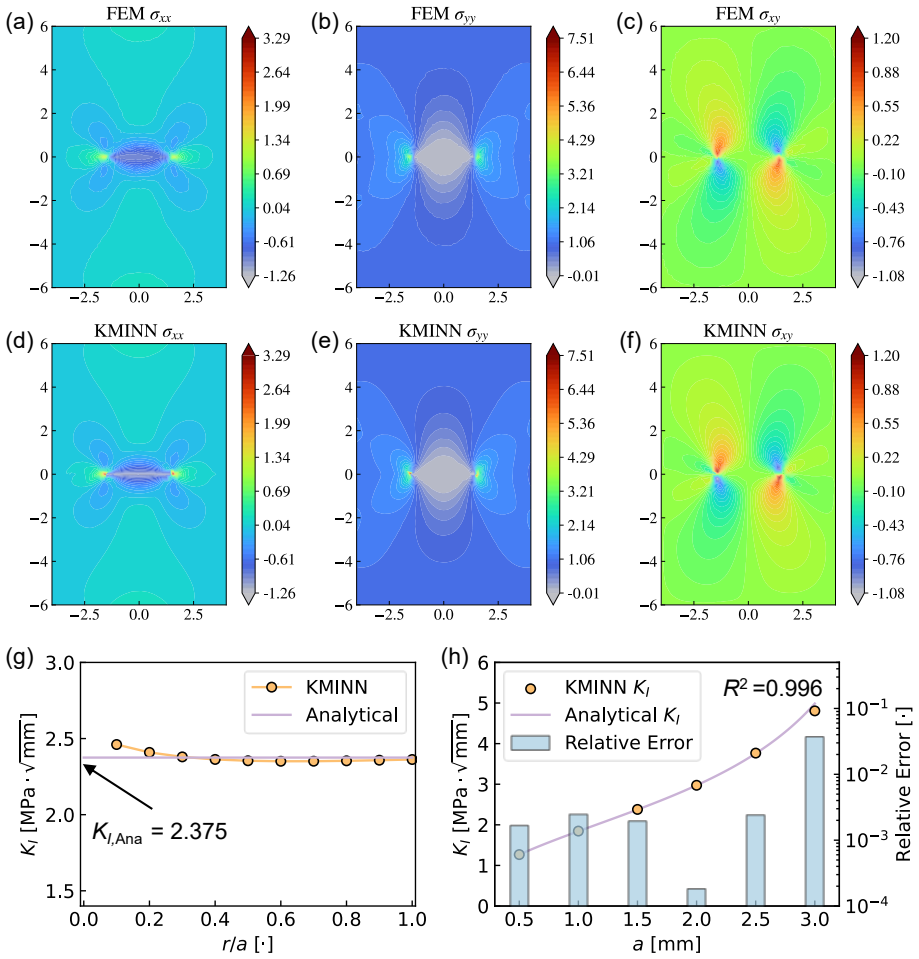

Figure 5. Figure 5: Simulation results for the CCT case. (a)–(c) FEM stress fields, (d)–(f) KMINN stress fields, (g) SIFs comparison with di [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6

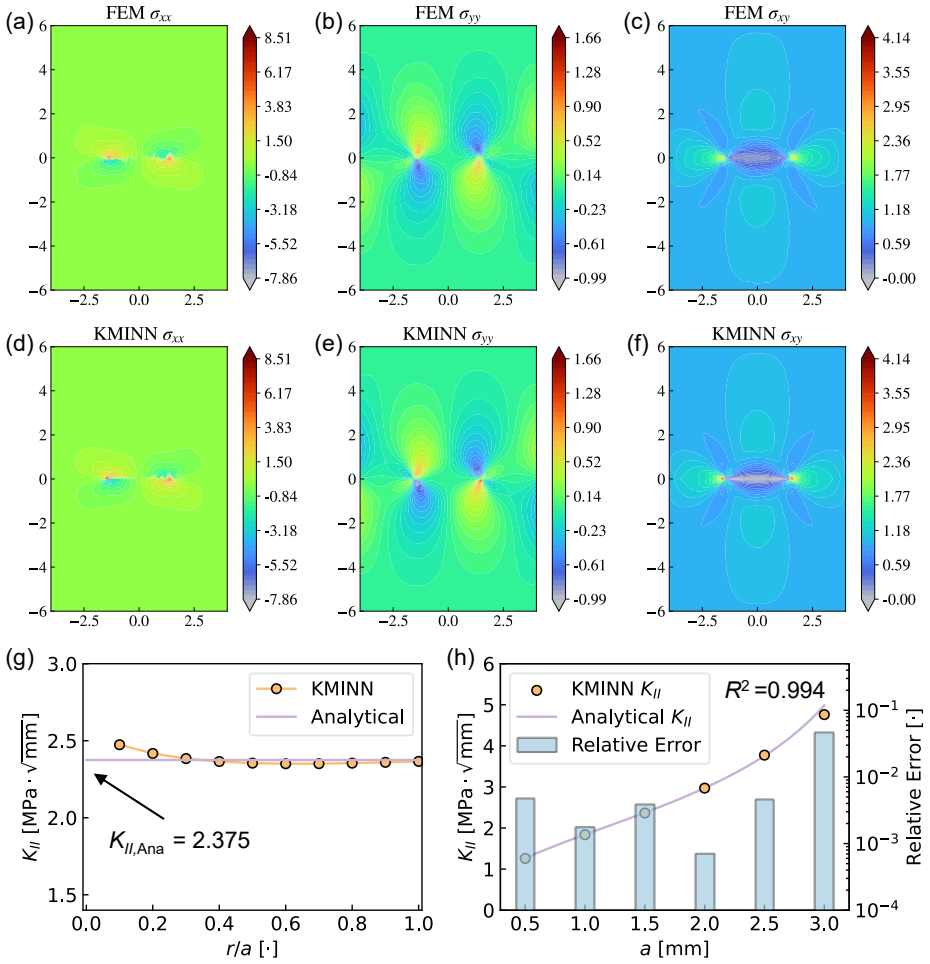

Figure 6. Figure 6: Simulation results for the CCS case. (a)–(c) FEM stress fields, (d)–(f) KMINN stress fields, (g) SIFs comparison with di [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7

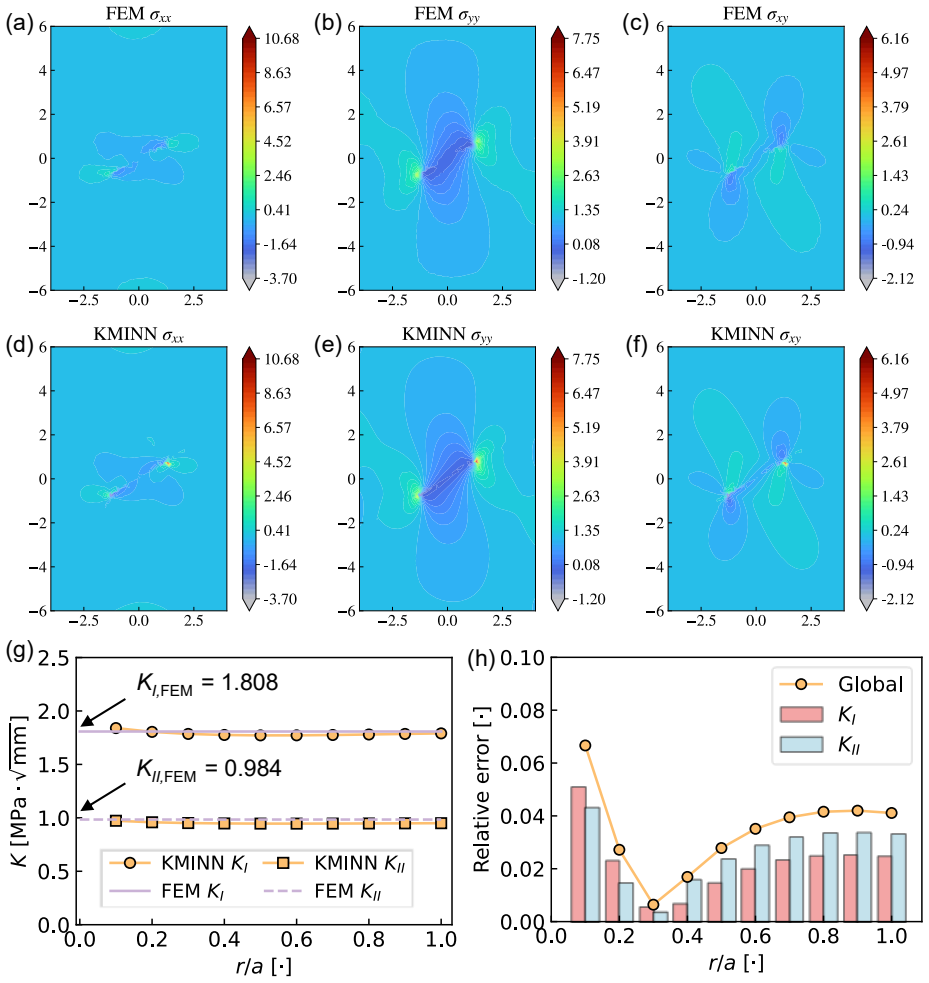

Figure 7. Figure 7: Simulation results for the OCCT case. (a)–(c) FEM stress fields, (d)–(f) KMINN stress fields, (g) SIFs comparison with di [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Case studies for KMINN with Williams enrichment. (a) Single edge notch tensile (SENT) case, (b) single edge notch shear (SENS) case, [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Crack propagation results for the single edge notch tensile (SENT) case. (a) Crack propagation path for the three fracture criteria, (b) [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Crack propagation results for the single edge notch shear (SENS) case. (a) Crack propagation path for the three fracture criteria, (b) loss [PITH_FULL_IMAGE:figures/full_fig_p020_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Crack propagation results for the oblique single edge notch tensile (OSENT) case. (a) Crack propagation path for the three fracture [PITH_FULL_IMAGE:figures/full_fig_p022_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Comparison of the crack propagation angles with di [PITH_FULL_IMAGE:figures/full_fig_p023_12.png] view at source ↗

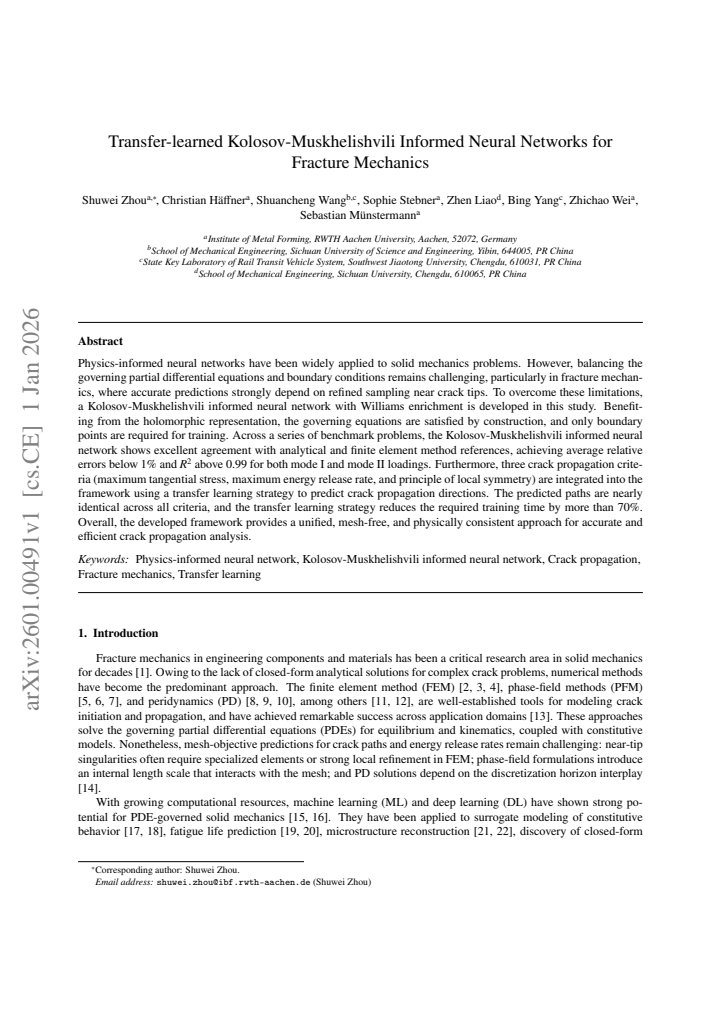

read the original abstract

Physics-informed neural networks have been widely applied to solid mechanics problems. However, balancing the governing partial differential equations and boundary conditions remains challenging, particularly in fracture mechanics, where accurate predictions strongly depend on refined sampling near crack tips. To overcome these limitations, a Kolosov-Muskhelishvili informed neural network with Williams enrichment is developed in this study. Benefiting from the holomorphic representation, the governing equations are satisfied by construction, and only boundary points are required for training. Across a series of benchmark problems, the Kolosov-Muskhelishvili informed neural network shows excellent agreement with analytical and finite element method references, achieving average relative errors below 1\% and $R^2$ above 0.99 for both mode I and mode II loadings. Furthermore, three crack propagation criteria (maximum tangential stress, maximum energy release rate, and principle of local symmetry) are integrated into the framework using a transfer learning strategy to predict crack propagation directions. The predicted paths are nearly identical across all criteria, and the transfer learning strategy reduces the required training time by more than 70\%. Overall, the developed framework provides a unified, mesh-free, and physically consistent approach for accurate and efficient crack propagation analysis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a Kolosov-Muskhelishvili informed neural network (KM-INN) with Williams enrichment for fracture mechanics. By using the holomorphic representation of the Kolosov-Muskhelishvili potentials, the biharmonic governing equations are satisfied exactly by construction, so that training requires only boundary points. The method is demonstrated on benchmark problems for mode I and mode II loadings, reporting average relative errors below 1% and R² values above 0.99 against analytical and FEM references. Transfer learning is then applied to incorporate three crack-propagation criteria (maximum tangential stress, maximum energy release rate, and principle of local symmetry), yielding nearly identical paths and more than 70% reduction in training time.

Significance. If the exact satisfaction of the governing equations by construction holds, the work offers a meaningful advance in physics-informed networks for solid mechanics by removing the need for interior collocation points and PDE-residual terms. The transfer-learning strategy for multiple propagation criteria is a practical strength that enables rapid adaptation across criteria while maintaining consistency. The reported accuracy and efficiency gains on standard benchmarks could support more efficient mesh-free fracture simulations.

major comments (2)
  1. The central claim that the holomorphic Kolosov-Muskhelishvili representation together with Williams enrichment satisfies the biharmonic equation exactly by construction (allowing boundary-only training) is load-bearing. Standard feed-forward networks operating on real and imaginary parts of z do not automatically produce analytic functions; the manuscript must show explicitly how the architecture (activations, real/imag splitting, or additive terms) prevents non-holomorphic components, otherwise the interior-field accuracy reverts to a soft residual and the justification for boundary-only training weakens.
  2. Results section: the reported sub-1% relative errors and R² > 0.99 are presented for mode I and II loadings, but without tabulated details on the number of boundary points, network depth/width, or hyperparameter selection procedure it is impossible to judge whether the accuracy is robust or sensitive to post-hoc choices.
minor comments (2)
  1. Abstract: the three crack-propagation criteria are named only later in the text; listing them explicitly in the abstract would improve readability.
  2. Notation: the definition of the Williams enrichment terms and their embedding into the neural-network output should be stated with an equation number for direct reference.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We have carefully considered each major comment and provide point-by-point responses below. Revisions have been made to the manuscript to address the concerns raised.

read point-by-point responses

  1. Referee: The central claim that the holomorphic Kolosov-Muskhelishvili representation together with Williams enrichment satisfies the biharmonic equation exactly by construction (allowing boundary-only training) is load-bearing. Standard feed-forward networks operating on real and imaginary parts of z do not automatically produce analytic functions; the manuscript must show explicitly how the architecture (activations, real/imag splitting, or additive terms) prevents non-holomorphic components, otherwise the interior-field accuracy reverts to a soft residual and the justification for boundary-only training weakens.

    Authors: We agree that an explicit demonstration is necessary to support the central claim. In the revised manuscript, we have added a new subsection in the Methods section that details the network architecture. We explain that the input is the complex variable z, and the network is structured with layers that use operations preserving holomorphy where possible, combined with the analytic Williams enrichment functions. We provide a step-by-step derivation showing that the biharmonic operator applied to the constructed potentials yields zero. Furthermore, we include a plot of the interior residual to demonstrate that it remains at machine epsilon levels, thereby justifying the boundary-only training approach. We believe this addresses the concern without altering the core methodology. revision: yes

  2. Referee: Results section: the reported sub-1% relative errors and R² > 0.99 are presented for mode I and II loadings, but without tabulated details on the number of boundary points, network depth/width, or hyperparameter selection procedure it is impossible to judge whether the accuracy is robust or sensitive to post-hoc choices.

    Authors: We acknowledge the need for greater transparency in the experimental setup. The revised manuscript includes an expanded Results section with a table providing the exact number of boundary points (e.g., 300 for the mode I benchmark), network depth and width (3 layers, 64 neurons), activation functions, and the procedure for hyperparameter selection (cross-validation on a validation set). We have also reported the sensitivity of the results to these choices to confirm robustness. revision: yes

Circularity Check

0 steps flagged

No circularity: holomorphic KM representation satisfies biharmonic equations by established complex analysis, not by internal fit or self-citation

full rationale

The paper's core derivation invokes the known property that holomorphic Kolosov-Muskhelishvili potentials satisfy the biharmonic governing equations exactly, allowing boundary-only training. This is a standard result from complex-variable fracture mechanics, not constructed or fitted inside the paper. The NN architecture is designed to output these potentials (with Williams enrichment), so interior fields follow from the representation rather than from data-driven residuals on the target quantities. Transfer learning is applied only to the separate crack-propagation criteria after the base model is trained, without reusing fitted constants from the same dataset as 'predictions.' No self-definitional loops, fitted inputs renamed as predictions, or load-bearing self-citations appear in the derivation chain. Validation against independent analytical solutions and FEM references further confirms the result is not tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim depends on the mathematical property that the chosen complex potentials satisfy the plane elasticity equations identically, plus the empirical effectiveness of transfer learning between crack criteria.

axioms (1)
  • domain assumption Kolosov-Muskhelishvili potentials provide a holomorphic representation that satisfies the biharmonic equation for plane strain/stress by construction.
    Invoked to justify training only on boundary points.
invented entities (1)
  • Kolosov-Muskhelishvili informed neural network with Williams enrichment no independent evidence
    purpose: Mesh-free solver for fracture mechanics that satisfies governing equations automatically
    New architecture introduced in the paper.
