Optimizing Control-Friendly Trajectories with Self-Supervised Residual Learning

Kexin Guo , Zihan Yang , Yuhang Liu , Jindou Jia , Xiang Yu This is my paper

Pith reviewed 2026-05-16 17:41 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords residual learningself-supervised learningtrajectory optimizationhybrid dynamicsquadrotor controlagile flightclosed-loop effects
0
0 comments X

The pith

Self-supervised residual learning from trajectories enables optimizers to generate aggressive motions that controllers track precisely.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a framework that learns unknown closed-loop dynamic effects as additive residuals on nominal models, using only trajectory-level data in a self-supervised way that supplies analytic gradients. This hybrid model supports accurate long-horizon predictions at any integration step size. A trajectory optimizer then minimizes the size of these residuals along candidate paths, producing reference trajectories that are friendly to the downstream controller. The approach is shown on quadrotor agile flight where the resulting motions remain aggressive yet accurately executable. A reader would care because real robotic physics is always imperfect, and this method bridges the gap without requiring complete analytical models.

Core claim

By treating learned residuals as part of a hybrid dynamics model and optimizing trajectories to minimize residual effects along the path, the method produces aggressive reference trajectories that the closed-loop controller can track precisely, as illustrated by quadrotor experiments.

What carries the argument

The hybrid dynamics formed by nominal equations plus self-supervised residual terms, which the trajectory optimizer uses to minimize residual physics.

If this is right

  • Aggressive trajectories can be planned while respecting real closed-loop behavior.
  • Long-horizon predictions stay accurate with arbitrary integration step sizes.
  • Unknown dynamic effects are captured from trajectory data without full analytical modeling.
  • Direct minimization of residuals in planning improves downstream tracking performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same residual-minimization step could be applied to other underactuated platforms where model mismatch limits speed.
  • Periodic re-learning of residuals would allow the planner to adapt when conditions such as payload or wind change.
  • The method may reduce reliance on conservative safety margins in high-speed robotic motion planning.

Load-bearing premise

Residuals learned self-supervised from trajectory data accurately capture unknown closed-loop effects, and minimizing them in optimization improves tracking without creating new instabilities.

What would settle it

If trajectories optimized under the hybrid model are tracked with larger error than trajectories optimized under the nominal model alone, the claimed benefit would be falsified.

Figures

Figures reproduced from arXiv: 2601.02738 by Jindou Jia, Kexin Guo, Xiang Yu, Yuhang Liu, Zihan Yang.

Figure 1
Figure 1. Figure 1: The schematic of the quadrotor system with the definitions of the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The proposed hybrid model. Given an open-loop dynamics and a [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Trajectory tracking results of the proposed trajectory optimization and the compared methods. Using a nominal MPC for trajectory tracking, the [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Trajectories generated with random waypoints for aerodynamic drag [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Learning curves of 5 trials with random initial guesses around zero [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

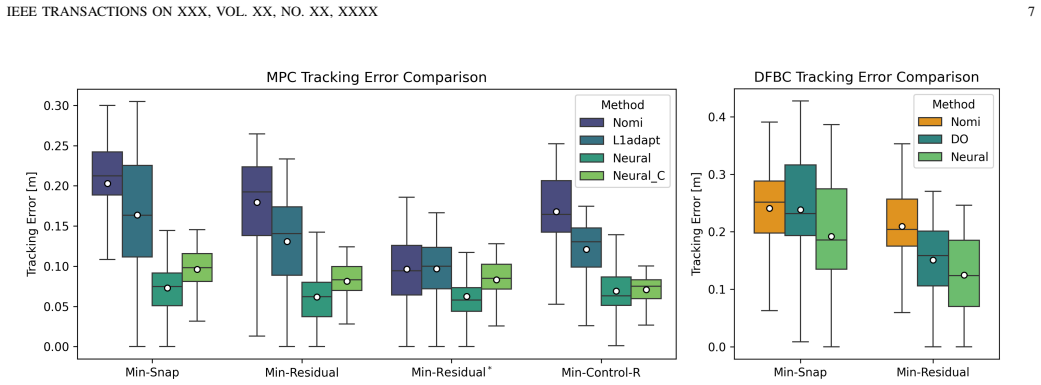

Figure 6. Figure 6: Positional tracking error of the MPC and DFBC controllers with different trajectories. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Comparison on the time cost of different trajectory optimization [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8

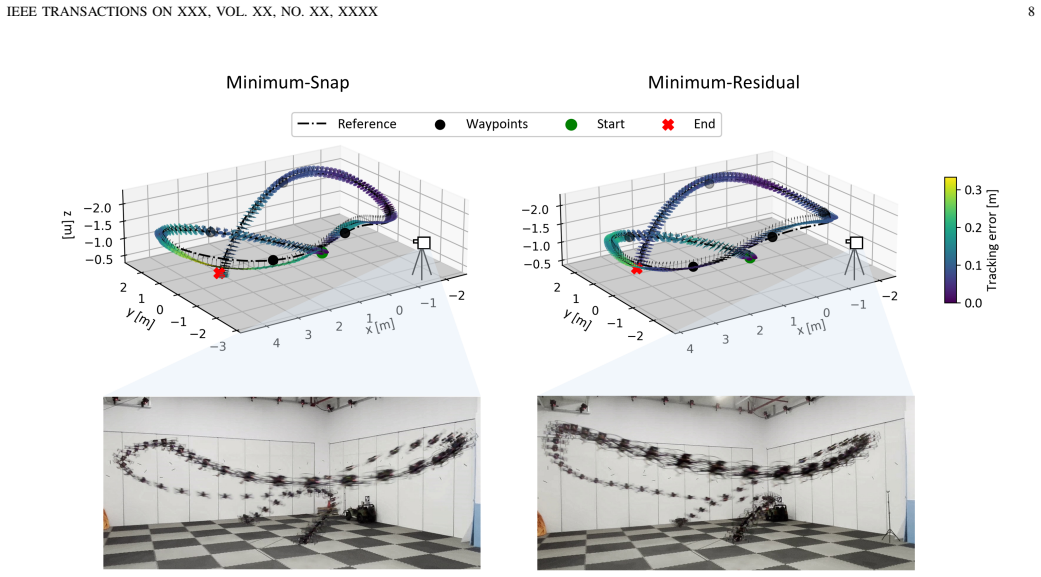

Figure 8. Figure 8: Trajectories optimized using minimum-snap and minimum-residual objectives together with the camera view of the real-world flight. Tracking control [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The real-world positional tracking error of the DFBC controllers with [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Real-world physics can only be analytically modeled with a certain level of precision for modern intricate robotic systems. As a result, tracking aggressive trajectories accurately could be challenging due to the existence of residual physics during controller synthesis. This paper presents a self-supervised residual learning and trajectory optimization framework to address the aforementioned challenges. At first, unknown dynamic effects on the closed-loop model are learned and treated as residuals of the nominal dynamics, jointly forming a hybrid model. We show that learning with analytic gradients can be achieved using only trajectory-level data while enjoying accurate long-horizon prediction with an arbitrary integration step size. Subsequently, a trajectory optimizer is developed to compute the optimal reference trajectory with the residual physics along it minimized. It ends up with trajectories that are friendly to the following control level. The agile flight of quadrotors illustrates that by utilizing the hybrid dynamics, the proposed optimizer outputs aggressive motions that can be precisely tracked.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper proposes a self-supervised residual learning framework that augments a nominal dynamics model with learned residuals to form a hybrid model. Residuals are trained from trajectory-level data using analytic gradients to enable accurate long-horizon prediction at arbitrary step sizes. A trajectory optimizer then minimizes the residual effects along candidate paths, producing reference trajectories that are claimed to be more control-friendly. The approach is illustrated on quadrotor agile flight, where the hybrid model is said to enable aggressive motions that can be precisely tracked.

Significance. If the generalization and closed-loop claims hold, the method offers a practical route to trajectory optimization under unmodeled dynamics without requiring full analytic models or extensive system identification. The self-supervised training from trajectory data and analytic-gradient learning are strengths that could transfer to other robotic platforms.

major comments (2)
  1. [Abstract] Abstract: the central claim that 'by utilizing the hybrid dynamics, the proposed optimizer outputs aggressive motions that can be precisely tracked' is unsupported by any quantitative tracking-error metrics, baseline comparisons, or closed-loop validation results in the provided text; without these, the improvement over nominal-model optimization cannot be assessed.
  2. [Method (hybrid model and optimizer)] The framework assumes residuals learned self-supervised from collected trajectories generalize to the new, more aggressive optimizer-generated paths; no out-of-distribution testing, cross-validation on held-out aggressive maneuvers, or stability analysis under the hybrid model is described, leaving the weakest assumption unaddressed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and will revise the manuscript to incorporate additional quantitative support and validation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'by utilizing the hybrid dynamics, the proposed optimizer outputs aggressive motions that can be precisely tracked' is unsupported by any quantitative tracking-error metrics, baseline comparisons, or closed-loop validation results in the provided text; without these, the improvement over nominal-model optimization cannot be assessed.

    Authors: We agree that the abstract claim would be stronger with explicit quantitative backing. The manuscript presents closed-loop simulation and hardware results on quadrotors demonstrating reduced tracking errors for hybrid-model trajectories versus nominal-model baselines. We will revise the abstract to reference these metrics (e.g., average tracking error reductions) and clarify the baseline comparisons, ensuring the central claim is directly supported. revision: yes

  2. Referee: [Method (hybrid model and optimizer)] The framework assumes residuals learned self-supervised from collected trajectories generalize to the new, more aggressive optimizer-generated paths; no out-of-distribution testing, cross-validation on held-out aggressive maneuvers, or stability analysis under the hybrid model is described, leaving the weakest assumption unaddressed.

    Authors: The training data includes a range of aggressive maneuvers to support generalization of the residuals. We acknowledge that dedicated out-of-distribution testing and stability analysis are not explicitly presented. In the revision we will add cross-validation results on held-out aggressive trajectories and a short discussion of stability properties of the hybrid dynamics to address this directly. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper describes learning residuals self-supervised from trajectory-level data to form a hybrid dynamics model, followed by separate trajectory optimization that minimizes the residual term along candidate paths. This does not reduce any prediction or result to its inputs by construction: the residual function is fitted to observed data, and the optimizer searches over new trajectories using that fixed learned function. No equations, self-citations, or uniqueness claims are provided that would create a definitional loop or fitted-input-as-prediction pattern. The central claim therefore rests on empirical generalization rather than tautological equivalence.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the nominal dynamics serving as a usable base and the learned residuals being sufficient to improve optimization and tracking; no free parameters or invented entities are explicitly quantified in the abstract.

axioms (1)
  • domain assumption A nominal analytic dynamics model exists and is accurate enough to serve as the base for learning residuals
    The paper states that unknown effects are treated as residuals of the nominal dynamics.
invented entities (1)
  • Hybrid model of nominal plus residual dynamics no independent evidence
    purpose: To enable accurate long-horizon prediction and residual-minimizing trajectory optimization
    Formed jointly from learned residuals and nominal model as described in the abstract.
