arxiv: 2601.02816 · v2 · submitted 2026-01-06 · 🌌 astro-ph.CO

Nonlinear Weak Lensing reconstruction for Galaxy Clusters

Yuan Shi , Li Cui This is my paper

Pith reviewed 2026-05-16 17:38 UTC · model grok-4.3

classification 🌌 astro-ph.CO

keywords weak lensinggalaxy clustersmass reconstructionnonlinear regimereduced shearconvergence mappingKaiser-Squires

0 comments

The pith

A modified reconstruction framework recovers accurate cluster masses from weak lensing even in nonlinear core regions where reduced shear is large.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests how to map the total mass of galaxy clusters from weak gravitational lensing data once measurements reach close to the cluster center. Standard linear methods become unstable there because convergence is no longer near zero. The authors replace the usual zero starting value with a model-derived analytical guess and apply smooth masks to the worst-affected zones. In noise-free simulations the best version of their method produces mass maps whose residuals stay below 0.02 sigma across the unmasked area. This matters because cluster masses are a key observable for dark-matter studies and cosmology, and reliable maps farther inward tighten those measurements.

Core claim

What carries the argument

The nonlinear reconstruction framework that applies smooth masks to high-shear core regions and initializes convergence from a model-derived analytical solution rather than zero.

If this is right

Mass maps can be produced reliably inside cluster cores where reduced shear is large.
Residuals stay below 0.02 sigma in unmasked regions when shape noise is absent.
The method extends usable weak-lensing reconstruction deeper into the nonlinear regime.
Validation on simulated clusters with known true masses confirms the approach works with realistic masks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Applying the same framework to real survey data could tighten cosmological constraints derived from cluster abundances.
Hybrid reconstructions that combine this weak-lensing output with strong-lensing constraints near the very center become feasible.
Adding realistic shape noise to the simulations would reveal how much the reported accuracy degrades under actual observing conditions.
The method may generalize to other nonlinear lensing problems such as mapping substructure within clusters.

Load-bearing premise

A model-derived analytical solution supplies an initial guess accurate enough to converge to the true nonlinear mass distribution and the smooth masks do not systematically bias the retained regions.

What would settle it

Reconstruct the mass map of a real observed cluster with the framework and compare the resulting radial mass profile against an independent strong-lensing or X-ray measurement to check whether residuals remain below 0.02 sigma in the unmasked area.

Figures

Figures reproduced from arXiv: 2601.02816 by Li Cui, Yuan Shi.

**Figure 1.** Figure 1: The combination of different initializations and mask functions yields five configurations, which we summarize in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

**Figure 2.** Figure 2: Comparison of reconstructed convergence maps for the toy model. Top panels: True convergence 𝜅true, the binary mask with 𝑔th = 0.4 and masked reduced shear 𝑔 m. Middle panels: Normalized residual 𝜎 (Eq. 16) for KS-based methods K1 and K2 at first and fifth iterations. Lower panels: Same as middle panels but for AKRA-based methods A1 and A2. The blue dashed box indicates the region where the mean 𝜎 is compu… view at source ↗

**Figure 3.** Figure 3: Reconstructed convergence maps for the B23 model. Top panels: True convergence map, binary mask with 𝑔th = 0.5, and the masked reduced shear 𝑔 m. Middle and lower panels: Normalized residuals for KS-based and AKRA-based methods, respectively. optimal point and introduce additional bias. This behavior is shown in Appendix A. 3.2.2. B23 model We now turn to a more realistic case based on the B23 model. Guide… view at source ↗

**Figure 4.** Figure 4: Iterative reconstruction results under different masking schemes. Top panels: A3 with smooth mask (𝑔th = 0.5, 𝑔∗ = 0.3) and normalized residuals. Middle panels: A2 with binary mask (𝑔th = 0.8) and normalized residuals. Bottom panels: A3 with smooth mask (𝑔th = 0.8, 𝑔∗ = 0.6) and normalized residuals. In this work, we adopt relatively simple and reasonable forms for the initial guess and smooth mask functio… view at source ↗

**Figure 5.** Figure 5: Normalized residual maps at iterations 1–5 and 10 for the toy model. Rows from top to bottom correspond to methods K1, K2, A1, and A2. Mean 𝜎 values within the evaluation region are indicated in each panel. m( ), gth = 0:50 Mean ¾: 0.222 K1 (i = 1) Mean ¾: 0.202 K1 (i = 2) Mean ¾: 0.135 K1 (i = 3) Mean ¾: 0.142 K1 (i = 4) Mean ¾: 0.171 K1 (i = 5) Mean ¾: 0.815 K1 (i = 10) 0.00 0.25 0.50 0.75 1.00 0.00 0.25… view at source ↗

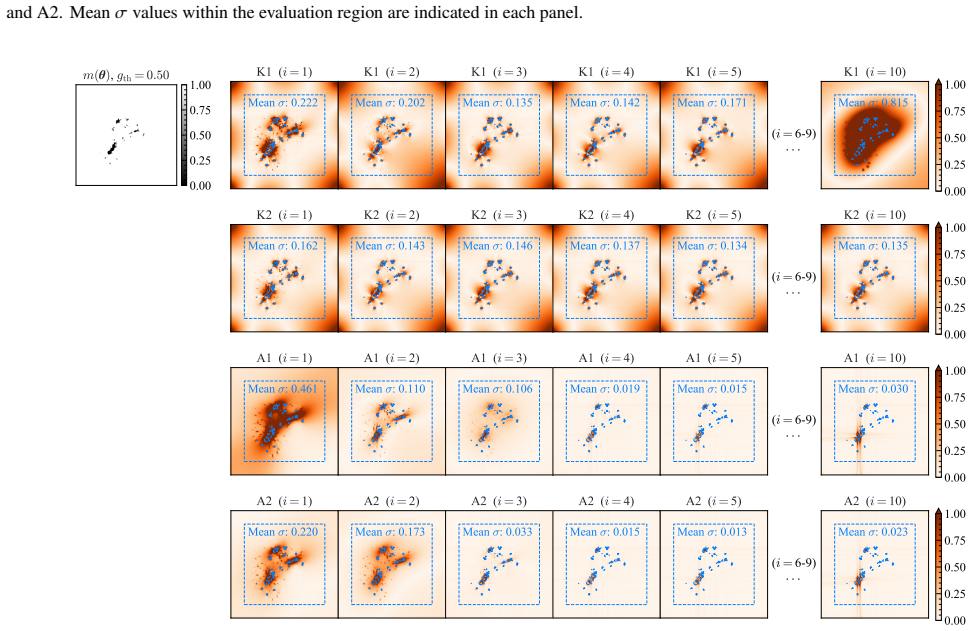

**Figure 6.** Figure 6: Normalized residual maps at iterations 1–5 and 10 for the B23 model. The panel layout and labeling follow the same convention as in [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

read the original abstract

We present a numerical investigation of nonlinear cluster lens reconstruction using weak lensing mass mapping. Recent advances in imaging and shear estimation have pushed reliable reduced shear measurements closer to cluster cores, making mass reconstruction accessible in the nonlinear regime. However, the Kaiser-Squires based algorithm becomes unstable in cluster cores, where convergence $\kappa$ significantly deviates from zero and the linear approximation breaks down. To address this limitation, we develop a reconstruction framework with two key modifications: applying smooth masks to these regions and using a model-derived analytical solution as the initial guess, rather than assuming $\kappa = 0$. We validate our framework using simulated cluster lensing data with known mass distributions, incorporating realistic masks that arise from limitations in reduced shear measurements. We show that in the absence of shape noise, our framework yields high-fidelity mass reconstruction in regions of large reduced shear, with the best-performing method achieving residuals below $0.02 \sigma$ in the unmasked regions. This pushes mass reconstruction to higher accuracy in the nonlinear regime.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper tweaks Kaiser-Squires with smooth masks on high-shear zones and a model-based initial guess to reach low residuals in noiseless cluster simulations, but the gains rest on an untested starting point and skip shape noise entirely.

read the letter

The paper's key move is to stabilize the Kaiser-Squires inversion in the nonlinear regime by applying smooth masks to regions of large reduced shear and initializing the iteration with an analytical solution drawn from a mass model instead of starting at zero. On simulated cluster data with known truth, this yields residuals below 0.02 sigma in the unmasked parts when shape noise is absent. What stands out is the clear demonstration that the standard linear method breaks down near cluster centers and that these two adjustments can recover high-fidelity maps under ideal conditions. The use of realistic masks from measurement limitations and the focus on high-shear zones makes the test relevant to actual cluster observations. The results are presented directly against the ground truth, which keeps the evaluation straightforward. The soft spots are the missing pieces around realism and robustness. There are no tests that include shape noise, so the performance drop in realistic data remains unknown. The initial guess comes from a model, yet the paper does not measure how close that guess is to the true convergence map or run trials where the model parameters are offset from the simulation truth. Without that, it is unclear whether the iteration reliably finds the correct solution or if success depends on the guess already being close enough. The stress-test note on convergence is fair based on the abstract and available details. This work is for specialists in weak lensing mass mapping who are already dealing with cluster cores and want to extend beyond the linear limit. A general cosmologist or observer might find it too narrow without the noise handling. The citation pattern is standard for the field, and the simulation approach avoids circularity by using independent truth. I would bring this to the next reading group as a case study in incremental method improvements. It deserves serious peer review because the modifications are simple to code and the ideal-case evidence is clean, though referees will likely ask for noise tests and initial-guess sensitivity checks.

Referee Report

2 major / 1 minor

Summary. The paper presents a numerical investigation of nonlinear weak lensing mass reconstruction for galaxy clusters. It modifies the Kaiser-Squires algorithm by applying smooth masks to high-convergence core regions and initializing the iteration with a model-derived analytical solution rather than κ=0. Validation on simulated cluster data with known mass distributions shows that, in the absence of shape noise, the best-performing variant achieves residuals below 0.02σ in unmasked regions.

Significance. If the approach proves robust under realistic noise, it would address a longstanding limitation in cluster lensing by enabling reliable mass mapping where reduced shear is large and the linear approximation fails. The combination of smooth masking and informed initialization is a targeted, practical modification that could improve accuracy for cosmological applications relying on cluster masses.

major comments (2)

[Abstract] Abstract: the central claim of 'high-fidelity mass reconstruction' with residuals below 0.02σ is demonstrated only in the complete absence of shape noise. No quantitative error analysis, multiple noise realizations, or tests with realistic shape noise are reported, so the result does not yet support the claim for practical data.
[Validation] Validation procedure: the iteration begins from a model-derived analytical solution whose distance to the true simulated mass map is not quantified. No experiments are described in which the NFW parameters of the initial guess are deliberately offset from the simulation truth; without such tests it remains unclear whether the reported convergence is due to the reconstruction method itself or to the quality of the starting point.

minor comments (1)

[Abstract] The abstract would be clearer if it stated the number of simulated clusters, the range of redshifts and masses, and the exact functional form of the smooth masks.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments. We agree that the noise-free nature of the results should be emphasized more clearly and that the sensitivity of the method to the initial guess requires additional quantification and testing. We will revise the manuscript to address both points.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim of 'high-fidelity mass reconstruction' with residuals below 0.02σ is demonstrated only in the complete absence of shape noise. No quantitative error analysis, multiple noise realizations, or tests with realistic shape noise are reported, so the result does not yet support the claim for practical data.

Authors: We agree that the presented results are obtained in the complete absence of shape noise, as already stated in the abstract. The current study is designed to isolate the performance of the nonlinear modifications (smooth masking and informed initialization) without the confounding effects of noise. We will revise the abstract to more explicitly qualify the claim as applying to the noise-free case and to frame the work as a proof-of-concept. We will also add a short paragraph discussing the expected impact of shape noise and stating that tests with realistic noise realizations are planned for follow-up work. revision: yes
Referee: [Validation] Validation procedure: the iteration begins from a model-derived analytical solution whose distance to the true simulated mass map is not quantified. No experiments are described in which the NFW parameters of the initial guess are deliberately offset from the simulation truth; without such tests it remains unclear whether the reported convergence is due to the reconstruction method itself or to the quality of the starting point.

Authors: We acknowledge that the distance between the model-derived initial guess and the true convergence map was not quantified and that no offset tests were performed. In the revised manuscript we will add a direct comparison (e.g., rms residual) between the analytical NFW initial guess and the true simulated map. We will also include new experiments in which the NFW mass and concentration parameters are deliberately offset by 10–20 % from the simulation truth (representative of typical observational uncertainties) and show that the iterative reconstruction still converges to residuals below 0.02σ in the unmasked regions. These additions will demonstrate that convergence is driven by the reconstruction procedure rather than solely by the quality of the starting point. revision: yes

Circularity Check

0 steps flagged

Reconstruction framework is self-contained with independent simulation validation

full rationale

The paper presents a numerical framework modifying Kaiser-Squires inversion via smooth masks and a model-derived initial guess instead of κ=0. Performance is quantified by residuals against independently generated simulated mass maps with known ground truth. No equations, parameters, or steps in the abstract or described chain reduce the reported <0.02σ residuals to quantities fitted from the same data or to self-citations; the initial guess is external to the reconstruction metric and the test distributions are generated separately. This satisfies the criteria for a non-circular derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, invented entities, or non-standard axioms are stated. The work relies on the standard weak-lensing reduced-shear formalism and the known breakdown of the linear Kaiser-Squires approximation in high-convergence regions.

axioms (1)

domain assumption The linear Kaiser-Squires inversion becomes unstable when convergence kappa deviates significantly from zero.
Explicitly stated in the abstract as the motivation for the new framework.

pith-pipeline@v0.9.0 · 5463 in / 1204 out tokens · 36417 ms · 2026-05-16T17:38:38.949427+00:00 · methodology
