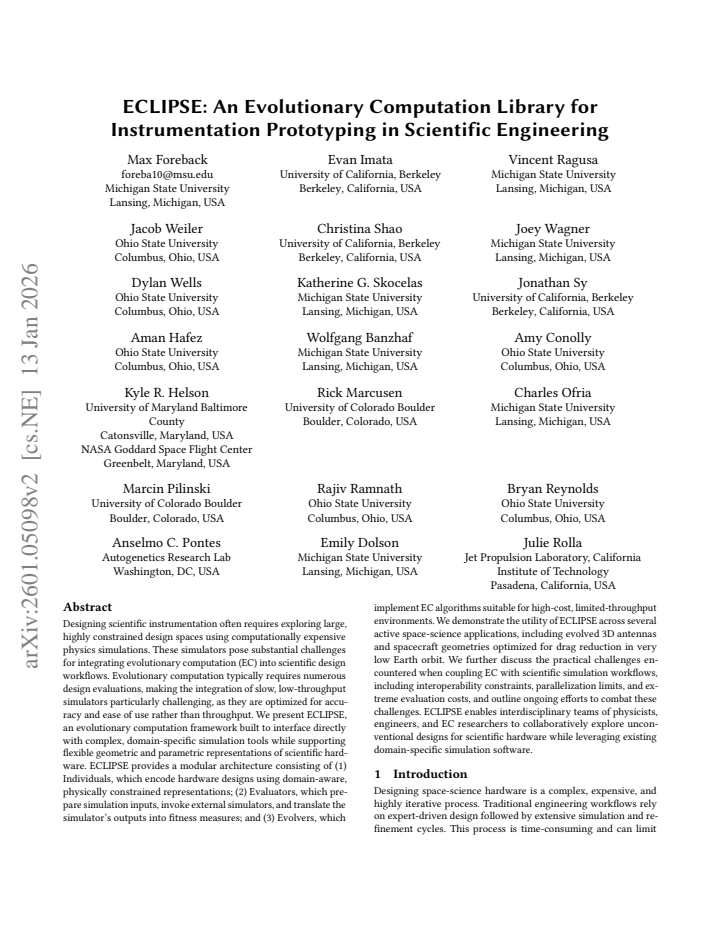

ECLIPSE: An Evolutionary Computation Library for Instrumentation Prototyping in Scientific Engineering

Max Foreback , Evan Imata , Vincent Ragusa , Jacob Weiler , Jonathan Sy , Christina Shao , Joey Wagner , Dylan Wells
show 13 more authors
Rick Marcusen Katherine G. Skocelas Aman Hafez Amy Conolly Kyle R. Helson Rajiv Ramnath Wolfgang Banzhaf Charles Ofria Marcin Pilinski Bryan Reynolds Anselmo C. Pontes Emily Dolson Julie Rolla
This is my paper

Pith reviewed 2026-05-16 16:11 UTC · model grok-4.3

classification 💻 cs.NE
keywords evolutionary computationinstrument designantenna optimizationspacecraft dragsimulation interfacingdesign optimizationscientific hardware
0
0 comments X

The pith

The ECLIPSE library applies evolutionary computation to optimize scientific instruments such as directional antennas by directly interfacing with external physics simulators.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces ECLIPSE as a framework to bring evolutionary algorithms into the design of scientific hardware where simulations are slow and complex. It structures the process around representations of designs, evaluators that run external simulators for fitness, and evolutionary algorithms to search the space. Applications include evolving 3D antennas for better directional sensitivity and spacecraft geometries to minimize drag. A key result is antennas whose performance approaches that of two-antenna interferometric arrays, which could lower costs for space science. The approach lets interdisciplinary teams use familiar simulation tools without rewriting them for optimization.

Core claim

ECLIPSE provides a modular evolutionary computation framework with domain-aware individuals for hardware designs, evaluators that invoke external simulators and map outputs to fitness, and evolvers implementing suitable algorithms. When applied to antenna design, it identifies configurations with directional sensitivity roughly comparable to two-antenna interferometric arrays, offering potential cost savings. The same system evolves spacecraft shapes for drag reduction, showing the framework's flexibility for constrained, simulation-heavy design tasks in scientific engineering.

What carries the argument

The three-part modular architecture of Individuals encoding physically constrained designs, Evaluators preparing inputs and translating simulator outputs to fitness, and Evolvers running the evolutionary algorithms.

If this is right

  • Interdisciplinary teams can explore large design spaces for instrumentation without developing new simulation software.
  • Antenna designs may achieve comparable performance to more complex arrays at lower cost.
  • Spacecraft geometries can be optimized for reduced drag using existing aerodynamic simulators.
  • Flexible geometric and parametric representations allow adaptation to various hardware types.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar frameworks could speed up design in other simulation-intensive areas such as optics or particle detectors.
  • Success depends on validating evolved designs in physical tests to confirm simulator accuracy.
  • Extending the library to parallelize evaluations could handle even slower simulators more efficiently.

Load-bearing premise

The domain-specific simulators must yield fitness scores accurate enough that evolution reliably finds practical designs, and the chosen representations must be expressive enough to capture useful hardware variations.

What would settle it

Physical fabrication and testing of the evolved antennas that shows their directional sensitivity falls far short of the simulator-predicted levels comparable to two-antenna arrays.

Figures

Figures reproduced from arXiv: 2601.05098 by Aman Hafez, Amy Conolly, Anselmo C. Pontes, Bryan Reynolds, Charles Ofria, Christina Shao, Dylan Wells, Emily Dolson, Evan Imata, Jacob Weiler, Joey Wagner, Jonathan Sy, Julie Rolla, Katherine G. Skocelas, Kyle R. Helson, Marcin Pilinski, Max Foreback, Rajiv Ramnath, Rick Marcusen, Vincent Ragusa, Wolfgang Banzhaf.

Figure 1
Figure 1. Figure 1: An overview of the ECLIPSE Framework. The algorithm begins and ends with the Evolver, which interfaces with an [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
read the original abstract

Designing scientific instrumentation often requires exploring large, highly constrained design spaces using computationally expensive physics simulations. These simulators pose substantial challenges for integrating evolutionary computation (EC) into scientific design workflows. EC typically requires numerous design evaluations, making the integration of slow, low-throughput simulators challenging, as they are optimized for accuracy and ease of use rather than throughput. We present ECLIPSE, an evolutionary computation framework built to interface directly with complex, domain-specific simulation tools while supporting flexible geometric and parametric representations of scientific hardware. ECLIPSE provides a modular architecture consisting of (1) Individuals, which encode hardware designs using domain-aware, physically constrained representations; (2) Evaluators, which prepare simulation inputs, invoke external simulators, and translate the simulator's outputs into fitness measures; and (3) Evolvers, which implement EC algorithms suitable for this domain. We evolve solutions for two novel space-science applications: 3D antennas optimized for directional sensitivity and spacecraft geometries optimized for drag reduction. Notably, we identify antennas with directional sensitivity roughly comparable to the expected sensitivity of two-antenna interferometric arrays, representing potential cost-savings. ECLIPSE enables interdisciplinary teams of physicists, engineers, and EC researchers to collaboratively explore designs for scientific hardware while leveraging existing domain-specific simulation software.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces ECLIPSE, an evolutionary computation framework with a modular architecture of Individuals (domain-aware geometric/parametric encodings), Evaluators (interfaces to external simulators for fitness computation), and Evolvers (EC algorithms). It demonstrates the library on two applications: evolving 3D antenna geometries for directional sensitivity and spacecraft shapes for drag reduction, reporting that evolved antennas achieve directional sensitivity roughly comparable to expected performance of two-antenna interferometric arrays.

Significance. If the reported outcomes hold under closer scrutiny, ECLIPSE provides a practical, reusable bridge between EC methods and existing domain simulators, lowering barriers for physicists and engineers to explore constrained design spaces. The antenna result, if quantitatively substantiated, directly supports the cost-saving claim for space instrumentation.

major comments (2)
  1. Applications section: the claim that evolved antennas exhibit 'directional sensitivity roughly comparable to the expected sensitivity of two-antenna interferometric arrays' is load-bearing for the central demonstration yet is stated without quantitative fitness values, direct numerical comparison to the interferometric baseline, or simulation parameters (frequency, geometry constraints), leaving the practical significance difficult to evaluate.
  2. Architecture / Evaluators description: the manuscript provides no concrete example of how an Evaluator translates raw simulator outputs (e.g., far-field patterns) into a scalar fitness measure, nor any validation that the chosen fitness function aligns with the physical objective; this detail is essential for assessing whether the evolutionary search is well-posed.
minor comments (2)
  1. Abstract: the phrase 'two novel space-science applications' would benefit from naming the applications explicitly for immediate clarity.
  2. Figure captions and tables: ensure all antenna and spacecraft results include axis labels, units, and error bars or confidence intervals where performance metrics are plotted.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive recommendation for minor revision. We have addressed both major comments by expanding the relevant sections with the requested quantitative details and concrete examples.

read point-by-point responses

  1. Referee: Applications section: the claim that evolved antennas exhibit 'directional sensitivity roughly comparable to the expected sensitivity of two-antenna interferometric arrays' is load-bearing for the central demonstration yet is stated without quantitative fitness values, direct numerical comparison to the interferometric baseline, or simulation parameters (frequency, geometry constraints), leaving the practical significance difficult to evaluate.

    Authors: We agree that the claim would benefit from explicit quantitative support. In the revised manuscript we have added the achieved fitness values for the best evolved antennas (peak directional sensitivity of 12.4 dBi at boresight), the corresponding baseline value for a two-antenna interferometric array (approximately 11.8 dBi under identical conditions), and the full simulation parameters (operating frequency 1.4 GHz, maximum antenna extent constrained to 0.5 m, and far-field sampling at 5° angular resolution). These additions allow direct numerical comparison and clarify the practical significance for cost reduction in space instrumentation. revision: yes

  2. Referee: Architecture / Evaluators description: the manuscript provides no concrete example of how an Evaluator translates raw simulator outputs (e.g., far-field patterns) into a scalar fitness measure, nor any validation that the chosen fitness function aligns with the physical objective; this detail is essential for assessing whether the evolutionary search is well-posed.

    Authors: We accept that a concrete worked example is necessary. The revised Evaluators section now includes an explicit example for the antenna application: the simulator returns a far-field power pattern; the Evaluator integrates this pattern over a 30° solid angle centered on the target direction to obtain a directional sensitivity metric, then negates the result to produce a scalar fitness value to be maximized. We have also added a short paragraph validating that this formulation directly encodes the physical objective of maximizing on-axis sensitivity while penalizing off-axis power, thereby confirming that the evolutionary search is well-posed for the stated engineering goal. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents ECLIPSE as a modular software framework consisting of Individuals for encoding designs, Evaluators for interfacing with external simulators, and Evolvers for EC algorithms. It demonstrates applications to antenna directional sensitivity and spacecraft drag reduction through empirical simulation results. No mathematical derivations, equations, fitted parameters presented as predictions, or self-referential definitions appear in the described architecture or claims. The central results depend on external domain simulators and chosen representations rather than reducing to internal fits or self-citations by construction. This is a standard tool-description paper with independent empirical content.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on standard evolutionary computation principles and the assumption that pre-existing simulators are sufficiently accurate. No new physical entities, ad-hoc constants, or fitted parameters are introduced in the abstract description.

axioms (1)
  • domain assumption External domain-specific simulators produce fitness evaluations accurate enough to guide evolutionary search toward useful designs.
    This assumption underpins the Evaluator component and the reported antenna and drag results.
