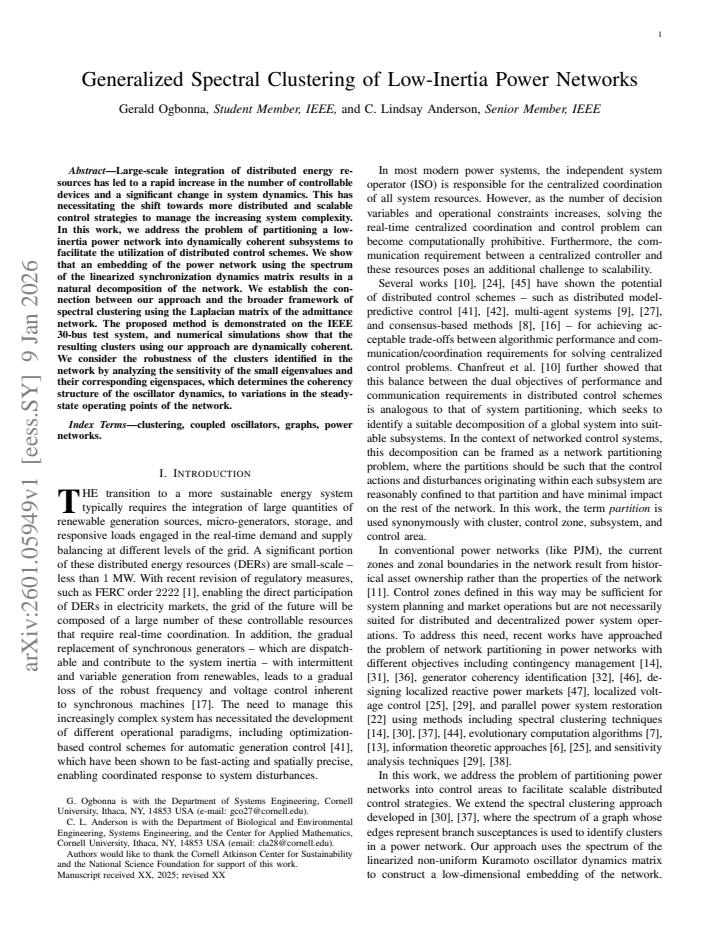

Generalized Spectral Clustering of Low-Inertia Power Networks

Gerald Ogbonna , C. Lindsay Anderson This is my paper

Pith reviewed 2026-05-16 15:53 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.SP
keywords spectral clusteringlow-inertia power networksnetwork partitioningsynchronization dynamicscoherent subsystemslinearized modelsdistributed controlIEEE 30-bus system
0
0 comments X

The pith

Spectrum of the linearized synchronization dynamics matrix embeds power networks for natural decomposition into coherent clusters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large integration of distributed energy resources has increased the number of controllable devices and altered power system dynamics, pushing toward distributed control. The paper shows that embedding network buses according to the spectrum of the matrix for linearized synchronization dynamics produces a decomposition into dynamically coherent subsystems. This spectral approach connects directly to classical clustering that uses the Laplacian of the admittance matrix. The method is applied to the IEEE 30-bus test system and its robustness is checked by tracking how small eigenvalues and their eigenspaces shift with changes in steady-state operating points.

Core claim

An embedding of the power network using the spectrum of the linearized synchronization dynamics matrix results in a natural decomposition of the network into dynamically coherent subsystems. The approach establishes a connection to the broader framework of spectral clustering that employs the Laplacian matrix of the admittance network and is demonstrated on the IEEE 30-bus test system with analysis of sensitivity to operating-point perturbations.

What carries the argument

The spectrum of the linearized synchronization dynamics matrix, which supplies the embedding coordinates whose clustering yields the coherent subsystems and links to the admittance Laplacian.

If this is right

  • The decomposition directly supports scalable distributed control schemes for low-inertia networks with many distributed energy resources.
  • Sensitivity analysis of the small eigenvalues supplies a built-in measure of cluster stability under operating-point variation.
  • The method recovers standard Laplacian spectral clustering as a special case when the dynamics matrix aligns with the admittance structure.
  • Partitioning enables modular analysis and control that respects the underlying synchronization behavior of the full network.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same embedding could be recomputed incrementally as operating points drift, supporting online cluster updates.
  • The framework may extend to networks with stochastic renewable injections by treating the linearization as a nominal model around which robustness margins are computed.
  • Similar spectral embeddings could be tested on other classes of coupled oscillator networks beyond power systems.
  • Validation against measured wide-area frequency data would check whether the predicted clusters align with observed coherence in real grids.

Load-bearing premise

The linearized synchronization dynamics matrix accurately captures the relevant coherence properties of the network across the operating points considered.

What would settle it

Time-domain simulations on the IEEE 30-bus system in which the clusters obtained from this embedding fail to maintain internal synchronization while inter-cluster boundaries show weaker coupling would falsify the claim.

Figures

Figures reproduced from arXiv: 2601.05949 by C. Lindsay Anderson, Gerald Ogbonna.

Figure 2
Figure 2. Figure 2: Relative spectral gap of Lx˜ = λDx. To address the question of a good choice of k for this network, we plot the relative spectral gap of the eigenvalues of (L, D ˜ ) in [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 1
Figure 1. Figure 1: 2-D Embedding of the IEEE 30-bus test network using the (a) eigenvectors of L˜, (b) the generalized eigenvectors of (L, D ˜ ). The two clusters identified by running k-means on the respective embeddings of the network are highlighted. The total edge weights cut by the spectral and generalized spectral clustering solutions on G˜, are 5.04 and 12.55, respectively, and the corresponding total damping in each … view at source ↗
Figure 4
Figure 4. Figure 4: Total edges cut and total cluster damping for different values of [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The optimal value ρ ∗(k) of (5) and objective value ρˆ(k) of the generalized spectral clustering solution for different values of k. V. NUMERICAL VALIDATION We validate the dynamic coherence of the clusters iden￾tified in section IV for k = 5 by numerically simulating the dynamics of the generalized coupled oscillator model (equations 1 - 2) in response to random disturbance in the natural frequency (net p… view at source ↗
Figure 6
Figure 6. Figure 6: Phase and frequency trajectories following a disturbance at node [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Distribution of the largest relative spectral gap for [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
read the original abstract

Large-scale integration of distributed energy resources has led to a rapid increase in the number of controllable devices and a significant change in system dynamics. This has necessitating the shift towards more distributed and scalable control strategies to manage the increasing system complexity. In this work, we address the problem of partitioning a low-inertia power network into dynamically coherent subsystems to facilitate the utilization of distributed control schemes. We show that an embedding of the power network using the spectrum of the linearized synchronization dynamics matrix results in a natural decomposition of the network. We establish the connection between our approach and the broader framework of spectral clustering using the Laplacian matrix of the admittance network. The proposed method is demonstrated on the IEEE 30-bus test system. We consider the robustness of the clusters by analyzing the sensitivity of the small eigenvalues and their corresponding eigenspaces to perturbations caused by variation in the steady-state operating points of the network.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes a method for partitioning low-inertia power networks into dynamically coherent subsystems by constructing an embedding from the spectrum of the linearized synchronization dynamics matrix derived from the swing equations around a steady-state operating point. It establishes a connection between this embedding and the eigenvectors of the admittance Laplacian within the spectral clustering framework, and demonstrates the approach on the IEEE 30-bus test system while analyzing the sensitivity of small eigenvalues and eigenspaces to perturbations in operating points.

Significance. If the embedding produces partitions that reliably capture coherence and remain stable under operating-point variation, the result would offer a principled, dynamics-based alternative to conventional admittance-Laplacian clustering for enabling distributed control in systems with high distributed energy resource penetration.

major comments (1)
  1. [IEEE 30-bus demonstration and sensitivity analysis] The demonstration section reports that the embedding yields partitions aligned with admittance Laplacian eigenvectors and shows robustness via sensitivity analysis, yet provides no quantitative cluster-quality metrics (e.g., normalized mutual information, modularity, or silhouette scores), no comparison against standard spectral clustering baselines, and no error bars on the eigenvalue perturbations. This absence makes it difficult to assess whether the observed alignment constitutes a meaningful improvement or merely a restatement of the linearization.
minor comments (1)
  1. [Abstract] Abstract: the clause 'This has necessitating the shift' is grammatically incorrect and should read 'This has necessitated the shift'.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation of minor revision. We agree that adding quantitative metrics will strengthen the demonstration of our generalized spectral clustering approach and will revise the manuscript to incorporate them.

read point-by-point responses

  1. Referee: [IEEE 30-bus demonstration and sensitivity analysis] The demonstration section reports that the embedding yields partitions aligned with admittance Laplacian eigenvectors and shows robustness via sensitivity analysis, yet provides no quantitative cluster-quality metrics (e.g., normalized mutual information, modularity, or silhouette scores), no comparison against standard spectral clustering baselines, and no error bars on the eigenvalue perturbations. This absence makes it difficult to assess whether the observed alignment constitutes a meaningful improvement or merely a restatement of the linearization.

    Authors: We appreciate the referee's observation. The core contribution is the generalization of spectral clustering to the linearized synchronization dynamics matrix for low-inertia networks, with an explicit connection to the admittance Laplacian. To address the lack of quantitative assessment, the revised manuscript will include normalized mutual information (NMI) scores quantifying the alignment between partitions from our embedding and those from the admittance Laplacian. We will also add a direct baseline comparison using modularity scores for both methods, emphasizing differences that arise specifically under low-inertia conditions. For the sensitivity analysis, we will augment the eigenvalue and eigenspace plots with error bars computed from multiple operating-point perturbations. These additions will clarify that the observed behavior reflects the generalized dynamics-based framework rather than a simple restatement of the linearization. revision: yes

Circularity Check

0 steps flagged

Derivation is self-contained from swing equations to spectral embedding

full rationale

The paper constructs the linearized synchronization dynamics matrix directly from the swing equations around a steady-state operating point. The embedding is obtained from the spectrum of this matrix and shown to produce partitions aligned with admittance Laplacian eigenvectors on the IEEE 30-bus system. Sensitivity analysis of small eigenvalues to operating-point perturbations tests the coherence assumption without any fitted parameters, self-referential definitions, or load-bearing self-citations. No step reduces to its inputs by construction; the central claim remains independent of the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the standard assumption that small-signal linearization around an operating point captures the dominant coherence behavior; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Linearized synchronization dynamics accurately represent network coherence for clustering purposes
    Invoked when the spectrum of the linearized matrix is used to define the embedding
