Guiding-center dynamics in a screw-pinch magnetic field

Alain J. Brizard

arxiv: 2601.07109 · v2 · submitted 2026-01-12 · ⚛️ physics.plasm-ph

Guiding-center dynamics in a screw-pinch magnetic field

Alain J. Brizard This is my paper

Pith reviewed 2026-05-16 15:48 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph

keywords guiding-center dynamicsscrew-pinch magnetic fieldmagnetic momentadiabatic invariantKruskal expansiongyroactionplasma physics

0 comments

The pith

Kruskal's radial action expansion matches magnetic-moment gyroaction to first order in screw-pinch fields

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines guiding-center motion of particles in a doubly-symmetric screw-pinch magnetic field. It verifies that the series expansion of the exact radial action integral, treated as an adiabatic invariant by Kruskal, agrees with the perturbative expansion of the magnetic-moment gyroaction through first order in magnetic field non-uniformity. This agreement allows the magnetic moment to be written as a non-perturbative integral expression derived from the full orbit. Such an expression provides a way to check when the guiding-center approximation holds for particle dynamics in this geometry.

Core claim

In the doubly-symmetric screw-pinch magnetic field, the radial action integral associated with the reduced full-orbit radial motion serves as an exact invariant. Its adiabatic-invariant series expansion matches the perturbation expansion of the magnetic-moment gyroaction up to first order in magnetic-field non-uniformity. Consequently, the magnetic moment is represented by a non-perturbative integral expression that tests the validity of the guiding-center approximation.

What carries the argument

Kruskal's adiabatic-invariant series expansion applied to the exact radial action integral, matched to the gyroaction perturbation expansion.

Load-bearing premise

The doubly-symmetric screw-pinch field allows clean separation of the exact radial action integral from the perturbative gyroaction without higher-order geometric effects mixing in at first order.

What would settle it

Computing the second-order term in the magnetic-field non-uniformity expansion for both the radial action series and the gyroaction and checking whether the two continue to agree.

read the original abstract

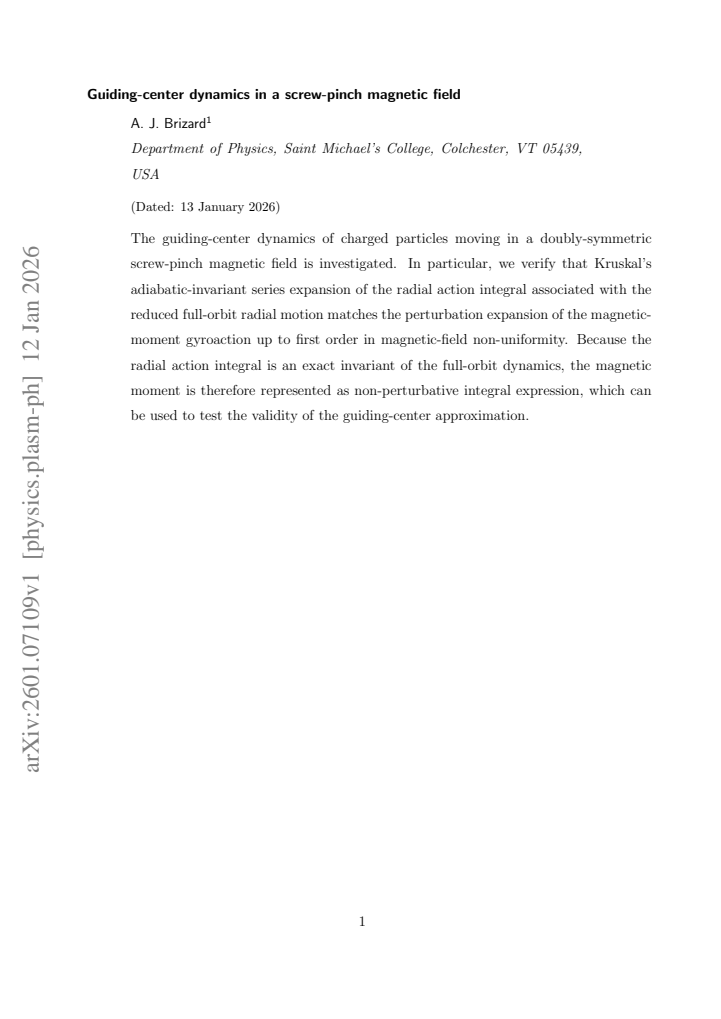

The guiding-center dynamics of charged particles moving in a doubly-symmetric screw-pinch magnetic field is investigated. In particular, we verify that Kruskal's adiabatic-invariant series expansion of the radial action integral associated with the reduced full-orbit radial motion matches the perturbation expansion of the magnetic-moment gyroaction up to first order in magnetic-field non-uniformity. Because the radial action integral is an exact invariant of the full-orbit dynamics, the magnetic moment is therefore represented as non-perturbative integral expression, which can be used to test the validity of the guiding-center approximation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Brizard shows that the exact radial action in the screw-pinch matches the first-order gyroaction expansion, yielding a non-perturbative integral for the magnetic moment.

read the letter

The main result is a concrete non-perturbative integral for the magnetic moment obtained by equating Kruskal's exact radial action to the usual perturbative gyroaction in the doubly-symmetric screw-pinch. The geometry is picked because it admits an exact radial invariant, so the comparison between full-orbit action and guiding-center expansion is clean at the order claimed. This supplies a benchmark expression that guiding-center codes could use to test their approximations in a controlled setting. The work applies established methods rather than inventing new ones, but the targeted verification is still useful for plasma modeling where magnetic-moment conservation affects transport estimates. The abstract states the first-order match without showing the explicit series terms, error estimates, or any numerical checks. That leaves the central claim resting on an unshown calculation, which makes it hard to judge how well the agreement holds beyond first order or whether higher-order geometric effects appear. If the full paper includes the derivations and tests, the result strengthens; otherwise the evidence stays thin. This is mainly for people who run or validate guiding-center codes in fusion contexts and need a specific benchmark. It is worth sending to peer review because the setup is appropriate and the idea is straightforward, even if the authors should add the missing explicit steps and comparisons to make the case solid.

Referee Report

1 major / 1 minor

Summary. The paper investigates guiding-center dynamics for charged particles in a doubly-symmetric screw-pinch magnetic field. It verifies that Kruskal's adiabatic-invariant series expansion of the exact radial action integral from the reduced full-orbit motion matches the perturbative expansion of the magnetic-moment gyroaction to first order in magnetic-field non-uniformity. This match is used to represent the magnetic moment via a non-perturbative integral expression that can test the validity of the guiding-center approximation.

Significance. If the first-order match holds, the result supplies a concrete, geometry-specific consistency check between an exact invariant and the standard gyroaction expansion. This is useful for validating guiding-center reductions in plasma confinement studies, particularly where exact invariants exist and can benchmark perturbative approximations without adjustable parameters.

major comments (1)

The central verification that the two expansions agree to first order is asserted in the abstract and main text, but the manuscript provides neither the explicit series terms being compared nor the algebraic steps that establish the match. Without these, the claim that the radial action supplies a non-perturbative representation of the magnetic moment cannot be independently assessed.

minor comments (1)

The abstract would be clearer if it referenced the specific section or equation where the first-order terms are shown to coincide.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript. The major comment correctly identifies a gap in the presentation of the central verification, which we will address by adding the requested explicit details in the revision.

read point-by-point responses

Referee: The central verification that the two expansions agree to first order is asserted in the abstract and main text, but the manuscript provides neither the explicit series terms being compared nor the algebraic steps that establish the match. Without these, the claim that the radial action supplies a non-perturbative representation of the magnetic moment cannot be independently assessed.

Authors: We agree that the explicit series terms and algebraic steps must be shown for the verification to be independently verifiable. The revised manuscript will include a new appendix that derives the first-order term in the perturbative expansion of the magnetic-moment gyroaction (in powers of the magnetic-field non-uniformity parameter), presents the corresponding first-order term from Kruskal's series expansion of the exact radial action integral, and provides the algebraic steps demonstrating their agreement. This addition will directly support the non-perturbative integral representation of the magnetic moment and allow readers to confirm the match without ambiguity. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The central claim is a consistency verification: Kruskal's adiabatic-invariant series for the exact radial action integral (an external, parameter-free result) is expanded and shown to match the first-order perturbative expansion of the magnetic-moment gyroaction in the chosen doubly-symmetric screw-pinch geometry. The geometry is selected precisely because its symmetries yield an exact radial invariant, making the separation into exact action versus perturbative gyroaction a direct consequence of the field structure rather than a redefinition or fit. No load-bearing step reduces a prediction to a fitted input, self-citation chain, or ansatz smuggled from prior work; the match is presented as an independent check that yields a non-perturbative integral representation of the magnetic moment. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the exactness of the radial action integral for the full-orbit dynamics and on the standard perturbative ordering of guiding-center theory; no new free parameters or invented entities are introduced.

axioms (2)

domain assumption The radial action integral is an exact invariant of the full-orbit dynamics in the screw-pinch field
Invoked directly in the abstract to justify the non-perturbative representation of the magnetic moment.
standard math Kruskal's adiabatic-invariant series expansion applies to the reduced radial motion
Used as the reference exact series against which the gyroaction expansion is compared.
