A Program Logic for Abstract (Hyper)Properties
Pith reviewed 2026-05-16 10:20 UTC · model grok-4.3
The pith
APPL is a sound Hoare-style logic for abstract program properties and hyperproperties that becomes relatively complete when the abstract domain is complete for its monoidal operator.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
APPL supplies a unifying Hoare-style logic whose semantics first define command meanings on a lattice basis and then extend them additively; nondeterministic choice is handled by a monoidal operator that can represent collecting, abstract, or hyper semantics. The proof system is sound for any sufficiently expressive property language and is relatively complete for that language; when the language is replaced by an abstract domain, the system remains sound via best correct approximations and recovers relative completeness exactly when the domain is complete for the monoidal operator.
What carries the argument
The monoidal operator interpreting nondeterministic choice, which need not be idempotent or equal to the lattice join and thereby enables the uniform treatment of collecting, abstract, and hypersemantics.
If this is right
- Standard Hoare logic, incorrectness logic, and existing hyper Hoare logics are recovered as instances of APPL.
- Abstract program properties can be reasoned about deductively using best correct approximations without leaving the logic.
- Hyperproperties are handled uniformly inside the same proof system rather than by separate formalisms.
- Relative completeness holds for any property language expressive enough to denote the required predicates.
Where Pith is reading between the lines
- The same monoidal-operator approach could be applied to develop deductive systems for other forms of abstraction such as probabilistic or quantum semantics.
- Completeness of the abstract domain for the operator becomes a practical design criterion when building new abstract interpreters that support proof automation.
- The framework suggests a route to combine under- and over-approximations inside one logic by choosing different monoidal operators for different fragments.
Load-bearing premise
The abstract domain must be complete for the chosen monoidal operator; if completeness fails, relative completeness with respect to the abstract semantics is lost.
What would settle it
An abstract domain that is not complete for the monoidal operator yet still admits relative completeness of the APPL system for the corresponding abstract semantics would falsify the necessity of the completeness condition.

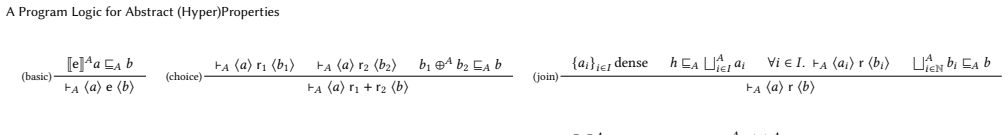

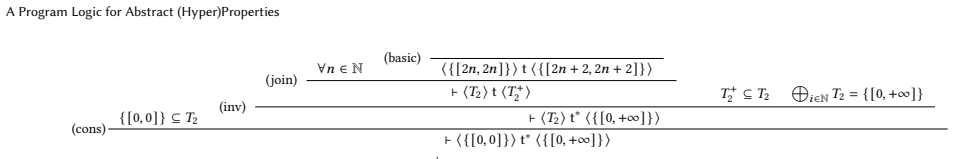

Figures

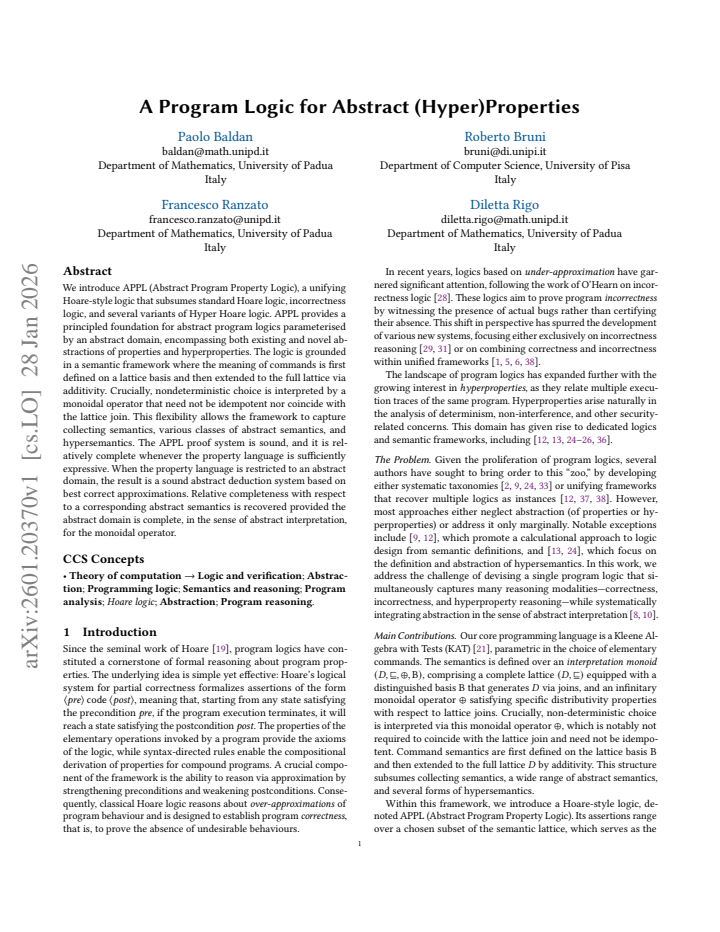

read the original abstract
We introduce APPL (Abstract Program Property Logic), a unifying Hoare-style logic that subsumes standard Hoare logic, incorrectness logic, and several variants of Hyper Hoare logic. APPL provides a principled foundation for abstract program logics parameterised by an abstract domain, encompassing both existing and novel abstractions of properties and hyperproperties. The logic is grounded in a semantic framework where the meaning of commands is first defined on a lattice basis and then extended to the full lattice via additivity. Crucially, nondeterministic choice is interpreted by a monoidal operator that need not be idempotent nor coincide with the lattice join. This flexibility allows the framework to capture collecting semantics, various classes of abstract semantics, and hypersemantics. The APPL proof system is sound, and it is relatively complete whenever the property language is sufficiently expressive. When the property language is restricted to an abstract domain, the result is a sound abstract deduction system based on best correct approximations. Relative completeness with respect to a corresponding abstract semantics is recovered provided the abstract domain is complete, in the sense of abstract interpretation, for the monoidal operator.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces APPL, a Hoare-style program logic parameterized by an abstract domain and a monoidal operator. It unifies standard Hoare logic, incorrectness logic, and variants of Hyper Hoare logic by defining command semantics first on a lattice basis and extending via additivity, with nondeterministic choice interpreted by a general monoidal operator (not necessarily idempotent or equal to lattice join). The central claims are that the APPL proof system is sound in general and relatively complete when the property language is sufficiently expressive; when restricted to an abstract domain it yields a sound abstract deduction system based on best correct approximations, with relative completeness recovered if the abstract domain is complete (in the abstract-interpretation sense) for the monoidal operator.
Significance. If the soundness and conditional relative-completeness results hold, the framework supplies a principled, unifying foundation for abstract program logics that can capture both ordinary properties and hyperproperties. The explicit separation of lattice-based collecting semantics from a flexible monoidal operator for choice is a genuine technical contribution that goes beyond standard abstract-interpretation treatments and directly supports the unification claim.
major comments (2)
- [Proofs of Theorems 1 and 2 (or equivalent)] The soundness and relative-completeness theorems are stated in the abstract and presumably proved in the main body, yet the provided description contains no proof sketches or key lemmas. Without these derivations it is impossible to verify that the lattice extension via additivity preserves the required properties of the monoidal operator or that the best-correct-approximation construction interacts correctly with the proof rules.
- [Section on abstract semantics and completeness] The relative-completeness claim for abstract domains is conditioned on the abstract domain being complete for the monoidal operator. The manuscript should supply either a concrete counter-example showing loss of completeness when this condition fails, or an explicit statement of the additional proof obligations this completeness assumption discharges in the abstract semantics.
minor comments (2)
- Notation for the monoidal operator, lattice operations, and abstract-domain concretization should be introduced uniformly in a single preliminary section rather than piecemeal.
- The abstract claims the logic 'subsumes' several existing systems; a short table or paragraph explicitly mapping APPL rules to the corresponding rules of Hoare logic, incorrectness logic, and one hyperproperty logic would strengthen the unification claim.
Simulated Author's Rebuttal
We thank the referee for the positive evaluation of the paper's significance and for the constructive comments. We address each major comment below and will revise the manuscript to incorporate the requested clarifications and examples.
read point-by-point responses
-
Referee: [Proofs of Theorems 1 and 2 (or equivalent)] The soundness and relative-completeness theorems are stated in the abstract and presumably proved in the main body, yet the provided description contains no proof sketches or key lemmas. Without these derivations it is impossible to verify that the lattice extension via additivity preserves the required properties of the monoidal operator or that the best-correct-approximation construction interacts correctly with the proof rules.
Authors: The full manuscript contains the complete proofs of Theorem 1 (soundness) in Section 4 and Theorem 2 (relative completeness) in Section 5, supported by Lemmas 4.1--4.3 establishing preservation of monoidal properties under additive extension and Lemma 5.2 on the interaction between best-correct approximations and the proof rules. These derivations confirm that additivity preserves the required algebraic properties by construction. To address accessibility, we will insert concise proof sketches immediately after each theorem statement in the revised main text. revision: yes
-
Referee: [Section on abstract semantics and completeness] The relative-completeness claim for abstract domains is conditioned on the abstract domain being complete for the monoidal operator. The manuscript should supply either a concrete counter-example showing loss of completeness when this condition fails, or an explicit statement of the additional proof obligations this completeness assumption discharges in the abstract semantics.
Authors: We agree that the completeness assumption benefits from concrete illustration. In the revised manuscript we will add a new subsection in Section 6 containing a concrete counter-example of an abstract domain that is not complete for the monoidal operator, together with the resulting loss of relative completeness in the abstract deduction system. This will make the necessity of the assumption explicit while leaving the main theorems unchanged. revision: yes
Circularity Check
No significant circularity identified
full rationale
The paper grounds APPL in an external lattice-based collecting semantics extended by additivity, with nondeterministic choice via a general monoidal operator. Soundness follows directly from this semantics, and relative completeness is conditioned explicitly on the property language being sufficiently expressive or the abstract domain being complete for the monoidal operator. No equation or derivation reduces the claimed results back to a fitted parameter, self-definition, or self-citation chain; the setup unifies prior logics without internal collapse to its own inputs.
Axiom & Free-Parameter Ledger
axioms (3)
- standard math The semantic domain forms a lattice with additive extension from a basis
- domain assumption Nondeterministic choice is interpreted by a monoidal operator that need not be idempotent or equal to lattice join
- domain assumption Abstract domain completeness for the monoidal operator
Reference graph
Works this paper leans on
-
[1]
Flavio Ascari, Roberto Bruni, and Roberta Gori. 2025. Broadening the applicability of local completeness analysis with intensional and extensional guarantees. Theoretical Computer Science1054 (2025), 115452. doi:10.1016/J.TCS.2025.115452
-
[2]
Flavio Ascari, Roberto Bruni, Roberta Gori, and Francesco Logozzo. 2025. Re- vealing Sources of (Memory) Errors via Backward Analysis.Proc. ACM Program. Lang.9, OOPSLA1 (2025), 1321–1348. doi:10.1145/3720486
-
[3]
Flavio Ascari, Roberto Bruni, Roberta Gori, and Azalea Raad. 2026. U-Turn: Enhancing Incorrectness Analysis by Reversing Direction.Proc. ACM Program. Lang.10, POPL, Article 46 (Jan. 2026), 27 pages. doi:10.1145/3776688
-
[4]
Naumann, Julien Signoles, Éric Totel, and Frédéric Tronel
Mounir Assaf, David A. Naumann, Julien Signoles, Éric Totel, and Frédéric Tronel. 2017. Hypercollecting semantics and its application to static analysis of information flow. InProceedings of POPL 2017. ACM, 874–887. doi:10.1145/ 3009837.3009889
-
[5]
Roberto Bruni, Roberto Giacobazzi, Roberta Gori, and Francesco Ranzato. 2021. A Logic for Locally Complete Abstract Interpretations. InProceedings of LICS 2021, 36th Annual ACM/IEEE Symposium on Logic in Computer Science. IEEE, 1–13. doi:10.1109/LICS52264.2021.9470608 Distinguished paper
-
[6]
Roberto Bruni, Roberto Giacobazzi, Roberta Gori, and Francesco Ranzato. 2023. A Correctness and Incorrectness Program Logic.J. ACM70, 2 (2023), 15:1–15:45. doi:10.1145/3582267
-
[7]
Marco Campion, Mila Dalla Preda, Roberto Giacobazzi, and Caterina Urban. 2026. A Logic for the Imprecision of Abstract Interpretations.Proc. ACM Program. Lang.10, POPL, Article 65 (2026), 29 pages. doi:10.1145/3776707
-
[8]
2021.Principles of Abstract Interpretation
Patrick Cousot. 2021.Principles of Abstract Interpretation. MIT Press
work page 2021
-
[9]
Patrick Cousot. 2024. Calculational Design of [In]Correctness Transformational Program Logics by Abstract Interpretation.Proc. ACM Program. Lang.8, POPL (2024), 175–208. doi:10.1145/3632849 20 A Program Logic for Abstract (Hyper)Properties
-
[10]
P. Cousot and R. Cousot. 1977. Abstract interpretation: A unified lattice model for static analysis of programs by construction or approximation of fixpoints. InConference Record of the 4th ACM Symposium on Principles of Programming Languages(POPL ’77). ACM Press, 238–252. doi:10.1145/512950.512973
- [11]
-
[12]
Patrick Cousot and Jeffery Wang. 2025. Calculational Design of Hyperlogics by Abstract Interpretation.Proceedings of the ACM on Programming Languages9, POPL (2025), 446–478. doi:10.1145/3704852
-
[13]
Thibault Dardinier and Peter Müller. 2024. Hyper Hoare Logic: (Dis-)Proving Program Hyperproperties.Proceedings of the ACM on Programming Languages8, PLDI (2024), 1485–1509. doi:10.1145/3656437
-
[14]
Roberto Giacobazzi and Isabella Mastroeni. 2004. Abstract non-interference: parameterizing non-interference by abstract interpretation. InProceedings of the 31st ACM SIGPLAN-SIGACT Symposium on Principles of Programming Languages, POPL 2004, Venice, Italy, January 14-16, 2004. ACM, 186–197. doi:10.1145/964001. 964017
-
[15]
Roberto Giacobazzi and Isabella Mastroeni. 2010. A Proof System for Abstract Non-interference.J. Log. Comput.20, 2 (2010), 449–479. doi:10.1093/LOGCOM/ EXP053
-
[16]
Roberto Giacobazzi and Francesco Ranzato. 2025. The Best of Abstract Interpreta- tions.Proc. ACM Program. Lang.9, POPL (2025), 1355–1385. doi:10.1145/3704882
- [17]
-
[18]
Maria Handjieva and Stanislav Tzolovski. 1998. Refining Static Analyses by Trace-Based Partitioning Using Control Flow. InProceedings 5th International Static Analysis Symposium, SAS’98 (Lecture Notes in Computer Science, Vol. 1503). Springer, 200–214. doi:10.1007/3-540-49727-7_12
-
[19]
C. A. R. Hoare. 1969. An Axiomatic Basis for Computer Programming.Commun. ACM12, 10 (1969), 576–580. doi:10.1145/363235.363259
-
[20]
Georg Karner. 2004. Continuous monoids and semirings.Theoretical Computer Science318, 3 (2004), 355–372. doi:10.1016/j.tcs.2004.01.020
-
[21]
Dexter Kozen. 1997. Kleene algebra with tests.ACM Trans. Program. Lang. Syst. 19, 3 (May 1997), 427–443. doi:10.1145/256167.256195
-
[22]
Daniel Krob. 1987. Monoides et semi-anneaux complets.Semigroup Forum36, 1 (1987), 323–339. doi:10.1007/BF02575025
-
[23]
Quang Loc Le, Azalea Raad, Jules Villard, Josh Berdine, Derek Dreyer, and Peter W. O’Hearn. 2022. Finding real bugs in big programs with incorrectness logic.Proc. ACM Program. Lang.6, OOPSLA1 (2022), 1–27. doi:10.1145/3527325
-
[24]
Isabella Mastroeni and Michele Pasqua. 2017. Hyperhierarchy of Semantics: A Formal Framework for Hyperproperties Verification. InProceedings of SAS 2017 (LNCS, Vol. 10422). Springer, 232–252. doi:10.1007/978-3-319-66706-5_12
-
[25]
Isabella Mastroeni and Michele Pasqua. 2018. Verifying Bounded Subset-Closed Hyperproperties. InProceeding of SAS 2018 (LNCS, Vol. 11002). Springer, 263–283. doi:10.1007/978-3-319-99725-4_17
-
[26]
Isabella Mastroeni and Michele Pasqua. 2019. Statically analyzing information flows: an abstract interpretation-based hyperanalysis for non-interference. In Proceedings of the 34th ACM/SIGAPP Symposium on Applied Computing, SAC 2019. ACM, 2215–2223. doi:10.1145/3297280.3297498
-
[27]
A. Miné. 2017. Tutorial on static inference of numeric invariants by abstract interpretation.Foundations and Trends in Programming Languages4, 3-4 (2017), 120–372. doi:10.1561/2500000034
-
[28]
Peter W. O’Hearn. 2019. Incorrectness logic.Proc. ACM Program. Lang.4, POPL, Article 10 (dec 2019), 32 pages. doi:10.1145/3371078
-
[29]
Azalea Raad, Josh Berdine, Hoang-Hai Dang, Derek Dreyer, Peter W. O’Hearn, and Jules Villard. 2020. Local Reasoning About the Presence of Bugs: Incorrect- ness Separation Logic. InProceedings of CA V 2020 (Lecture Notes in Computer Science, Vol. 12225). Springer, 225–252. doi:10.1007/978-3-030-53291-8_14
-
[30]
Azalea Raad, Josh Berdine, Derek Dreyer, and Peter W. O’Hearn. 2022. Concurrent incorrectness separation logic.Proc. ACM Program. Lang.6, POPL (2022), 1–29. doi:10.1145/3498695
-
[31]
Azalea Raad, Julien Vanegue, and Peter W. O’Hearn. 2024. Non-termination Proving at Scale.Proc. ACM Program. Lang.8, OOPSLA2 (2024), 246–274. doi:10. 1145/3689720
work page 2024
- [32]
-
[33]
Lena Verscht and Benjamin Lucien Kaminski. 2025. A Taxonomy of Hoare- Like Logics: Towards a Holistic View using Predicate Transformers and Kleene Algebras with Top and Tests.Proc. ACM Program. Lang.9, POPL (2025), 1782–
work page 2025
- [34]
-
[35]
Linpeng Zhang and Benjamin Lucien Kaminski. 2022. Quantitative strongest post: a calculus for reasoning about the flow of quantitative information.Proc. ACM Program. Lang.6, OOPSLA1 (2022), 1–29. doi:10.1145/3527331
-
[36]
Linpeng Zhang, Noam Zilberstein, Benjamin Lucien Kaminski, and Alexandra Silva. 2024. Quantitative Weakest Hyper Pre: Unifying Correctness and Incor- rectness Hyperproperties via Predicate Transformers.Proc. ACM Program. Lang. 8, OOPSLA2 (2024), 817–845. doi:10.1145/3689740
-
[37]
Noam Zilberstein. 2025. Outcome Logic: A Unified Approach to the Metatheory of Program Logics with Branching Effects.ACM Trans. Program. Lang. Syst.47, 3, Article 14 (Sept. 2025), 71 pages. doi:10.1145/3743131
-
[38]
Noam Zilberstein, Derek Dreyer, and Alexandra Silva. 2023. Outcome Logic: A Unifying Foundation for Correctness and Incorrectness Reasoning.Proceedings of the ACM on Programming Languages7, OOPSLA1 (2023), 522–550. doi:10. 1145/3586045
work page 2023
-
[39]
Noam Zilberstein, Dexter Kozen, Alexandra Silva, and Joseph Tassarotti. 2025. A Demonic Outcome Logic for Randomized Nondeterminism.Proc. ACM Program. Lang.9, POPL (2025), 539–568. doi:10.1145/3704855
-
[40]
Noam Zilberstein, Angelina Saliling, and Alexandra Silva. 2024. Outcome Sep- aration Logic: Local Reasoning for Correctness and Incorrectness with Com- putational Effects.Proc. ACM Program. Lang.8, OOPSLA1 (2024), 276–304. doi:10.1145/3649821
-
[41]
Noam Zilberstein, Alexandra Silva, and Joseph Tassarotti. 2026. Probabilistic Concurrent Reasoning in Outcome Logic: Independence, Conditioning, and Invariants.Proc. ACM Program. Lang.10, POPL, Article 9 (2026), 30 pages. doi:10.1145/3776651 21
