arxiv: 2601.21004 · v1 · submitted 2026-01-28 · ⚛️ physics.ao-ph

A Tolerance-Based Framework for Spatio-Temporal Forecast Validation Using the gamma-Index

Cyril Voyant This is my paper

Pith reviewed 2026-05-16 10:16 UTC · model grok-4.3

classification ⚛️ physics.ao-ph
keywords gamma indexforecast validationspatial verificationdouble penaltytolerance criteriagridded forecastsSSI fieldsspatio-temporal
0
0 comments X

The pith

The gamma index validates gridded forecasts by checking agreement within explicit space, time, and intensity tolerances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Classical metrics like RMSE penalize small displacements of coherent structures even when the forecast remains physically usable. This paper adapts the three-dimensional gamma index, originally from medical dosimetry, to embed explicit tolerances DTA for distance, TTA for time, and IDT for intensity. A forecast point passes if it lies within those bounds of some observation point in the combined space-time-intensity domain. The approach is shown on synthetic examples where pixel-wise scores fail and on real satellite SSI fields where it accepts minor positional noise while flagging large intensity errors. The method supplies a single acceptance criterion that treats forecasts as usable when they stay inside physically motivated margins.

Core claim

The gamma index supplies a unified acceptance test for any gridded forecast by computing, for each prediction point, the minimum normalized distance in a three-dimensional space whose axes are spatial distance scaled by DTA, temporal distance scaled by TTA, and intensity difference scaled by IDT; the forecast passes if every gamma value stays below one.

What carries the argument

The three-dimensional gamma index, which finds the closest observation point in a normalized space-time-intensity metric and checks whether that minimum distance is below the acceptance threshold of one.

If this is right

  • Forecasts with small displacements of coherent structures are accepted rather than double-penalized.
  • Physically large intensity or timing errors remain rejected even if spatial location is perfect.
  • The same formulation applies unchanged to any gridded variable once its three tolerances are set.
  • The index can be added to existing verification suites as a binary pass-fail gate before finer diagnostics are run.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Operational forecast centers could replace or augment RMSE thresholds with gamma pass rates to reduce unnecessary model rejections.
  • The same tolerance logic might be applied to ensemble spread verification by treating the ensemble mean as the forecast field.
  • If tolerances are derived from instrument accuracy and typical advection speeds, the method could become a standard quality gate for assimilated satellite products.

Load-bearing premise

Physically justified values for the three tolerances can be chosen in advance for any variable so that the test neither rejects usable forecasts nor accepts clearly bad ones.

What would settle it

A controlled test in which a forecast field is shifted by exactly one DTA plus one pixel while intensity and timing remain perfect: the gamma index must accept it, yet any conventional pixel-wise score must reject it.

Figures

Figures reproduced from arXiv: 2601.21004 by Cyril Voyant.

Figure 1
Figure 1. Figure 1: 3D representation of the 𝛾-Index tolerance region with DTA, TTA, and IDT. The black circles represent points inside the tolerance region (𝛾 ≤ 1), while black crosses represent points outside (𝛾 > 1) [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

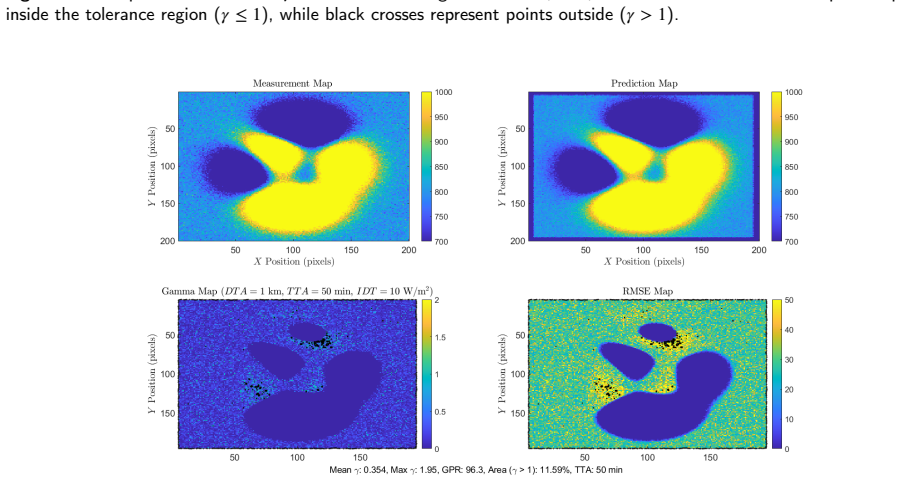

Figure 2. Figure 2: Comparison of mean pixel wise formulation of RMSE and the 𝛾-Index for synthetic SSI validation. Black contours highlight areas where 𝛾 > 1, indicating significant forecast errors. 3.2. HelioClim-3 Experiment The study uses satellite Surface Solar Irradiance fields from HelioClim-3 (Eissa et al., 2015) and from CAMS Radiation Service (Marchand et al., 2020). Forecast maps are evaluated relative to the obser… view at source ↗
Figure 3

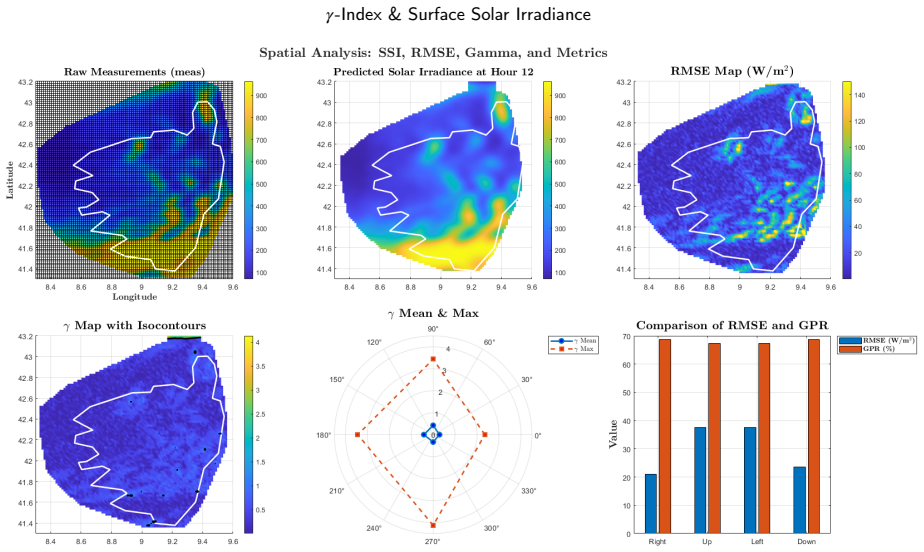

Figure 3. Figure 3: Impact of spatio-temporal displacements and Gaussian noise on solar irradiance metrics. The figure presents (a) raw SSI measurements (July 4, 2002), (b) predicted SSI after spatial and temporal shifts, (c) RMSE map, (d) 𝛾-Index map highlighting tolerance thresholds, (e) radar plot comparing 𝛾-mean and 𝛾-max across shifts, and (f) bar chart comparing RMSE and GPR validation across perturbations. 𝛾 value rem… view at source ↗
read the original abstract

Classical field forecast evaluation relies mainly on local scores such as RMSE or MAE. These metrics severely over-penalize small spatial or temporal displacements of coherent structures, a limitation known as the double-penalty issue and common to many forecasting domains. The present paper introduces a tolerance-based framework built on the three-dimensional gamma index, initially designed for medical dose verification, as a unified acceptance criterion for gridded forecasts. The method embeds explicit margins in space (DTA), time (TTA), and intensity (IDT), and evaluates whether predictions agree with observations within predefined physical bounds rather than through pixel-wise differences only. A synthetic illustration is first used to show why conventional metrics can misrepresent usable forecasts. The approach is then applied to satellite-derived SSI fields to demonstrate operational behaviour on a real dataset. Results confirm that the gamma criterion preserves structural consistency under minor positional noise while isolating physically significant discrepancies. The formulation is generic and can be implemented for any gridded variable provided meaningful tolerances are defined, offering a pragmatic complement to existing spatial verification tools in general forecasting workflows.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a tolerance-based framework for spatio-temporal validation of gridded forecasts using the three-dimensional gamma index from medical physics. It embeds explicit margins for spatial displacement (DTA), temporal displacement (TTA), and intensity difference (IDT) to address the double-penalty issue in local scores such as RMSE and MAE. A synthetic example illustrates limitations of conventional metrics, followed by an application to satellite-derived surface solar irradiance (SSI) fields. The central claim is that the gamma criterion preserves structural consistency under minor positional noise while isolating physically significant discrepancies, provided meaningful tolerances are defined; the formulation is presented as generic for any gridded variable.

Significance. If the framework can be shown to operate reliably once tolerances are fixed, it would provide a pragmatic complement to existing spatial verification methods in atmospheric and forecasting applications. The approach directly targets a known weakness of pixel-wise metrics for coherent structures and could improve operational assessment of forecast usability in domains such as satellite data assimilation and numerical weather prediction.

major comments (2)
  1. [Abstract] Abstract: The claim that the gamma criterion 'preserves structural consistency under minor positional noise while isolating physically significant discrepancies' is explicitly conditional on 'meaningful tolerances are defined', yet the manuscript contains no derivation, validation procedure, or sensitivity analysis for selecting DTA, TTA, and IDT from data or physical considerations; the synthetic illustration and SSI application simply report results for one chosen set of values.
  2. [Synthetic illustration and SSI application] Synthetic illustration and SSI application sections: No quantitative comparisons to conventional metrics (RMSE, MAE) or other spatial verification tools are provided, nor are error analyses or tolerance-sensitivity tests reported; this leaves the asserted advantages over double-penalty metrics unquantified and the isolation property untested against cases where tolerances exceed the scale of the discrepancies.
minor comments (2)
  1. [Methods] The exact mathematical definition of the 3D gamma index (including how the acceptance test gamma <=1 is computed across the three tolerances) should be stated explicitly in the methods section to ensure reproducibility.
  2. Clarify whether the framework requires any additional parameters beyond DTA, TTA, and IDT, and state the computational cost of the search over the tolerance margins for large grids.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive report. The comments correctly identify areas where the manuscript would benefit from additional clarification and supporting material. We address each major comment below and outline the revisions we will implement.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim that the gamma criterion 'preserves structural consistency under minor positional noise while isolating physically significant discrepancies' is explicitly conditional on 'meaningful tolerances are defined', yet the manuscript contains no derivation, validation procedure, or sensitivity analysis for selecting DTA, TTA, and IDT from data or physical considerations; the synthetic illustration and SSI application simply report results for one chosen set of values.

    Authors: We agree that the manuscript does not provide a general derivation or automated procedure for choosing DTA, TTA, and IDT, as these parameters are inherently application-specific and should reflect the physical scales of interest (e.g., instrument resolution, typical forecast displacement errors, and user-defined acceptance criteria). The synthetic example uses DTA = 2 grid cells, TTA = 1 time step, and IDT = 10 % of the intensity range, while the SSI case adopts comparable values scaled to the data characteristics. In the revised manuscript we will (i) tone down the abstract claim to state that the gamma criterion can preserve structural consistency when tolerances are chosen to match the relevant physical scales, (ii) add a dedicated subsection on practical tolerance selection that draws on domain knowledge, forecast error statistics, and sensitivity considerations, and (iii) include a brief sensitivity table for the SSI example showing how gamma pass rates vary when each tolerance is perturbed by ±25 %. revision: yes

  2. Referee: [Synthetic illustration and SSI application] Synthetic illustration and SSI application sections: No quantitative comparisons to conventional metrics (RMSE, MAE) or other spatial verification tools are provided, nor are error analyses or tolerance-sensitivity tests reported; this leaves the asserted advantages over double-penalty metrics unquantified and the isolation property untested against cases where tolerances exceed the scale of the discrepancies.

    Authors: The synthetic illustration is intentionally qualitative to highlight the double-penalty mechanism and the conceptual advantage of the gamma index; the SSI section serves as a real-data demonstration rather than a comprehensive benchmark. We acknowledge that quantitative comparisons and sensitivity tests are absent. In revision we will add (i) side-by-side tables of RMSE, MAE, and gamma pass rates for the synthetic displacement cases, (ii) a tolerance-sensitivity analysis for both examples that reports the fraction of points passing the gamma criterion as DTA, TTA, and IDT are varied, and (iii) an explicit statement that when tolerances become larger than the characteristic scale of the discrepancies the gamma index approaches unity everywhere and loses discriminatory power, thereby reinforcing the need for physically motivated tolerance choices. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper frames the gamma-index as a direct transfer of an externally established metric from medical dose verification into forecast validation, with DTA/TTA/IDT presented as user-specified physical tolerances rather than quantities derived or fitted within the work. No equations, acceptance tests, or central claims are shown reducing the structural-consistency result to a self-referential definition, a fitted parameter renamed as prediction, or a load-bearing self-citation chain. The synthetic example and SSI application simply illustrate behavior for chosen tolerance values; the acceptance criterion itself remains an external definition applied to new data. This satisfies the self-contained criterion against external benchmarks with no internal loop that forces the reported outcome by construction.

Axiom & Free-Parameter Ledger

3 free parameters · 1 axioms · 0 invented entities

The central claim rests on the transferability of the medical gamma-index to forecast data and on the existence of physically meaningful user-chosen tolerances; no free parameters are fitted in the abstract description.

free parameters (3)
  • DTA (Distance To Agreement)
    Spatial tolerance margin chosen by the user for each application.
  • TTA (Time To Agreement)
    Temporal tolerance margin chosen by the user.
  • IDT (Intensity Difference Tolerance)
    Intensity tolerance margin chosen by the user.
axioms (1)
  • domain assumption The gamma-index originally designed for medical dose verification extends directly to three-dimensional gridded forecast fields.
    Invoked as the foundation of the framework without further justification in the abstract.
