arxiv: 2602.06095 · v2 · submitted 2026-02-05 · 🧮 math.HO

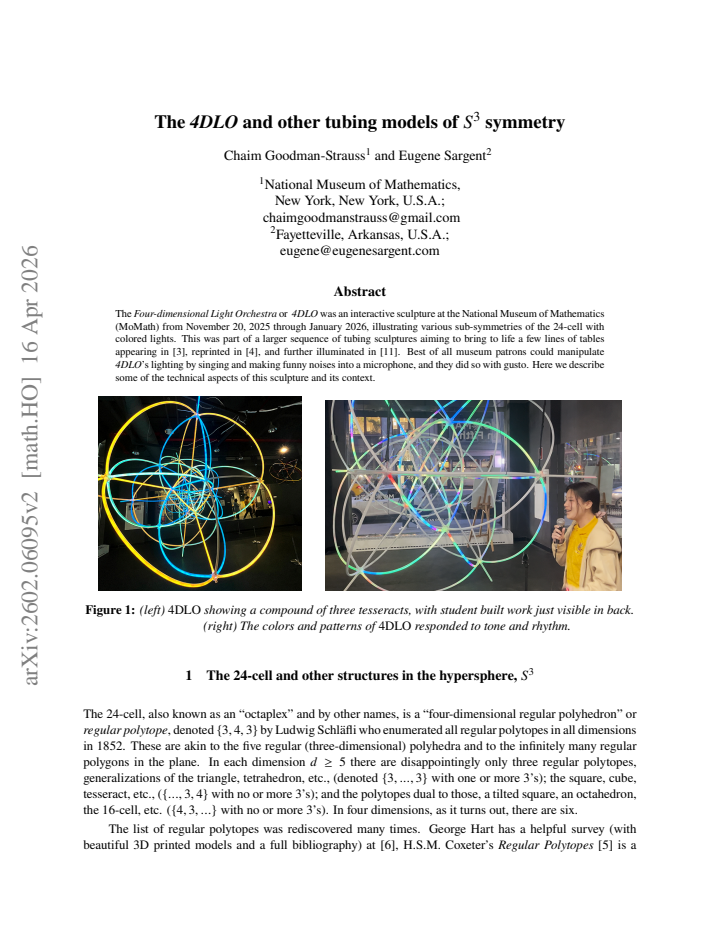

The {em 4DLO} and other tubing models of S³ symmetry

Chaim Goodman-Strauss , Eugene Sargent This is my paper

Pith reviewed 2026-05-16 07:08 UTC · model grok-4.3

classification 🧮 math.HO
keywords 4DLO24-cellsub-symmetriestubing modelsS^3interactive sculpturesymmetry visualizationConway-Smith tables
0
0 comments X

The pith

The 4DLO sculpture uses tubing and colored lights to display sub-symmetries of the 24-cell, with visitor sound input for control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the Four-dimensional Light Orchestra sculpture exhibited at the National Museum of Mathematics, which arranges tubing to represent symmetries of the 24-cell in four dimensions. Colored lights along the structure highlight various sub-symmetries drawn from tables in Conway and Smith. Visitors interact by making sounds into a microphone to alter the lighting patterns. This forms part of a broader series of physical tubing models meant to make abstract symmetry data concrete and accessible. The approach turns listed group actions into observable, manipulable displays.

Core claim

The 4DLO supplies a physical realization of the sub-symmetries of the 24-cell through tubing structures and colored lights that respond to vocal input, directly enacting the subgroup relations tabulated for the 24-cell's symmetry group in S^3.

What carries the argument

Tubing model of 24-cell symmetries, with selective colored lighting that activates to show sub-symmetries under microphone-driven control.

Load-bearing premise

The physical tubing and lighting arrangement accurately reproduces the listed sub-symmetries of the 24-cell without distortion or omission.

What would settle it

The light patterns fail to match the specific symmetry operations in the Conway and Smith tables when the sculpture is activated in the corresponding modes.

Figures

Figures reproduced from arXiv: 2602.06095 by Chaim Goodman-Strauss, Eugene Sargent.

Figure 1
Figure 1. Figure 1: (left) 4DLO showing a compound of three tesseracts, with student built work just visible in back. (right) The colors and patterns of 4DLO responded to tone and rhythm. 1 The 24-cell and other structures in the hypersphere, 𝑆 3 The 24-cell, also known as an “octaplex” and by other names, is a “four-dimensional regular polyhedron” or regular polytope, denoted {3, 4, 3} by Ludwig Schläfli who enumerated all r… view at source ↗
Figure 2
Figure 2. Figure 2: 4DLO showing (a) the full symmetries of 24-cell; (b) half those, directing the edges; (c) a sequence of the twenty four octahedral cells of the 24-cell, one by one (a similar sequence showed off the twenty four cubes of the three tesseracts sharing these edges); and (d) four mutually perpendicular groups of four rings of length six, indicated by color. canonical reference, and the Wikipedia article is exte… view at source ↗
Figure 3
Figure 3. Figure 3: At left, a spherical octahedron and its stereographic projection. Both are divisions of their space into triangular cells bounded by circular arcs meeting at right angles. Stereographic projections of 16-cells, with tetrahedral cells and faces and edges meeting at right angles: (middle) our first model made of tubing (right) a dynamic lit model in Fayetteville Ark, 2019. The polytopes in this figure are ar… view at source ↗
Figure 4
Figure 4. Figure 4: (Left) With some deletions and distortions, stereographically projected sets 𝑉8 (black), 𝑉 + 16 (blue), and 𝑉 − 16 (brown); with edges of a cell-down tesseract (black); the red points on the faces of this tesseract are the points in 𝑉 − 24. It can help to sketch your own version of this diagram. (Right) a screenshot of our interactive javascript model is at chaimgoodmanstrauss.com/4DLO [PITH_FULL_IMAGE:fi… view at source ↗
Figure 5
Figure 5. Figure 5: Cell-down 24-cells, shown as (left) a compound of three tesseracts and (right) 𝑇 ∗ generated by the three-fold rotational symmetries of a tetrahedron. As with many of these models, not all edges of the mathematical structure are shown. The models in this figure are missing edges outside a unit ball, the “top” half of the 24-cell. Scott Vorthmann led a group build of these models at the sixteenth Gathering … view at source ↗
Figure 6
Figure 6. Figure 6: (At left) A first model of a compound of two compounds of three 16-cells ( “two· three 16-cells”) made of playing jacks and automotive tubing; the marked half-circles lie in a √ 2-to-1 rectangle (see [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: (Left) an obliquely arranged compound of three 16-cells. (Middle) if a direction were added to these edges, this model would show symmetry 𝑂 ∗ . (Right) a pleasing piece of yard art, a portion of three 16-cells made from four-way and two-way connectors. and −1 “at infinity”, the unit imaginary quaternions on the unit sphere and ±i, ±j and ±k upon it as coordinate axes. Our sketch is at left in [PITH_FULL_… view at source ↗
Figure 8
Figure 8. Figure 8: Plans for a vertex-down projection of the 24-cell (brown); a cell-down 24-cell (light blue); and a compound of two compounds of three 16-cells (black); The points of 𝑉24 are shaded and those of 𝑉 ′ 24 circled. These plans are on planes meeting the unit cube (of width 2) as shown. slides along rails in right-handed [sic] coils and multiplying on the right (x ↦→ xq) slides along left-handed coils (as measure… view at source ↗
Figure 9
Figure 9. Figure 9: Models of symmetry types (left) ±[𝐶2 × 𝐶11], (middle) ±[𝑇 × 𝐶6], six copies of a 16-cell slid along yellow rails, and (right) 𝑂 ∗ with edges corresponding to four-fold rotations of the cube. and Smith [3] mean the group of actions of the form x ↦→ axb where the quaternions a and b correspond to rotations that lie in symmetry groups 𝐴 and 𝐵 [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
read the original abstract

The {\em Four-dimensional Light Orchestra} or {\em 4DLO} was an interactive sculpture at the National Museum of Mathematics (MoMath) from November 20, 2025 through January 2026, illustrating various sub-symmetries of the 24-cell with colored lights. This was part of a larger sequence of tubing sculptures aiming to bring to life a few lines of tables appearing in~\cite{conwayandsmith}, reprinted in~\cite{sot}, and further illuminated in~\cite{rastanawi}. Best of all museum patrons could manipulate {\em 4DLO}'s lighting by singing and making funny noises into a microphone, and they did so with gusto. Here we describe some of the technical aspects of this sculpture and its context.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript describes the Four-dimensional Light Orchestra (4DLO), an interactive tubing sculpture installed at the National Museum of Mathematics from November 2025 to January 2026. It uses colored lights on a physical model to illustrate sub-symmetries of the 24-cell drawn from tables in Conway-Smith, with museum visitors able to control the lighting patterns via microphone input such as singing. The text places the installation in the context of a sequence of similar tubing sculptures and provides some technical details of its construction and operation.

Significance. If the descriptive account holds, the work offers a concrete public-facing realization of abstract 4-dimensional symmetry groups, contributing to mathematical outreach and visualization. Documenting the technical implementation of such models can support replication efforts and educational use of physical analogs for the 24-cell and its subgroups.

minor comments (2)
  1. [Technical aspects] The section on technical aspects would benefit from an explicit diagram or table showing how microphone-detected frequencies map to specific sub-symmetry lighting configurations, as the current prose description leaves the control mechanism somewhat opaque.
  2. Citation [conwayandsmith] is referenced for the symmetry tables; adding a brief note on which specific table entries (e.g., by row or subgroup name) correspond to the illuminated patterns would improve traceability for readers.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary, recognition of the work's significance for mathematical outreach, and recommendation to accept the manuscript.

Circularity Check

0 steps flagged

No significant circularity: purely expository description with external citations

full rationale

The manuscript is an expository account of a physical museum sculpture (the 4DLO tubing installation) that visualizes sub-symmetries drawn from tables in Conway & Smith. No derivation, theorem, prediction, or computation is advanced; the text simply reports the sculpture's construction, installation, and interactive features while citing external sources for the symmetry tables. Because there is no load-bearing mathematical step, fitted parameter, self-citation chain, or ansatz that reduces to the paper's own inputs, the circularity score is 0. The central claim is factual (the sculpture existed and functioned as described) and remains independent of any internal reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper rests on the assumption that the cited tables in Conway and Smith accurately enumerate the sub-symmetries of the 24-cell; no new axioms or parameters are introduced in the abstract.
