Assessment of DKIST/VTF Capabilities for the Detection of Local Acoustic Source Wavefronts

Corinne Morrell , Mark P. Rast , Shah Mohammad Bahauddin , Ivan Mili\'c This is my paper

Pith reviewed 2026-05-16 06:05 UTC · model grok-4.3

classification 🌌 astro-ph.SR
keywords solar acoustic wavesDKIST VTFphotospheric wavefrontsp-mode excitationiron spectral lineshelioseismologywave detection strategysolar photosphere
0
0 comments X

The pith

DKIST/VTF can detect local acoustic wavefronts via targeted wavelengths in iron lines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates whether the Visible Tunable Filter on the Daniel K. Inouye Solar Telescope can capture local acoustic source wavefronts in the solar photosphere. Simulations have already shown that temporal filtering isolates these small-amplitude wavefronts, but real observations face tight limits on cadence, spatial resolution, and spectral sampling. The authors therefore test wavelength positions inside strong iron lines to find combinations that produce the largest response to the wave signal while staying within instrument constraints. Two concrete strategies emerge for the simulated case: rapid single-wavelength imaging or ordered interleaved sampling in the blue wing of a chosen line. Success would give direct views of how p-modes are stochastically excited and where their sources lie beneath the surface.

Core claim

Under the cadence and spectral resolution constraints of DKIST/VTF observations and for the particular simulated wavefront examined, fast monochromatic imaging at 6302.425 Å or ordered interleaved observations in the blue wing of either the Fe I 6302.5 Å line (between 6302.419 Å and 6302.465 Å) or the Fe I 5250.6 Å line (between 5250.579 Å and 5250.607 Å) maximize sensitivity to the acoustic wave signal.

What carries the argument

Wavelength selection inside spectral lines chosen to maximize the amplitude response to small photospheric velocity and intensity perturbations while respecting instrument cadence limits.

If this is right

  • Direct measurement of the depth distribution of acoustic sources below the photosphere becomes feasible.
  • The dominant physical mechanisms that stochastically excite solar p-modes can be identified from observed wavefront properties.
  • Improved mapping of the complex wavefield in the lower chromosphere is possible.
  • Ultra-local helioseismic diagnostics that resolve individual source regions can be developed.
  • Routine observational tracking of acoustic excitation events on the Sun can be established.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same wavelength-selection logic could be adapted to other high-resolution solar instruments that offer tunable filters or rapid spectral scanning.
  • If the method succeeds, it supplies an independent test of the radiative magnetohydrodynamic simulations used to train the detection filter.
  • Detection of these wavefronts would allow statistical studies of how source strength varies with magnetic field strength and convection pattern.
  • The approach might eventually support real-time monitoring of acoustic power input into the solar atmosphere.

Load-bearing premise

The single simulated wavefront studied is typical of real solar conditions and that any sensitivity gains found in the simulation will appear unchanged once the same wavelengths are used on actual telescope data.

What would settle it

DKIST/VTF data taken with either the 6302.425 Å monochromatic mode or the recommended interleaved blue-wing sequences, then processed with the same temporal filter; if no clear wavefront signature matching the simulation appears at the expected location and time, the proposed strategies do not work as described.

Figures

Figures reproduced from arXiv: 2602.07137 by Corinne Morrell, Ivan Mili\'c, Mark P. Rast, Shah Mohammad Bahauddin.

Figure 1
Figure 1. Figure 1: Propagation of a localized acoustic wavefront through the photosphere in a radiative MHD simulation. Panels show snapshots of the (A) line-of-sight velocity (top), its (B) third-order temporal difference (middle), and the corresponding (C) third-order temporal difference of temperature (bottom), revealing a coherent wavefront expanding across a granulation cell. Temporal differencing suppresses background … view at source ↗
Figure 2
Figure 2. Figure 2: Height-dependent velocity and temperature structure of the simulated atmosphere at a single time step. The panel shows an instantaneous vertical slice of (A) line-of-sight velocity v (left), (B) temporal velocity difference v (3) (middle), and (C) temperature fluctuations T ′ = T − T0, where T0 is the horizontal mean temperature at each height (right), over the full vertical extent (3 Mm) of the MURaM solu… view at source ↗
Figure 3
Figure 3. Figure 3: Construction of azimuthally averaged acoustic mask from the MURaM simulation. (A) Temporal velocity difference v (3) snapshot (left) showing the acoustic wavefront in the MURaM photosphere with concentric annuli around fitted center (cyan). Annulus selected for analysis indicated with dark, bolded boundaries. (B) Standard score Z(z, t) map for the region of interest (right), revealing a clear, height-depen… view at source ↗
Figure 4
Figure 4. Figure 4: One-dimensional upward wave propagation constructed from azimuthally averaged perturbations in the annulus of interest. The temporally differenced velocity v (3) (solid black line) and differenced temperature perturbation δT(3) (dashed black line) are shown as functions of time and vertically offset by height, revealing the coherent upward progression of the acoustic wavefront through the atmosphere. The s… view at source ↗
Figure 5
Figure 5. Figure 5: Ratios of the amplitudes of the maximum intensity perturbations due to velocity and temperature fluctuations, i.e., R(λ) = maxt [∆Iv(λ, t)]/maxt [∆IT (λ, t)], for the specific acoustic event considered here. 3.3 Sensitivity Measure For small amplitude perturbations, the change in emergent intensity at each height in the simulation at a given wavelength λ is approximately ∆I(λ, t) = Z [RFT (λ, z) δT(z, t) +… view at source ↗
Figure 6

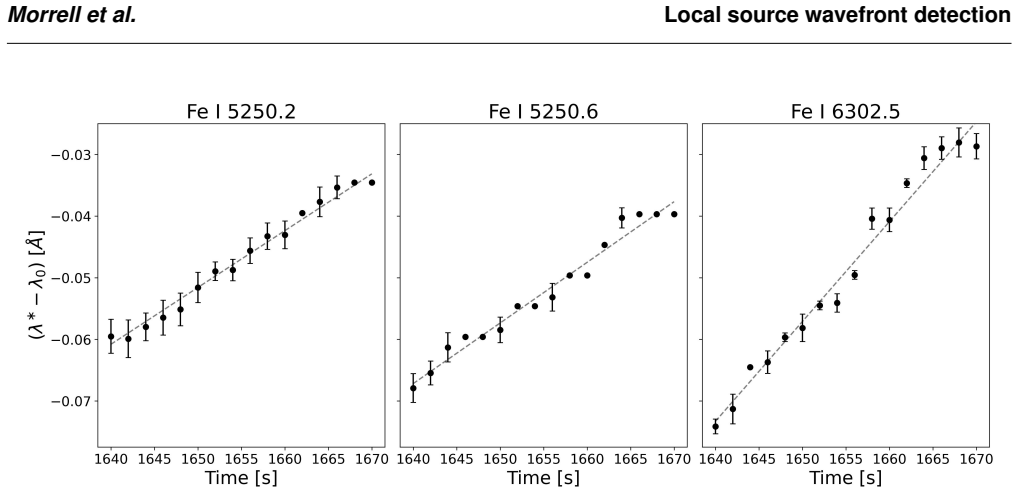

Figure 6. Figure 6: Time-dependent drift of the wavelength of maximum temperature sensitivity, λ ∗ , averaged over the annulus of interest. The evolution of λ ∗ toward the rest-frame line center (λ0) traces the upward propagation of the acoustic wavefront and the corresponding shift in the atmospheric layer contributing most strongly to the intensity response. Error bars indicate the standard deviation of λ ∗ over pixels. and… view at source ↗
Figure 7
Figure 7. Figure 7: The average, over the annulus of interest, of the temperature response function RFT (normalized by continuum intensity Ic) for each atmosphere making up the annulus of interest at t = 1640 s, across the Fe I 5250.2, 5250.6, and 6302.5 spectral lines (background) The probability density function of λ ∗∗ for each pixel in the annulus of interest is over-plotted in red, with λ ∗∗ indicated with a black vertic… view at source ↗
read the original abstract

Recent studies have demonstrated that temporal filtering can successfully identify local-acoustic-source wavefronts in radiative magnetohydrodynamic simulations of the solar photosphere. Extending this capability to observations promises new insight into the stochastic excitation of solar p-modes, the source depth distribution below the photosphere, and the dominant physical processes underlying acoustic wave excitation. Such measurements would also enable improved characterization of the complex wavefield in the lower chromosphere and open the possibility of ultra-local helioseismic diagnostics. In this work, we assess an observational strategy for the detection of local acoustic wavefronts on the Sun using the Visible Tunable Filter (VTF) instrument on the National Science Foundation's Daniel K. Inouye Solar Telescope (DKIST). Because wavefront identification requires high spatial and temporal resolution and is limited by the small amplitudes of the wave perturbations, we focus on identifying specific wavelength combinations within spectral lines that maximize the sensitivity to the wave signal. Under the cadence and spectral resolution constraints of DKIST/VTF observations and for the particular simulated wavefront we examine, this approach suggests two possible strategies: fast monochromatic imaging at 6302.425 A, or ordered interleaved observations in the blue wing of either the Fe I 6302.5 A or Fe I 5250.6 A line (between 6302.419 A and 6302.465 A, or between 5250.579 A and 5250.607 A respectively).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript assesses DKIST/VTF capabilities for detecting local acoustic source wavefronts via radiative MHD simulations of the solar photosphere. Focusing on wavelength selection to maximize wave-signal sensitivity under the instrument's cadence and spectral-resolution limits, it concludes that two strategies are viable for the particular simulated wavefront examined: fast monochromatic imaging at 6302.425 Å or ordered interleaved observations in the blue wing of the Fe I 6302.5 Å line (6302.419–6302.465 Å) or the Fe I 5250.6 Å line (5250.579–5250.607 Å).

Significance. If the simulation-based sensitivity ranking holds under real solar conditions and DKIST noise characteristics, the work supplies a concrete observational roadmap that could enable direct detection of local acoustic sources, thereby constraining p-mode excitation depths and mechanisms as well as improving characterization of the lower-chromospheric wave field.

major comments (2)
  1. [Methods] The sensitivity metric that ranks the candidate wavelengths is central to the two recommended strategies, yet its precise definition (including weighting of amplitude, phase, and noise contributions) is not stated explicitly enough to allow independent verification of why 6302.425 Å or the cited blue-wing intervals outperform other positions within the same lines.
  2. [Results] The analysis is scoped to a single simulated wavefront; the manuscript should quantify how sensitive the ranking of the two strategies is to changes in wavefront amplitude, spatial scale, or magnetic-field strength, because this directly affects the load-bearing claim that the strategies are observationally viable.
minor comments (2)
  1. [Abstract] Replace the abbreviation “A” with the proper angstrom symbol “Å” throughout the text and figure labels.
  2. [Discussion] The exact wavelength sampling points used for the interleaved observations should be listed in a table or enumerated in the text so that observers can replicate the proposed cadence without ambiguity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We appreciate the referee's thoughtful review and recommendations for improving the manuscript. We address each of the major comments below.

read point-by-point responses

  1. Referee: [Methods] The sensitivity metric that ranks the candidate wavelengths is central to the two recommended strategies, yet its precise definition (including weighting of amplitude, phase, and noise contributions) is not stated explicitly enough to allow independent verification of why 6302.425 Å or the cited blue-wing intervals outperform other positions within the same lines.

    Authors: We agree that the sensitivity metric requires a more explicit definition for independent verification. In the revised manuscript we have added a dedicated paragraph in the Methods section that states the full formula, including the precise weighting of amplitude, phase coherence, and noise terms, together with the justification for those weights based on the wavefront detection procedure. revision: yes

  2. Referee: [Results] The analysis is scoped to a single simulated wavefront; the manuscript should quantify how sensitive the ranking of the two strategies is to changes in wavefront amplitude, spatial scale, or magnetic-field strength, because this directly affects the load-bearing claim that the strategies are observationally viable.

    Authors: We acknowledge that the study examines only one simulated wavefront. We have added a new paragraph in the Results section that tests the stability of the wavelength ranking under moderate changes in amplitude and spatial scale using the existing simulation data. A full exploration of magnetic-field strength variations would require additional radiative MHD runs that are computationally prohibitive within the present scope; we have therefore added an explicit statement of this limitation and its implications for the viability claim. revision: partial

Circularity Check

0 steps flagged

No significant circularity; assessment is simulation-driven and externally constrained

full rationale

The paper evaluates DKIST/VTF observational strategies for local acoustic wavefront detection by applying temporal filtering to one specific radiative MHD simulation and testing wavelength sensitivity under stated instrument cadence and resolution limits. No derivation chain reduces to fitted parameters renamed as predictions, self-definitional equations, or load-bearing self-citations. The two suggested strategies (monochromatic imaging at 6302.425 Å or interleaved blue-wing observations) are presented as direct outcomes of the external simulation sensitivity analysis for the examined wavefront, with explicit scoping that avoids general claims. The work is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that the examined simulated wavefront represents typical solar acoustic sources and that instrument constraints are accurately modeled.

axioms (1)
  • domain assumption The simulated wavefront is representative of actual solar photospheric conditions
    Invoked to justify the wavelength selection for real observations.
