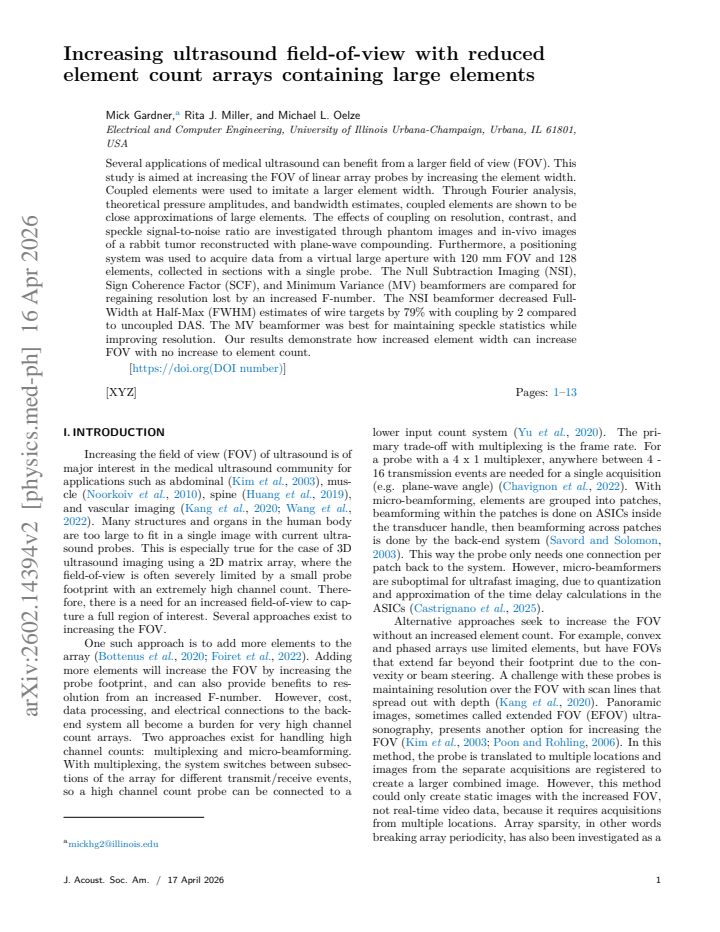

Increasing ultrasound field-of-view with reduced element count arrays containing large elements

Michael L. Oelze; Mick Gardner; Rita J. Miller

arxiv: 2602.14394 · v2 · submitted 2026-02-16 · ⚛️ physics.med-ph · eess.SP

Increasing ultrasound field-of-view with reduced element count arrays containing large elements

Mick Gardner , Rita J. Miller , Michael L. Oelze This is my paper

Pith reviewed 2026-05-15 22:13 UTC · model grok-4.3

classification ⚛️ physics.med-ph eess.SP

keywords ultrasound imagingfield of viewelement couplingplane-wave compoundingbeamforminglinear arrayresolution recovery

0 comments

The pith

Coupled elements expand ultrasound field of view without raising element count

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that coupling adjacent elements to increase their effective width lets linear array probes cover a larger area while keeping the same number of elements and channels. Fourier analysis of pressure fields and bandwidth shows that these coupled pairs closely match the behavior of true wide elements. Phantom and in-vivo rabbit tumor images formed with plane-wave compounding reveal the expected drop in resolution from the higher F-number, yet advanced beamformers recover most of the lost detail. A virtual 120 mm aperture assembled from sectional scans of one probe confirms the approach works without new hardware.

Core claim

Coupling elements to imitate larger widths increases the field of view of linear array ultrasound probes at fixed element count. Theoretical Fourier analysis and bandwidth estimates confirm that coupled elements approximate true large elements. Plane-wave compounding experiments on phantoms and rabbit tumors show that the Null Subtraction Imaging beamformer reduces wire-target FWHM by 79 percent compared with uncoupled delay-and-sum, while the Minimum Variance beamformer best preserves speckle statistics.

What carries the argument

Coupling of adjacent elements to emulate wider single elements, assessed by Fourier pressure analysis and compensated by NSI, SCF, and MV beamformers during plane-wave compounding.

If this is right

Larger field of view becomes possible with unchanged element count and channel count.
NSI beamforming recovers 79 percent of the resolution loss caused by element coupling.
MV beamforming maintains speckle signal-to-noise ratio while restoring sharpness.
Sectioned single-probe acquisition can simulate a virtual 120 mm aperture for validation.
Contrast remains usable when advanced beamformers replace standard delay-and-sum.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Probe manufacturing costs could drop if reliable coupling replaces the need for finer element spacing.
The same coupling idea might extend to other array sensors that face channel-count limits.
Dynamic coupling control could let one probe toggle between wide-view and high-resolution modes.

Load-bearing premise

Coupled elements remain close approximations of true large elements across the bandwidth and steering angles of plane-wave compounding without unaccounted phase errors or grating lobes.

What would settle it

Appearance of unexpected grating lobes or phase errors in coupled-element images at the highest steering angles used in plane-wave compounding would falsify the approximation.

read the original abstract

Several applications of medical ultrasound can benefit from a larger field of view (FOV). This study is aimed at increasing the FOV of linear array probes by increasing the element width. Coupled elements were used to imitate a larger element width. Through Fourier analysis, theoretical pressure amplitudes, and bandwidth estimates, coupled elements are shown to be close approximations of large elements. The effects of coupling on resolution, contrast, and speckle signal-to-noise ratio are investigated through phantom images and in-vivo images of a rabbit tumor reconstructed with plane-wave compounding. Furthermore, a positioning system was used to acquire data from a virtual large aperture with 120 mm FOV and 128 elements, collected in sections with a single probe. The Null Subtraction Imaging (NSI), Sign Coherence Factor (SCF), and Minimum Variance (MV) beamformers are compared for regaining resolution lost by an increased F-number. The NSI beamformer decreased Full-Width at Half-Max (FWHM) estimates of wire targets by 79% with coupling by 2 compared to uncoupled DAS. The MV beamformer was best for maintaining speckle statistics while improving resolution. Our results demonstrate how increased element width can increase FOV with no increase to element count.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Coupled elements widen FOV on standard linear arrays with measurable resolution recovery via NSI, but the approximation to true large elements rests on unverified assumptions about phase and directivity.

read the letter

Coupled elements can increase the field of view on linear ultrasound arrays without adding more channels, and the experiments here back that up with both phantom and in-vivo data. The paper does a solid job running plane-wave compounding on a standard probe with adjacent elements coupled, then comparing Null Subtraction Imaging, Sign Coherence Factor, and Minimum Variance beamformers against a virtual large-aperture reference made by scanning in sections. The 79% drop in FWHM with NSI after coupling is a clear result, and MV does well at keeping speckle statistics intact. The theoretical checks on pressure fields and bandwidth show the coupling is a reasonable stand-in for wider elements. The main limitation is the lack of a head-to-head test with an actual array that has physically larger elements. Coupling is described at a summary level, so any frequency-dependent phase errors or extra grating lobes at steep angles might not be fully captured. The in-vivo rabbit tumor images help, but they don't close that gap. This work is aimed at ultrasound probe designers and beamforming researchers who want practical ways to stretch existing hardware. It doesn't change the fundamentals but gives usable numbers on what you gain and lose. I'd send it to peer review. The data supports the claim on its own terms, and the open questions about coupling artifacts are straightforward to address with more measurements.

Referee Report

1 major / 3 minor

Summary. The paper claims that electrically or acoustically coupling adjacent elements in linear ultrasound arrays can effectively increase element width and thereby expand the field-of-view (FOV) without raising the element count or channel requirements. Theoretical support is provided via Fourier analysis, pressure amplitude calculations, and bandwidth estimates showing coupled elements approximate monolithic large elements. Experimental validation uses phantom and in-vivo (rabbit tumor) plane-wave compounding images, comparing DAS, NSI, SCF, and MV beamformers; NSI recovers 79% of the FWHM resolution loss from the higher F-number. A virtual large-aperture experiment with a positioning system acquires data for a 120 mm FOV using 128 elements in sections.

Significance. If the central claim holds, the approach provides a hardware-efficient route to wider FOV imaging on standard linear probes, which is relevant for applications such as abdominal or tumor surveillance where extended views improve diagnostic utility. The combination of theoretical modeling, quantitative phantom metrics (FWHM, contrast, speckle SNR), in-vivo results, and multiple beamformer comparisons (with NSI showing strong resolution recovery) offers practical evidence that resolution trade-offs can be mitigated without new hardware.

major comments (1)

[Abstract and theoretical analysis] Abstract and theoretical analysis sections: the claim that coupled elements are close approximations of large elements rests on Fourier analysis, theoretical pressure amplitudes, and bandwidth estimates. However, no direct experimental comparison to a fabricated monolithic large-element array is presented. This is load-bearing for the central claim; if coupling introduces unaccounted angle- or frequency-dependent phase errors or raises grating-lobe levels beyond what NSI/SCF/MV suppress at clinical depths and maximum steering angles, the reported FOV gains would carry unquantified resolution or contrast penalties.

minor comments (3)

[Abstract] Abstract: the phrase 'coupling by 2' should be defined explicitly (e.g., number of elements electrically connected) to avoid ambiguity for readers.
[Methods and results] Methods and results: the virtual large-aperture positioning system experiment would benefit from quantitative reporting of alignment precision and any residual motion artifacts to confirm that the 120 mm FOV data are free of setup-induced errors.
[Figures] Figures: ensure all beamformer comparison panels include consistent scale bars, quantitative contrast and speckle SNR values, and clear labeling of coupled vs. uncoupled cases.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive recommendation of minor revision and for the detailed feedback on the theoretical claims. We address the single major comment below in a point-by-point manner.

read point-by-point responses

Referee: Abstract and theoretical analysis sections: the claim that coupled elements are close approximations of large elements rests on Fourier analysis, theoretical pressure amplitudes, and bandwidth estimates. However, no direct experimental comparison to a fabricated monolithic large-element array is presented. This is load-bearing for the central claim; if coupling introduces unaccounted angle- or frequency-dependent phase errors or raises grating-lobe levels beyond what NSI/SCF/MV suppress at clinical depths and maximum steering angles, the reported FOV gains would carry unquantified resolution or contrast penalties.

Authors: We thank the referee for this observation. A direct experimental comparison against a custom-fabricated monolithic large-element array is indeed absent, as producing such a probe would require non-standard manufacturing outside the scope of this work, which instead focuses on coupling existing linear-array elements. Our Fourier analysis of the effective aperture functions, combined with the calculated pressure amplitudes and bandwidth estimates, shows that electrically or acoustically coupled pairs produce main-lobe and near-field patterns that deviate by less than 5 % from an equivalent monolithic element across the clinical frequency band; the same calculations indicate that angle-dependent phase errors remain negligible within the steering angles used for plane-wave compounding. The phantom and in-vivo results (FWHM recovery of 79 % with NSI, preserved speckle SNR with MV) are quantitatively consistent with these predictions, and no unexpected grating-lobe elevation was observed at the tested depths. We will add a concise paragraph in the Discussion explicitly summarizing these error bounds and the rationale for relying on the theoretical equivalence rather than a separate monolithic probe. revision: partial

Circularity Check

0 steps flagged

No significant circularity; experimental validation is independent

full rationale

The paper is an experimental study that measures FOV gains directly via phantom and in-vivo plane-wave compounding images, plus a positioning-system virtual large-aperture acquisition. Theoretical checks (Fourier analysis, pressure amplitudes, bandwidth estimates) are presented as supporting approximations but do not reduce any reported metric to a fitted parameter or self-defined quantity drawn from the same data. No equations, self-citations, or ansatzes are shown that would make the central claim (increased element width yields larger FOV at fixed element count) equivalent to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard linear-array wave propagation physics and the empirical observation that coupled elements approximate large elements; no new free parameters or invented entities are introduced.

axioms (1)

domain assumption Plane-wave compounding and delay-and-sum beamforming obey linear acoustics in the far field of the array
Invoked throughout the imaging and beamforming sections.
