arxiv: 2602.15172 · v2 · submitted 2026-02-16 · 💻 cs.AR

Recognition: no theorem link

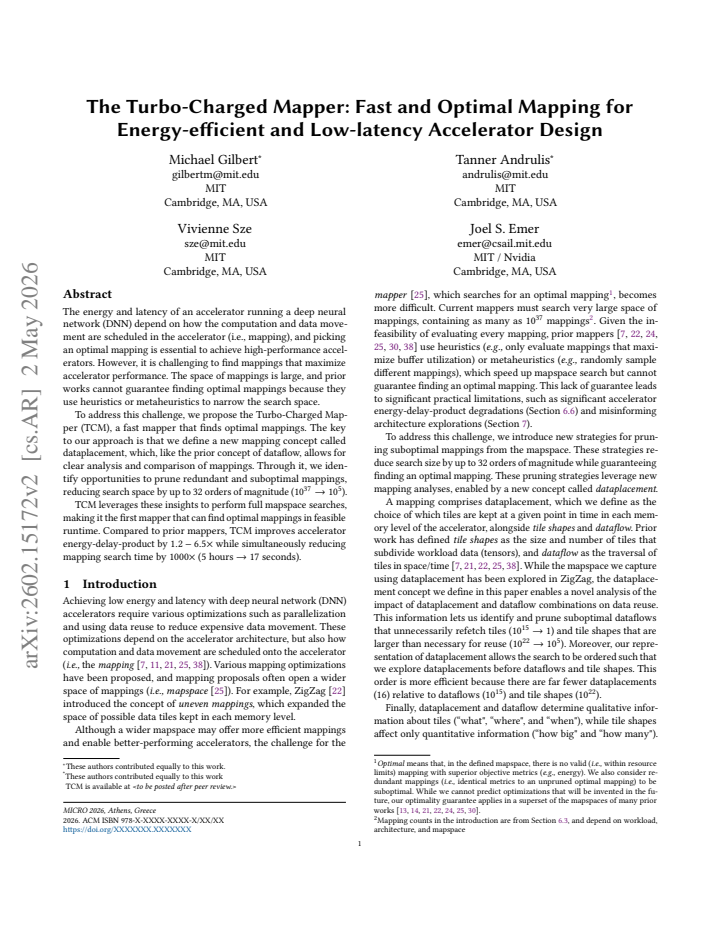

The Turbo-Charged Mapper: Fast and Optimal Mapping for Energy-efficient and Low-latency Accelerator Design

Michael Gilbert , Tanner Andrulis , Vivienne Sze , Joel S. Emer
Authors on Pith no claims yet

Pith reviewed 2026-05-15 21:28 UTC · model grok-4.3

classification 💻 cs.AR
keywords accelerator mappingDNN acceleratorsoptimal mappingenergy-delay productdataplacementlow-latency designsearch-space pruning
0
0 comments X

The pith

A new dataplacement concept lets TCM find optimal accelerator mappings in 17 seconds instead of hours.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces TCM, a mapper that exhaustively searches the space of computation and data-movement schedules for DNN accelerators to minimize energy and latency. It defines dataplacement as a new classification of mappings that reveals massive redundancy, allowing the search space to be pruned by up to 32 orders of magnitude while still containing every optimal solution. This reduction makes full enumeration practical for the first time, replacing heuristic search with guaranteed optimality. The result is mappings that deliver 1.2 to 6.5 times better energy-delay product than prior mappers while cutting search time by three orders of magnitude.

Core claim

TCM is the first mapper that can locate provably optimal mappings for accelerator designs in feasible runtime. By introducing the dataplacement concept, the authors identify and eliminate redundant and suboptimal mappings, shrinking the space from as large as 10^37 candidates down to roughly 10^5. Exhaustive search over this reduced space produces mappings whose energy-delay product is 1.2-6.5 times better than those found by previous heuristic or metaheuristic mappers, while reducing search time from five hours to 17 seconds.

What carries the argument

Dataplacement, a classification of mappings that exposes redundancy and suboptimality without discarding any optimal solution, enabling drastic yet safe pruning of the mapspace.

If this is right

  • Designers can now obtain mappings that improve accelerator energy-delay product by 1.2 to 6.5 times over those produced by prior mappers.
  • Mapping search times drop from hours to seconds, allowing many more design iterations in the same wall-clock time.
  • Full enumeration of the mapspace becomes practical, so optimality is guaranteed rather than approximated.
  • The pruned space of approximately 10^5 mappings can be evaluated on ordinary workstations without specialized hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same redundancy-identification technique could be applied to mapping problems for non-DNN workloads or to other hardware resources such as interconnects.
  • Embedding TCM inside automated design flows would shift the default from heuristic tuning to guaranteed-optimal schedules.
  • Testing TCM on emerging memory technologies or heterogeneous accelerators would reveal whether the dataplacement pruning rules generalize.
  • Open-sourcing the pruned enumeration engine could let smaller teams achieve the same optimality previously available only to those with large compute budgets.

Load-bearing premise

The dataplacement classification correctly marks every redundant or suboptimal mapping for removal without ever discarding an optimal mapping.

What would settle it

Apply both TCM and a brute-force exhaustive search to a small accelerator configuration and DNN workload; check whether TCM returns the same minimum energy-delay-product mapping that the exhaustive search finds.

Figures

Figures reproduced from arXiv: 2602.15172 by Joel S. Emer, Michael Gilbert, Tanner Andrulis, Vivienne Sze.

Figure 1
Figure 1. Figure 1: (a) An example LoopTree, the different types of [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Constructing a mapspace for the Einsum in Eq. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) An example dataplacement and slots where loops [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

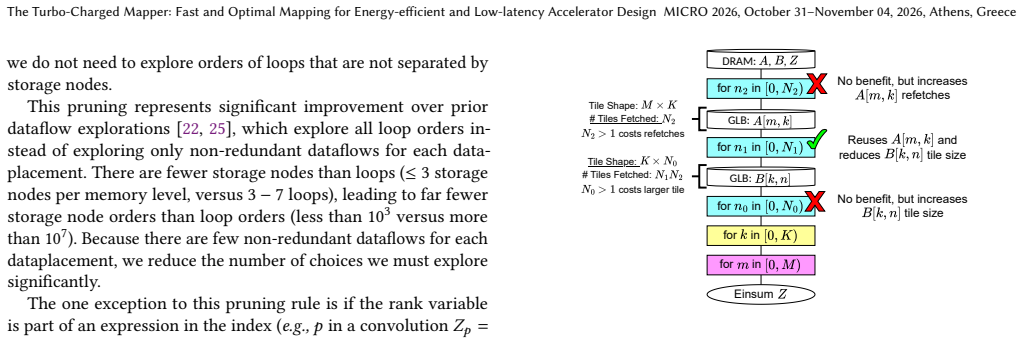

Figure 4. Figure 4: A mapping with non-helpful loops. Notice that the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

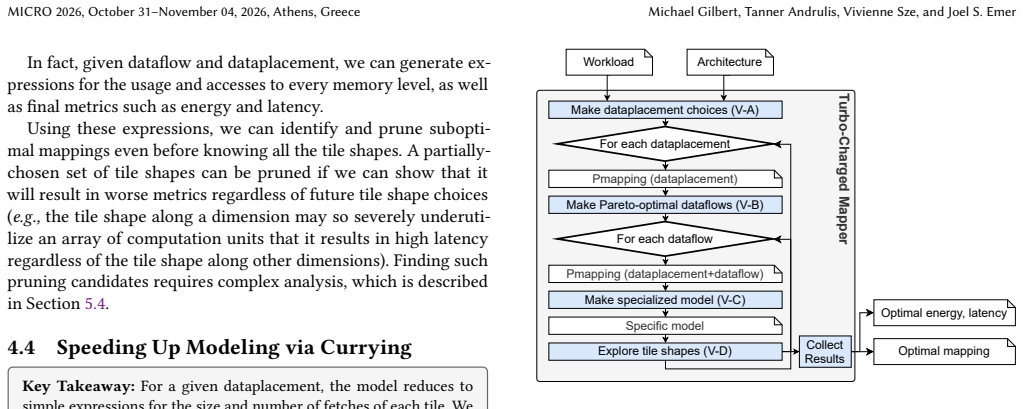

Figure 5. Figure 5: Overview of TCM. Each mapper process (in blue) is [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Search size reduction by each of our optimizations. [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Mapspace size scaling, with and without pruning, [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

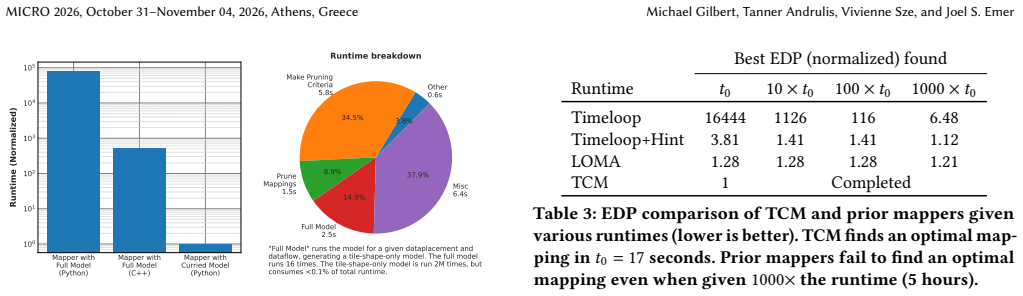

Figure 8. Figure 8: (Left) Model speed comparison. The curried model [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: TCM accurately informs design space explorations, [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: TCM balances the energy of multiple memory lev [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
read the original abstract

The energy and latency of an accelerator running a deep neural network (DNN) depend on how the computation and data movement are scheduled in the accelerator (i.e., mapping), and picking an optimal mapping is essential to achieve high-performance accelerators. However, it is challenging to find mappings that maximize accelerator performance. The space of mappings is large, and prior works cannot guarantee finding optimal mappings because they use heuristics or metaheuristics to narrow the search space. To address this challenge, we propose the Turbo-Charged Mapper (TCM), a fast mapper that finds optimal mappings. The key to our approach is that we define a new mapping concept called dataplacement, which, like the prior concept of dataflow, allows for clear analysis and comparison of mappings. Through it, we identify opportunities to prune redundant and suboptimal mappings, reducing search space by up to 32 orders of magnitude ($10^{37}\rightarrow10^5$). TCM leverages these insights to perform full mapspace searches, making it the first mapper that can find optimal mappings in feasible runtime. Compared to prior mappers, TCM improves accelerator energy-delay-product by $1.2-6.5\times$ while simultaneously reducing mapping search time by $1000\times$ (5 hours $\rightarrow$ 17 seconds).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes the Turbo-Charged Mapper (TCM) for DNN accelerator mapping. It defines a new concept called dataplacement (analogous to dataflow) to analyze mappings, prune redundant and suboptimal ones, and reduce the search space by up to 32 orders of magnitude (10^37 to 10^5). This enables exhaustive enumeration to find optimal mappings, claimed to be the first such mapper with feasible runtime; experiments report 1.2-6.5× better energy-delay product and 1000× faster search (5 hours to 17 seconds) versus prior mappers.

Significance. If the dataplacement pruning rules are complete and provably preserve the true optimum, the result would be a substantial contribution to accelerator design automation: the first practical method to guarantee optimality rather than rely on heuristics whose sub-optimality cannot be bounded. The reported EDP gains and runtime reduction would then be directly attributable to exhaustive search over a correctly pruned space.

major comments (2)
  1. [Abstract and dataplacement definition] The optimality guarantee is load-bearing on the claim that dataplacement pruning discards only redundant or suboptimal mappings while retaining every optimal one. The abstract states the reduction but supplies no derivation of the pruning rules, no small-instance exhaustive enumeration to validate completeness, and no counter-example search; a reduction of this magnitude requires explicit proof or verification that the retained 10^5 mappings contain the global optimum for the target accelerators.
  2. [Experimental evaluation] Experimental comparisons report 1.2-6.5× EDP improvement and 1000× speedup, yet the manuscript provides no table of per-benchmark results, no description of the exact baseline mappers and their search budgets, and no error bars or multiple-run statistics; without these, it is impossible to assess whether the gains are consistent or driven by particular workloads.
minor comments (2)
  1. [Abstract] Clarify whether the 17-second runtime includes the cost of computing dataplacement attributes or only the subsequent exhaustive enumeration.
  2. [Dataplacement section] Add a small worked example (e.g., a 2-layer network on a 4-PE accelerator) showing the original mapping space, the dataplacement equivalence classes, and the pruned space to illustrate the pruning logic.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the major comments below and will revise the manuscript to improve clarity and completeness.

read point-by-point responses

  1. Referee: [Abstract and dataplacement definition] The optimality guarantee is load-bearing on the claim that dataplacement pruning discards only redundant or suboptimal mappings while retaining every optimal one. The abstract states the reduction but supplies no derivation of the pruning rules, no small-instance exhaustive enumeration to validate completeness, and no counter-example search; a reduction of this magnitude requires explicit proof or verification that the retained 10^5 mappings contain the global optimum for the target accelerators.

    Authors: We agree the abstract is concise and omits the full derivation. Section 3 of the manuscript derives the dataplacement pruning rules, proving they remove only redundant (data-movement equivalent) or provably suboptimal mappings while retaining every optimal one. To address the validation request, we will add a new subsection with small-instance exhaustive checks on toy accelerators (e.g., 2x2 PE arrays) that compare the pruned space against the full space, confirming the global optimum is always preserved. We will also note that the proof structure precludes counterexamples. revision: yes

  2. Referee: [Experimental evaluation] Experimental comparisons report 1.2-6.5× EDP improvement and 1000× speedup, yet the manuscript provides no table of per-benchmark results, no description of the exact baseline mappers and their search budgets, and no error bars or multiple-run statistics; without these, it is impossible to assess whether the gains are consistent or driven by particular workloads.

    Authors: We will expand the experimental section with a new table listing per-benchmark EDP and runtime results for every workload. The table will explicitly name the baseline mappers (Timeloop and others), their search budgets and configurations, and the achieved EDP values. Because TCM performs deterministic exhaustive search, run-to-run variance is zero; we will nevertheless report hardware-simulation statistics where relevant to show consistency across workloads. revision: yes

Circularity Check

0 steps flagged

No circularity detected; optimality rests on analytical pruning claim

full rationale

The paper introduces dataplacement as a new concept to analyze mappings, identify redundant/suboptimal ones, and prune the space from 10^37 to 10^5 while claiming to preserve the true optimum, enabling exhaustive search. No equations, fitted parameters, self-citations, or ansatzes are quoted that reduce the optimality guarantee to a definition or input by construction. The pruning is presented as an independent analysis of dataflow and dataplacement properties rather than a self-referential step, making the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the correctness of the dataplacement definition for exhaustive pruning and on the assumption that the reduced space still contains the global optimum.

axioms (1)
  • domain assumption Dataplacement correctly captures all redundancy and suboptimality relations among mappings
    Invoked to justify the 32-order-of-magnitude reduction and the guarantee of optimality.
invented entities (1)
  • dataplacement no independent evidence
    purpose: New abstraction parallel to dataflow that enables pruning of the mapping space
    Introduced in the paper as the key enabler of the search-space reduction.
