Operational Modal Analysis of Aeronautical Structures via Tangential Interpolation

Gabriele Dessena , Marco Civera , Oscar E. Bonilla-Manrique
Authors on Pith no claims yet

Pith reviewed 2026-05-15 18:49 UTC · model grok-4.3

classification 📡 eess.SY cs.SYeess.SP
keywords operational modal analysisLoewner frameworktangential interpolationNExTaeronautical structuresmodal identificationstructural dynamicsimpulse response
0
0 comments X

The pith

Coupling NExT impulse responses with Loewner Framework tangential interpolation yields accurate modal parameters for aeronautical structures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces the NExT-LF method for operational modal analysis of aeronautical structures. It retrieves impulse response functions via the Natural Excitation Technique and then uses the Loewner Framework to perform tangential interpolation in the frequency domain. The approach is positioned as a way to reduce the computational burden of Stochastic Subspace Identification on large systems and to improve noise handling compared with NExT-ERA. Experimental validation on a high-aspect-ratio wing spar and a helicopter rotor blade shows that the extracted modal parameters align closely with reference data, especially under high-amplitude excitation and in the lower frequency band.

Core claim

By combining the Natural Excitation Technique (NExT) to obtain impulse responses with the Loewner Framework (LF) using tangential interpolation, the NExT-LF approach produces modal parameters that align closely with experimental benchmark data for aeronautical structures, performing particularly well under high-amplitude conditions and in the low-frequency range.

What carries the argument

Tangential interpolation in the Loewner Framework, applied to frequency-domain representations of NExT-derived impulse responses, for efficient construction of reduced-order models and extraction of modal parameters.

If this is right

  • NExT-LF offers a computationally lighter alternative to SSI-based methods when the system size grows.
  • The method reduces sensitivity to measurement noise relative to direct NExT-ERA fitting in the reported tests.
  • Modal estimates remain consistent with experimental references on both a wing main spar and a bearingless rotor blade.
  • Strongest agreement occurs for high-amplitude excitations in the low-frequency portion of the spectrum.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same impulse-response-plus-tangential-interpolation pipeline could be applied to output-only data from civil structures such as bridges or wind turbines.
  • If the interpolation step is made incremental, the approach might support near-real-time tracking of modal shifts for structural health monitoring.
  • Parameter-free scaling of the method to higher numbers of sensors would follow directly from the matrix-pencil construction inside the Loewner step.

Load-bearing premise

The impulse responses recovered by NExT remain sufficiently clean for the Loewner Framework's tangential interpolation to accurately extract modal parameters from the noisy aeronautical test data.

What would settle it

If NExT-LF applied to low-amplitude test data produces modal parameters that deviate substantially from the same benchmark references used in the high-amplitude cases, the claim of reliable performance across typical noise levels would be falsified.

Figures

Figures reproduced from arXiv: 2603.01359 by Gabriele Dessena, Marco Civera, Oscar E. Bonilla-Manrique.

Figure 1

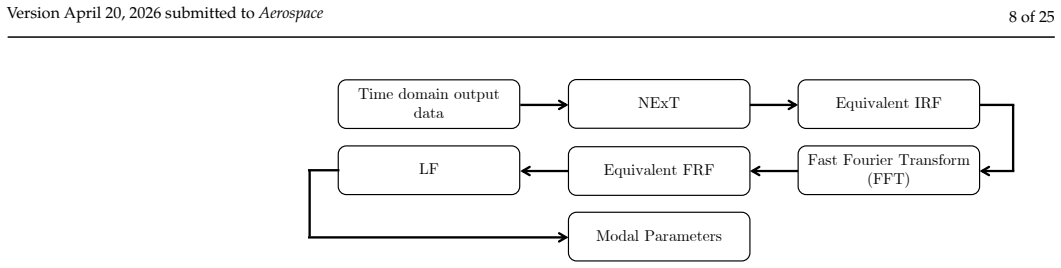

Figure 1. Figure 1: NExT-LF workflow. featuring a more slender, higher-aspect-ratio wing with the same wing loading and a cruise condition of M = 0.6, intended to reflect an efficient turboprop configuration. An eXergy￾based optimisation yields a full-scale wingspan of 48 m [48]. To ensure compatibility with the wind-tunnel facility, a geometric scaling factor of 16 is adopted. The scaling procedure relied on non-dimensionali… view at source ↗
Figure 2

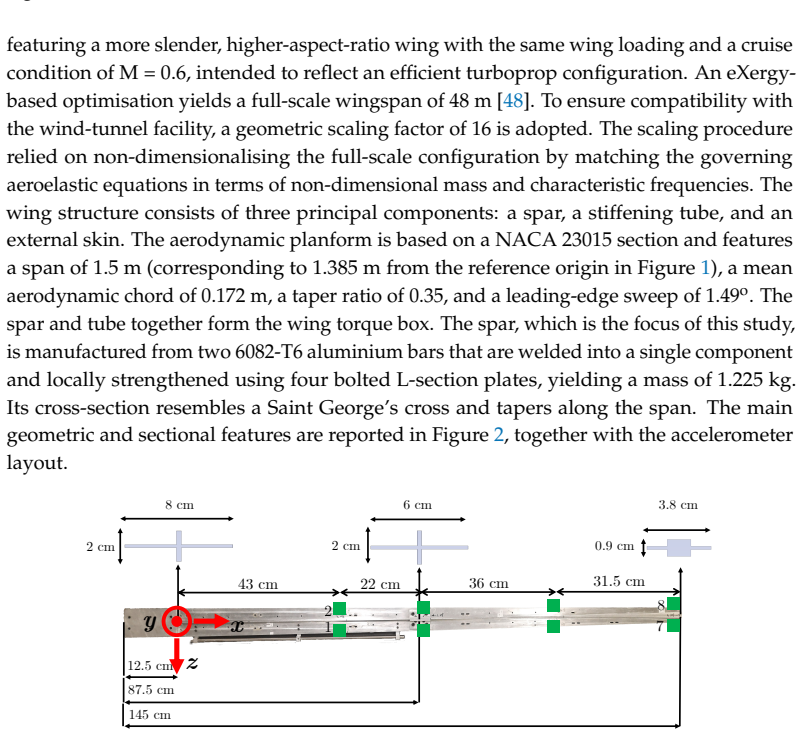

Figure 2. Figure 2: XB-2 wing main spar geometrical characteristics and corresponding accelerometer locations ( ). The odd-numbered accelerometers are positioned on the positive z side, whereas the even￾numbered sensors are mounted on the negative z side (retrieved from [49]). The experimental dataset employed in this work is sourced from [32] 1 , which also reports benchmark EMA results. The spar is excited for 20 m using a … view at source ↗
Figure 3

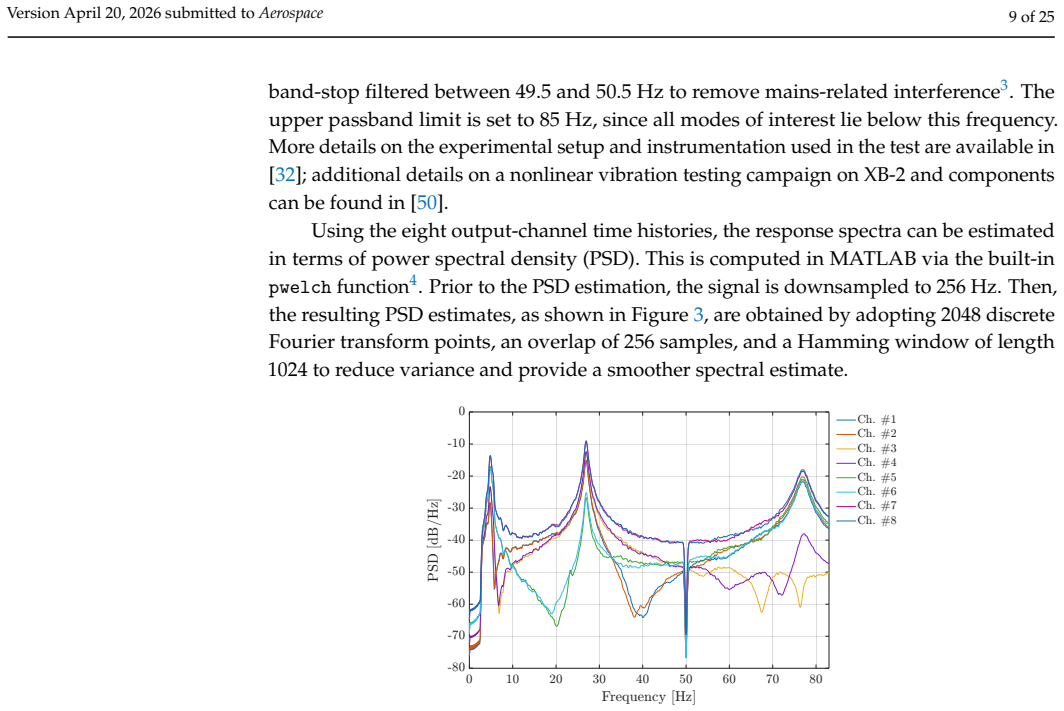

Figure 3. Figure 3: PSDs of the eight acceleration response channels measured on the XB-2 wing main spar (retrieved from [49]). As indicated by [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4

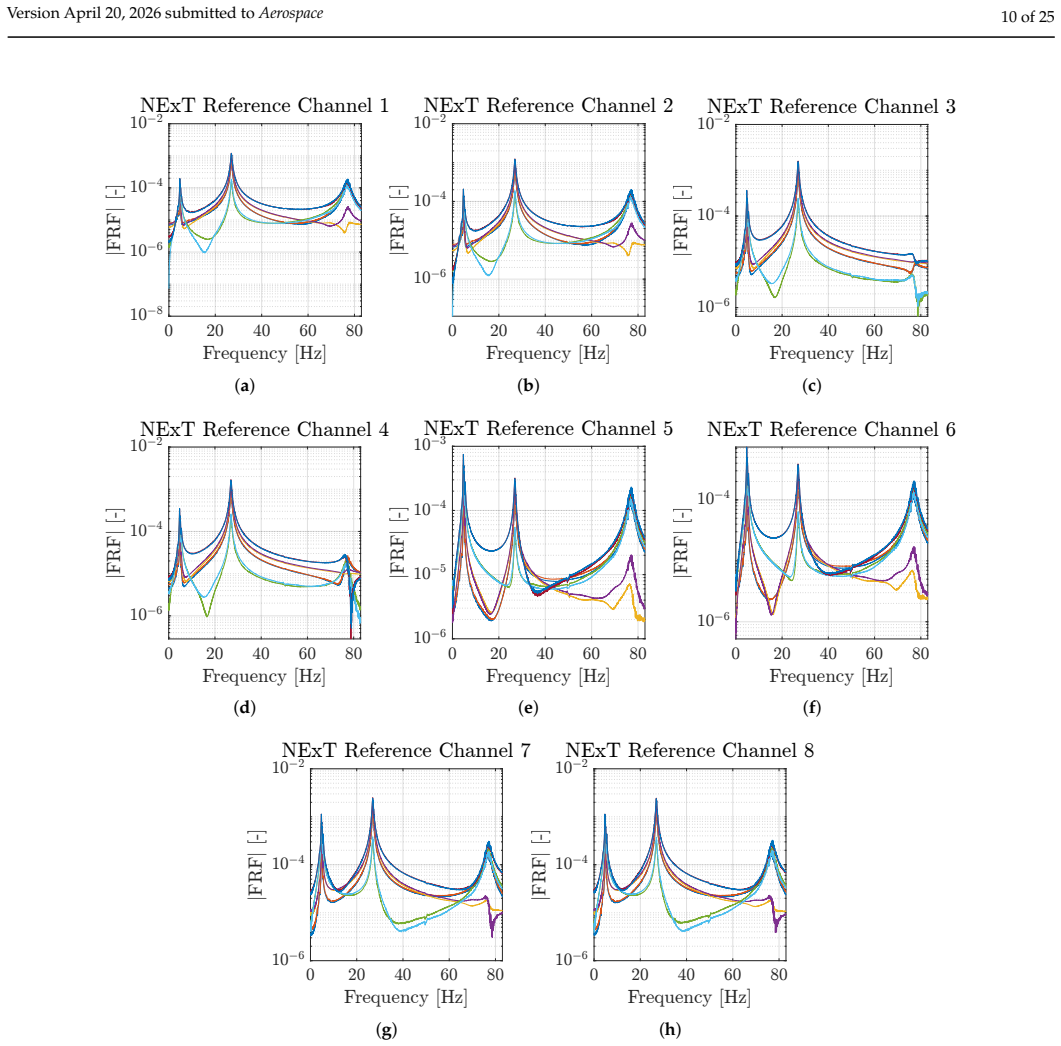

Figure 4. Figure 4: Equivalent FRFs obtained from the NExT-derived IRF of the XB-2 wing spar. (a) to (h) show the FRFs obtained, respectively, by setting output channel signals 1 to 8 the reference signal for NExT. retain only stable modes. The range of k was chosen to obtain a comparable count of stable modes between the methods. As discussed later, this condition could not be met for ERA. The stability assessment considers … view at source ↗
Figure 5

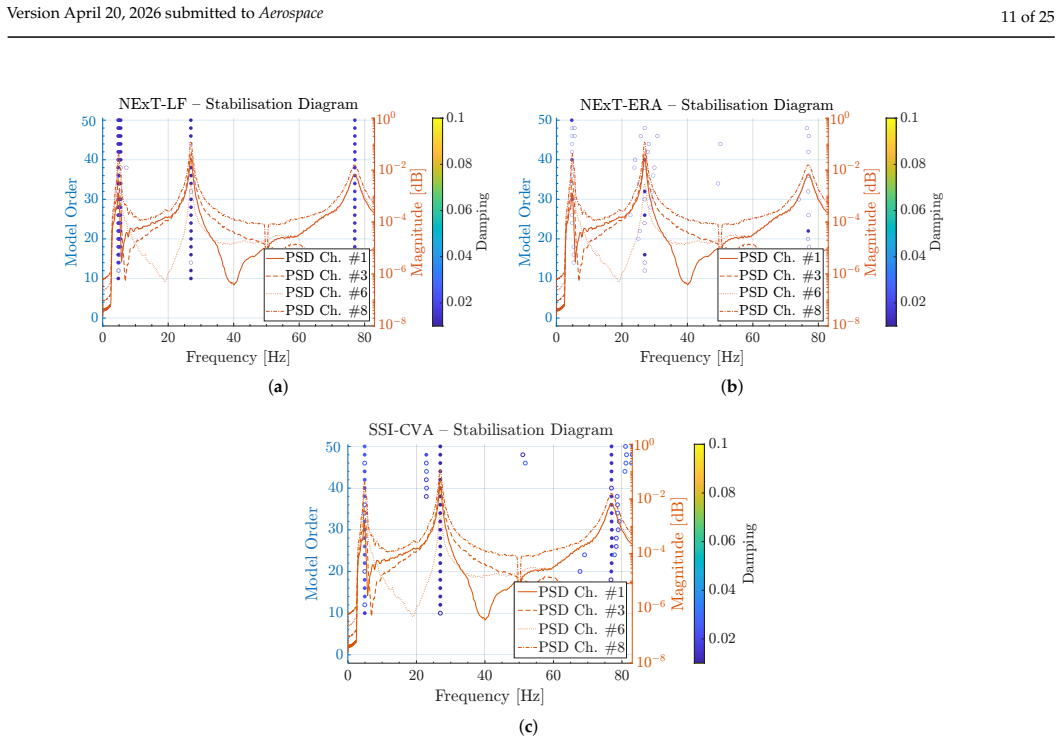

Figure 5. Figure 5: Stabilisation diagrams obtained using NExT-LF (a), NExT-ERA (b), and SSI (c) for the modal identification of the XB-2 wing spar (retrieved from [49]). damping. This behaviour is consistent with the identified values of ωn and ζn reported in Tables 1 and 2, respectively [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

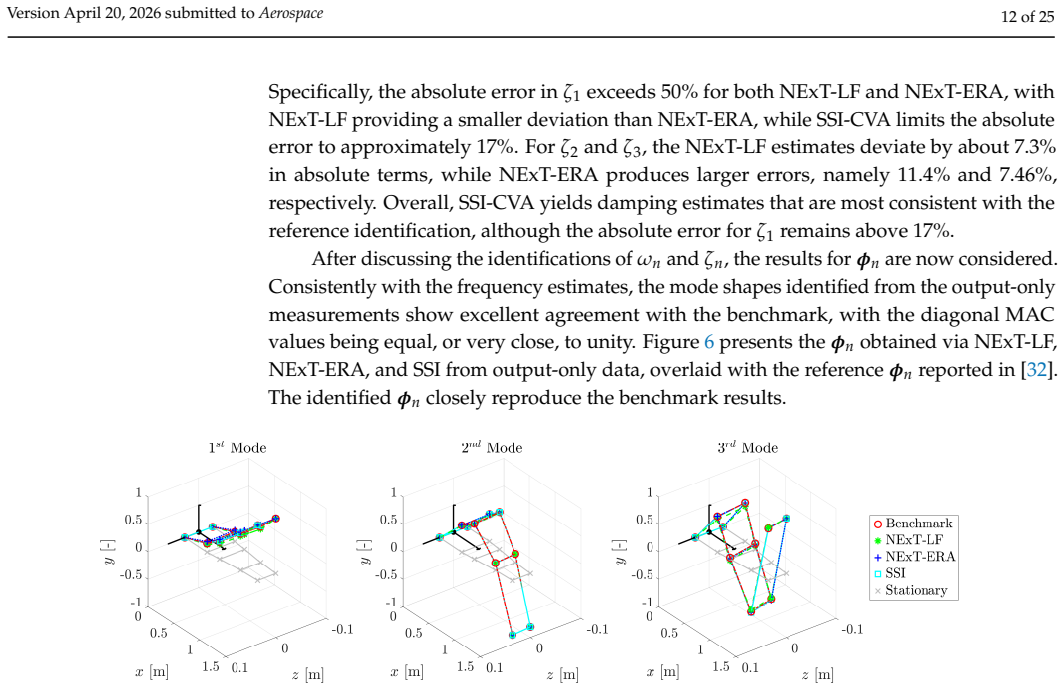

Figure 6. Figure 6: ϕn of the XB-2 wing spar identified using the output-only methods, overlaid with the benchmark results (retrieved from [49]). 4. Airbus Helicopters H135 Bearingless Main Rotor Blade In order to generalise the findings of the previous sections, a second benchmark aeronautical structure should be considered. For this aim, an Airbus Helicopters H135 BMR blade is chosen. The Airbus Helicopters H135, shown in … view at source ↗
Figure 7

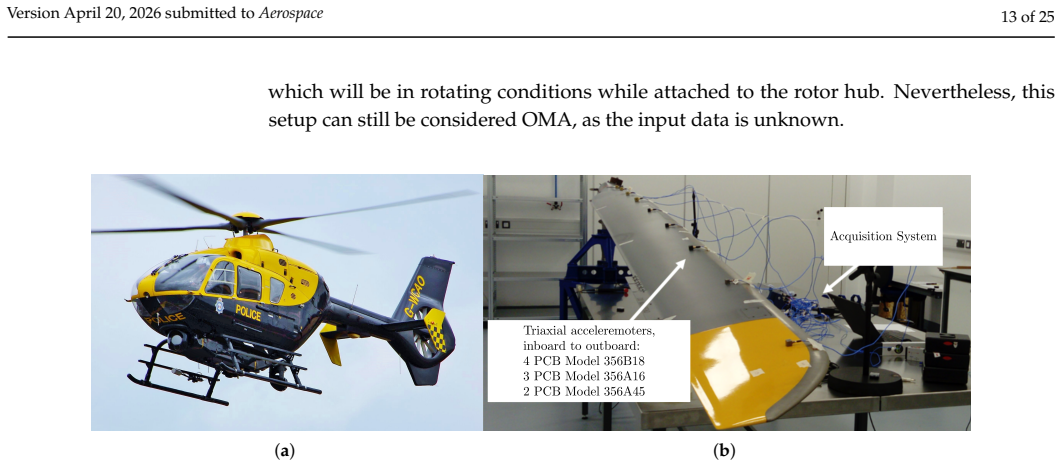

Figure 7. Figure 7: (a) Airbus Helicopters H135 helicopter in Western Counties Air Operations Unit livery (UK – retrieved from [54]) and (b) the test setup of the ambient vibration testing on the Airbus Helicopter H135 BMR blade (adapted from [33]). The AVT was carried out in the aeroelastic laboratory of the Sir Peter Gregson Aerospace Integration Research Centre at Cranfield University, under controlled tem￾perature and hum… view at source ↗
Figure 8

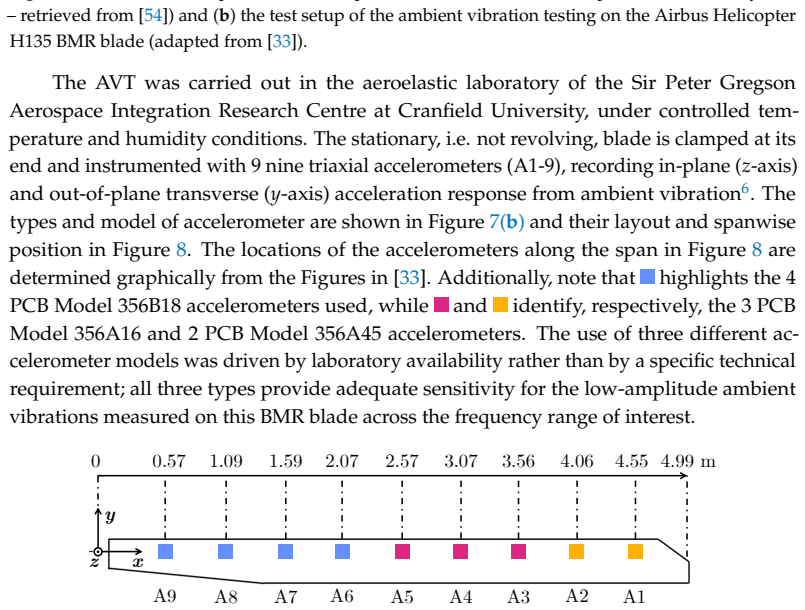

Figure 8. Figure 8: Sensors layout of the instrumented Airbus Helicopter H135 BMR blade: A9-6 PCB Model 356B18 ( ), A5-3 PCB Model 356A16 ( ), and A2-1 PCB Model 356A45 ( ). Note that the z-axis is positive in the out-of-page direction. 18 acceleration time series are recorded from the 9 accelerometers at a sampling frequency fs = 2560 Hz for 600 s, using a similar setup to what is described for the XB-2 spar in Section 3, in… view at source ↗
Figure 9

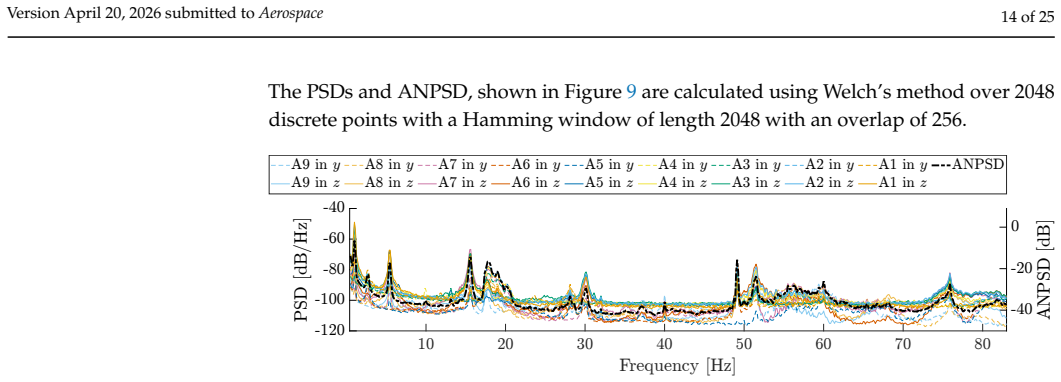

Figure 9. Figure 9: PSDs and ANPSD from the signals recorded from accelerometers A1-9 on the Airbus Helicopter H135 BMR blade. As is clear from [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10

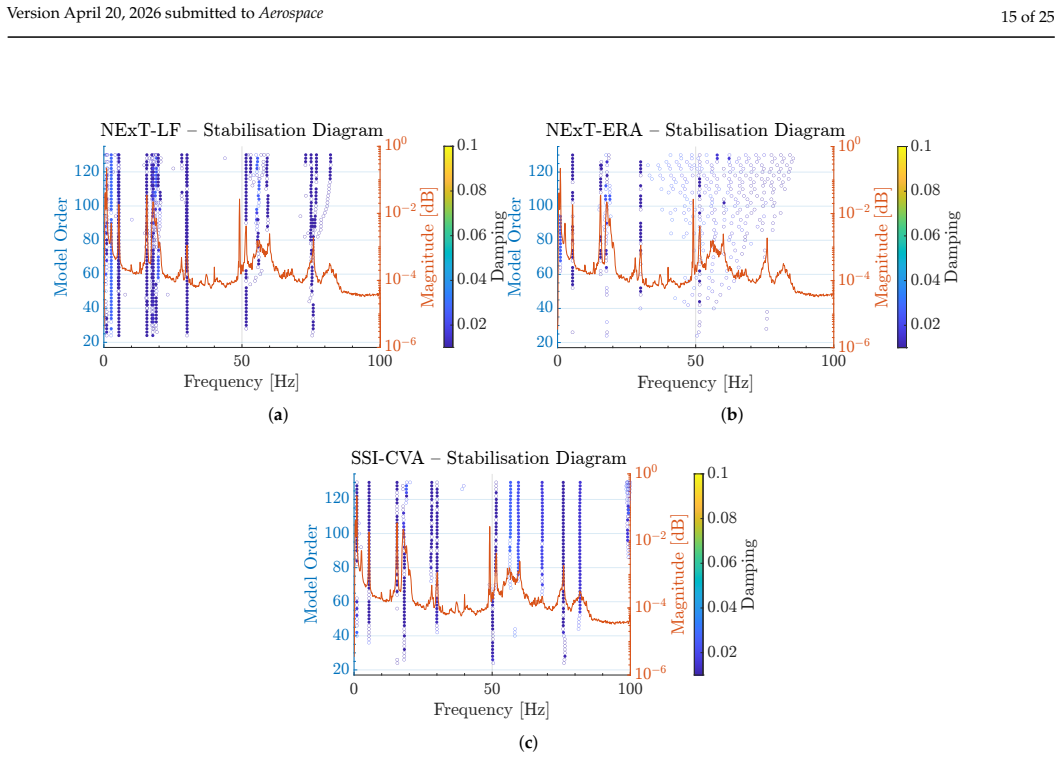

Figure 10. Figure 10: Stabilisation diagrams superimposed on the ANPSD and obtained using NExT–LF (a), NExT–ERA (b), and SSI (c) for the modal identification of the Airbus Helicopters H135 BMR blade [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: The 14 ϕn (a-n) identified from the Airbus Helicopters H135 BMR blade AVT. https://doi.org/10.3390/aerospace1010000 [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
read the original abstract

Over the last decades, progress in modal analysis has enabled increasingly routine use of modal parameters for applications such as structural health monitoring and finite element model updating. For output-only identification, or Operational Modal Analysis (OMA), widely adopted approaches include Stochastic Subspace Identification (SSI) methods and the Natural Excitation Technique combined with the Eigensystem Realization Algorithm (NExT-ERA). Nevertheless, SSI-based techniques may become cumbersome on large systems, while NExT-ERA fitting can struggle when measurements are contaminated by noise. To alleviate these, this work investigates an OMA frequency-domain formulation for aeronautical structures by coupling the Loewner Framework (LF) with NExT, yielding the proposed NExT-LF method. The method exploits the computational efficiency of LF, due to the effectiveness of tangential interpolation, together with the impulse response function retrieval enabled by NExT. NExT-LF is assessed on two experimental benchmarks: the eXperimental BeaRDS 2 high-aspect-ratio wing main spar and an Airbus Helicopters H135 bearingless main rotor blade. The identified modal parameters are compared against available experimental references and results obtained via SSI with Canonical Variate Analysis and NExT-ERA. The results show that the modes identified by NExT-LF correlate well with benchmark data, particularly for high-amplitude tests and in the low-frequency range.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes NExT-LF, coupling the Natural Excitation Technique for recovering impulse responses with the Loewner Framework's tangential interpolation for frequency-domain Operational Modal Analysis on aeronautical structures. It validates the approach on two experimental benchmarks (BeaRDS high-aspect-ratio wing spar and Airbus H135 rotor blade), reporting that identified modal parameters correlate well with references and outperform or match SSI-CVA and NExT-ERA, especially under high-amplitude low-frequency conditions.

Significance. If substantiated with quantitative metrics, the method offers a computationally efficient alternative for output-only modal identification in noisy aeroelastic data, exploiting LF's tangential interpolation to handle large systems where SSI becomes cumbersome. The direct experimental comparisons on real aeronautical hardware provide practical value for applications like structural health monitoring, though the absence of error quantification limits assessment of its advantages.

major comments (3)
  1. [Abstract and Results] Abstract and results sections: the central claim that 'modes identified by NExT-LF correlate well with benchmark data' lacks any quantitative metrics (e.g., natural frequency errors in Hz or %, damping ratio deviations, or MAC values), rendering the correlation statement qualitative and difficult to compare against SSI-CVA or NExT-ERA baselines.
  2. [Method and Experimental Validation] Method and experimental sections: no SNR quantification, noise-sensitivity study, or conditioning analysis of the Loewner matrices constructed from NExT impulse responses is provided, leaving the tangential interpolation step vulnerable to residual noise in the BeaRDS and H135 datasets and undermining the claim of robustness outside high-amplitude low-frequency regimes.
  3. [Results] Results section: the manuscript does not report how post-processing choices in NExT (averaging, windowing) or Loewner rank selection criteria affect pole/residue accuracy, nor does it compare the singular-value structure of the Loewner matrices against benchmark FRF data to confirm separation of system poles from noise.
minor comments (2)
  1. [Abstract] Abstract: consider including at least one quantitative performance indicator (e.g., average frequency error) to make the 'correlate well' statement more precise.
  2. [Method] Notation: ensure consistent use of symbols for impulse response functions recovered by NExT and the Loewner matrices throughout the text.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the detailed and constructive review. The comments highlight important aspects for strengthening the quantitative validation of NExT-LF. We address each major comment below and will revise the manuscript accordingly where feasible.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract and results sections: the central claim that 'modes identified by NExT-LF correlate well with benchmark data' lacks any quantitative metrics (e.g., natural frequency errors in Hz or %, damping ratio deviations, or MAC values), rendering the correlation statement qualitative and difficult to compare against SSI-CVA or NExT-ERA baselines.

    Authors: We agree that the correlation claims would be more convincing with explicit quantitative metrics. In the revised manuscript we will add tables in the results section that report natural-frequency percentage errors, damping-ratio deviations in percent, and MAC values for all modes identified by NExT-LF, SSI-CVA and NExT-ERA against the available experimental references. These metrics will be computed from the same modal-parameter sets already obtained in the study. revision: yes

  2. Referee: [Method and Experimental Validation] Method and experimental sections: no SNR quantification, noise-sensitivity study, or conditioning analysis of the Loewner matrices constructed from NExT impulse responses is provided, leaving the tangential interpolation step vulnerable to residual noise in the BeaRDS and H135 datasets and undermining the claim of robustness outside high-amplitude low-frequency regimes.

    Authors: The original experimental campaigns did not record calibrated SNR values, so direct quantification from the raw data is not possible. We will nevertheless add a dedicated noise-sensitivity subsection that injects controlled Gaussian noise into the NExT-derived impulse responses at several SNR levels and tracks the resulting variation in identified poles and residues. We will also report the 2-norm condition numbers of the Loewner matrices and the decay of their singular values to document numerical robustness. revision: partial

  3. Referee: [Results] Results section: the manuscript does not report how post-processing choices in NExT (averaging, windowing) or Loewner rank selection criteria affect pole/residue accuracy, nor does it compare the singular-value structure of the Loewner matrices against benchmark FRF data to confirm separation of system poles from noise.

    Authors: We will expand the results section with a parametric study showing the effect of NExT averaging count and window type on pole accuracy (via frequency and damping errors). Loewner rank selection will be made explicit (singular-value threshold) and accompanied by singular-value plots. Because the experiments are strictly output-only, benchmark FRF data do not exist; we will instead compare the Loewner singular-value spectra to those obtained directly from the NExT impulse-response matrices to illustrate signal-noise separation. revision: partial

standing simulated objections not resolved
  • Direct comparison of Loewner singular-value structure against benchmark FRF data, which is unavailable because the validation relies exclusively on output-only experimental measurements.

Circularity Check

0 steps flagged

No significant circularity; NExT-LF validation rests on independent experimental benchmarks

full rationale

The paper introduces NExT-LF by coupling the established Natural Excitation Technique (for impulse response recovery) with the Loewner Framework (for tangential interpolation in the frequency domain). The central claim—that identified modes correlate well with benchmark data—is established through direct experimental comparison on the BeaRDS wing spar and H135 rotor blade against independent references and alternative methods (SSI-CVA, NExT-ERA). No derivation step reduces a prediction to a fitted input by construction, no self-citation chain bears the load of the result, and no ansatz or uniqueness theorem is smuggled in. The validation chain is externally falsifiable via the cited benchmark data and does not rely on internal re-use of fitted parameters.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No explicit free parameters, new axioms, or invented entities are stated in the abstract; the work rests on standard OMA assumptions of linearity and stationarity.

axioms (1)
  • domain assumption The structure behaves as a linear time-invariant system during the measurement period.
    Standard premise underlying all OMA techniques referenced in the abstract.
