Equivalent Circuit Modeling of Foil-Mediated Dissipative Coupling in Microwave Cavities with Enhanced Phase Response

Michael T. Hatzon , Graeme R. Flower , Robert C. Crew , Jeremy F. Bourhill , Michael E. Tobar

Authors on Pith no claims yet

Pith reviewed 2026-05-15 15:28 UTC · model grok-4.3

classification ⚛️ physics.app-ph

keywords microwave resonatorsresistive couplingfoil interfaceanti-resonancephase sensitivityequivalent circuitcavity coupling

0 comments

The pith

Thin metallic foils between microwave cavities create resistive coupling that yields a sharp anti-resonance with nearly tenfold enhanced phase sensitivity when inputs are balanced.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper formulates an equivalent circuit model for three microwave cavity resonators connected by thin metallic foils that act as dissipative interfaces through mutual resistance. This coupling creates interference effects that allow a controllable anti-resonance when the two input resonators are amplitude- and phase-balanced, a feature not available with conventional probes. The model predicts and experiments confirm a near order-of-magnitude increase in phase sensitivity at the output cavity's resonant frequency. Extracted coupling coefficients match calculations based on the foils' electromagnetic properties, confirming that resistive coupling persists across multiple skin depths.

Core claim

Resistive coupling via thin copper foils between three TM010-mode cavities generates mutual resistance in the equivalent LCR circuit, leading to balanced interference that produces a sharp anti-resonance and enhanced phase response at the output resonator.

What carries the argument

The mutual resistance term in the lumped-element circuit model, which represents the dissipative energy exchange mediated by the foil interface and enables the anti-resonance condition.

Load-bearing premise

The foils function solely as a dissipative interface whose mutual resistance is captured by a simple lumped-element circuit without major higher-order electromagnetic effects.

What would settle it

Measuring the phase response under balanced input conditions and finding no near order-of-magnitude enhancement at the output resonance, or extracted coupling values falling outside the predicted range from foil properties.

Figures

Figures reproduced from arXiv: 2603.05150 by Graeme R. Flower, Jeremy F. Bourhill, Michael E. Tobar, Michael T. Hatzon, Robert C. Crew.

**Figure 1.** Figure 1: FIG. 1. (a) The experimental configuration used to excite a sharp anti-resonance. The vector network analyser (VNA) signal [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: FIG. 2. The equivalent circuit diagram of the three-cavity [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. Magnitude and phase versus frequency, with the best [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. Comparison between the simulated transfer function (using the parameters in Table I) for a near- [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

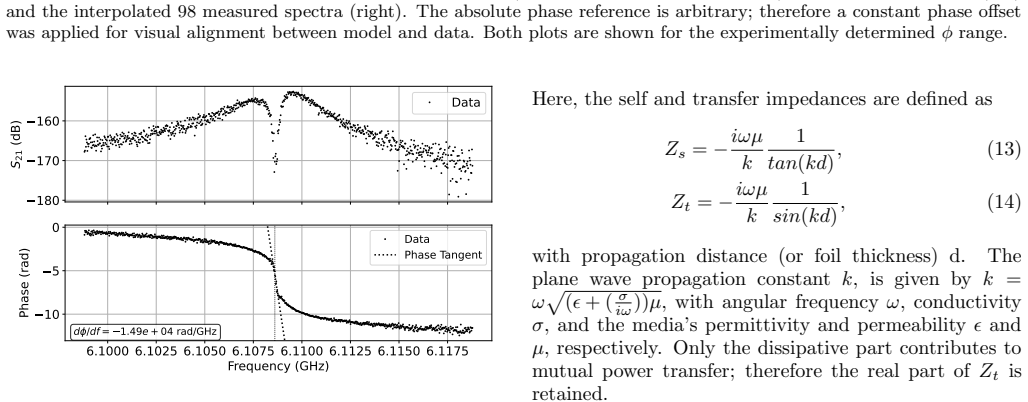

**Figure 5.** Figure 5: FIG. 5. Measured phase response near the balanced interfer [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

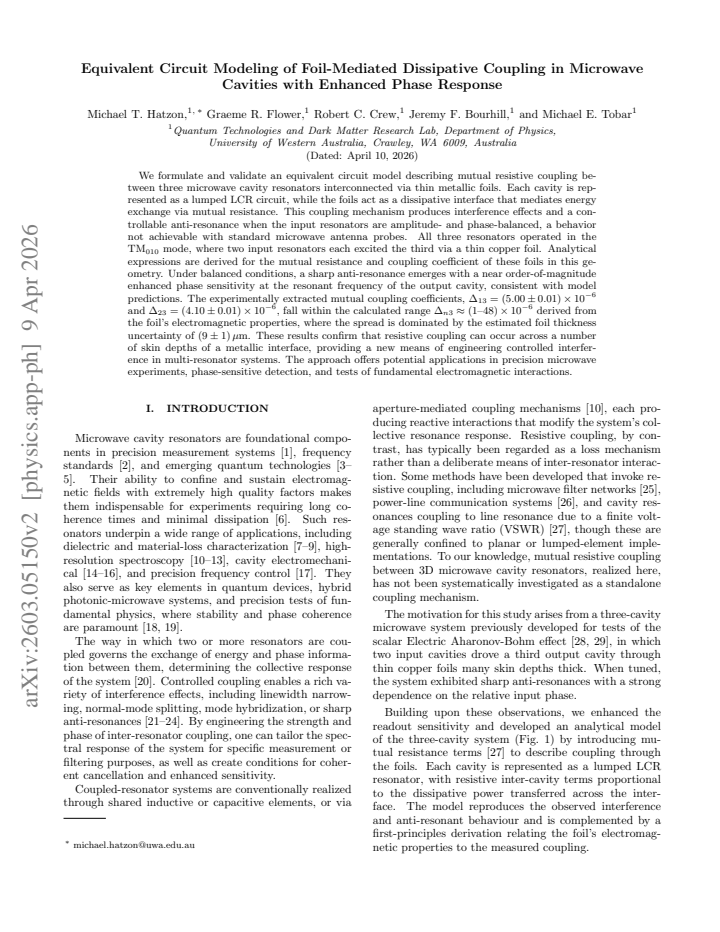

read the original abstract

We formulate and validate an equivalent circuit model describing mutual resistive coupling between three microwave cavity resonators interconnected via thin metallic foils. Each cavity is represented as a lumped LCR circuit, while the foils act as a dissipative interface that mediates energy exchange via mutual resistance. This coupling mechanism produces interference effects and a controllable anti-resonance when the input resonators are amplitude- and phase-balanced, a behavior not achievable with standard microwave antenna probes. All three resonators operated in the TM$_{010}$ mode, where two input resonators each excited the third via a thin copper foil. Analytical expressions are derived for the mutual resistance and coupling coefficient of these foils in this geometry. Under balanced conditions, a sharp anti-resonance emerges with a near order-of-magnitude enhanced phase sensitivity at the resonant frequency of the output cavity, consistent with model predictions. The experimentally extracted mutual coupling coefficients, $\Delta_{13}=(5.00\pm0.01)\times10^{-6}$ and $\Delta_{23}=(4.10\pm0.01)\times10^{-6}$, fall within the calculated range $\Delta_{n3}\approx(1\text{--}48)\times10^{-6}$ derived from the foil's electromagnetic properties, where the spread is dominated by the estimated foil thickness uncertainty of $(9\pm1)\,\mu\mathrm{m}$. These results confirm that resistive coupling can occur across a number of skin depths of a metallic interface, providing a new means of engineering controlled interference in multi-resonator systems. The approach offers potential applications in precision microwave experiments, phase-sensitive detection, and tests of fundamental electromagnetic interactions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows foil-mediated resistive coupling can create a controllable anti-resonance with enhanced phase response in microwave cavities, but the wide uncertainty band on the predicted coefficients makes the experimental match only weakly confirmatory.

read the letter

The core contribution is a lumped-element model treating thin metallic foils as a dissipative interface that produces mutual resistance between three TM010 cavities. They derive closed-form expressions for that resistance in the given geometry and show that balanced drive on the two input cavities produces a sharp anti-resonance at the output frequency, with roughly tenfold phase sensitivity gain. The measured coupling values sit inside the calculated window, and the anti-resonance appears as predicted. That is a clean, practical demonstration of a coupling mechanism not available with ordinary probes. The work is incremental but useful for anyone engineering interference in multi-cavity microwave systems. The main limitation is that the predicted interval for the coupling coefficients runs from roughly 1 to 48 times 10 to the minus 6, driven almost entirely by the ±1 μm uncertainty on the 9 μm foil thickness. Any measured number inside that span is automatically consistent, so the data do not strongly discriminate the resistive-coupling formula from plausible alternatives such as residual inductive effects or skin-depth variations. A narrower theoretical band or direct thickness metrology would have made the test more decisive. Minor gaps also exist in full error propagation and exact foil placement details. This is the kind of targeted instrumentation paper that belongs in a specialist microwave or precision-measurement journal. It is coherent on its own terms and deserves a serious referee, though the authors should be asked to tighten the validation or quantify how much the broad range weakens the claim.

Referee Report

1 major / 2 minor

Summary. The manuscript formulates an equivalent circuit model for three microwave cavity resonators coupled via thin metallic foils acting as dissipative interfaces. Each cavity is modeled as an LCR circuit, with foils providing mutual resistance that mediates energy exchange. Analytical expressions are derived for the mutual resistance and coupling coefficients. Under balanced amplitude and phase conditions on the input resonators, a sharp anti-resonance is predicted and observed at the output cavity resonance, yielding nearly an order-of-magnitude enhancement in phase sensitivity. Experimentally extracted coupling coefficients Δ13 = (5.00 ± 0.01) × 10^{-6} and Δ23 = (4.10 ± 0.01) × 10^{-6} are reported to lie within the calculated range Δn3 ≈ (1–48) × 10^{-6} derived from foil electromagnetic properties, with the spread attributed to (9 ± 1) μm thickness uncertainty.

Significance. If the central claims hold, the work provides a new lumped-element approach to engineering controllable dissipative coupling and interference in multi-resonator microwave systems, distinct from inductive or capacitive probe methods. The analytical expressions for foil-mediated mutual resistance and the experimental observation of the predicted anti-resonance constitute concrete strengths. Potential applications include phase-sensitive detection and precision microwave metrology. The model validation rests on the experimental coefficients falling inside the calculated interval, but the breadth of that interval limits the strength of the confirmation.

major comments (1)

[Abstract and model-validation discussion] Abstract and model-validation discussion: the calculated range Δn3 ≈ (1–48) × 10^{-6} spans nearly two orders of magnitude, driven by the (9 ± 1) μm foil-thickness uncertainty. The experimental values (4.1–5.0) × 10^{-6} lie inside this interval, yet the width renders the agreement non-discriminative; it does not strongly test the specific resistive-coupling expression or the assumption that higher-order inductive and frequency-dependent skin-depth effects remain negligible beyond the stated uncertainty. A narrower theoretical band, explicit functional dependence on thickness, or additional sensitivity analysis is required for the comparison to constitute robust validation rather than non-falsification.

minor comments (2)

[Experimental methods] The manuscript would benefit from a dedicated figure or expanded description clarifying the precise foil geometry, contact area, and how thickness was measured to allow independent assessment of the uncertainty propagation.
[Theory section] Notation for the coupling coefficients (Δ13, Δ23, Δn3) should be defined explicitly at first use, with a clear statement of how the mutual resistance enters the circuit equations.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and constructive feedback. We address the single major comment below and have prepared revisions to strengthen the model-validation discussion.

read point-by-point responses

Referee: Abstract and model-validation discussion: the calculated range Δn3 ≈ (1–48) × 10^{-6} spans nearly two orders of magnitude, driven by the (9 ± 1) μm foil-thickness uncertainty. The experimental values (4.1–5.0) × 10^{-6} lie inside this interval, yet the width renders the agreement non-discriminative; it does not strongly test the specific resistive-coupling expression or the assumption that higher-order inductive and frequency-dependent skin-depth effects remain negligible beyond the stated uncertainty. A narrower theoretical band, explicit functional dependence on thickness, or additional sensitivity analysis is required for the comparison to constitute robust validation rather than non-falsification.

Authors: We agree that the breadth of the calculated interval limits the discriminative power of the comparison. The range originates from propagating the stated ±1 μm manufacturing tolerance on the 9 μm commercial foils through the analytical expression for mutual resistance, which depends on foil thickness, conductivity, and skin depth. While the experimental coefficients lie well inside this conservative interval and the model correctly predicts the observed anti-resonance, we acknowledge that this constitutes supportive consistency rather than a stringent test of the resistive-coupling formula or the neglect of higher-order effects. In the revised manuscript we will (i) state the explicit functional dependence of Δn3 on foil thickness t (derived from the electromagnetic boundary conditions at the foil interface), (ii) add a sensitivity plot showing how the predicted range narrows for smaller thickness uncertainties, and (iii) briefly discuss the regime in which inductive and frequency-dependent corrections remain negligible. These additions will make the validation more quantitative without changing the central claims or experimental results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained

full rationale

The paper derives the equivalent-circuit model and closed-form expressions for mutual resistance and coupling coefficient Δn3 directly from the foil geometry and electromagnetic properties (conductivity, skin depth, thickness). Experimental extraction of Δ13 and Δ23 is performed independently via measured S-parameters and compared against a pre-computed theoretical interval whose width is set solely by the stated thickness uncertainty (9±1 μm). No equation reduces the extracted coefficients to the model inputs by construction, no fitted parameter is relabeled as a prediction, and no load-bearing step relies on self-citation or an imported uniqueness theorem. The comparison, while broad, is an external benchmark rather than a tautology.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard lumped-element circuit theory applied to cavities and foils, plus the assumption that foil thickness dominates uncertainty. No new entities are postulated; coupling is treated as a measurable resistive parameter.

free parameters (1)

foil thickness
Estimated as (9±1) μm and used to bound the calculated coupling range; directly affects the predicted Δn3 values.

axioms (2)

domain assumption Cavities in TM010 mode can be represented as lumped LCR circuits with negligible higher-order modes.
Invoked when mapping physical resonators to the equivalent circuit model.
domain assumption Foil-mediated energy exchange occurs via mutual resistance without significant reactive components or frequency dependence beyond skin depth.
Central to deriving the mutual resistance and anti-resonance condition.

pith-pipeline@v0.9.0 · 5614 in / 1422 out tokens · 28960 ms · 2026-05-15T15:28:14.648305+00:00 · methodology
