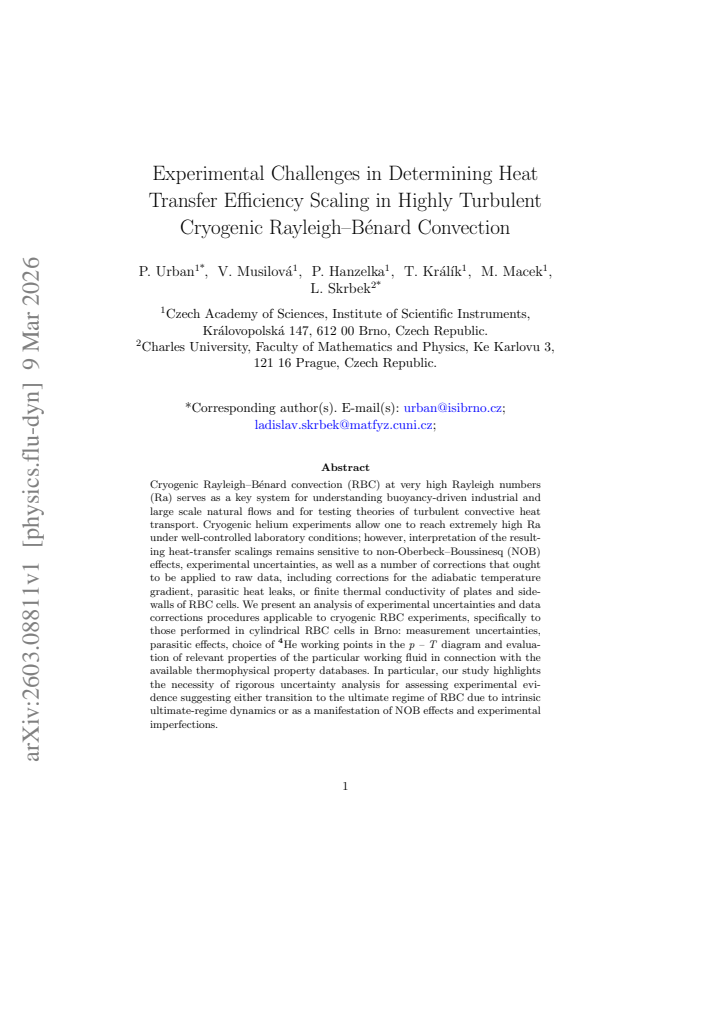

Experimental Challenges in Determining Heat Transfer Efficiency Scaling in Highly Turbulent Cryogenic Rayleigh-Benard Convection

P. Urban , V. Musilova , P. Hanzelka , T. Kralik , M. Macek , L. Skrbek

Authors on Pith no claims yet

Pith reviewed 2026-05-15 13:26 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn

keywords cryogenic Rayleigh-Benard convectionheat transfer scalingultimate regimenon-Oberbeck-Boussinesq effectsexperimental uncertaintiesdata correctionshelium convectionturbulent convection

0 comments

The pith

Cryogenic Rayleigh-Benard convection experiments require rigorous uncertainty analysis before observed scaling changes can be attributed to a transition to the ultimate regime.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Cryogenic helium experiments reach extremely high Rayleigh numbers under controlled conditions to study buoyancy-driven turbulent heat transport relevant to industrial and natural flows. The work examines how raw heat-transfer data must be corrected for the adiabatic temperature gradient, parasitic leaks, and finite conductivity of plates and sidewalls before any scaling law can be extracted. It demonstrates that non-Oberbeck-Boussinesq effects and measurement uncertainties can produce apparent changes in scaling that mimic an intrinsic ultimate-regime transition. A sympathetic reader would care because misreading these artifacts as fundamental dynamics would distort models of large-scale convection. The analysis is applied specifically to cylindrical cells operated in Brno and stresses the need for full uncertainty budgets when evaluating fluid properties from available databases.

Core claim

The central claim is that interpretation of heat-transfer scalings in cryogenic Rayleigh-Benard convection remains sensitive to non-Oberbeck-Boussinesq effects, experimental uncertainties, and required corrections for adiabatic gradient, parasitic heat leaks, and sidewall conduction. Rigorous uncertainty analysis is necessary to decide whether any change in the effective exponent of the Nusselt-Rayleigh relation signals a genuine transition to the ultimate regime driven by intrinsic dynamics or instead reflects those other factors.

What carries the argument

The procedures for correcting raw data and propagating uncertainties in thermophysical properties and cell geometry for high-Rayleigh-number cryogenic RBC experiments.

If this is right

Apparent transitions in heat-transfer scaling may instead reflect non-Oberbeck-Boussinesq effects or experimental imperfections.
Accurate evaluation of fluid properties from databases is essential before any scaling claim can be made.
Parasitic leaks and sidewall conduction must be quantified and subtracted to avoid misinterpretation of the data.
Future experiments need complete uncertainty budgets if they are to support statements about regime transitions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same level of scrutiny may be required in other high-Rayleigh-number convection experiments that use different working fluids or cell shapes.
Standardizing correction protocols across laboratories could reduce apparent discrepancies between reported scaling exponents.
Direct numerical simulations that incorporate non-Oberbeck-Boussinesq effects could serve as an independent check on whether observed laboratory changes are intrinsic or artifactual.

Load-bearing premise

The thermophysical property databases and standard correction procedures for adiabatic gradient, parasitic leaks, and sidewall conduction are accurate enough for the specific Brno cylindrical cells to allow unambiguous interpretation of scaling changes.

What would settle it

A reanalysis of existing raw datasets in which the full uncertainty bands on the local scaling exponent overlap both classical and ultimate-regime values would show that no transition has been established.

read the original abstract

Cryogenic Rayleigh-Benard convection (RBC) at very high Rayleigh numbers (Ra) serves as a key system for understanding buoyancy-driven industrial and large scale natural flows and for testing theories of turbulent convective heat transport. Cryogenic helium experiments allow one to reach extremely high Ra under well-controlled laboratory conditions; however, interpretation of the resulting heat-transfer scalings remains sensitive to non-Oberbeck-Boussinesq (NOB) effects, experimental uncertainties, as well as a number of corrections that ought to be applied to raw data, including corrections for the adiabatic temperature gradient, parasitic heat leaks, or finite thermal conductivity of plates and sidewalls of RBC cells. We present an analysis of experimental uncertainties and data corrections procedures applicable to cryogenic RBC experiments, specifically to those performed in cylindrical RBC cells in Brno: measurement uncertainties, parasitic effects, choice of 4He working points in the p-T diagram and evaluation of relevant properties of the particular working fluid in connection with the available thermophysical property databases. In particular, our study highlights the necessity of rigorous uncertainty analysis for assessing experimental evidence suggesting either transition to the ultimate regime of RBC due to intrinsic ultimate-regime dynamics or as a manifestation of NOB effects and experimental imperfections.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a careful catalog of standard corrections and uncertainty sources for the Brno cryogenic RBC cells, but it describes the procedures without reprocessing any dataset to show how much they actually move the scaling exponents.

read the letter

The main point is that the paper walks through the practical corrections required for high-Ra helium convection in the Brno cylindrical cells—adiabatic gradient, parasitic leaks, sidewall conduction, and property-database choices—and argues that these must be handled rigorously before one can claim a transition to the ultimate regime. It does this in plain terms tied to their specific setup and the available 4He data, which is useful for anyone running similar experiments. The authors correctly flag that NOB effects and experimental imperfections can mimic or mask scaling changes, and they reference the standard literature on these issues without overclaiming novelty. That part is solid and grounded. The limitation is that the manuscript stops at describing the correction chain. It does not take one of their published Nu(Ra) runs, apply the full set of adjustments, and report the resulting shift in local exponents or the size of the uncertainty band. Without that step the central warning—that rigorous analysis is needed to distinguish intrinsic dynamics from artifacts—remains plausible but unquantified. The stress-test note is accurate on this gap. The work is aimed at the small group of labs doing cryogenic RBC at extreme Ra; it will not move the broader theory but can prevent over-interpretation of existing data. The reasoning is clear and the citations are appropriate. I would bring it to a reading group for the methods discussion and would send it to peer review so the authors can add a concrete numerical example if they choose. It is the kind of careful housekeeping paper the subfield benefits from having in the record.

Referee Report

1 major / 0 minor

Summary. The manuscript analyzes experimental uncertainties and data correction procedures for cryogenic helium Rayleigh-Bénard convection experiments in cylindrical cells performed in Brno. It covers measurement uncertainties, parasitic heat leaks, adiabatic gradient corrections, sidewall conduction, choice of working points in the p-T diagram, and evaluation of thermophysical properties from databases. The central claim is that rigorous uncertainty analysis is essential to determine whether observed heat transfer scalings indicate a transition to the ultimate regime due to intrinsic dynamics or result from non-Oberbeck-Boussinesq effects and experimental imperfections.

Significance. This work is significant for the field of turbulent convection as it provides a detailed framework for handling uncertainties in high-Ra cryogenic RBC, which is crucial for testing theories of ultimate regime scaling. By focusing on specific Brno setups, it directly addresses challenges in interpreting existing and future datasets, potentially leading to more reliable comparisons with theoretical predictions and numerical simulations.

major comments (1)

[Sections on data corrections and uncertainty analysis] The paper outlines the relevant correction procedures (adiabatic gradient, parasitic leaks, sidewall conduction) and potential error sources for the Brno cylindrical cells but does not apply the full correction chain to any specific published Brno dataset to recompute the effective Nu(Ra) scaling or local exponents. This leaves unquantified whether these corrections produce shifts comparable to the reported deviations from classical scaling, which is load-bearing for the claim that such analysis is necessary to resolve ambiguity between ultimate regime and artifacts.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments. The feedback highlights an important way to strengthen the manuscript's central claim. We address the point below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Sections on data corrections and uncertainty analysis] The paper outlines the relevant correction procedures (adiabatic gradient, parasitic leaks, sidewall conduction) and potential error sources for the Brno cylindrical cells but does not apply the full correction chain to any specific published Brno dataset to recompute the effective Nu(Ra) scaling or local exponents. This leaves unquantified whether these corrections produce shifts comparable to the reported deviations from classical scaling, which is load-bearing for the claim that such analysis is necessary to resolve ambiguity between ultimate regime and artifacts.

Authors: We agree that applying the full correction chain to at least one concrete published Brno dataset would make the argument more quantitative and directly address the load-bearing issue raised. In the revised manuscript we will add a new subsection (or appendix) that selects one representative high-Ra dataset from the Brno cylindrical cells, applies the complete sequence of corrections described in the paper (adiabatic gradient, parasitic leaks, sidewall conduction, thermophysical-property evaluation), and recomputes both the effective Nu(Ra) and the local scaling exponents. We will then compare the corrected scaling with the uncorrected one and with the classical 1/3 or 1/2 exponents to quantify the magnitude of the shifts. This addition will be kept concise while remaining fully within the scope of the present work. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental uncertainty discussion with no derivations or self-referential predictions

full rationale

The paper is a methods-focused experimental analysis of uncertainties, parasitic effects, and corrections (adiabatic gradient, leaks, sidewall conduction) in cryogenic RBC cells. It contains no derivations, fitted parameters presented as predictions, or load-bearing self-citations. The central claim—that rigorous uncertainty analysis is needed to distinguish intrinsic scaling transitions from NOB or artifact effects—rests on description of standard external databases and procedures without any reduction to the paper's own inputs by construction. No equations or chains are present that could exhibit self-definition, renaming, or ansatz smuggling.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that existing thermophysical databases and standard correction formulas are sufficiently accurate for the Brno apparatus; no new free parameters or invented entities are introduced.

axioms (1)

domain assumption Standard corrections for adiabatic temperature gradient, parasitic heat leaks, and finite plate/sidewall conductivity can be applied accurately using available 4He property databases.
Invoked when discussing data-correction procedures and choice of working points in the p-T diagram.
