arxiv: 2603.10401 · v2 · submitted 2026-03-11 · 🧮 math.AP

Supersonic flow of a Chaplygin gas past a conical wing with Λ-shaped cross sections

Minghong Han , Bingsong Long , Hairong Yuan This is my paper

Pith reviewed 2026-05-15 13:55 UTC · model grok-4.3

classification 🧮 math.AP
keywords Chaplygin gassupersonic flowconical wingself-similar solutionmixed-type equationcontinuity methodattached shockwaverider
0
0 comments X

The pith

Existence of a piecewise smooth self-similar solution is established for supersonic Chaplygin gas flow past a conical wing with Λ-shaped cross sections when the shock attaches to the leading edge.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines supersonic flow of a Chaplygin gas over a conical wing with Λ-shaped cross sections under the three-dimensional steady isentropic irrotational compressible Euler equations. The setup is motivated by Nonweiler wing designs for waveriders. The problem reduces to a boundary value problem for a nonlinear mixed-type equation in conical coordinates. A viscosity parameter is introduced to handle the degenerate boundary, after which the continuity method yields existence of a piecewise smooth self-similar solution in the attached-shock case. The result confirms part of an earlier conjecture on conical flow structures and identifies a new flow configuration.

Core claim

By introducing a viscosity parameter to regularize the degenerate boundary and applying the continuity method, a piecewise smooth self-similar solution exists for the boundary value problem that models supersonic Chaplygin gas flow over a conical wing with Λ-shaped cross sections, provided the shock remains attached to the leading edge.

What carries the argument

Viscosity-regularized nonlinear mixed-type equation in conical coordinates, solved via the continuity method to obtain the attached-shock self-similar solution.

If this is right

  • The flow field consists of piecewise smooth regions separated by the attached shock wave.
  • Küchemann's conjecture on the conical flow structures for this wing type is partially verified.
  • A previously unrecognized conical flow field structure appears for the Λ-shaped cross section.
  • The solution applies directly to isentropic irrotational modeling of the entire flow past the Nonweiler-type wing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The viscosity-regularization-plus-continuity approach may extend to other degenerate mixed-type problems arising in compressible flow.
  • The identified new flow structure could be tested for stability under small perturbations to the wing angle or gas parameters.
  • Similar existence results might hold if the isentropic assumption is relaxed while keeping the attached-shock condition.

Load-bearing premise

The shock remains attached to the leading edge of the conical wing for the considered flow conditions and geometry.

What would settle it

A numerical simulation or physical experiment that produces shock detachment for the same wing geometry and incoming flow speed where the model predicts attachment would disprove the existence claim.

Figures

Figures reproduced from arXiv: 2603.10401 by Bingsong Long, Hairong Yuan, Minghong Han.

Figure 1
Figure 1. Figure 1: Nonweiler or caret wing. Contrary to the traditional aircraft design, where the flow fields and locations of the shocks are computed from given geometric configurations of the aircraft surface and the state of the incoming flow, waverider design involves inversely determining the geometric shape of the compression surface and the flow fields using a known supersonic incoming flow and the locations of shock… view at source ↗
Figure 2
Figure 2. Figure 2: A conical wing with Λ-shaped cross section [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: View of a conical wing from the x1–direction, where σ is the sweep angle [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: View of a conical wing from the x3–direction, where β is the anhedral angle. The incoming flow with uniform state U∞ = (ρ∞, q∞) (1.2) [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: View of a conical wing from the x2–direction, where α is the attack angle. is assumed to be supersonic, passing the wing Wβ σ with an attack angle α, where α ∈ (0, π/2) (see [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The case for β = 0. We recall that for the case β = 0, the pattern of shock waves was discussed in [25, Section 2.2], and [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Patterns of shock waves in the (ξ1, ξ2)-plane. We are in a position to consider the case β > βc. Note that the oblique shock S β ob is always tangent to the Mach cone C∞ at P β 1 , and this tangent point will move to the lower half-plane of ξ1Oξ2 once β > βc. Therefore, the attached shocks will intersect at a point P β 6 on the ξ1-axis before they are tangent to C∞. In this paper, we only study the case in… view at source ↗
Figure 8
Figure 8. Figure 8: Patterns of shock waves in the (ξ1, ξ2)-plane. Lemma 2.2. Let C∞, C β σ be defined as in (2.15)–(2.16) with β > βc. For any fixed α ∈ (0, α0) and σ ∈ (0, σ0], there exists an angle β0 satisfying β0 = min β {β = arcsin |OPβ 4 | |OPβ 6 | }, (2.26) so that the flow is uniform for β ∈ (βc, β0] in the domain U \ Ω, where P β 7 is the intersection point of C β ′ σ and ξ1-axis, while U and Ω respectively denote t… view at source ↗
Figure 9
Figure 9. Figure 9: Possible mixed flow regimes. For the Chaplygin gas, if the case (a) of [PITH_FULL_IMAGE:figures/full_fig_p026_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The possible structure for conical wing. flow is uniform determined by the oblique shocks Q0Q4, Q1Q4 and Q3Q4. Note that the flow in the domains II and III must be along the x3-axis; otherwise, the contact discontinuity Q2Q4 will be parallel to the compression surface of the conical wing. It is feasible to construct a particular solution that satisfies the above-mentioned structure by the shock polars for… view at source ↗
Figure 11
Figure 11. Figure 11: Patterns of shock waves for asymmetric wing. (a) β = βc (b) β = β a c [PITH_FULL_IMAGE:figures/full_fig_p028_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Patterns of shock waves for asymmetric wing. As discussed in [25, Section 2.2], we can obtain the global flow field structure in [PITH_FULL_IMAGE:figures/full_fig_p028_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Patterns of shock waves for asymmetric wing. resulting shocks that do not reach the wing W β σ,σˆ (see [PITH_FULL_IMAGE:figures/full_fig_p029_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Shock polar for a Chaplygin gas. It follows from [PITH_FULL_IMAGE:figures/full_fig_p030_14.png] view at source ↗
read the original abstract

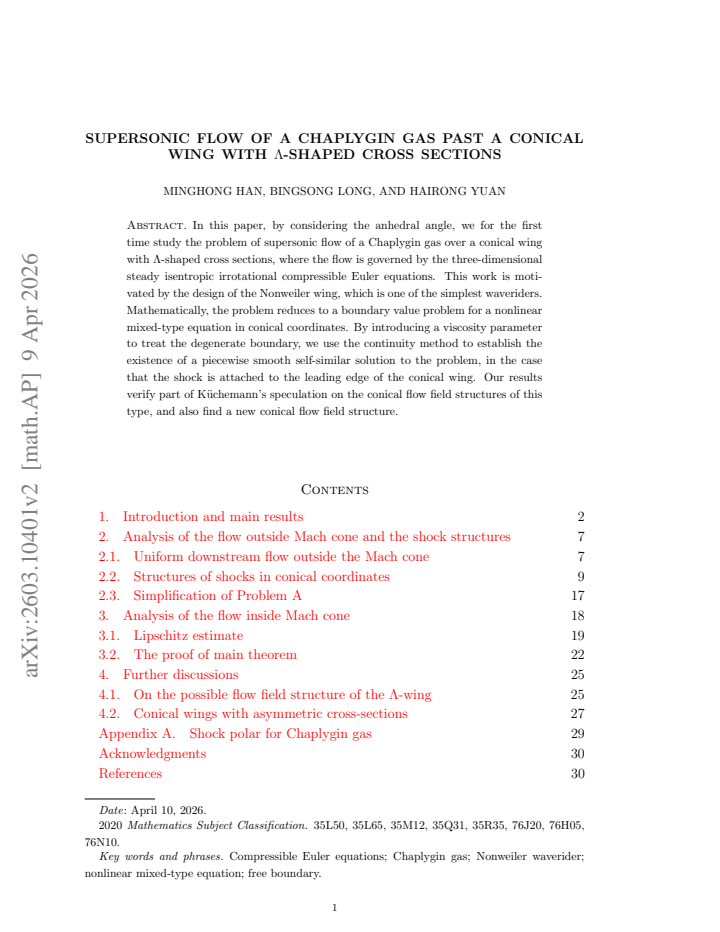

In this paper, by considering the anhedral angle, we for the first time study the problem of supersonic flow of a Chaplygin gas over a conical wing with $\Lambda$-shaped cross sections, where the flow is governed by the three-dimensional steady isentropic irrotational compressible Euler equations. This work is motivated by the design of the Nonweiler wing, which is one of the simplest waveriders. Mathematically, the problem reduces to a boundary value problem for a nonlinear mixed-type equation in conical coordinates. By introducing a viscosity parameter to treat the degenerate boundary, we use the continuity method to establish the existence of a piecewise smooth self-similar solution to the problem, in the case that the shock is attached to the leading edge of the conical wing. Our results verify part of K\"uchemann's speculation on the conical flow field structures of this type, and also find a new conical flow field structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper considers supersonic flow of a Chaplygin gas past a conical wing with Λ-shaped cross sections, governed by the 3D steady isentropic irrotational Euler equations. The problem reduces to a nonlinear mixed-type boundary-value problem in conical coordinates. By introducing a viscosity parameter to regularize the degenerate boundary and applying the continuity method, the authors establish existence of a piecewise smooth self-similar solution under the standing assumption that the shock remains attached to the leading edge. The results are claimed to verify part of Küchemann's speculation on conical flow structures and to identify a new structure.

Significance. If the existence result holds with the attached-shock condition preserved, the work supplies the first rigorous treatment of anhedral-angle effects for this waverider geometry in the Chaplygin-gas model. It extends classical conical-flow theory to a mixed-type equation with a free boundary (the attached shock) and provides a concrete existence theorem that can be compared with numerical simulations of Nonweiler-type wings.

major comments (2)
  1. [§4 and §5] §4 (a priori estimates) and §5 (continuity method): the maximum-principle and energy bounds on the velocity potential and its gradient are stated for fixed viscosity ε>0, but their dependence on the homotopy parameter λ is not shown to be uniform. Without a λ-independent upper bound on the flow deflection angle, the estimates do not preclude the sonic line or shock foot from migrating away from the leading edge as λ varies, so the limit solution may lie outside the attached-shock regime assumed in the statement of the theorem.
  2. [Theorem 1.1] Theorem 1.1 (main existence statement): the attached-shock condition is imposed a priori rather than recovered from the limit. The paper must therefore supply an explicit criterion (in terms of the anhedral angle and free-stream Mach number) guaranteeing that the constructed solution satisfies the attachment condition; no such quantitative criterion is derived from the estimates.
minor comments (2)
  1. [§2] The notation for the conical coordinates (r,θ,φ) and the reduced potential φ̂ should be introduced once in §2 and used consistently; several later equations revert to Cartesian components without redefinition.
  2. [Figure 2] Figure 2 (schematic of the Λ-wing and attached shock) lacks a scale or non-dimensionalization statement; the reader cannot immediately relate the plotted angles to the parameters appearing in the boundary conditions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address the major comments point by point below, indicating the revisions we will make.

read point-by-point responses

  1. Referee: [§4 and §5] §4 (a priori estimates) and §5 (continuity method): the maximum-principle and energy bounds on the velocity potential and its gradient are stated for fixed viscosity ε>0, but their dependence on the homotopy parameter λ is not shown to be uniform. Without a λ-independent upper bound on the flow deflection angle, the estimates do not preclude the sonic line or shock foot from migrating away from the leading edge as λ varies, so the limit solution may lie outside the attached-shock regime assumed in the statement of the theorem.

    Authors: We agree that the dependence of the estimates on the homotopy parameter λ must be addressed explicitly to close the continuity argument. In the revised version we will derive λ-independent bounds in §4 by combining the maximum principle for the potential with energy estimates that use the explicit form of the Chaplygin pressure law and the conical symmetry; these bounds will control the flow deflection angle uniformly for all λ ∈ [0,1]. Section 5 will then be updated to invoke the uniform estimates, ensuring that the sonic line and shock foot cannot migrate and that the limit solution remains in the attached-shock regime. revision: yes

  2. Referee: [Theorem 1.1] Theorem 1.1 (main existence statement): the attached-shock condition is imposed a priori rather than recovered from the limit. The paper must therefore supply an explicit criterion (in terms of the anhedral angle and free-stream Mach number) guaranteeing that the constructed solution satisfies the attachment condition; no such quantitative criterion is derived from the estimates.

    Authors: The theorem is formulated under the standing assumption of shock attachment, which is stated clearly in the problem setup and the theorem itself. While an explicit quantitative criterion relating anhedral angle and Mach number would be valuable for applications, obtaining it would require a separate, technically involved analysis of the free-boundary shock position that goes beyond the existence proof via the continuity method. We therefore maintain the conditional statement of the theorem. In the revision we will add a brief remark in the introduction and after Theorem 1.1 indicating the parameter ranges (small anhedral angle, sufficiently high Mach number) in which attachment is physically expected, without claiming a rigorous criterion. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the existence proof

full rationale

The paper reduces the supersonic flow problem to a mixed-type nonlinear PDE in conical coordinates and proves existence of a piecewise smooth self-similar solution by introducing a viscosity parameter to regularize the degenerate boundary followed by a continuity-method argument. This is a standard application of classical PDE techniques (viscosity approximation plus homotopy) under the explicit standing assumption of attached shock; the derivation does not reduce any central claim to a fitted parameter, self-citation chain, or definitional equivalence. No load-bearing step is shown to be equivalent to its own inputs by construction, and the argument remains self-contained against external mathematical benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The existence claim rests on the standard compressible Euler equations, the Chaplygin equation of state, and the attached-shock boundary condition; no free parameters are fitted and no new entities are postulated.

axioms (2)
  • domain assumption The flow is governed by the three-dimensional steady isentropic irrotational compressible Euler equations
    Invoked in the abstract as the governing system.
  • domain assumption Chaplygin gas equation of state is an appropriate model
    Chosen to simplify the thermodynamics while retaining compressibility effects.
